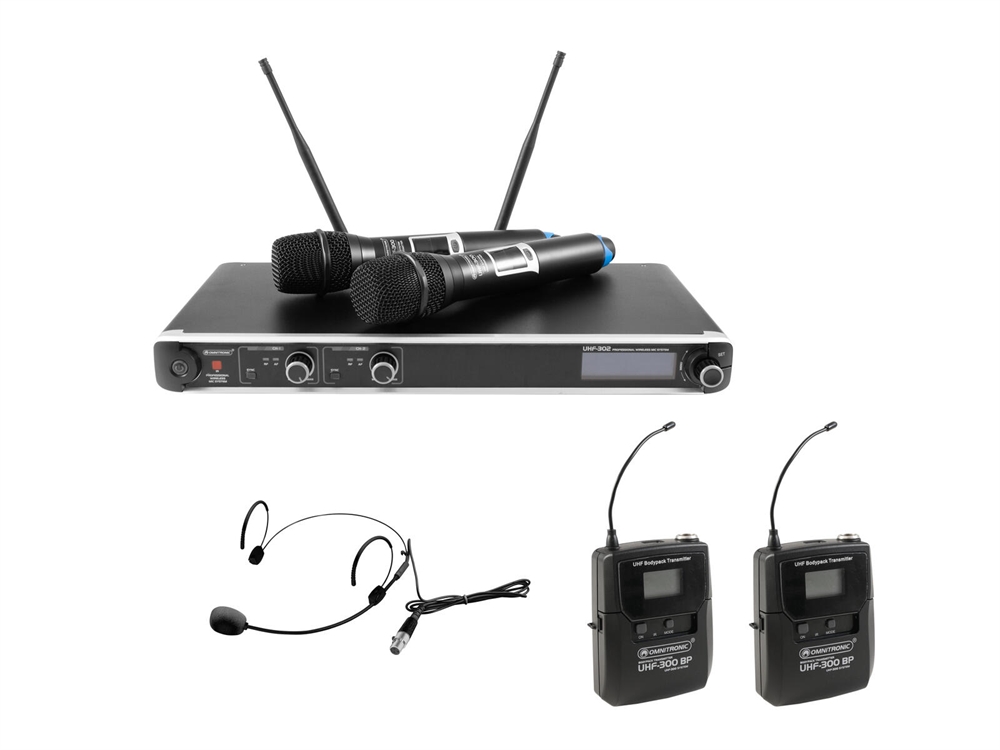

OMNITRONIC UHF-302 2-channel Wireless Mic System 823-832/863-865MHz
2-channel UHF PLL microphone system
- 2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
- 93 preset channels in 10 channel groups
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LEDs for carrier and audio signal
- 2 separate channels with volume controls
- Balanced XLR output per channel
- Detachable BNC antennas
- 2 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
- Operating range up to 60m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels
receiver
- (19") 48.3 cm rack installation possible 1 U
- LCD display
- Desktop console housing
microphone
- Polar pattern: Cardioid
- LCD display
- Charge status indicator
OMNITRONIC UHF-300 Headset Microphone black
Headset microphone for UHF-300 bodypack transmitter
- Low weight
- With gooseneck-microphone boom for exact positioning of the microphone capsule
- Provides high-quality voice pickup for applications requiring hands-free operation, such as aerobics or percussion
- Polar pattern: Cardioid
- For application areas such as: Clubs/dancing school; sports centres/gyms
OMNITRONIC UHF-300 Bodypack 823-832/863-865MHz
Bodypack transmitter for UHF-300 receivers
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Gain level adjustable in 4 steps
- Operating range up to 60m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- LCD display
- Charge status indicator
- For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels
Scope of delivery
1 x OMNITRONIC UHF-302 2-channel Wireless Mic System 823-832/863-865MHz
- 1 x receiver
- 2 x antenna
- 1 x external mains adapter
- 2 x microphone
- 1 x jack cable
- 2 x holder
- 2 x mounting bracket
- 4 x screw
- 1 x user manual
- 1 x declaration of conformity
1 x OMNITRONIC UHF-300 Headset Microphone black
- 1 x microphone
- 1 x windshield
- 1 x user manual
2 x OMNITRONIC UHF-300 Bodypack 823-832/863-865MHz
- 1 x transmitter
- 1 x user manual
- 1 x declaration of conformity
| Weight: | 3.22 kg |
| OMNITRONIC UHF-302 2-channel Wireless Mic System 823-832/863-865MHz | |
| Type: | Wireless set |
| IP classification: | IP20 |
| Range: | Range up to 60m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency stability: | ± |
| Modulation: | FM; PLL technology |
| Frequency selection: | 93 switchable frequencies |
| Weight: | 2.30 kg |
| Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 14V DC 350 mA |
| Power consumption: | 4 W |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 50 - 18.000 Hz |
| S/N ratio: | >80 dB |
| THD: | <0.5 % at 1 kHz |
| Display type: | LCD display |
| Display: | Channel , frequency , goup |
| Control elements: | Power switch, level control, encoder |
| Connections: | Input: antenna via 2 x BNC (F) Output: line via 1 x 6.3 mm plug (unbal.) Output: microphone via 2 x 3-pin XLR |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 41 cm Depth: 23.5 cm Height: 4.7 cm |
| Microphone | |
| Type: | Hand-held transmitter |
| Power supply: | 3V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| RF power output: | 10 mW |
| Display type: | LCD display |
| Display: | Frequency , charge status indicator |
| Switch: | On/off switch |
| Material: | Plastic |
| Dimensions: | Length: 25 cm Diameter: Ø 5.2 cm |
| Weight: | 0.23 kg |
| OMNITRONIC UHF-300 Headset Microphone black | |
| Type: | Headset microphone |
| Power supply: | 1.5-10V DC |
| Power connection: | Mains input via Mini XLR (F) 3-pin |
| Cable length: | 1.00 m |
| Capsule type: | Condenser |
| Polar pattern: | Cardioid |
| Frequency range: | 20 - 20000 Hz |
| Sensitivity: | -53 dB |
| Impedance: | 680 Ohm |
| Connector type: | Mini XLR (F) 3-pin |
| Material: | Metal |
| Color: | Black |
| Weight: | 0.03 kg |
| OMNITRONIC UHF-300 Bodypack 823-832/863-865MHz | |
| Type: | Pocket transmitter |
| Power supply: | 3V DC |
| Power connection: | Battery/battery pack |
| Battery: | 2 x Mignon (AA) (not included) |
| Range: | Range up to 60m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| RF power output: | 10 mW |
| Frequency selection: | Switchable frequencies |
| Connector type: | Mini XLR (M) 3-pin mounting version |
| Display type: | LCD display |
| Display: | Charge status indicator , frequency |
| Switch: | On/off switch; mute control |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6 cm Depth: 2.3 cm Height: 8.5 cm |
| Weight: | 0.07 kg |
