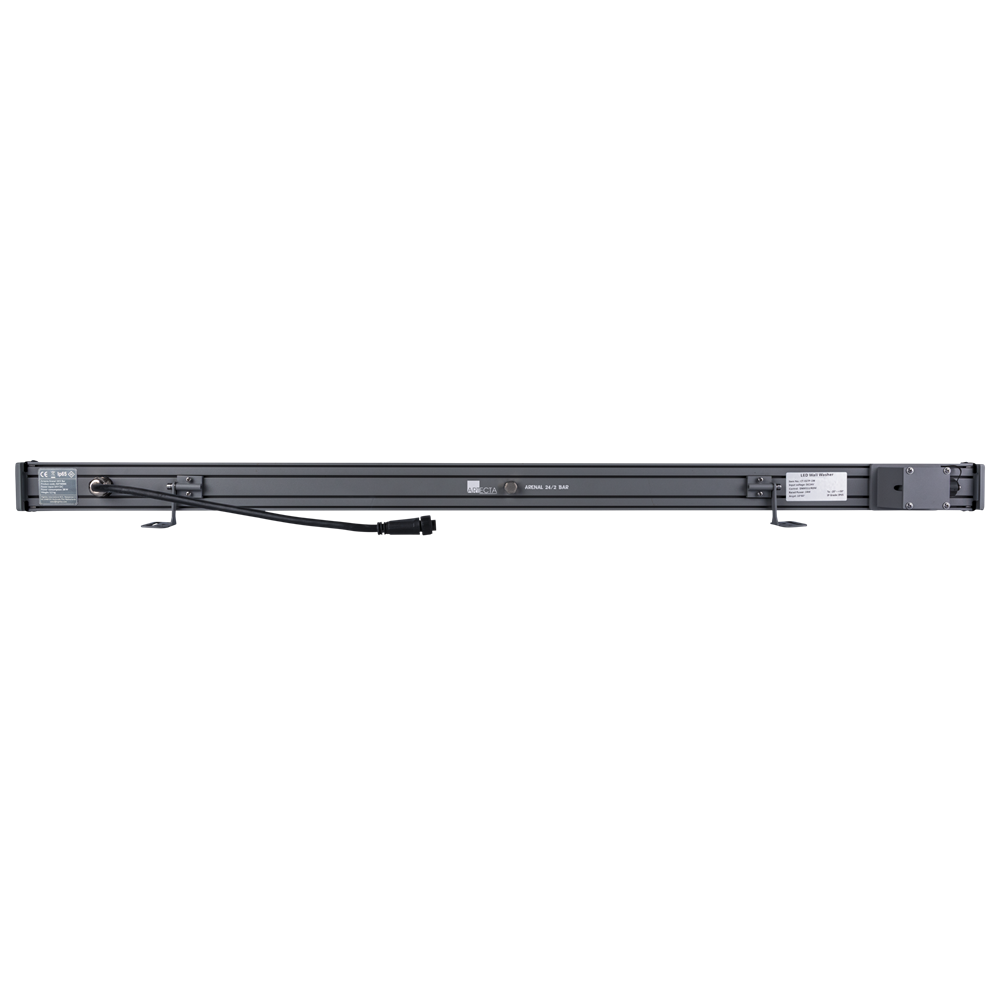

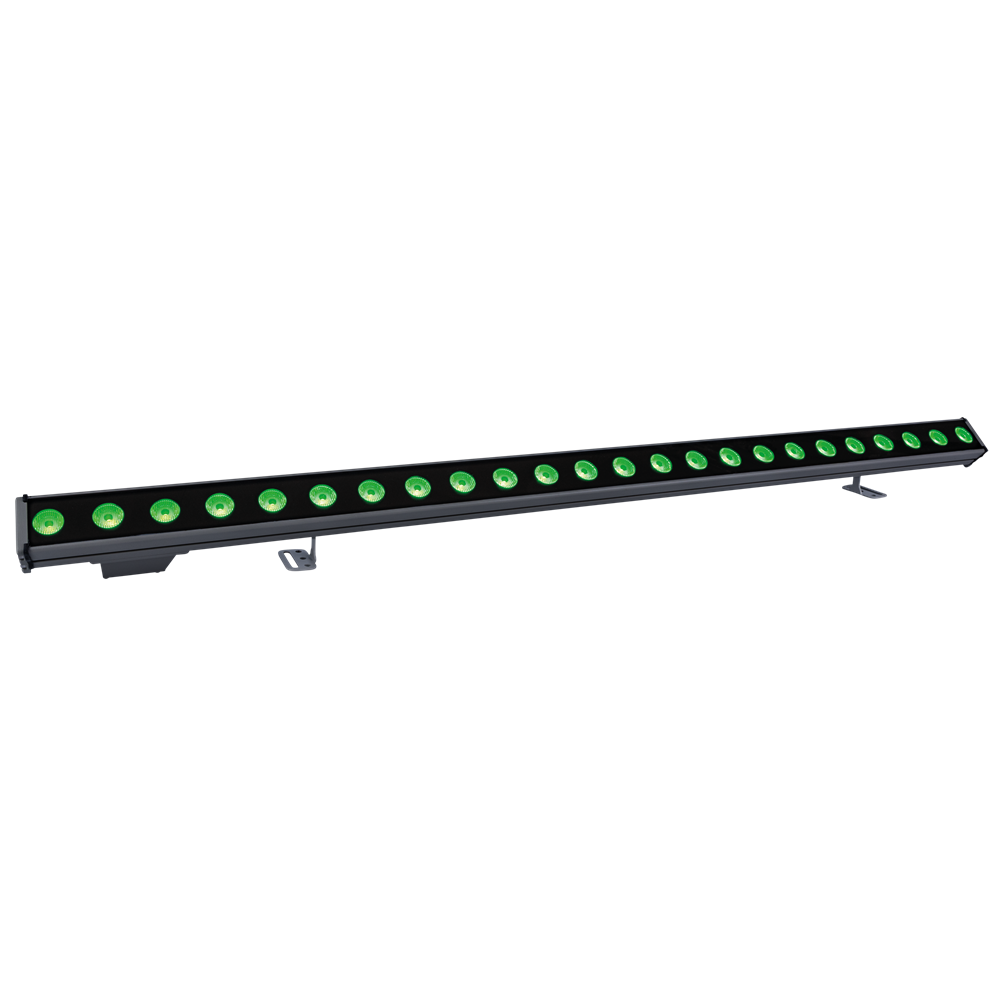

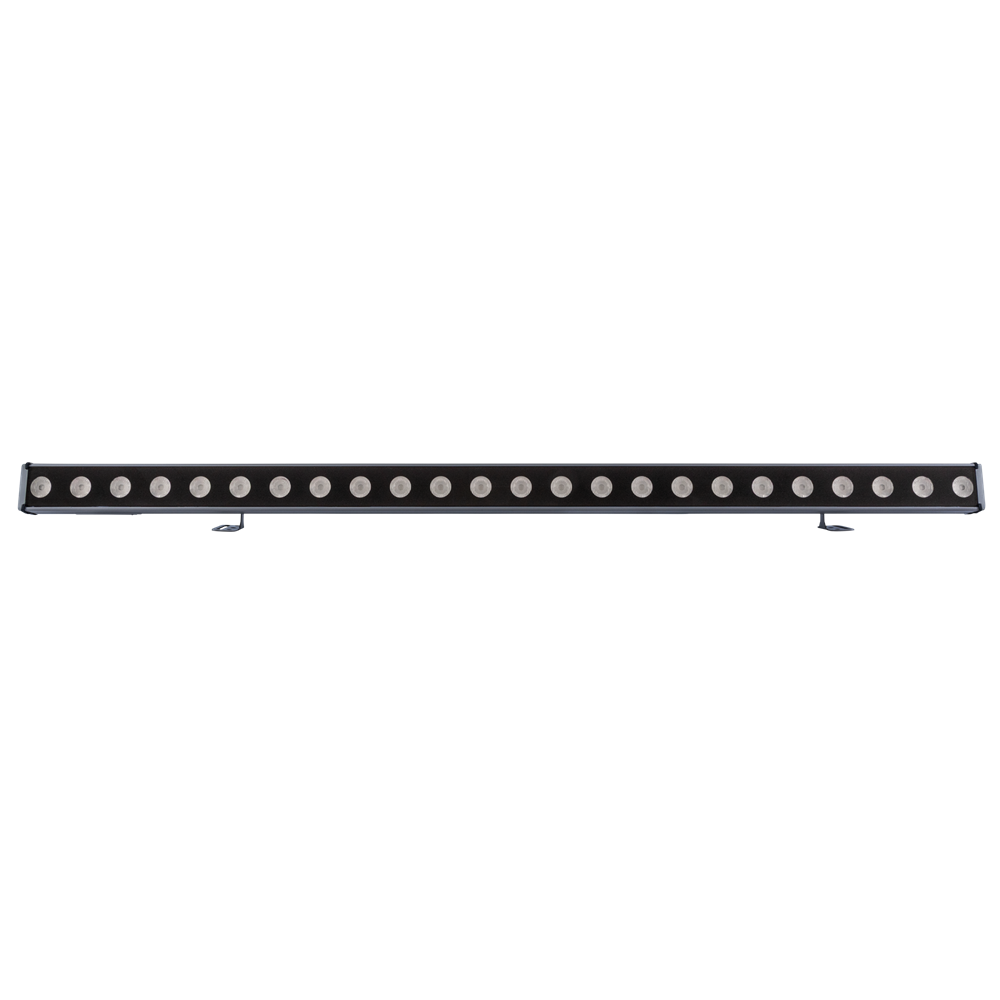

The Arenal 24/2 Bar is an RGB Warm White pixel bar with RDM support. Powered by an external 24V power supply, multiple fixtures can be connected together using FLEX cables. With an IP65 rating, it's ideal for illuminating outdoor areas including buildings and gardens.
Light Source Type: LED
Light Source Quantity: 24
Light Source Power: 2 W
LED Colour Type: R / G / B / WW
Beam Angle (Horizontal): 10°
Beam Angle (Vertical): 60°
Control Mode: DMX / RDM
DMX Channels: 4 / 7 / 32 / 35
Protocols: DMX / RDM
Dimmer: 0-100 %
Power Consumption: 28 W
Cooling: Convection
Power Connector Out: FLEX & IP Pixelstrip Connector Female
DMX Connector Out: FLEX & IP Pixelstrip Connector Female
Length (mm): 1000 mm
Width (mm): 50 mm
Height (mm): 73 mm
Weight: 2.23 kg
IP Rating: IP65
Housing: Aluminium
Colour: Dark Grey
Maximum Ambient Temperature: 40 °C
Minimum Operating Temperature: -5 °C

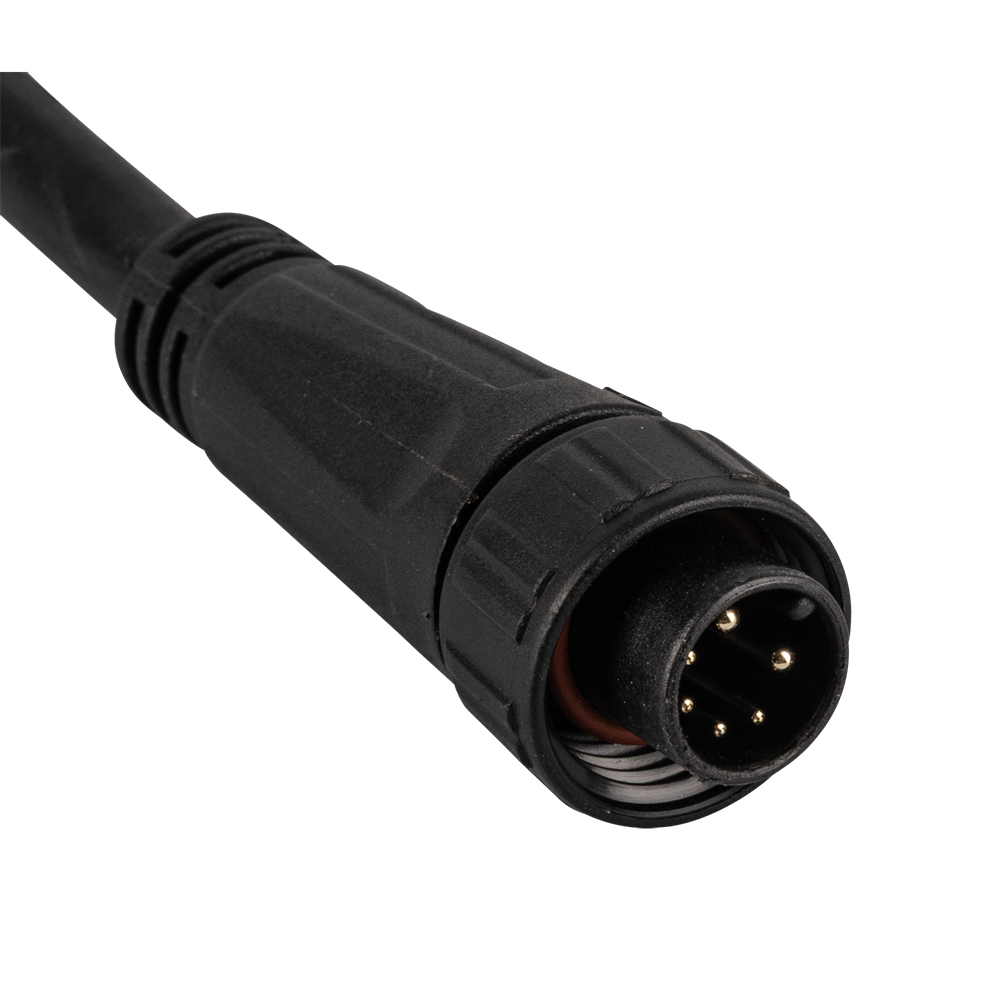

Included Cables: FLEX & IP Pixelstrip Cable Male – Loose wires / FLEX & IP Pixelstrip Cable Female – Loose wires
