Cone tweeter - HT-22/8 - MONACOR

• Fjernlager
• På lager, 2-4 Hverdage
• Bedømmelse for Cone tweeter - HT-22/8 - MONACOR

  Produktet er endnu ikke bedømt

•
  109,00DKK ved 1 stk.

Vis uden moms

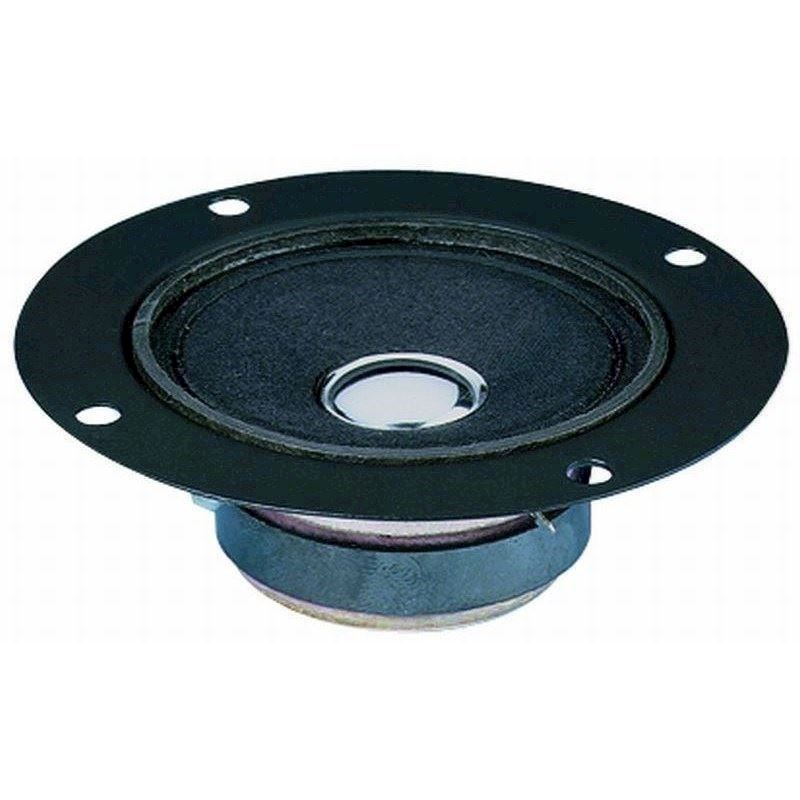

Cone tweeter, 10 W, 8 Ω

• Classic tweeter for hi-fi, car hi-fi and for replacement purposes

Klang+Ton 02/2012
"The unit at the most favourable price was the surprise in the test ... provides the most balanced frequency response in front of the microphone ... very attractive price, to be used without any problems, offers best measured values."

Klang+Ton 02/2018
"Quite respectable. [...] considering the modest use of material, a remarkable performance. (SP-13/4 and HT-22/8 in the Cheap Trick 296 of Klang+Ton)



Impedance (Z)	8 Ω
Transmission method	-

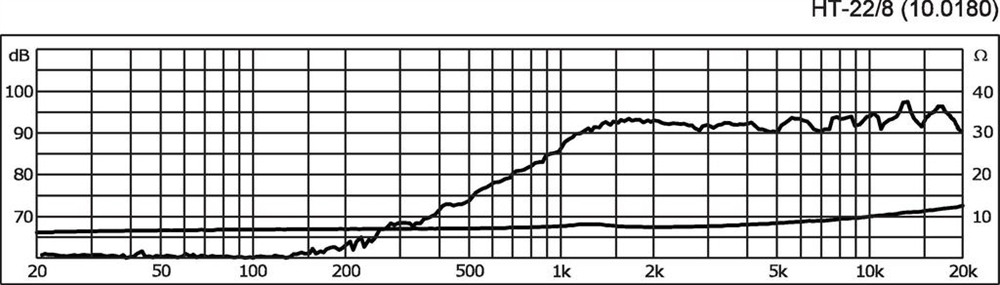

Frequency range	fx-19,000 Hz
Resonant frequency (fs)	1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	2,500 Hz
Power rating	10 W
Peak music power output	20 W
Sensitivity	91 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	Ø 12 mm
Voice coil former	-
Linear excursion (XMAX)	-
Eff. cone area (Sd)	-
Magnet weight	-

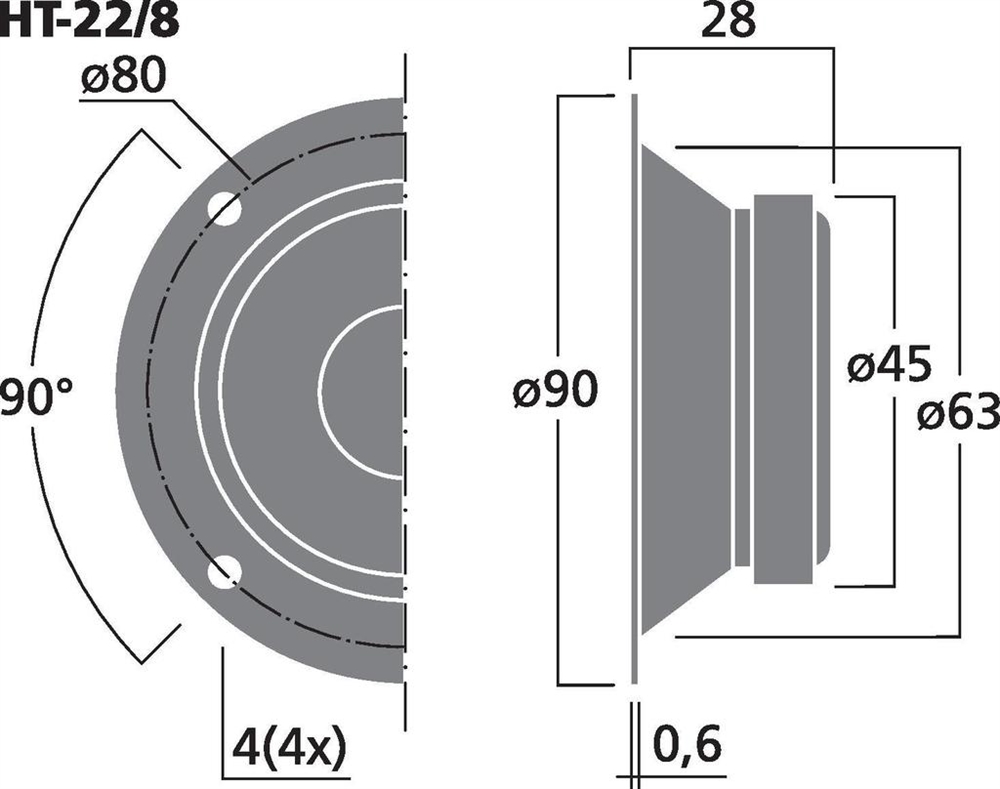

Magnet diameter	Ø 45 mm
Mounting cutout	Ø 63 mm
Mounting depth	27.4 mm
Mounting hole diameter	Ø 80 mm
Hole spacing X-axis	56 mm
Hole spacing Y-axis	56 mm
Dimensions	Ø 90 mm x 28 mm
Outside diameter	Ø 90 mm
Width	Ø 90 mm
Height	-
Depth	28 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.14 kg
Packing unit	1
Type of speaker	2"

Varenr.: 100180
