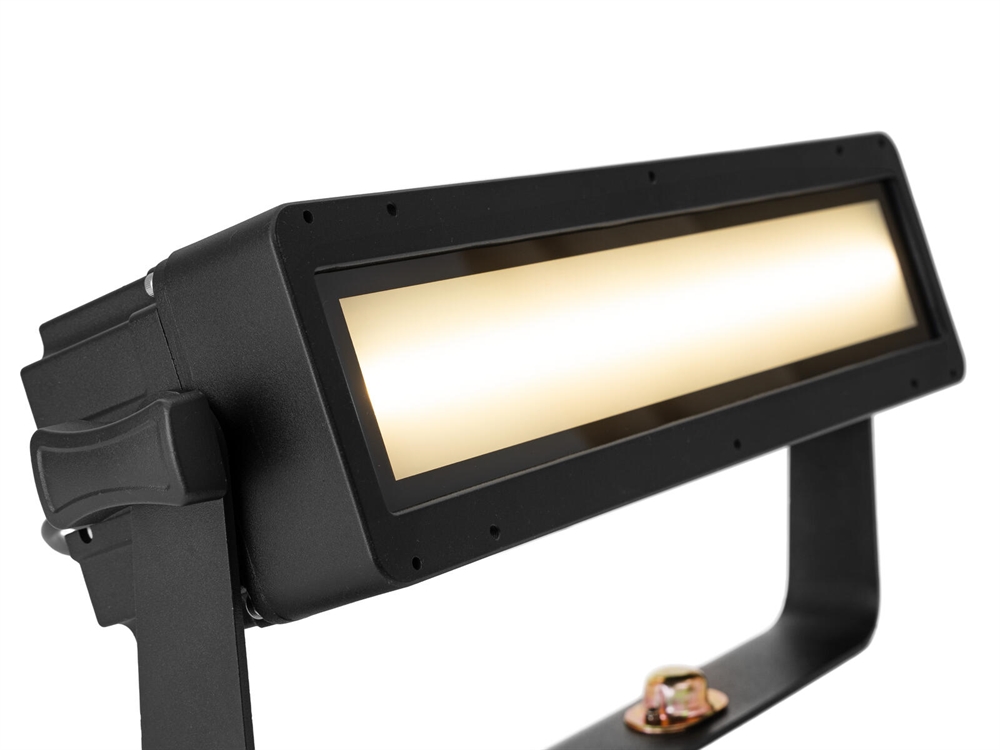

EUROLITE LED IP PIX Strobe FROST

Linkable outdoor spotlight (IP65) with stepless electronic frost for stroboscope, ambient and animation effects

240 LEDs 0.5 W SMD 5050 3in1 TCL RGB
8 segments controlled separately
40 LEDs 1 W SMD 3030 2in1 BCL CW/WW
4 segments controlled separately
Integrated mounting system for toolfree and seemless cluster setups
Wash effect; strobe effect
Frost filter electronic stepless; Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; running light adjustable; color animations with two adjustable colors
20 integrated show programs
Variable color temperature 3200 K - 6600 K
Direct color temperature selection for 35 preset values
Control via stand-alone; sound to light via microphone; master/slave function; DMX
DMX fail mode (blackout; hold; auto; manual)
With a beam angle of 120°
Good color rendering index (CRI)
Monochrome OLED display
With mounting bracket; with omega bracket
Built with SEETRONIC connector
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; rental; architecture
The device is cooled by passive convection cooling
Silent operation
Application possibility: Suspended; on stand
Preprogrammed in Light Captain
IP65
With pressure compensation membrane
Mains input and output for power linking up to 8 units

Scope of delivery

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	180 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input power supply cord with safety plug
Power output:	1 x IP T-Con (F) mounting version
Lamp type:	LED lamp
LED type:	240 x 0.5 W SMD 5050 3in1 TCL RGB 40 x 1 W SMD 3030 2in1 BCL CW/WW
Flash rate:	1 - 25 Hz
DMX channels:	7; 11; 19; 25; 26; 32; 33; 35
DMX input:	1 x 3-pin XLR (M) mounting version IP
DMX output:	1 x 3-pin XLR (F) mounting version IP
Cooling:	Passive convection cooling
Control:	Stand-alone; sound to light via microphone; master/slave function; DMX
Preprogrammed in:	Light Captain
PWM frequency:	4000 Hz
DMX fail mode:	Blackout; hold; auto; manual
Beam angle:	120°
Beam angle (1/2 peak):	120° multicolor
Color temperature:	3200K - 6600K adjustable
Color rendering index (CRI):	80 Ra
Lamp life:	50000 h
Distance to wall:	500 mm
Housing color:	Black matte
Attachment system:	Ø 12mm Mounting bracket Ø 12mm Omega bracket
Display type:	1 x monochrome OLED display
Use of brands:	Built with SEETRONIC connector
Dimensions:	Length: 38 cm Width: 10.8 cm Height: 17.65 cm
Weight:	3.70 kg
Noise classification:	Class 0 (no noise at all)
Mounting bracket
Diameter mounting holes:	1 x Ø12mm
Material:	Metal, painted
Power cord
Cable construction:	3 x 1.5 mm² H07RN-F
Cable length:	Approx. 1.2 m
Omega bracket
Material:	Metal, painted
Device
Material:	Metal, painted
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Varenr.: E-52200937
