230 W cold‑white LED (6000 K) with CRI 90
Colour wheel with 6000 K, 4200 K, 3200 K, lavender, amber and pink
Motorised iris with DMX control
Manual zoom from 8° to 32°
DMX512 with merge function + dedicated controller included

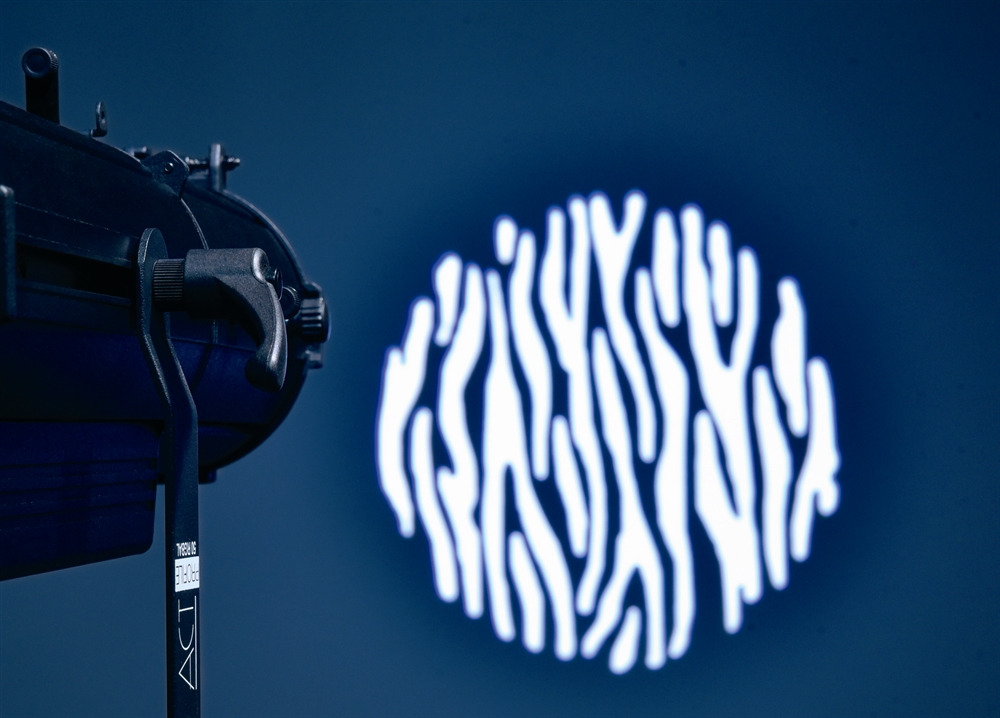

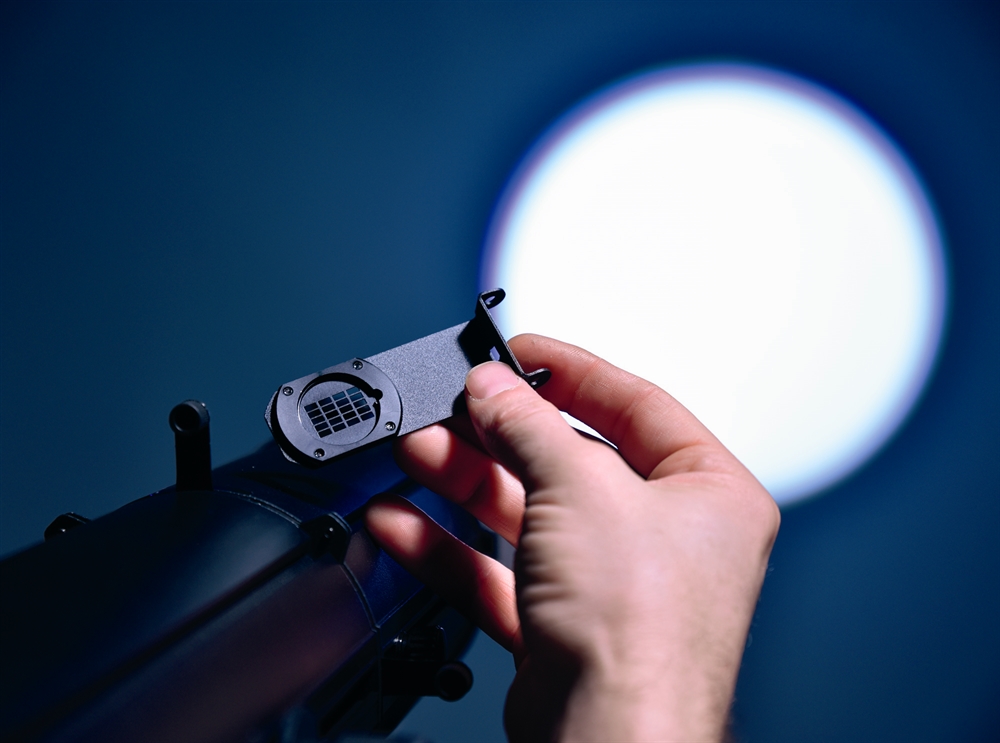

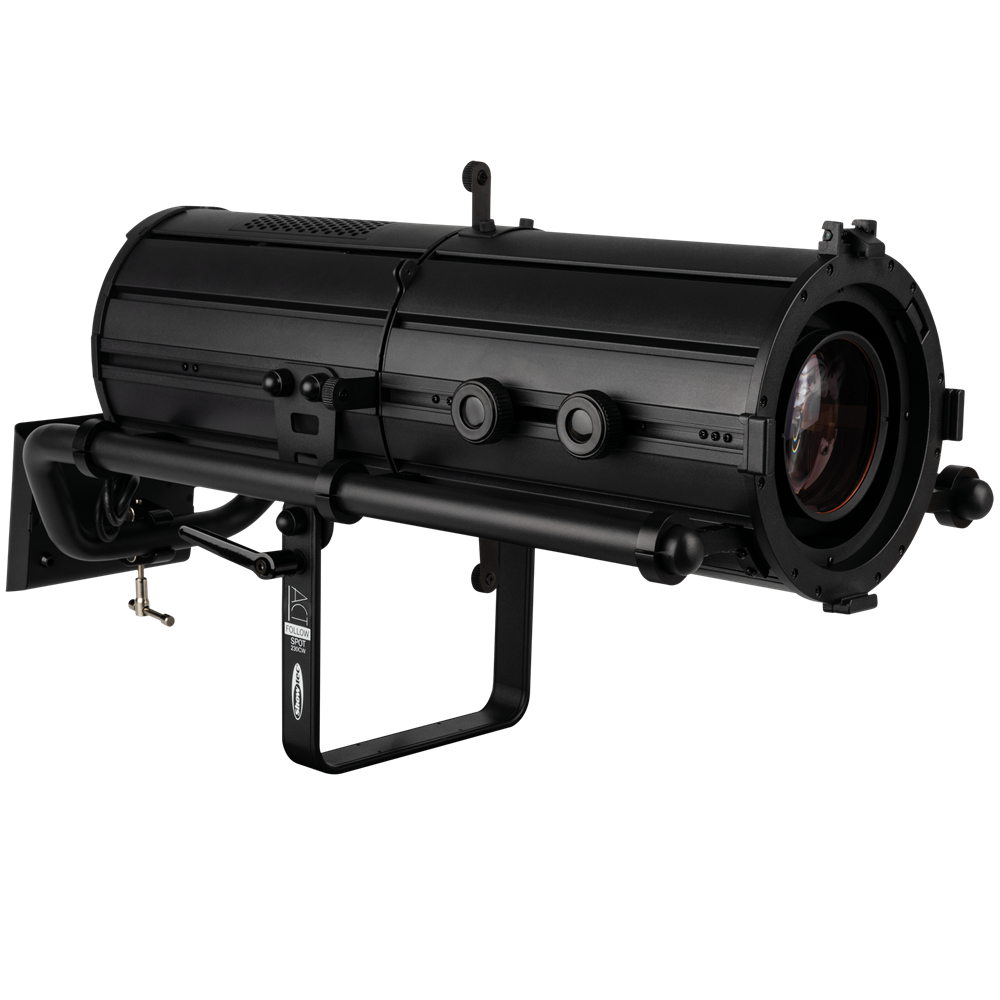

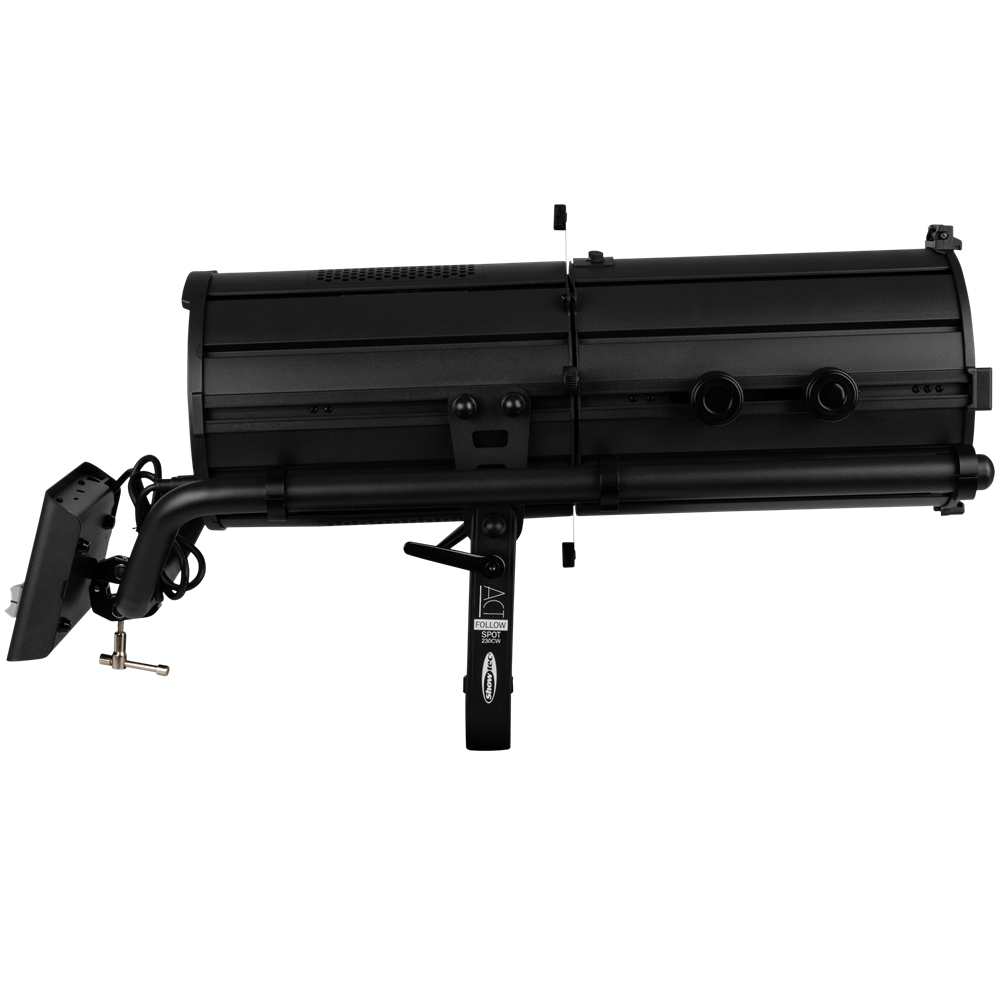

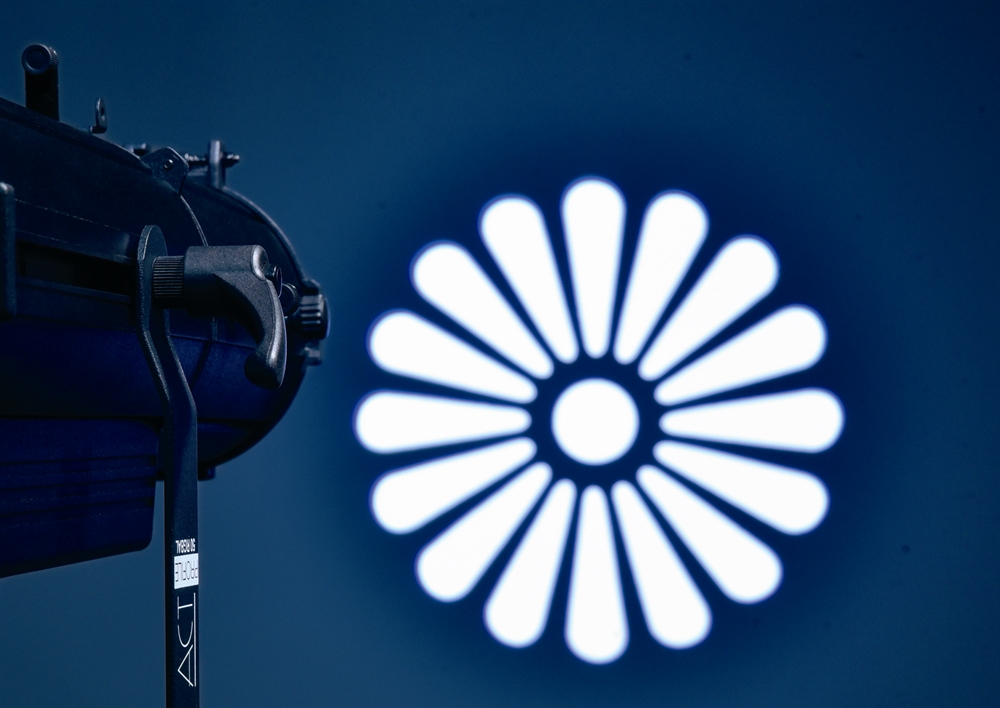

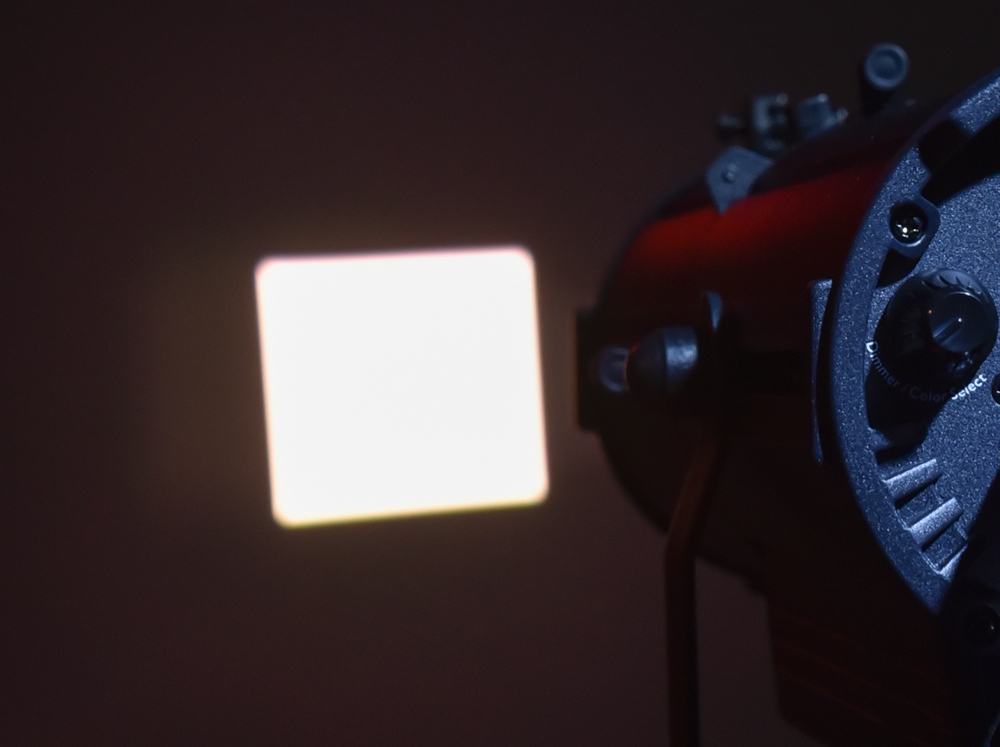

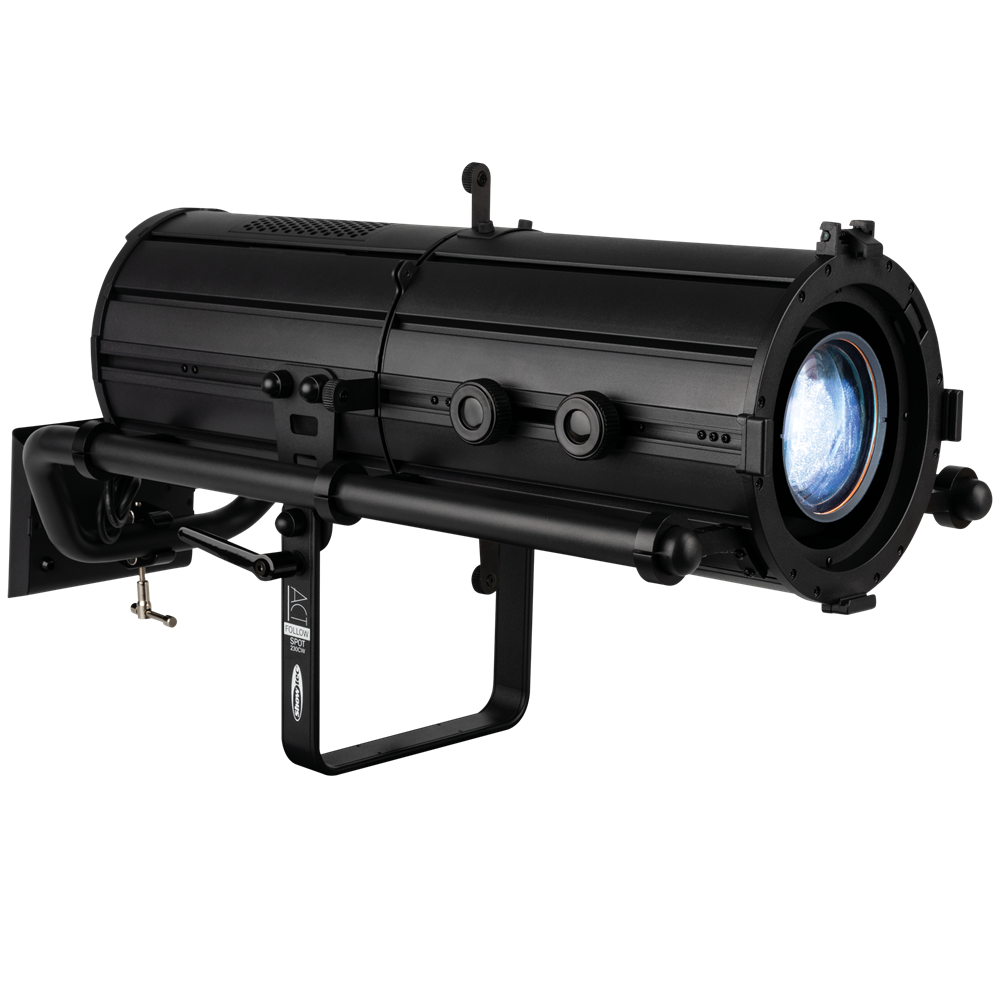

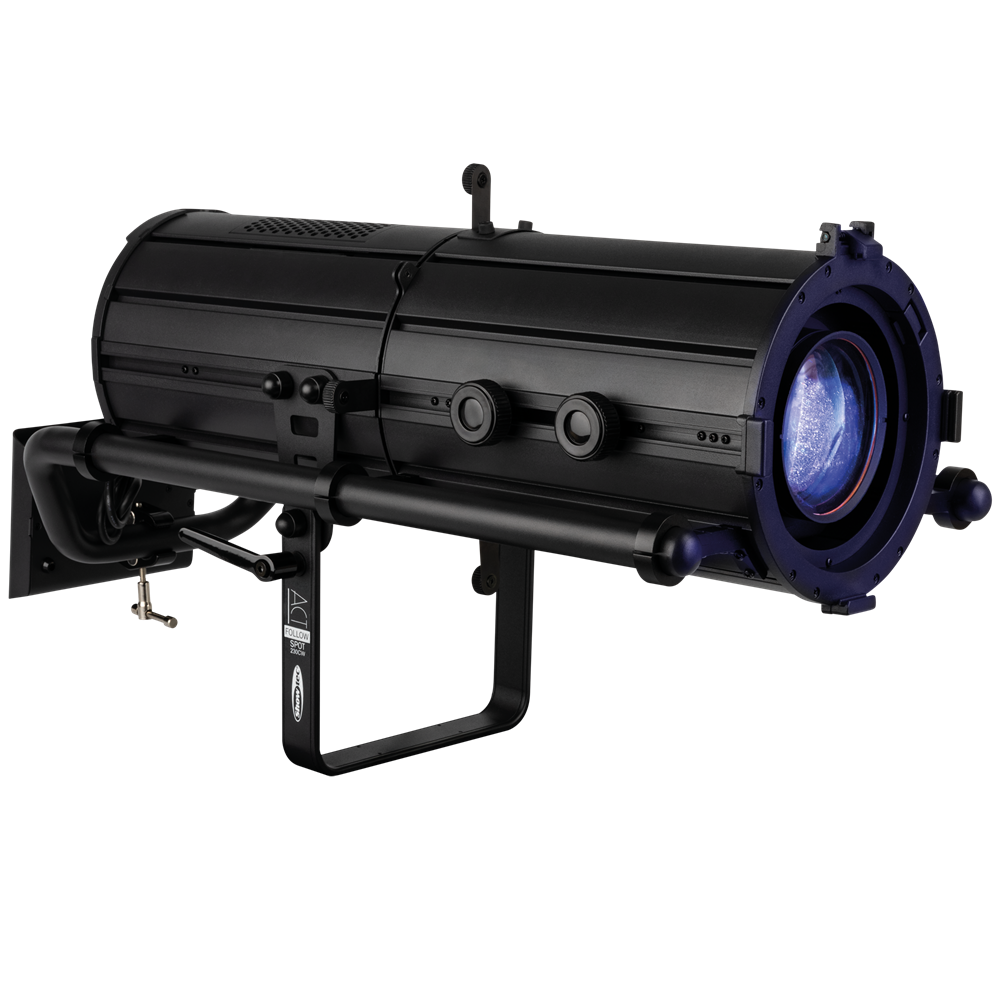

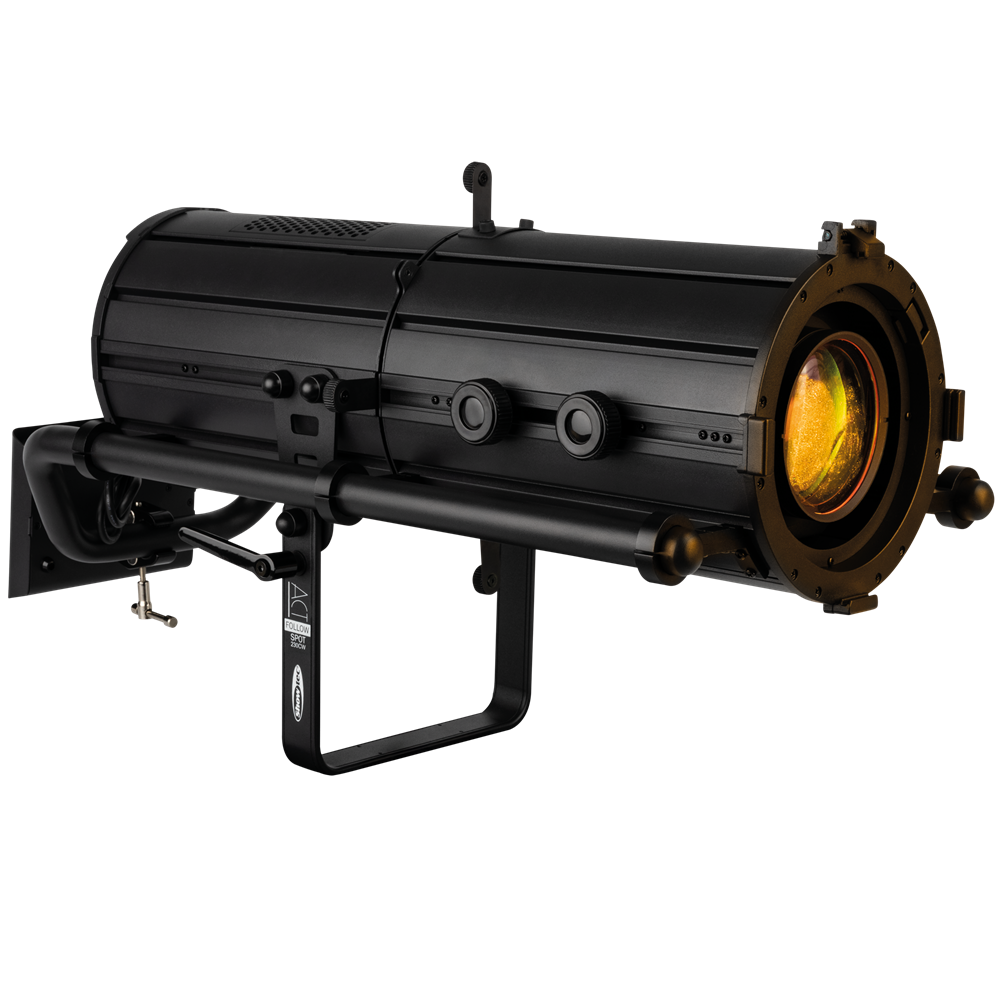

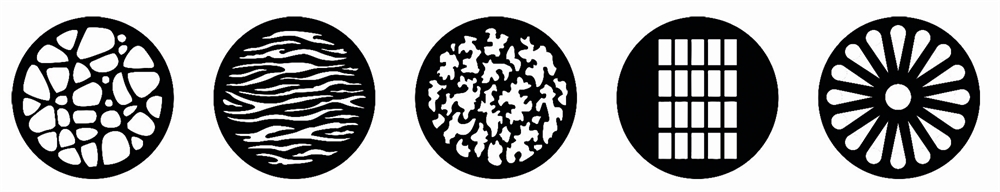

The Showtec ACT Follow Spot 230 CW is a compact and powerful LED follow spot equipped with a 230 W cold‑white LED engine (6000 K). It features an internal colour wheel offering a choice of 4200 K, 3200 K, lavender, amber and pink, or open white for maximum output. The fixture includes a motorised iris, as well as dimmer and strobe functions, all controllable via DMX or a dedicated panel. The manual zoom (8°–32°), manual focus, and manual shutters provide full control over beam shape and size, while a gobo slot adds creative flexibility for marking, framing or pattern projection. A clear OLED display on the unit makes setup and configuration straightforward.

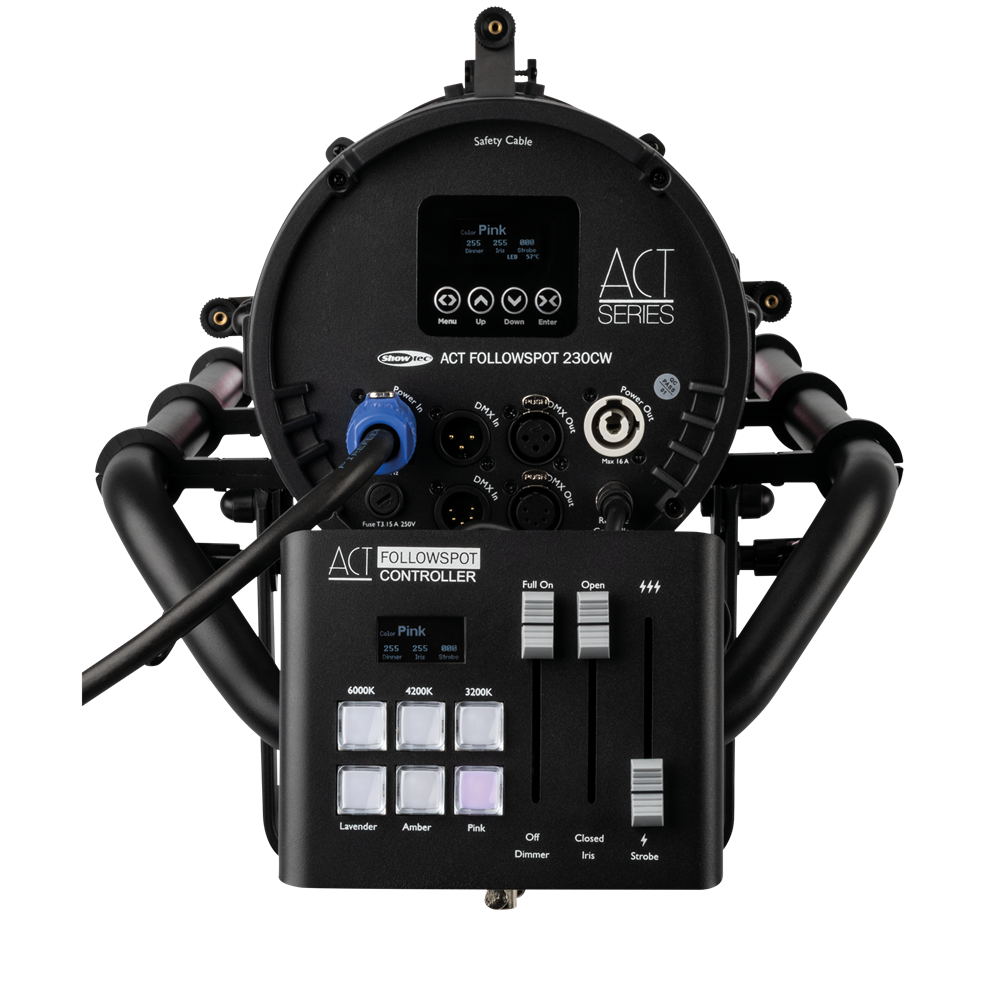

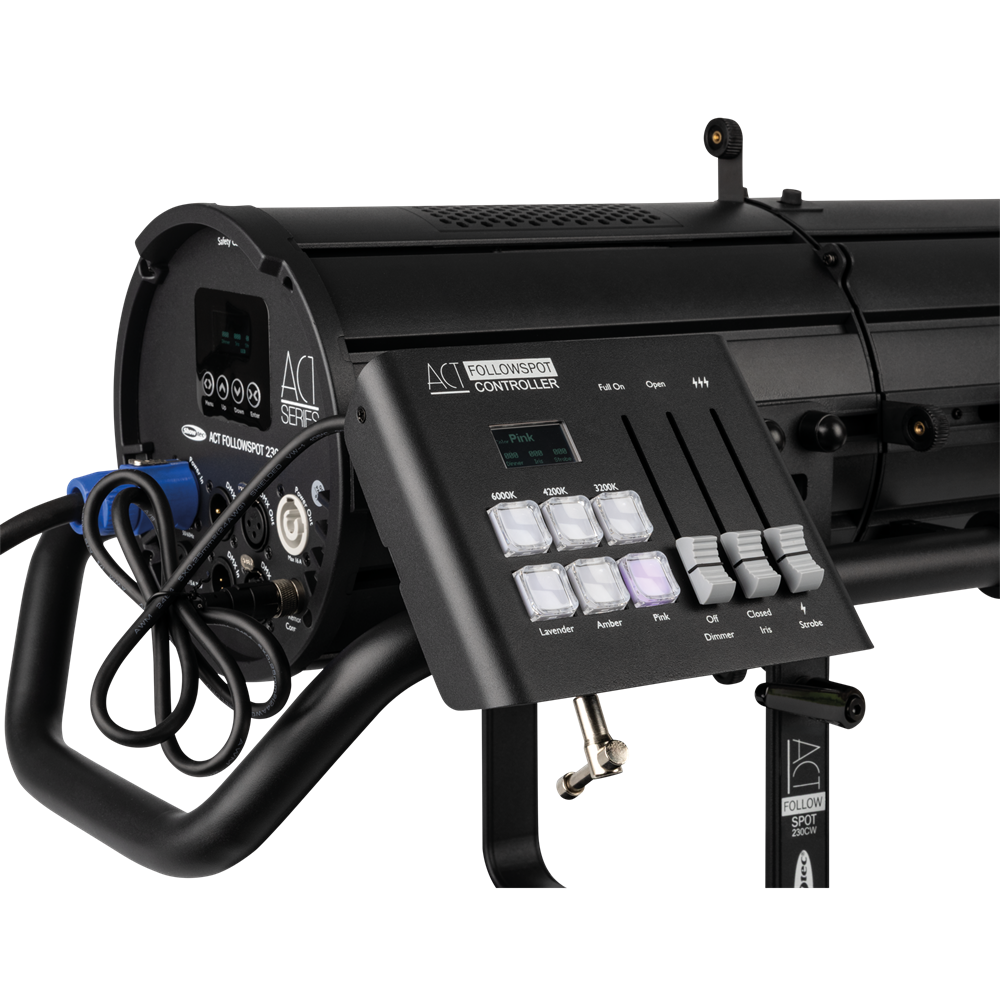

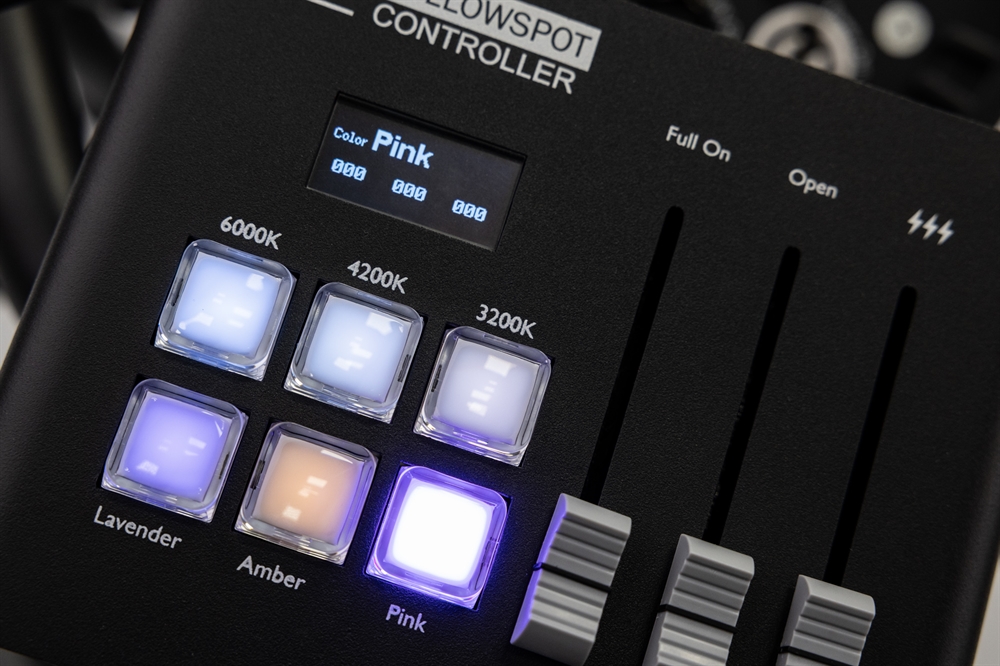

The dedicated control panel is included and offers six direct‑access colour buttons and three faders for dimmer, iris and strobe. The controller can be mounted on the side or the back of the unit using the supplied metal clamp. The fixture also provides DMX in/out with merge, allowing control from both a lighting desk and the included panel at the same time–ideal for situations where the lighting operator needs both local and desk‑based control.
Light Source Type: LED
Light Source Quantity: 1
Light Source Power: 230 W
LED Colour Type: CW
Refresh Rate: 1000 Hz
Illuminance @ 2 m: 6608 lx
Illuminance @ 3 m: 2937 lx
Illuminance @ 5 m: 1057 lx
Luminous Flux (Total): 6513 lm
CRI: 90
CCT: 6000 K
Beam Angle Minimum (Circular): 8.3°
Beam Angle Maximum (Circular): 32.4°
Zoom Type: Manual
Zoom Minimum: 8°
Zoom Maximum: 32°
Iris: Motorised
Control Mode: DMX / Manual
DMX Channels: 4 / 5
Protocols: DMX / RDM
Display: OLED
Display Size: 1.3"
Dim Curve: Square / I-Square / S-Curve
Dimmer Resolution: 16 bit
Dimmer: 0-100 %
Strobe: 0-15 Hz
Colour System: Colour Wheel
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 230 W
Fuse: 3.15 A
Power Connector In: Power Pro Blue
Power Connector Out: powerCON Grey
DMX Connector: XLR 3P In/Out / XLR 5P In/Out
Length (mm): 609 mm
Width (mm): 297 mm
Height (mm): 364 mm
Weight: 12.7 kg
IP Rating: IP20 (indoor use only)
Housing: Aluminium
Colour: Black
Cooling: Forced Convection
Maximum Ambient Temperature: 45 °C
Minimum Operating Temperature: 0 °C
Included Cables: Power Pro Cable
Included Accessories: Clamp / Controller / Gobo Holder
