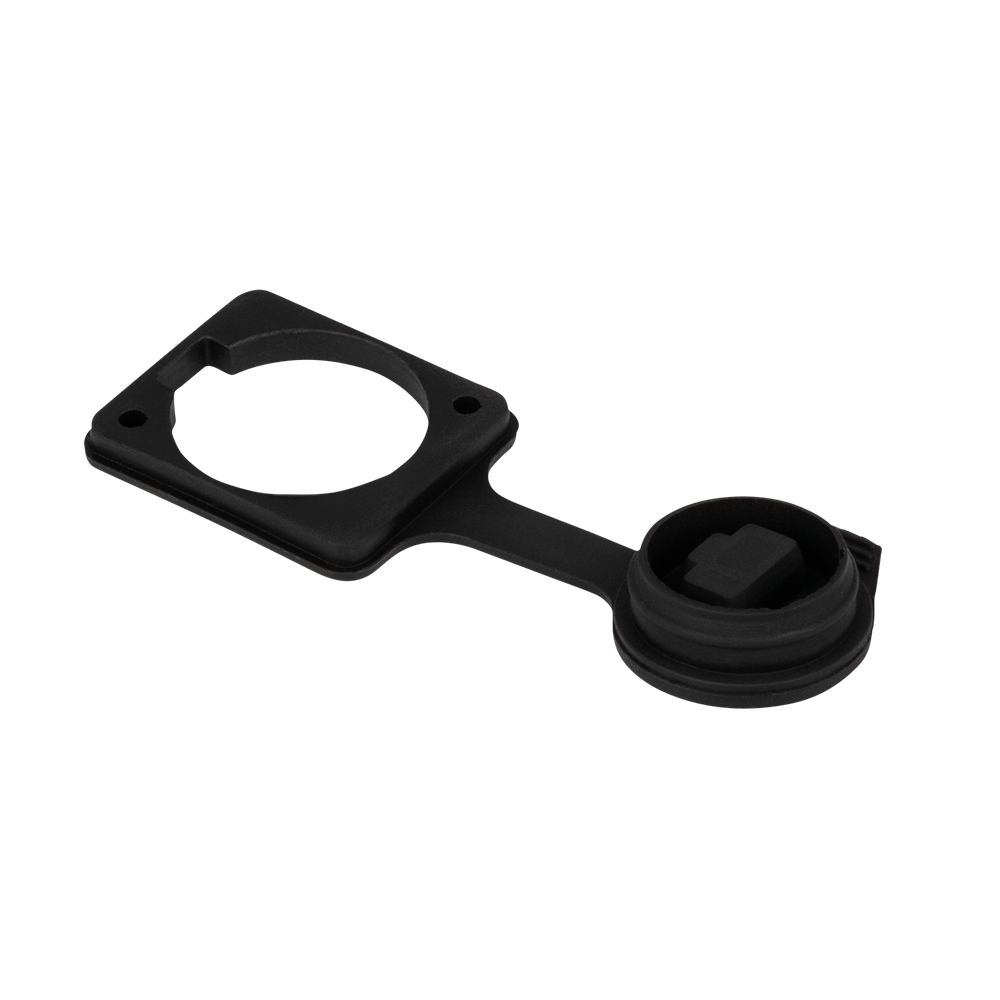

IP65-rated when used with waterproof cover
Complies with CAT6A and PoE++ (IEEE 802.3bt)
Durable black-plated all-metal housing for superior shielding
Standard D-size design for easy panel integration
Gold-plated contact pins for reliable connectivity

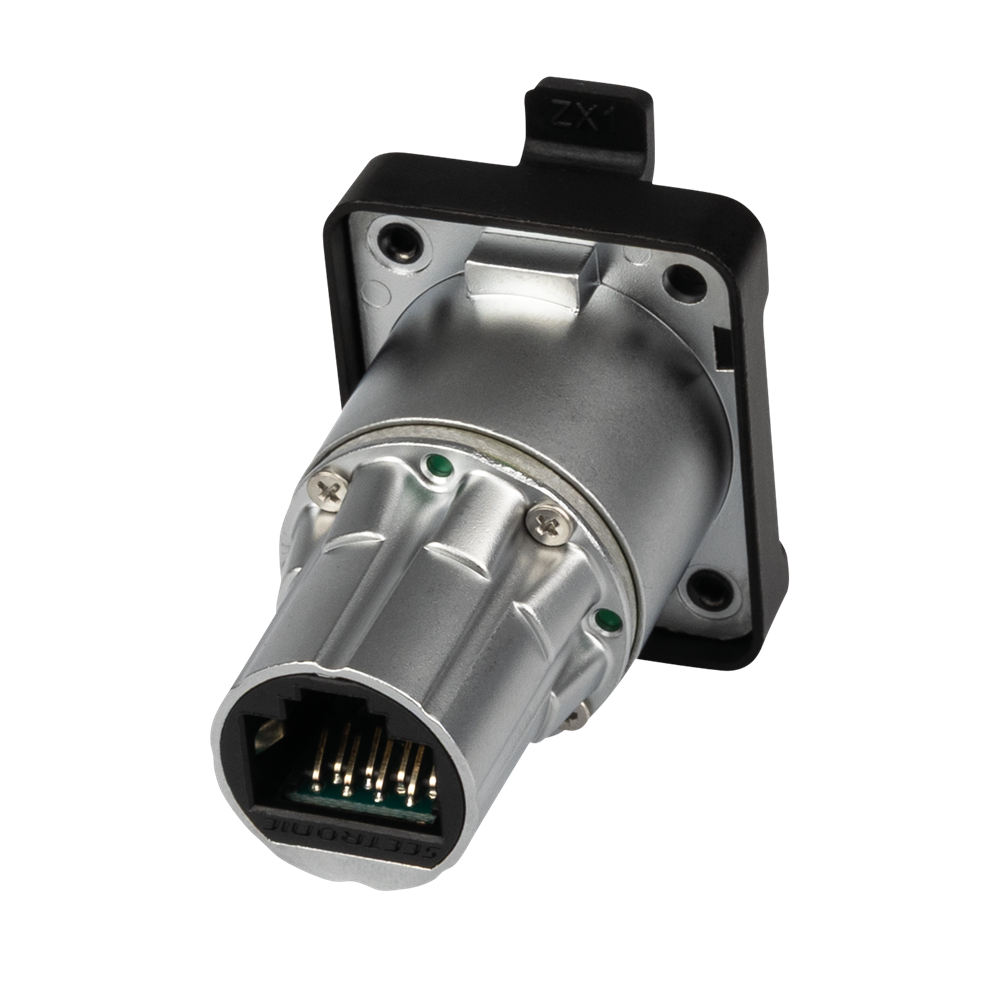

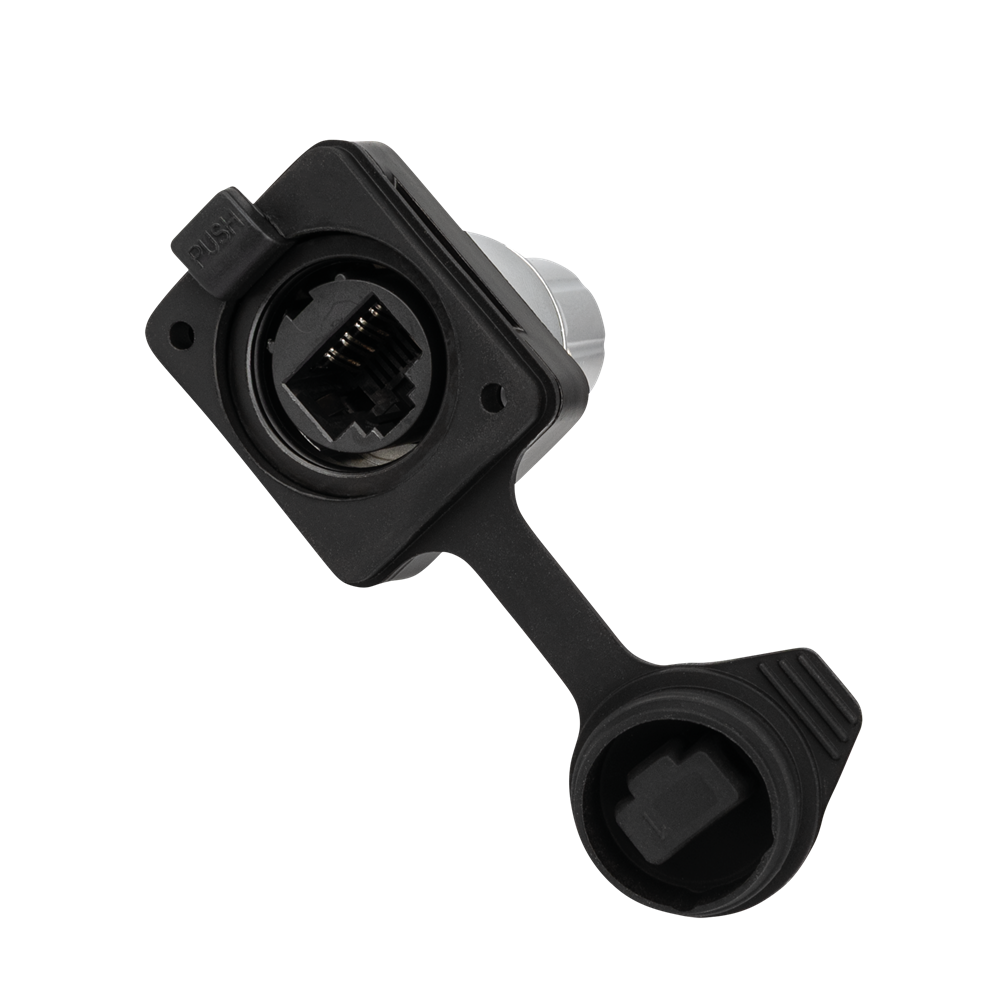

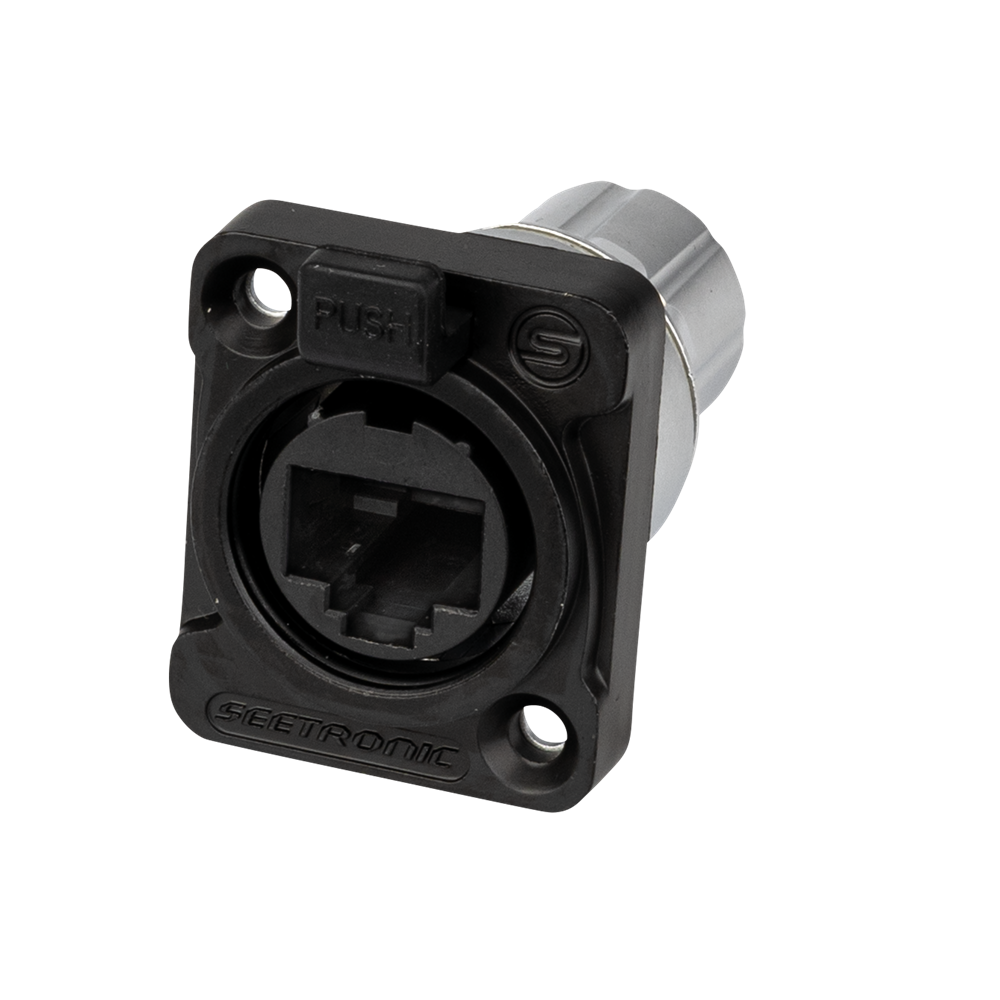

The Seetronic SE8FDYH-60-B-C6A is a robust RJ45 feedthrough locking receptacle engineered for secure and high-performance network connections in demanding environments. It features a standard D-shape metal flange for easy panel integration. Its black-plated all-metal housing ensures superior shielding and long-term reliability, while front installation simplifies setup. Designed for outdoor and industrial use, it achieves IP65 protection when paired with its waterproof cover and withstands 0.2 Mpa air pressure without a gasket for an airtight seal. Fully compliant with CAT6A standards and PoE++ according to IEEE 802.3bt, it guarantees fast data transmission and power delivery for professional applications.
Length (mm): 43.9 mm
Height (mm): 33.1 mm
Width (mm): 27.7 mm
Diameter: 24 mm
Housing: Zinc
Colour: Black
Contact Resistance: 10 < mΩ
Locking Device: Latch
Maximum Ambient Temperature: -30 °C
Minimum Ambient Temperature: 80 °C
PCB Mount: No
