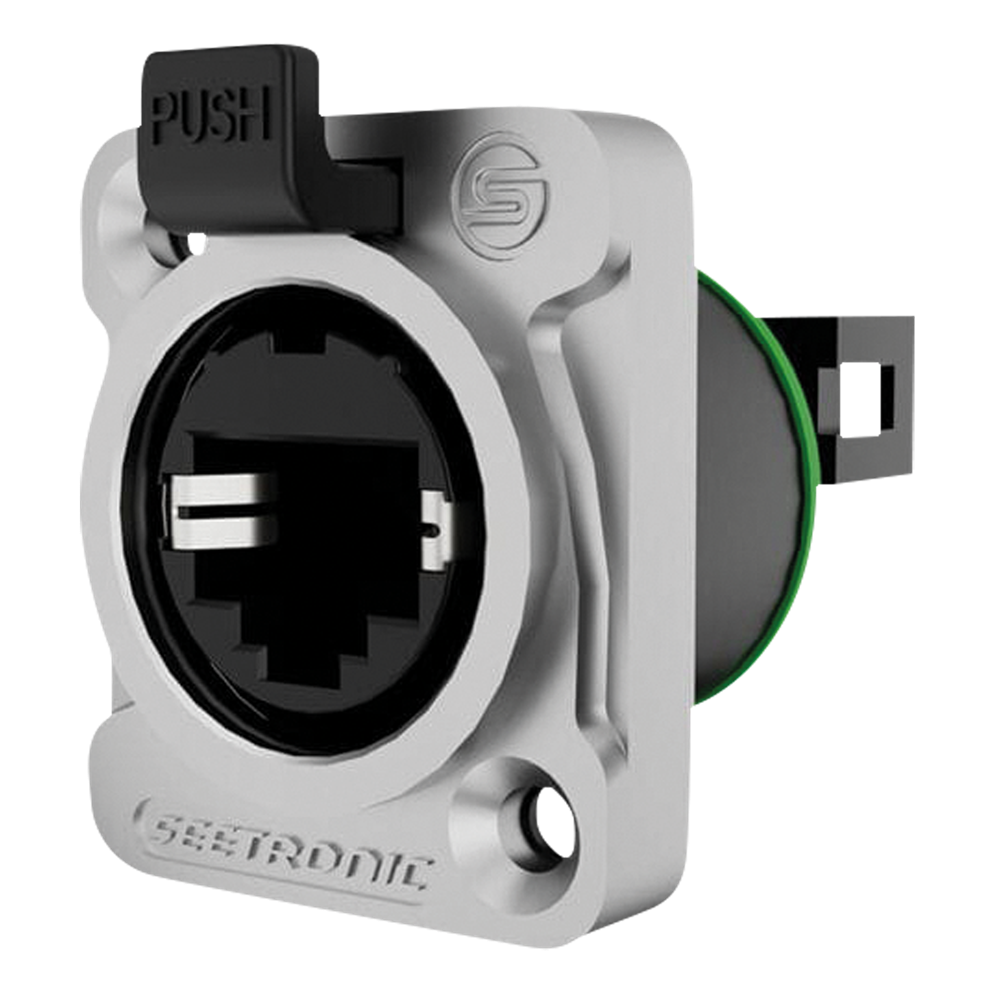

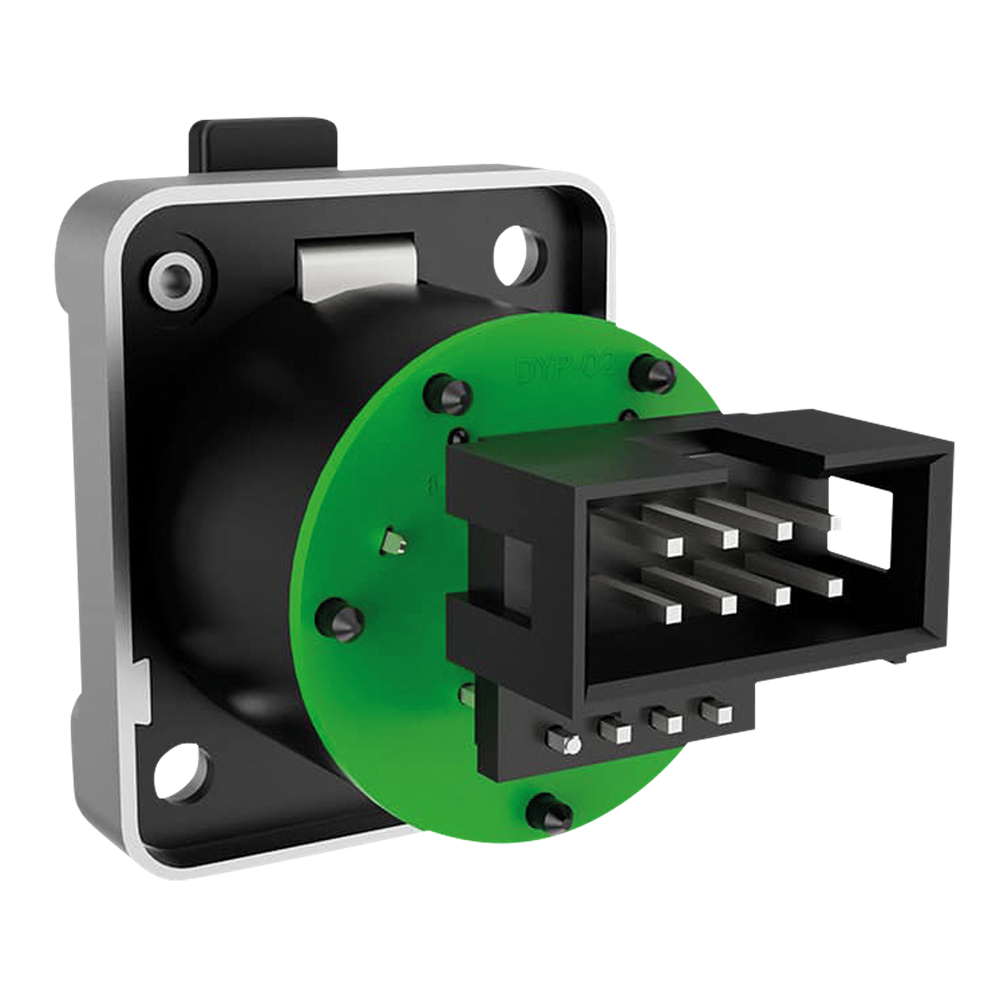

The Seetronic SE8FDYH-31 is an RJ45 mounting jack with installation connector. It is IP65 rated when mated or with the sealing cap fitted. The chassis connector has a latch locking system, fits D-size holes and installs from the front. There is an 8-pin IDC connector at the rear. It is suitable for up to CAT5e-supported network speeds (1 Gigabit) and complies with Class D according to TIA / EIA 568B and ISO / IEC 11801.
Length (mm): 39.1 mm
Height (mm): 33.1 mm
Width (mm): 27.7 mm
Housing: Zinc
Colour: Silver
