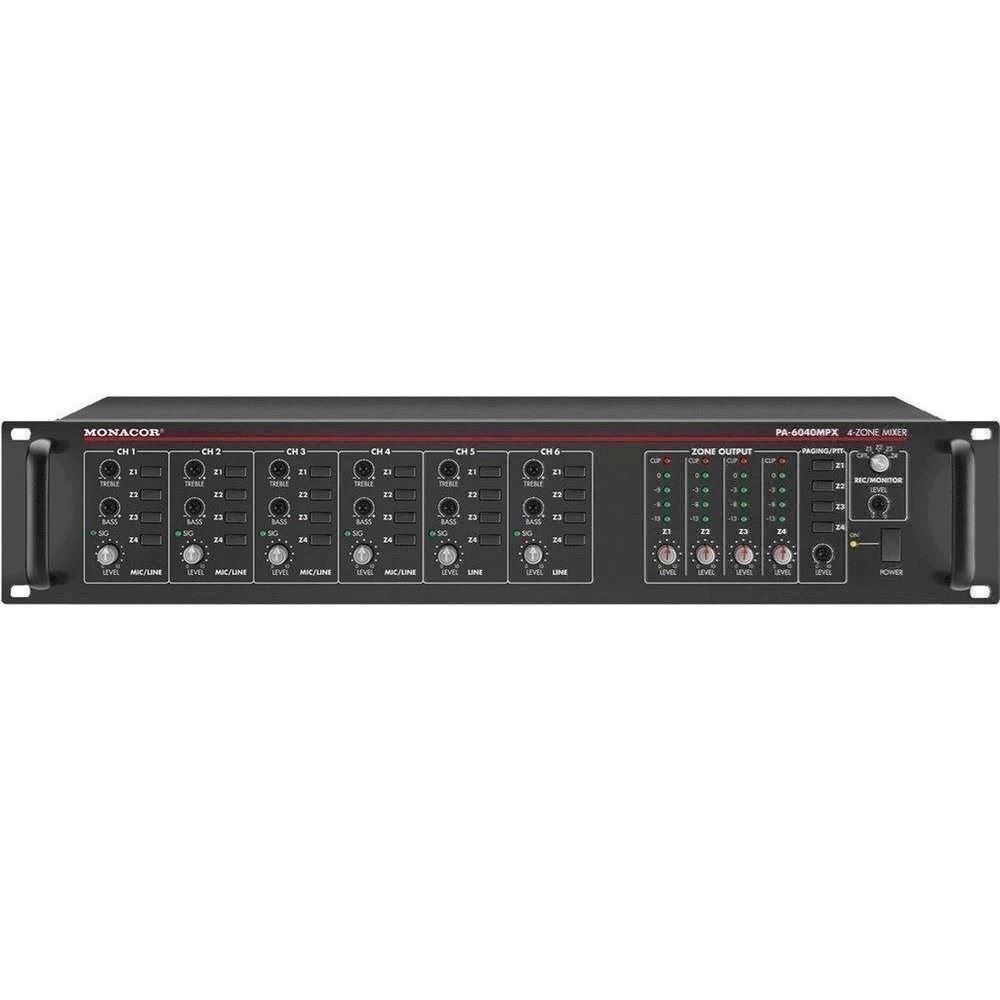

Zonemixer - PA-6040MPX - MONACOR

4-zone mixer, for general multi-room PA applications.

4 zones with user-defined routing of all input channels
4 inputs microphone/line via comb. jacks
2 inputs line stereo via RCA jacks
Each input channel with gain control, 2-way tone control and zone routing switch
Microphone inputs with phantom power, to be switched on as required
Independent paging input, can be routed to each zone
4 zone outputs, can be adjusted individually
Monitor output and record output
Each microphone/line input with connection for external chime button, 2-tone chime or 4-tone chime, siren (selectable)
Connection for push-to-talk microphone PA-4000PTT
Level control via zone VU meter
Mains operation or 24 V emergency power operation

Channels	6
Zones	4
Power rating	-
Power rating at 2 Ω	-
Power rating at 4 Ω	-
Power rating at 8 Ω	-
Power rating at 100 V	-
Power rating with 4 Ω bridged operation	-
Power rating with 8 Ω bridged operation	-
Peak music power output (P_MAX)	-
Output impedance	-
Inputs	2.5 mV/5 kΩ, bal., 250 mV/15 kΩ, bal. (mic/line), 250 mV/15 kΩ (line), 250 mV/10 kΩ (telephone paging)
Attenuation factor	-
Frequency range	20-20,000 Hz
Crossover network	-
Crossover frequency	-
Integrated limiter	-
Equalizer bass	± 10 dB/100 Hz
Equalizer midrange	-
Equalizer treble	± 10 dB/10 kHz
S/N ratio	> 65 dB (mic), > 87 dB (line)
Crosstalk attenuation	-
THD	< 1%
Power supply	∼ 230 V/50 Hz/15 VA, DC current 24 V/500 mA
Mains voltage	∼ 230 V
Mains frequency	50 Hz
Power consumption, operation	15 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	DC current 24 V
Power supply (possible alternative)	DC current 500 mA
Admiss. ambient temp.	0-40 °C
Dimensions	482 x 90 x 305 mm, 2 RS
Width	482 mm
Height	90 mm
Depth	305 mm
Rack spaces, RS	2
Weight	4.4 kg

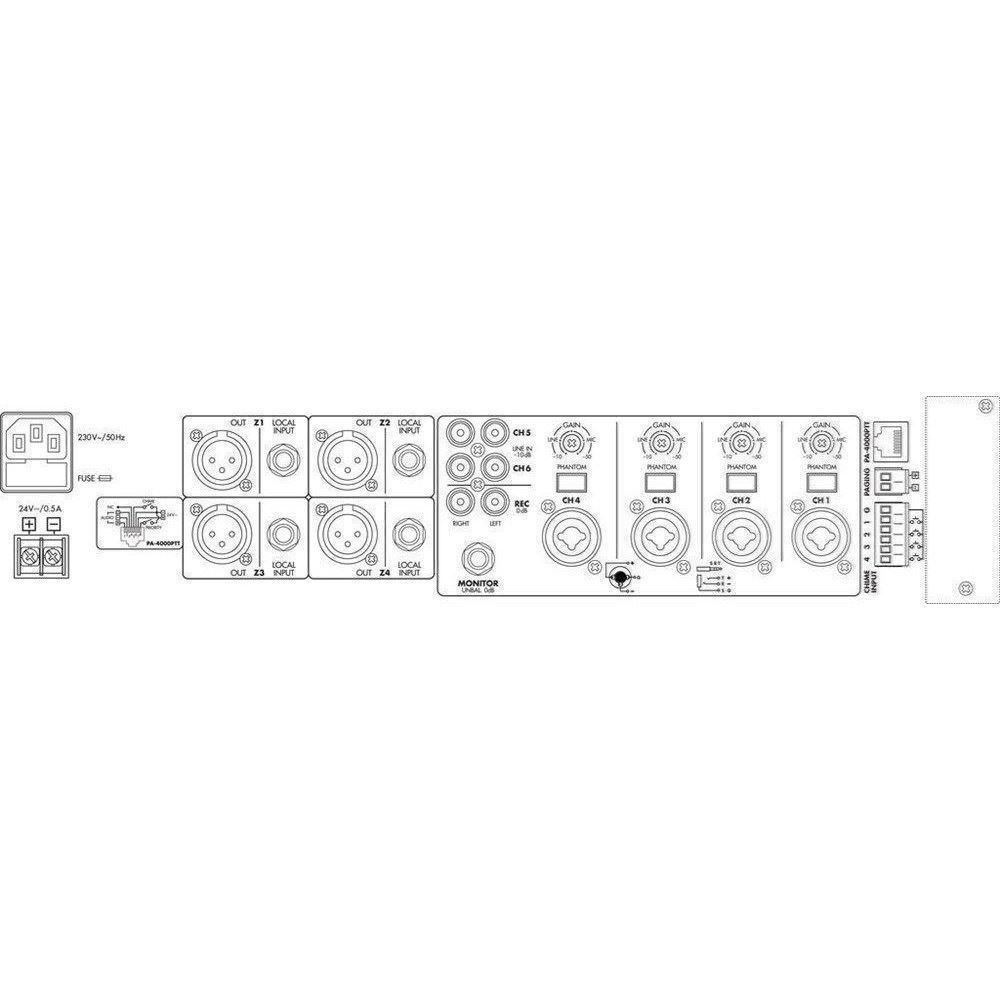

Connections	4 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 4 x 6.3 mm jack (zone inputs), plug-in screw terminal (paging), plug-in screw terminal (chime button), 1 x RJ45 (push-to-talk mic), 4 x XLR (zone outputs), 1 x 6.3 mm jack (monitor), 1 x RCA L/R (record)

Varenr.: 174760
