| Channels | 4 |
| Zones | - |
| Power rating | 480 W |
| Power rating at 2 Ω | - |
| Power rating at 4 Ω | 4 x 120 W |
| Power rating at 8 Ω | - |
| Power rating at 100 V | 4 x 120 W |
| Power rating with 4 Ω bridged operation | - |
| Power rating with 8 Ω bridged operation | - |
| Peak music power output (PMAX) | - |
| Output impedance | 22 V/4 Ω, 50 V/21 Ω, 70 V/41 Ω, 100 V/83 Ω |
| Inputs | 1.2 V, bal. |
| Attenuation factor | - |
| Frequency range | 55-17,000 Hz, -3 dB |
| Crossover network | - |
| Crossover frequency | - |
| Integrated limiter | - |
| Equalizer bass | - |
| Equalizer midrange | - |
| Equalizer treble | - |
| S/N ratio | > 90 dBA |
| Crosstalk attenuation | - |
| THD | < 1% |
| Power supply | ∼ 230 V/50 Hz/1,400 VA,
DC current 24 V/60 A |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,400 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | DC current 24 V |
| Power supply (possible alternative) | DC current 60 A |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 483 x 133 x 370 mm, 3 RS |
| Width | 483 mm |
| Height | 133 mm |
| Depth | 370 mm |
| Rack spaces, RS | 3 |
| Weight | 25 kg |

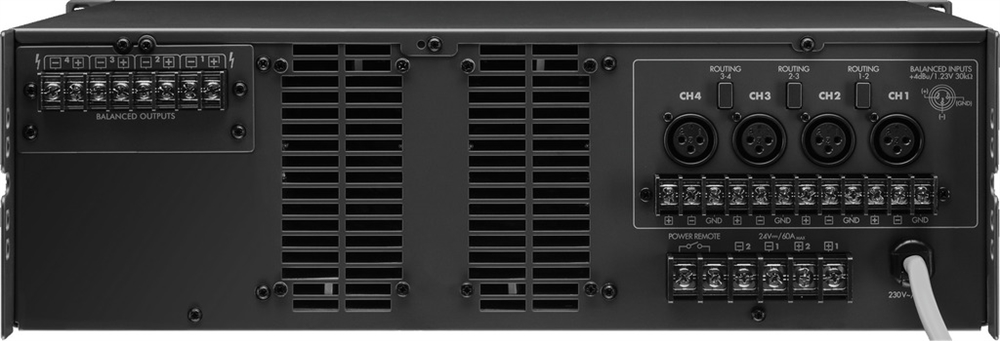

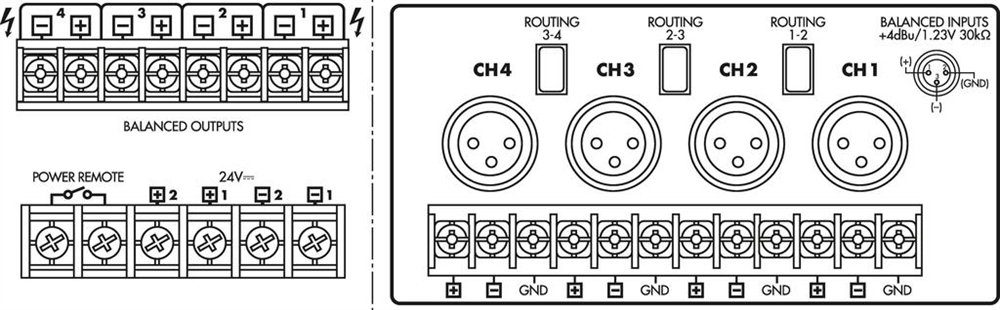

| Connections | 4 x XLR (inputs),
screw terminals (speakers) |
