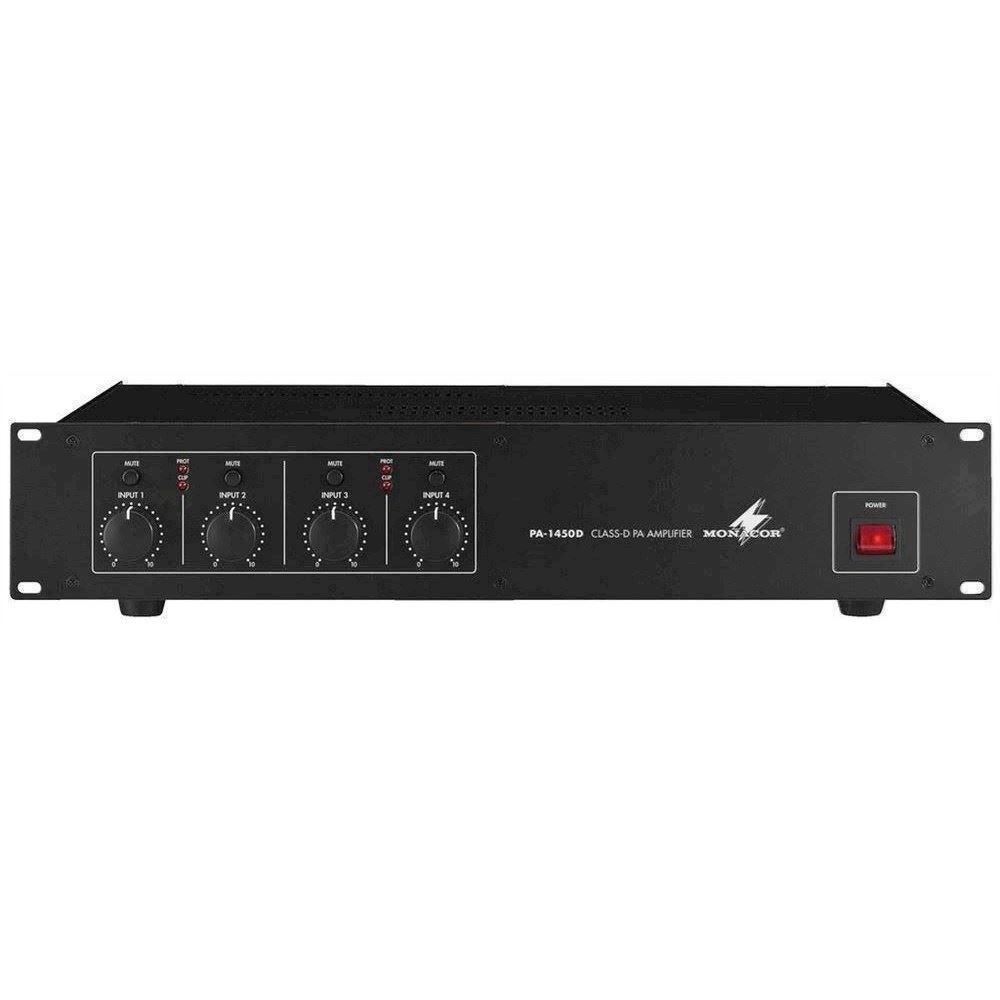

Digital PA-forstærker 4x50W - PA-1450D MONACOR

Fjernlager
På lager, 2-4 Hverdage
Bedømmelse for Digital PA-forstærker 4x50W - PA-1450D MONACOR
Produktet er endnu ikke bedømt

4 x 50 WRMS 100 V
4 x 50 WRMS 4 Ohm

4-channel class D PA amplifier

4 x 50 W
Class D concept with a high efficiency to reduce energy costs
Requires lower rechargeable battery capacity for emergency power operation than 100 V analogue amplifiers
Clearly reduced cooling requirements due to low heat loss
Silent operation due to fanless cooling concept
Mute function for each channel
Level control for each channel
LED indication for clip and protect for each channel pair
Protected against short circuit
Mains operation or 24 V emergency power operation

Channels	4
Zones	-
Power rating	200 W
Power rating at 2 Ω	-
Power rating at 4 Ω	4 x 50 W
Power rating at 8 Ω	-
Power rating at 100 V	4 x 50 W
Power rating with 4 Ω bridged operation	-
Power rating with 8 Ω bridged operation	-
Peak music power output (P_MAX)	-
Output impedance	4 Ω, 70/100 V
Inputs	1 V/20 kΩ unbal. 550 mV/20 kΩ bal.
Attenuation factor	-
Frequency range	10-20,000 Hz
Crossover network	-
Crossover frequency	-
Integrated limiter	-
Equalizer bass	-
Equalizer midrange	-
Equalizer treble	-
S/N ratio	63 dB
Crosstalk attenuation	-
THD	< 0.5%
Power supply	∼ 230 V/50 Hz/300 VA, DC current 24 V/9 A
Mains voltage	∼ 230 V
Mains frequency	50 Hz
Power consumption, operation	300 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	DC current 24 V
Power supply (possible alternative)	DC current 9 A
Admiss. ambient temp.	0-40 °C
Dimensions	483 x 90 x 330 mm, 2 RS
Width	483 mm
Height	90 mm
Depth	330 mm
Rack spaces, RS	2
Weight	11 kg

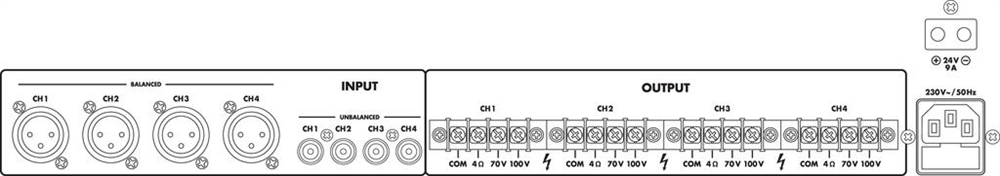

Connections	4 x XLR input, bal. 4 x RCA input screw terminals (speakers)

Varenr.: 172950
