| Channels | 5 |
| Zones | 4 |
| Power rating | - |
| Power rating at 2 Ω | - |
| Power rating at 4 Ω | - |
| Power rating at 8 Ω | - |
| Power rating at 100 V | - |
| Power rating with 4 Ω bridged operation | - |
| Power rating with 8 Ω bridged operation | - |
| Peak music power output (PMAX) | - |
| Output impedance | - |
| Inputs | 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line),
100 mV/30 kΩ (line) |
| Attenuation factor | - |
| Frequency range | 50-17,000 Hz |
| Crossover network | - |
| Crossover frequency | - |
| Integrated limiter | - |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer midrange | - |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 65 dB (mic),
> 75 dB (line) |
| Crosstalk attenuation | - |
| THD | < 1% |
| Power supply | ∼ 230 V/50 Hz/20 VA,
DC current 24 V/600 mA |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 20 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | DC current 24 V |
| Power supply (possible alternative) | DC current 600 mA |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 482 x 133 x 220 mm, 3 RS |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 220 mm |
| Rack spaces, RS | 3 |
| Weight | 4.5 kg |

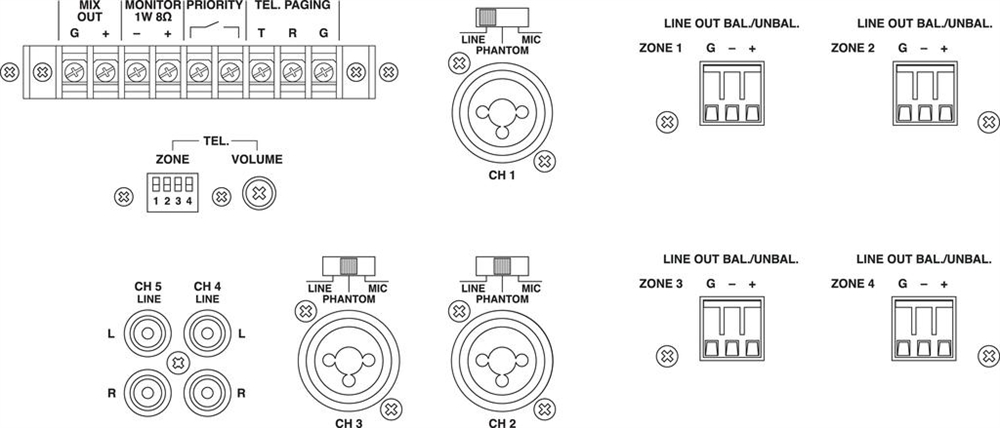

| Connections | 3 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line),
4 x plug-in screw terminal (zones),
screw terminal (monitor speakers),
screw terminal (mix out),
screw terminal (paging),
screw terminal (priority) |
