PA-forstærker - PA-1960 - MONACOR

High-power mono PA amplifier

1 x 960 W
Additional, adjustable priority input with switchable priority function
100 V slave input for inserting the amplifier into a 100 V speaker line
Switchable 400 Hz high-pass filter 6 dB/oct.

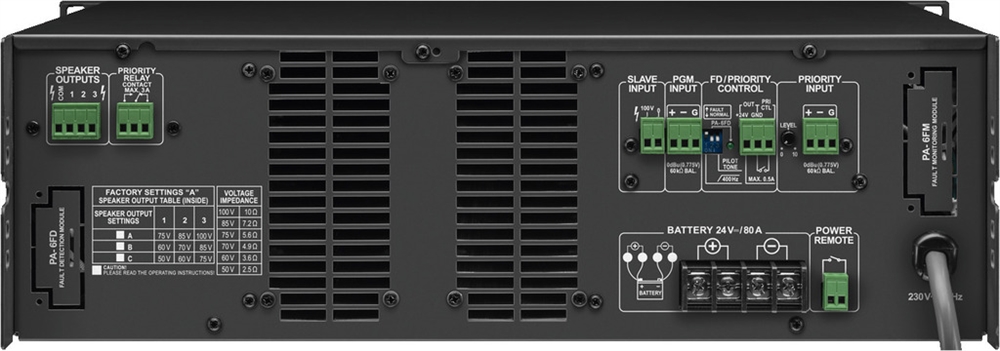

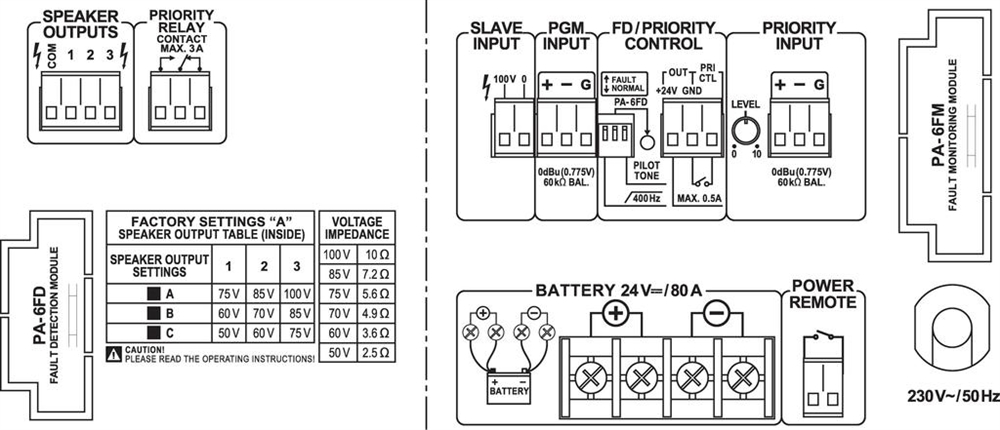

2 insertion facilities on the rear panel for optional modules with the following features:
- PA-6FD: fault detection module
- PA-6FM: fault monitoring module
Connection for external on/off switch (remote start)
Temperature-controlled fan, continuously adjustable

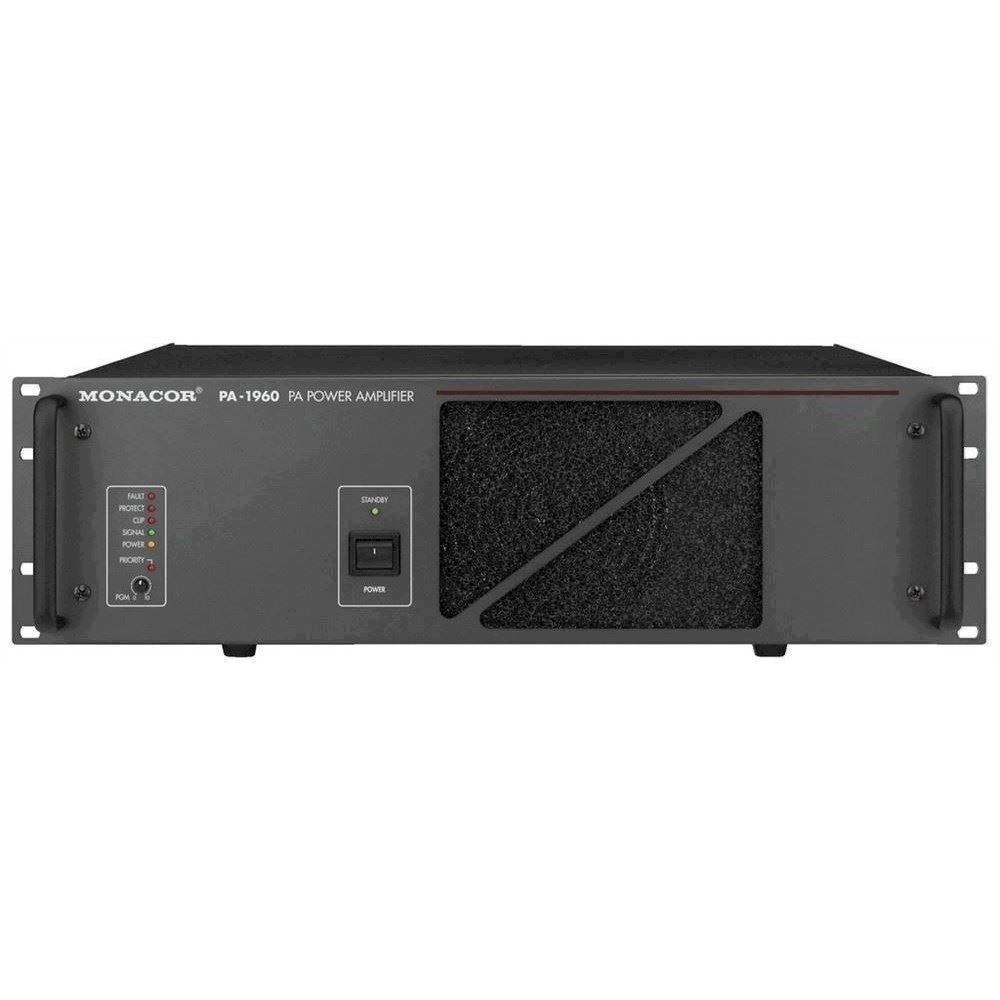

LED indication for fault, protect, clip, signal, priority
Mains operation or 24 V emergency power operation

Channels	1
Zones	-
Power rating	960 W
Power rating at 2 Ω	-
Power rating at 4 Ω	-
Power rating at 8 Ω	-
Power rating at 100 V	1 x 960 W
Power rating with 4 Ω bridged operation	-
Power rating with 8 Ω bridged operation	-
Peak music power output (P_MAX)	-
Output impedance	75 V/5.6 Ω, 85 V/7.2 Ω, 100 V/10 Ω
Inputs	0.775 V/60 kΩ, bal.
Attenuation factor	-
Frequency range	35-20,000 Hz
Crossover network	high-pass filter: 400 Hz, 6 dB/oct.
Crossover frequency	-
Integrated limiter	-
Equalizer bass	-
Equalizer midrange	-
Equalizer treble	-
S/N ratio	> 100 dB
Crosstalk attenuation	-
THD	< 0.4%
Power supply	∼ 230 V/50 Hz/2,600 VA, DC current 24 V/80 A
Mains voltage	∼ 230 V
Mains frequency	50 Hz
Power consumption, operation	2,600 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	DC current 24 V
Power supply (possible alternative)	-
Admiss. ambient temp.	0-40 °C
Dimensions	483 x 133 x 374 mm, 3 RS
Width	483 mm
Height	133 mm
Depth	374 mm
Rack spaces, RS	3
Weight	25 kg
Connections	screw terminals (inputs) screw terminals (speakers)

Varenr.: 172550
