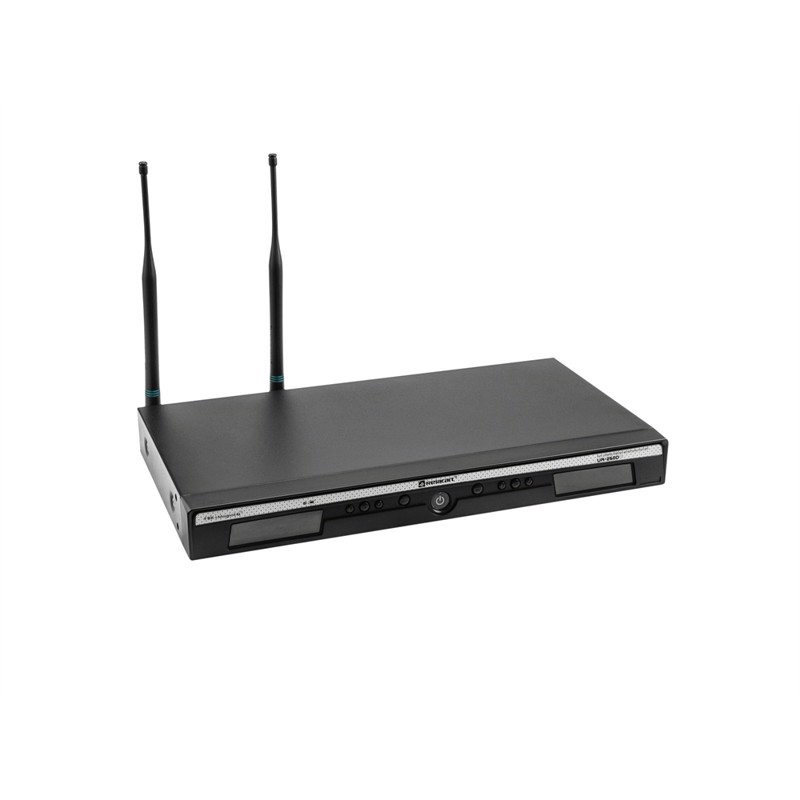

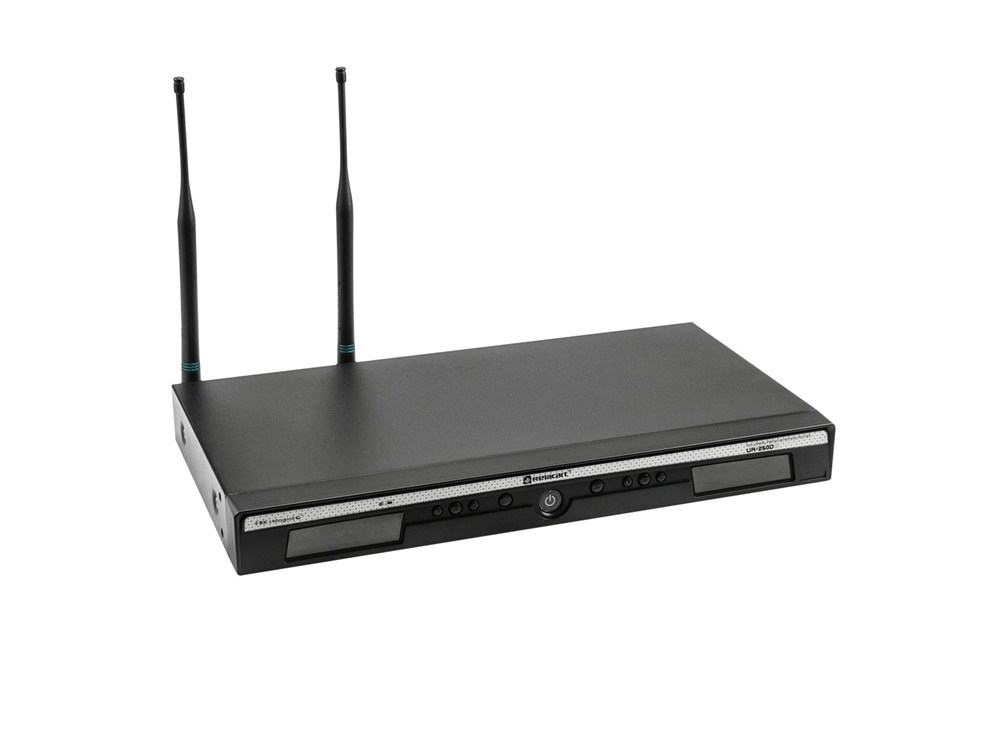

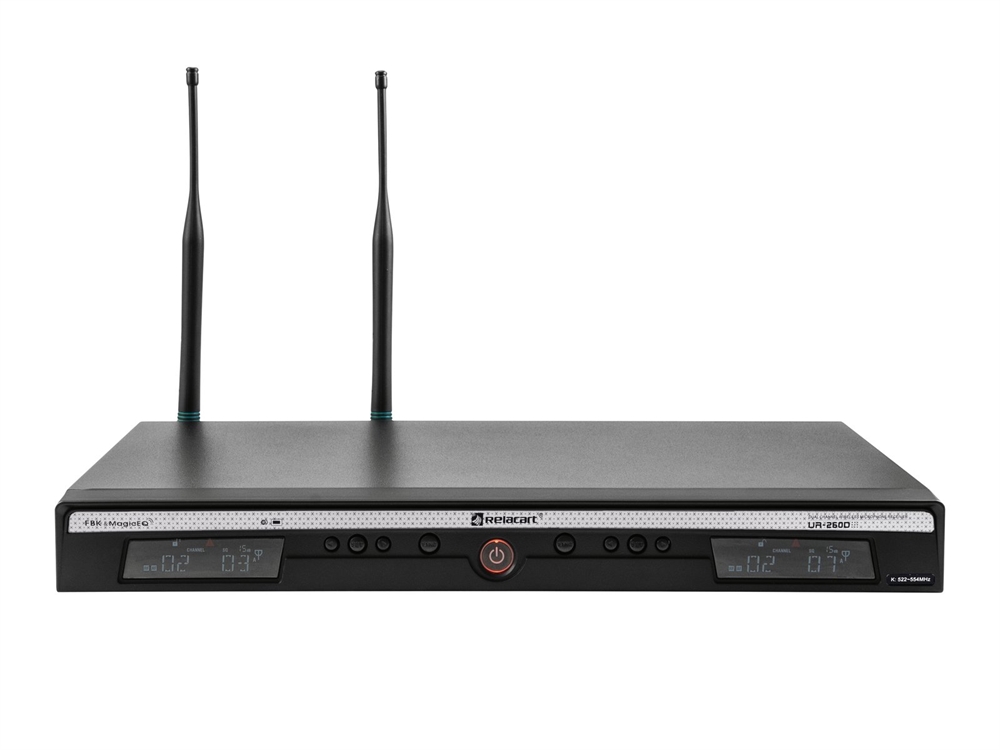

RELACART UR-260D 2-channel UHF Receiver 522-554 MHz

På lager
På lager, 3-5 hverdage
Bedømmelse for RELACART UR-260D 2-channel UHF Receiver 522-554 MHz
Produktet er endnu ikke bedømt

Diversity wireless receiver with DSP for microphone modeling and PC softwareRELACART UR-260D 2-channel UHF Receiver 522-554 MHz

Diversity wireless receiver with DSP for microphone modeling and PC software

2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
DSP programming and management via Ethernet port and intuitively operated PC software
High-quality antenna diversity reception
Up to 12 transmitters can be operated in parallel without interference
Pilot frequency squelch technology delete wireless RF interference
Automatic frequency scan (AFS) finds interference-free channels
Easy and error-free synchronization between receiver and transmitter via infrared signal
Multiple units can be linked with network cables
Lock function for prevents undesired changes to settings
2 detachable BNC antennas allow for use with the R-14D antenna divider
Rugged metal housing
Digital signal processor 96kHz, 24 bit
Operating range up to 80m

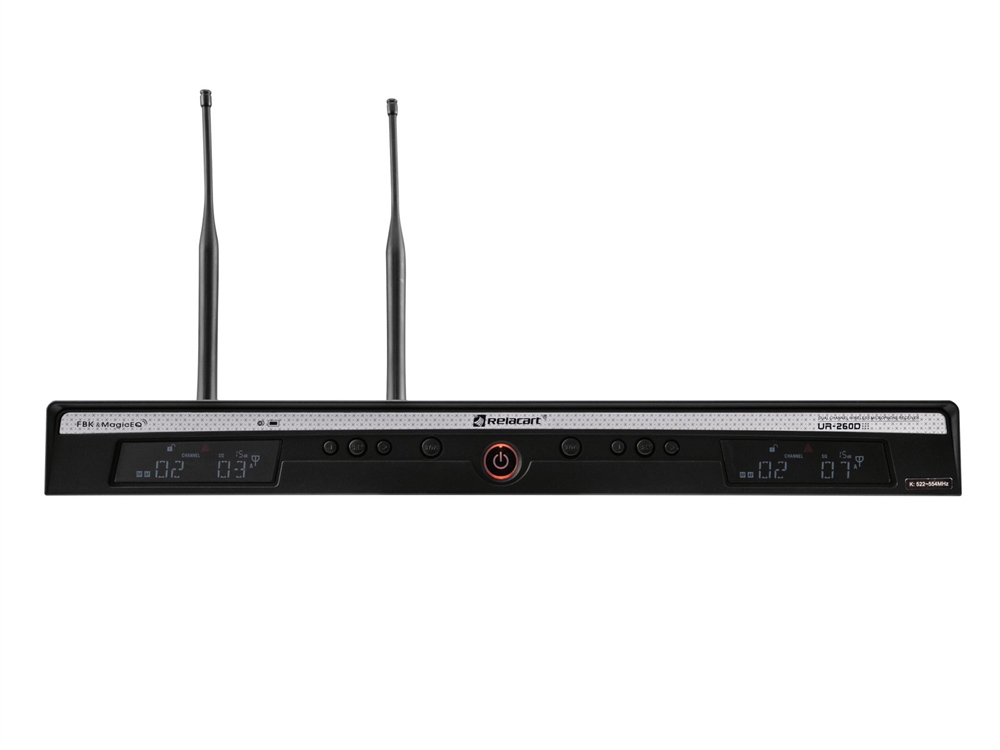

Multicolor LCD display
The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
Desktop console housing
(19") 48.3 cm rack installation possible 1 U

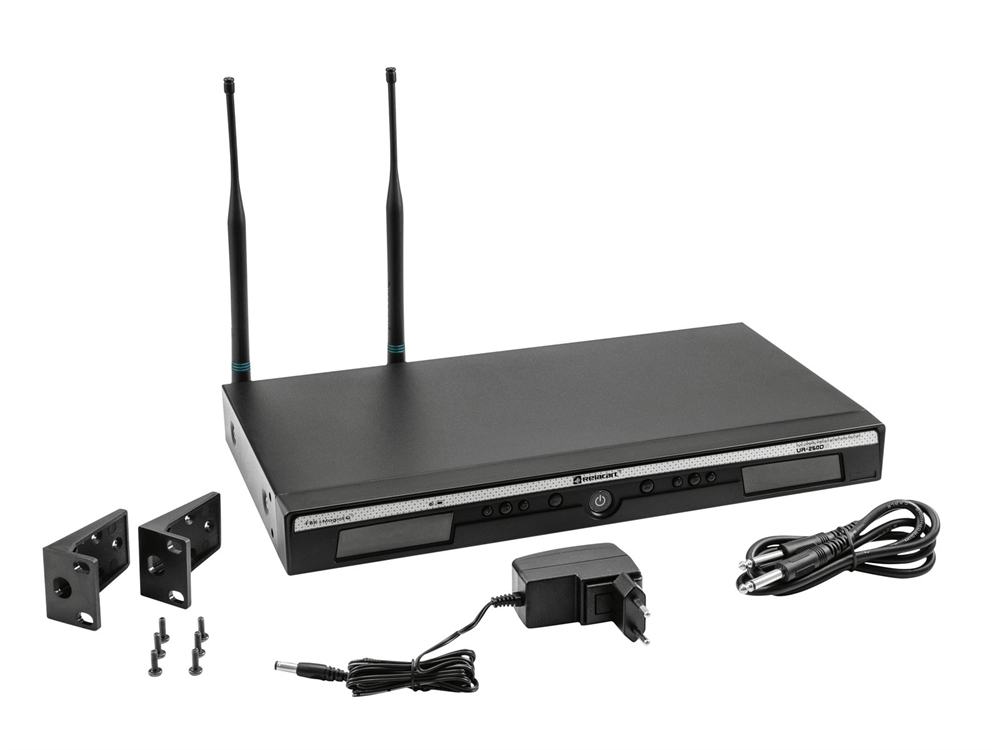

Package contents

1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity

Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	Max. 9 W
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:	2
Frequency range:	45 - 18000 Hz
S/N ratio:	>100 dB
THD:	<0,5 % at 1 kHz
Network connection:	Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version
DSP:	Digital signal processor 96kHz, 24 bit
Range:	Range up to 80m
Frequency band:	UHF 522 - 554 MHz
Diversity:	Antenna diversity
Switching bandwidth:	32 MHz
Frequency stability:	± 0,0005 %
Parallel mode:	Max. 12 transmitter
Modulation:	FM
Frequency selection:	151 Switchable frequencies In 10 groups with up to 18 preset frequencies each
Display type:	Multicolor LCD display
Control elements:	Power switch, groundlift selector, menu, navigation keys

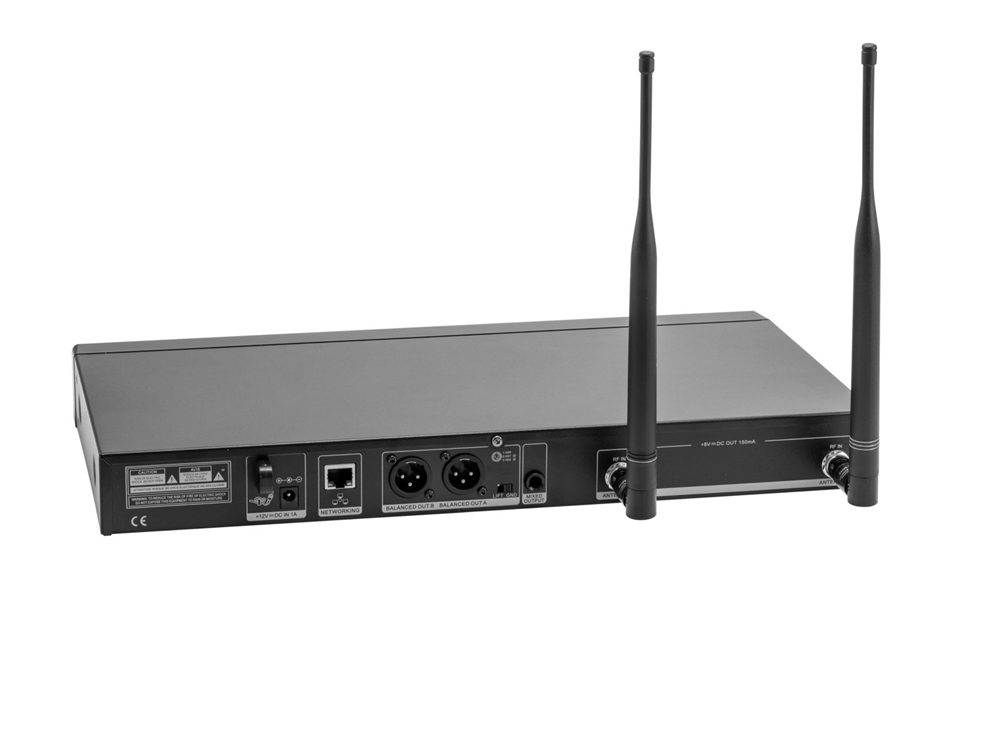

Connections:	Antenna via 2 x BNC (F) 8 V Output: Microphone via 2 x 3-pin XLR (M) mounting version Output: line via 1 x 6.3 mm plug (unbal.)
Material:	Metal
Color:	Black
PC connect:	RELACART Magic EQ software via RJ-45 (F) mounting version
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 41 cm Depth: 26 cm Height: 4,3 cm
Weight:	2,40 kg

Varenr.: E-13055180
