| Parallel mode: | Max. 12 transmitter |
| Weight: | 220 g |

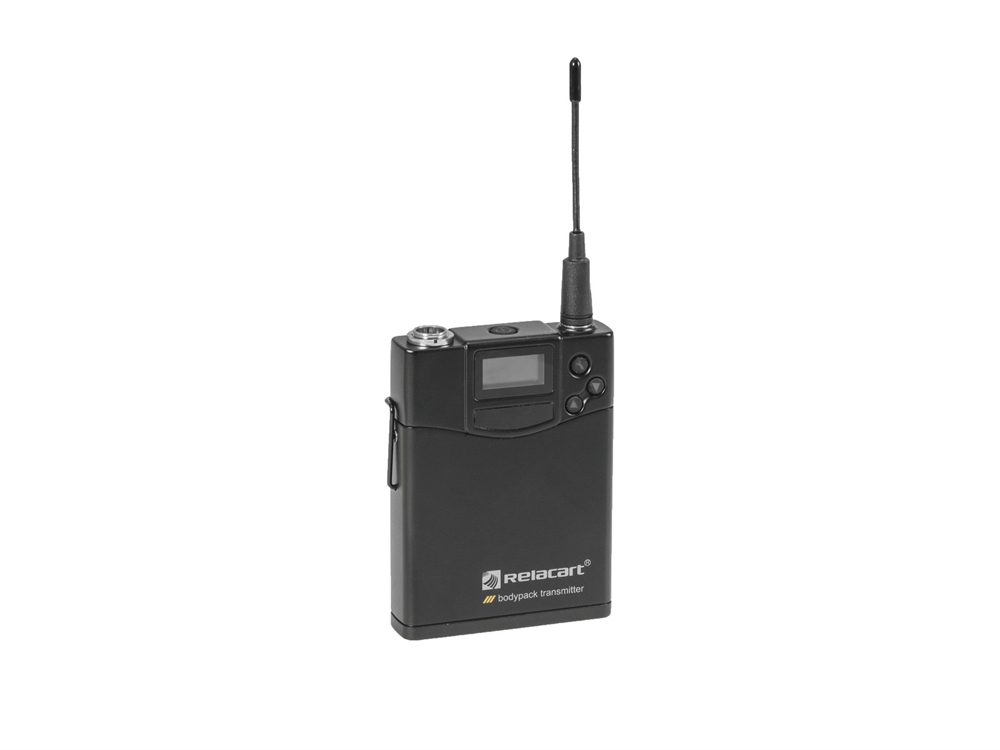

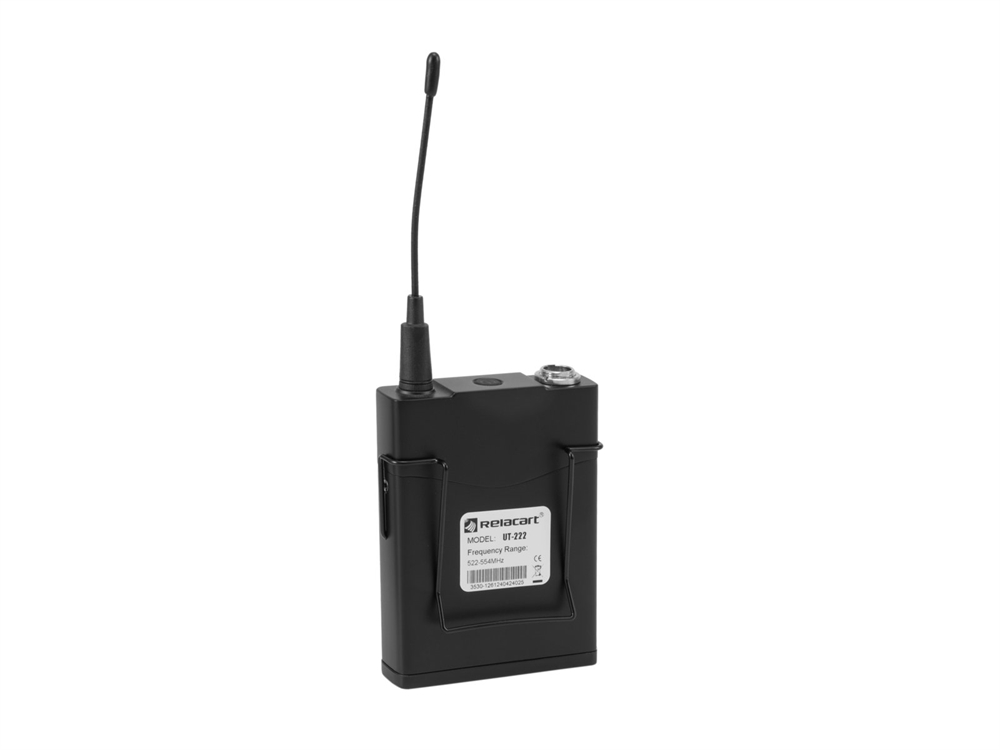

| Transmitter |
| Type: | Bodypack with microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Battery: | 2 x Mignon (AA) (not included) |
| Gain: | 0 dB
-6 dB
-12 dB |
| Range: | Range up to 80m |
| Frequency band: | UHF 522 - 554 MHz |
| Switching bandwidth: | 32 MHz |
| RF power output: | 10 mW (LO); 30 mW (HI) |
| Modulation: | FM |
| Frequency selection: | 151 Switchable frequencies
In 10 groups with up to 18 preset frequencies each |
| Display type: | OLED display |
| Control elements: | Transmitter power switch (high-low) |
| Connections: | Output: Mini XLR (M) 4-pin mounting version |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Color: | Black |
| Dimensions: | Width: 6,6 cm
Depth: 2,3 cm
Height: 8,4 cm |
| Weight: | 174 g |

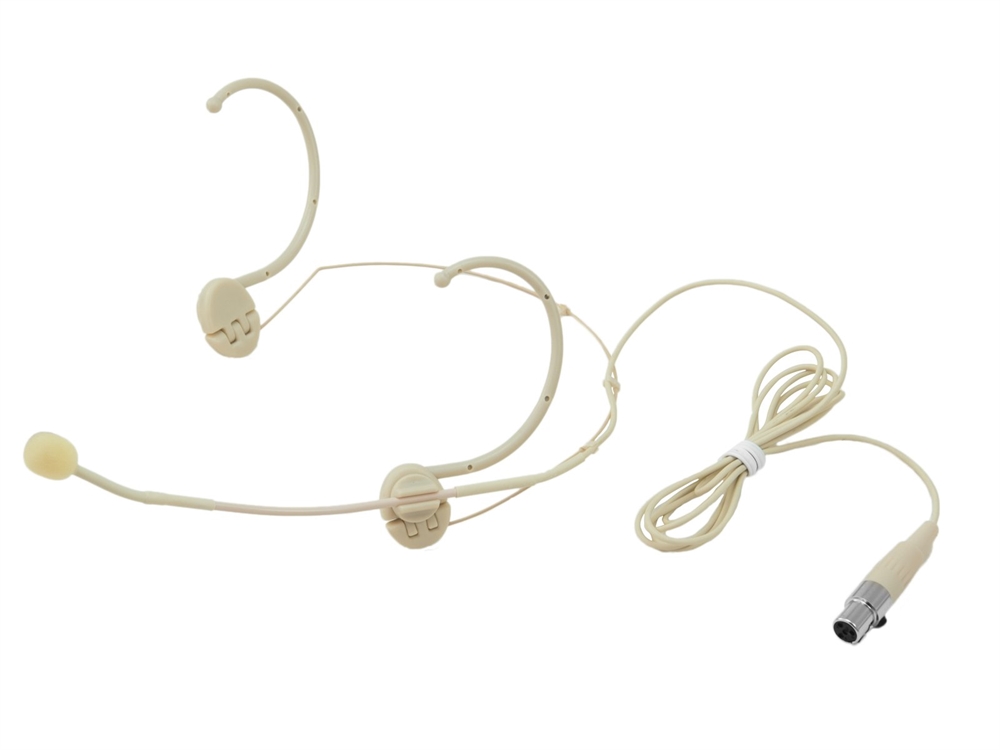

| Microphone |
| Type: | Headset microphone |
| Power supply: | 2-10 V DC |
| Cable length: | 1,2 m |
| Capsule type: | Condenser
Size: Ø 5 mm x 6 mm |
| Polar pattern: | Omnidirectional |
| Frequency range: | 50 - 18000 Hz |
| Sensitivity: | -47 dB |
| Impedance: | 1800 Ohm |
| Connector type: | Mini XLR (F) 4-pin |
| Color: | Skin-colored |
| Weight: | 28 g |
