| Channels | 2 |
| Zones | - |
| Power rating | - |
| Power rating at 2 Ω | - |
| Power rating at 4 Ω | - |
| Power rating at 8 Ω | 2 x 240 W |
| Power rating at 100 V | 2 x 240 W |
| Power rating with 4 Ω bridged operation | - |
| Power rating with 8 Ω bridged operation | - |
| Peak music power output (PMAX) | - |
| Output impedance | 25 V/2.6 Ω, 44 V/8 Ω,
70 V/20 Ω, 100 V/42 Ω |
| Inputs | 1.2 V, bal. |
| Attenuation factor | |
| Frequency range | 35-20,000 Hz, -3 dB |
| Crossover network | high-pass filter: 400 Hz, 6 dB/oct. |
| Crossover frequency | - |
| Integrated limiter | - |
| Equalizer bass | - |
| Equalizer midrange | - |
| Equalizer treble | - |
| S/N ratio | > 100 dBA |
| Crosstalk attenuation | - |
| THD | < 1% |
| Power supply | ∼ 230 V/50 Hz/1,300 VA,
DC current 24 V/55 A |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,300 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | DC current 24 V |
| Power supply (possible alternative) | DC current 55 A |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 483 x 88 x 374 mm, 2 RS |
| Width | 483 mm |
| Height | 88 mm |
| Depth | 374 mm |
| Rack spaces, RS | 2 |
| Weight | 18 kg |

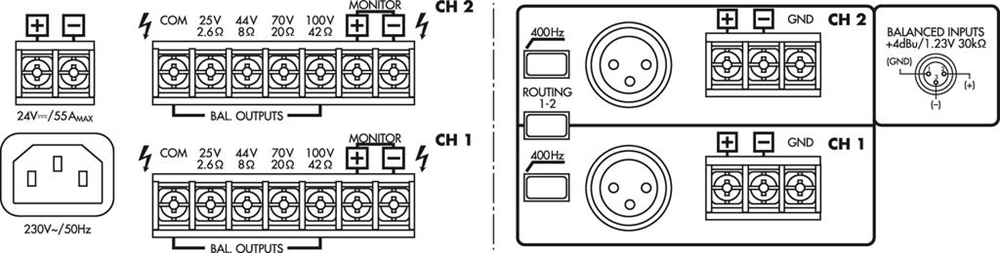

| Connections | 2 x XLR / screw terminals (inputs)
screw terminals (speakers) |
