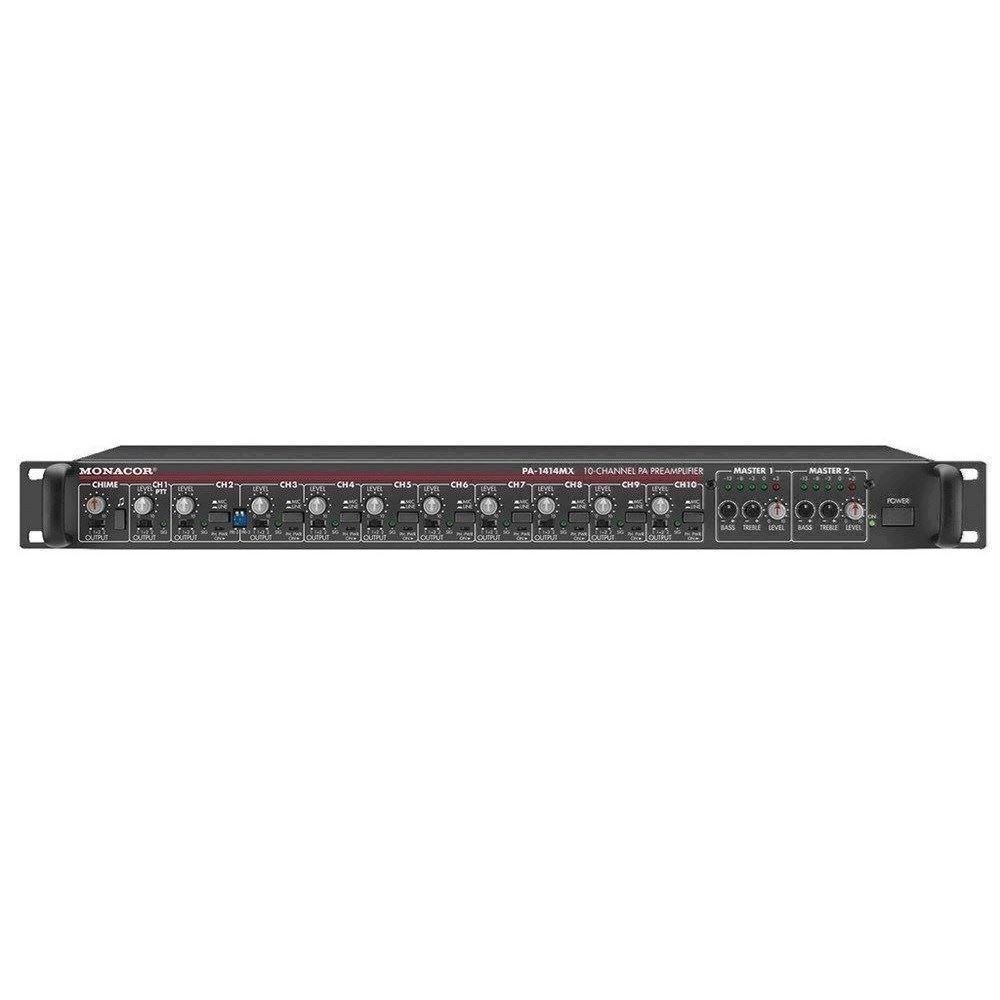

Mixer - PA-1414MX - MONACOR

10-kanals PA-forforstærker

5 XLR indgange, mic/line
4 indgange, XLR mic/phono line
2 XLR master udgange
1 record udgang (master1, master2)
Indgange med volumenkontrol og udgangsvælger (master1, master1+2, master2)
Begge master udgange har 2-vejs tonekontrol
Gongtaste med prioritet, mulighed for fjernbetjening, 2-toners eller 4-toners gong, sirene
1 push-to-talk tilslutning, RJ45, med prioritet (passer til PA-4000PTT)
Low cut filter til hver mikrofonindgang
Prioritet for kanaler 2-3
Phantom strømforsyning til elektret mikrofoner kan tilsluttes XLR-indgangene
Tilsluttes stikkontakt eller 24 V nødstrømforsyning

Channels	10
Zones	-
Power rating	-
Power rating at 2 Ω	-
Power rating at 4 Ω	-
Power rating at 8 Ω	-
Power rating at 100 V	-
Power rating with 4 Ω bridged operation	-
Power rating with 8 Ω bridged operation	-
Peak music power output (P_MAX)	-
Output impedance
Inputs	2.5 mV, bal. (mic), 250 mV, bal. (line XLR), 250 mV, unbal. (line RCA)
Attenuation factor
Frequency range	20-20,000 Hz (-0.5 dB)
Crossover network	-
Crossover frequency	-
Integrated limiter	-
Equalizer bass	± 10 dB/100 Hz
Equalizer midrange	-
Equalizer treble	± 10 dB/10 kHz
S/N ratio	> 60 dB (mic), > 75 dB (line)
Crosstalk attenuation	-
THD	< 0.05%
Power supply	∼ 230 V/50 Hz/15 VA, DC current 24 V/0.5 A
Mains voltage	∼ 230 V
Mains frequency	50 Hz
Power consumption, operation	15 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	DC current 24 V
Power supply (possible alternative)	DC current 0.5 A
Admiss. ambient temp.	0-40 °C
Dimensions	482 x 45 x 240 mm, 1 RS
Width	482 mm
Height	45 mm
Depth	240 mm
Rack spaces, RS	1
Weight	2.5 kg

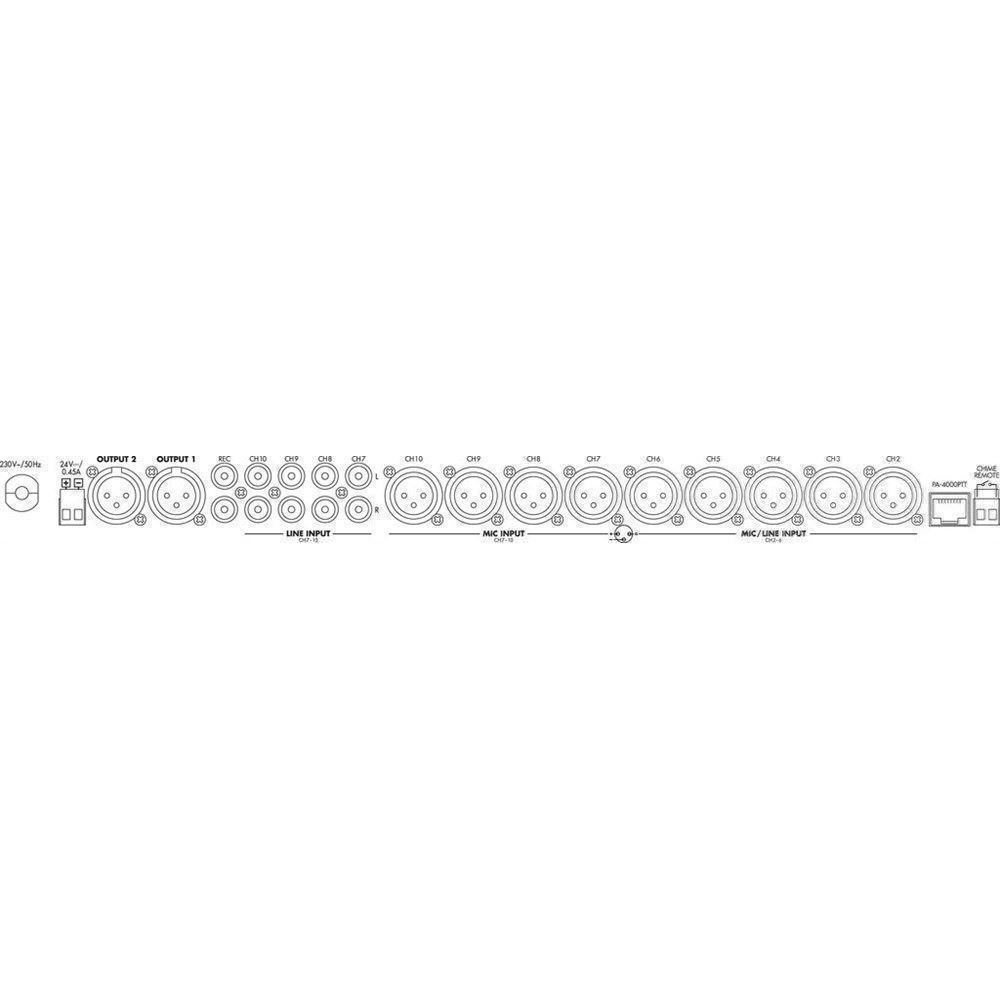

Connections	9 x XLR (mic/line inputs), 4 x RCA L/R (line inputs), 1 x RJ45 (push-to-talk microphone), 2 x XLR (outputs), 1 x RCA L/R (record output)

Varenr.: 174770
