| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 95 W |
| IP classification: | IP20 |
| Protection class: | Class I |

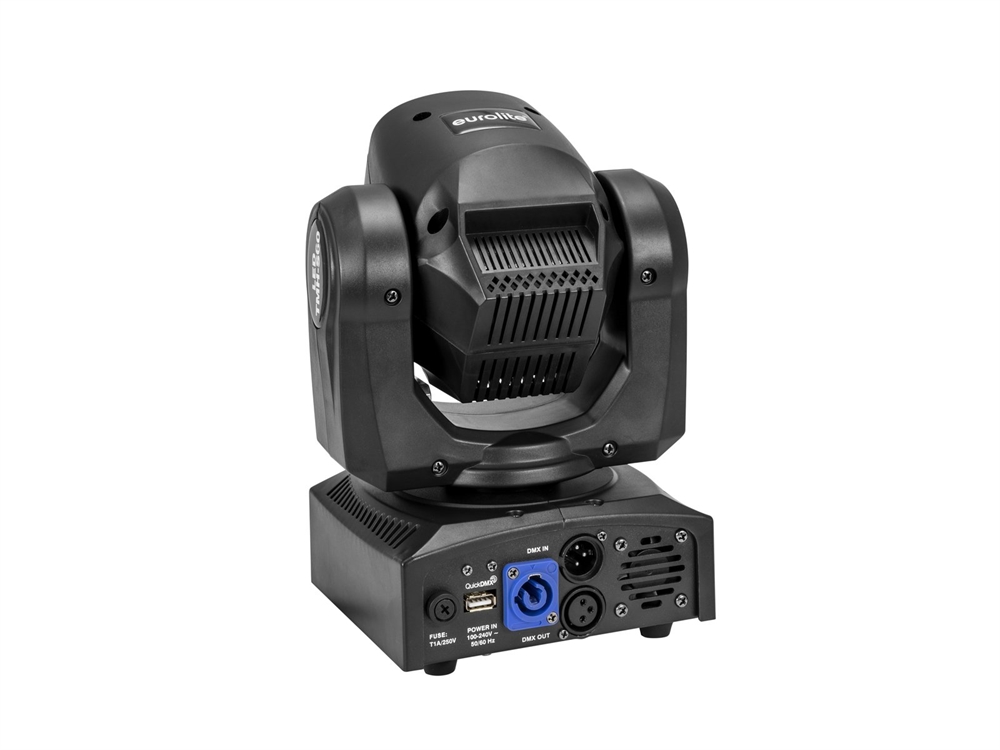

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 1,5 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x 60 W COB (chip-on-board) cold white (CW) |
| Color temperature: | 7700K |
| Max. TILT movement: | 180° |
| Max. PAN movement: | 540° |
| Equipment: | Gobo wheel with rotating gobos; Focus manual; color wheel |
| Color generation: | Color wheel with 7 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 13,8mm
Image diameter 11mm
Slot-in gobo system for easy gobo replacement
Shake effect |
| DMX channels: | 10; 12 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; LED PC-Control 512; EASY SHOW 1; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional); Light Captain |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 15205 lx, 3m: 1764 lx, 6m: 445 lx |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 17,0 cm
Depth: 15,0 cm
Height: 24,0 cm |
| Weight: | 3,15 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
