| Impedance (Z) | 4 Ω |
| Transmission method | - |

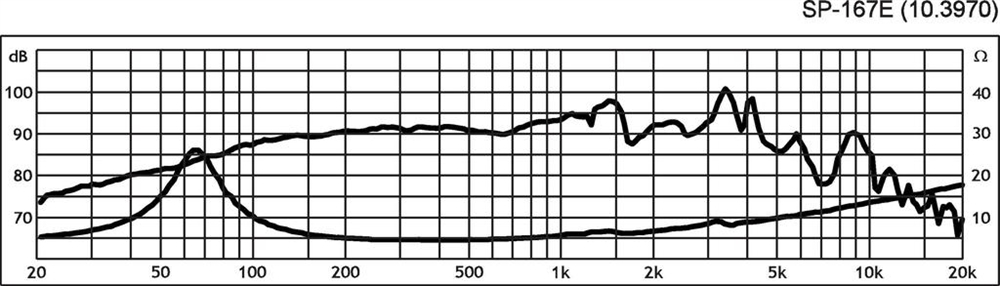

| Frequency range | f3-6,000 Hz |
| Resonant frequency (fs) | 62 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 35 W |
| Peak music power output | 70 W |
| Sensitivity | 92 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 0.7 mm/N |
| Moving mass (Mms) | 9.3 g |
| Mech. Q factor (Qms) | 2.78 |
| Electr. Q factor (Qes) | 0.48 |
| Total Q factor (Qts) | 0.41 |
| Equivalent volume (Vas) | 17.88 l |
| DC resistance (Re) | 3.9 Ω |
| Force factor (BxL) | 5.43 Tm |
| Voice coil induct. (Le) | 0.6 mH |
| Voice coil diameter | Ø 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 135 cm2 |
| Magnet weight | 570 g |
| Magnet diameter | Ø 100 mm |
| Mounting cutout | Ø 149mm |
| Mounting depth | 67 mm |
| Mounting hole diameter | Ø 160 mm |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |

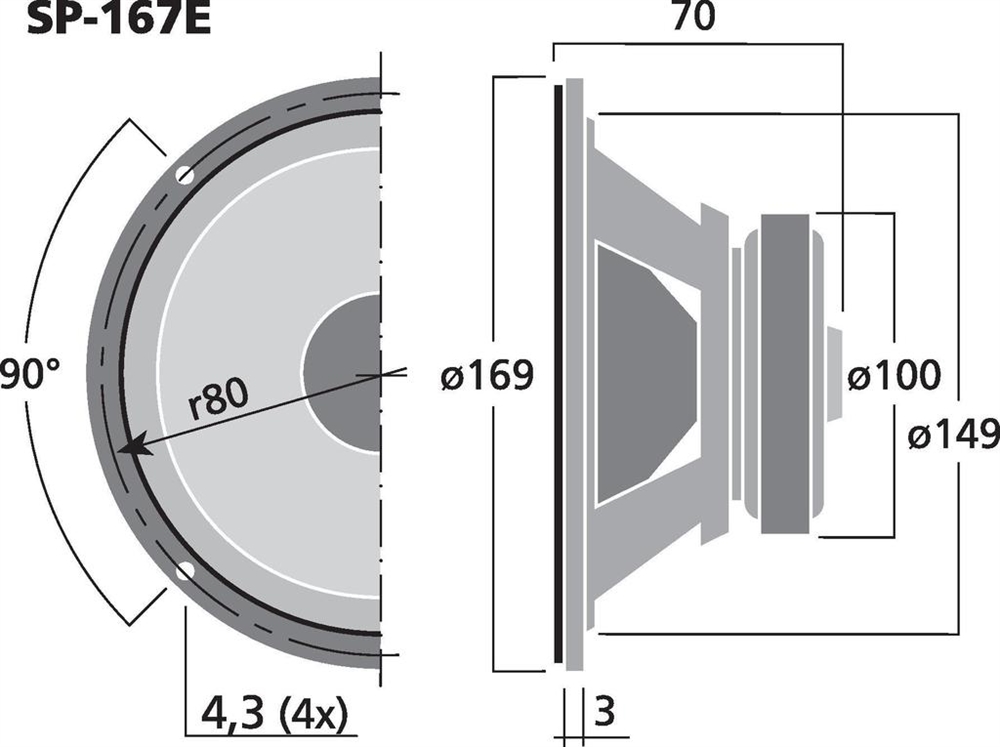

| Dimensions | Ø 169 mm x 70 mm |
| Outside diameter | Ø 169 mm |
| Width | Ø 169 mm |
| Height | - |
| Depth | 70 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.23 kg |
| Packing unit | 1 |
| Type of speaker | 6.5 |
