8'' højttaler - SP-202E - MONACOR

• Fjernlager
• På lager, 2-4 Hverdage
• Bedømmelse for 8'' højttaler - SP-202E - MONACOR

  Produktet er endnu ikke bedømt

•
  279,00DKK ved 1 stk.

Vis uden moms

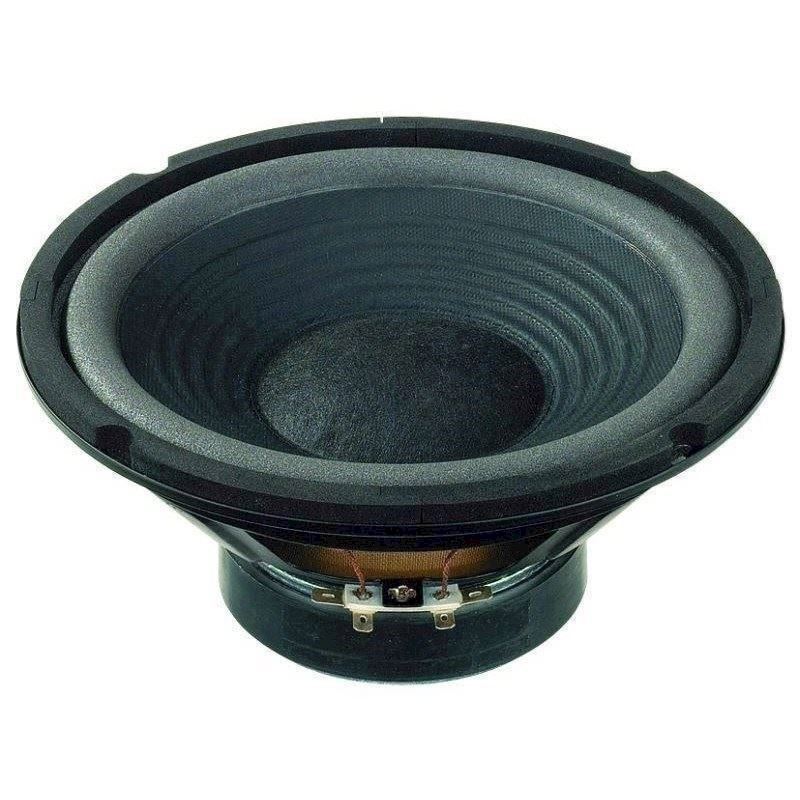

Hi-fi bass-midrange speaker, 50 W, 4 Ω

• Multi-purpose speaker
• Foam surround
• Replacement speaker for closed speaker systems

HOBBY HIFI 04/2013
"A very talented 2-way speaker, thanks to a very clean reproduction of the midrange. Despite a very attractive price, the SP-202E from MONACOR is ideally suited for 2-way applications and promises an excellent sound quality."



Impedance (Z)	4 Ω
Transmission method	-

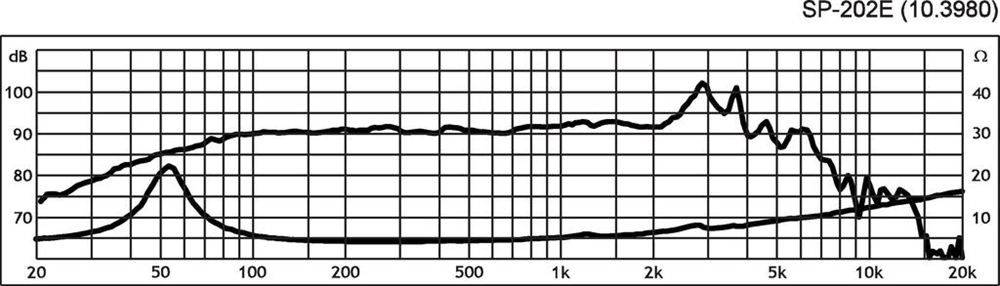

Frequency range	f3-6,000 Hz
Resonant frequency (fs)	51 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	50 W
Peak music power output	100 W
Sensitivity	93 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.62 mm/N
Moving mass (Mms)	15 g
Mech. Q factor (Qms)	4.5
Electr. Q factor (Qes)	0.81
Total Q factor (Qts)	0.69
Equivalent volume (Vas)	39 l
DC resistance (Re)	3.85 Ω
Force factor (BxL)	4.86 Tm
Voice coil induct. (Le)	0.6 mH
Voice coil diameter	Ø 25.5 mm
Voice coil former	aluminium
Linear excursion (XMAX)	± 2.5 mm
Eff. cone area (Sd)	210 cm2
Magnet weight	570 g
Magnet diameter	-

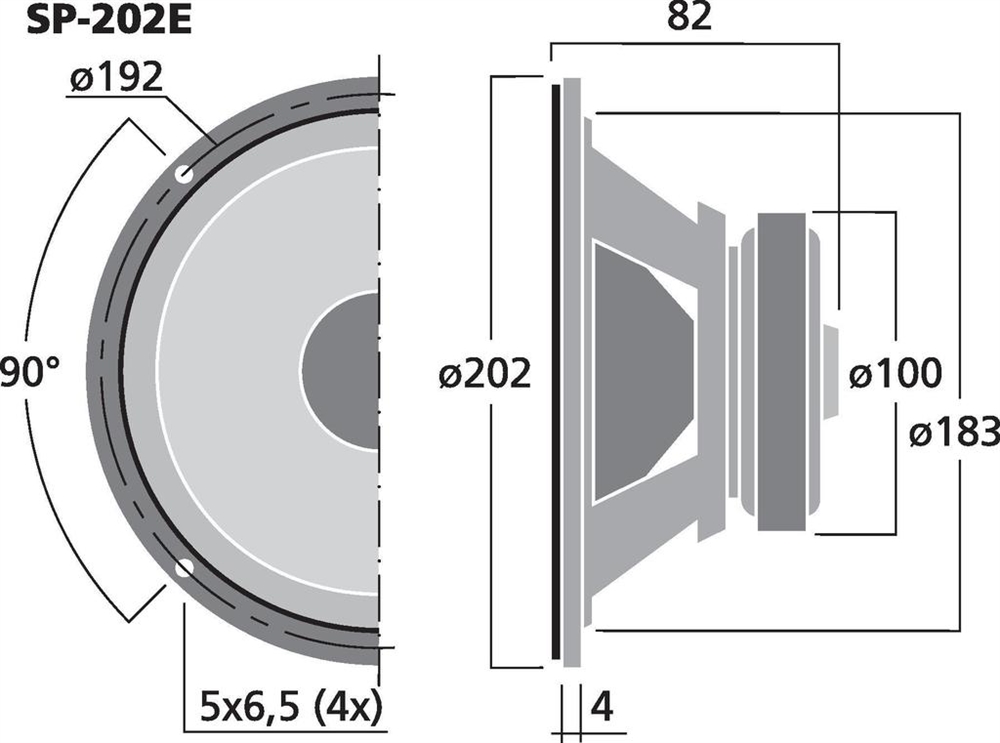

Mounting cutout	Ø 183mm
Mounting depth	82mm
Mounting hole diameter	Ø 192 mm
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 202 mm x 82 mm
Outside diameter	Ø 202 mm
Width	Ø 202 mm
Height	-
Depth	82 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	1.39 kg
Packing unit	1
Type of speaker	8"

Varenr.: 103980
