10" højttaler 500Wmax - SP-10/250PRO - IMG STAGE LINE

10" højttaler 500Wmax - SP-10/250PRO - IMG STAGE LINE
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for 10" højttaler 500Wmax - SP-10/250PRO - IMG STAGE LINE
    Produktet er endnu ikke bedømt
  •
    999,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

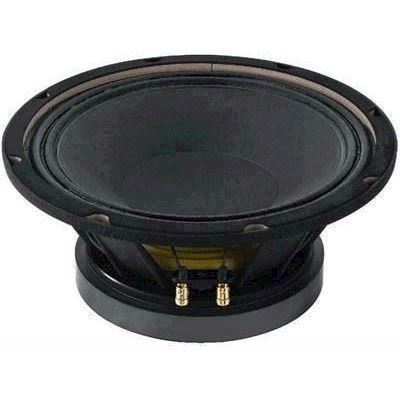

PA bass speaker, subwoofer, 500 WMAX, 250 WRMS, 8 ohm

PA bass speaker, subwoofer, 250 W, 8 Ω
  • 25 cm (10") bass speaker and subwoofer of high power capability
  • Heat-resistant voice coil and ventilated drive system
  • Extra long excursion for a deep bass reproduction of high volumes
  • Progressive cone suspension for a high operating reliability
  • Robust diecast aluminium basket
  • Ideally suited for compact subwoofers and 2-way systems with a crossover frequency of approx. 1,500 Hz to the tweeter
HOBBY HiFi 03/2014
"A bass driver of particularly long excursion and high level stability for compact cabinets of about 35 litres (e.g. in the speaker building concept HiFi-PA 10/2). The HiFi-PA 10/2 impressed with a breathtaking power in the audio room. ... tremendous level reserves ... incredibly filigree."
HOBBY HiFi 02/2014
"A bass driver of particularly long excursion and high level stability for more compact reflex cabinets of about 35 to 40 litres."

Klang + Ton 03/2013

"Universal bass speaker for powerful applications. Skilfully selected TSP ensure high subwoofer levels from compact cabinets."


Impedance (Z)8 Ω
Transmission method-

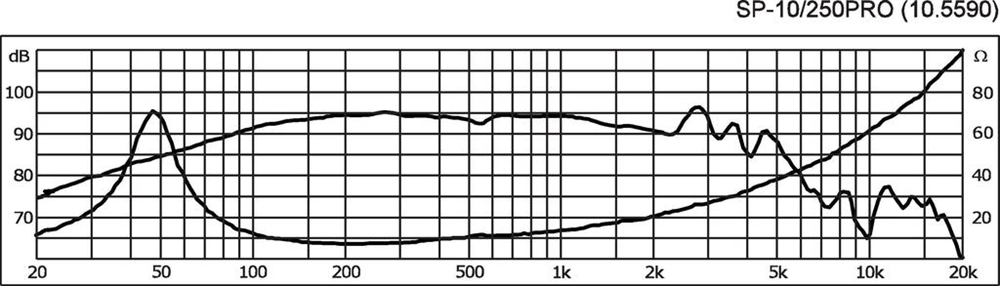

Frequency rangef3-2,000 Hz
Resonant frequency (fs)47 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating250 W
Peak music power output500 W
Sensitivity94 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.20 mm/N
Moving mass (Mms)51 g
Mech. Q factor (Qms)6.16
Electr. Q factor (Qes)0.35
Total Q factor (Qts)0.33
Equivalent volume (Vas)40.7 l
DC resistance (Re)7.1 Ω
Force factor (BxL)18.3
Voice coil induct. (Le)0.83 mH
Voice coil diameterØ 75 mm
Voice coil formerKapton
Linear excursion (XMAX)±7 mm
Eff. cone area (Sd)380 cm2
Magnet weight2 kg
Magnet diameterØ 169 mm
Mounting cutoutØ 228 mm
Mounting depth111 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

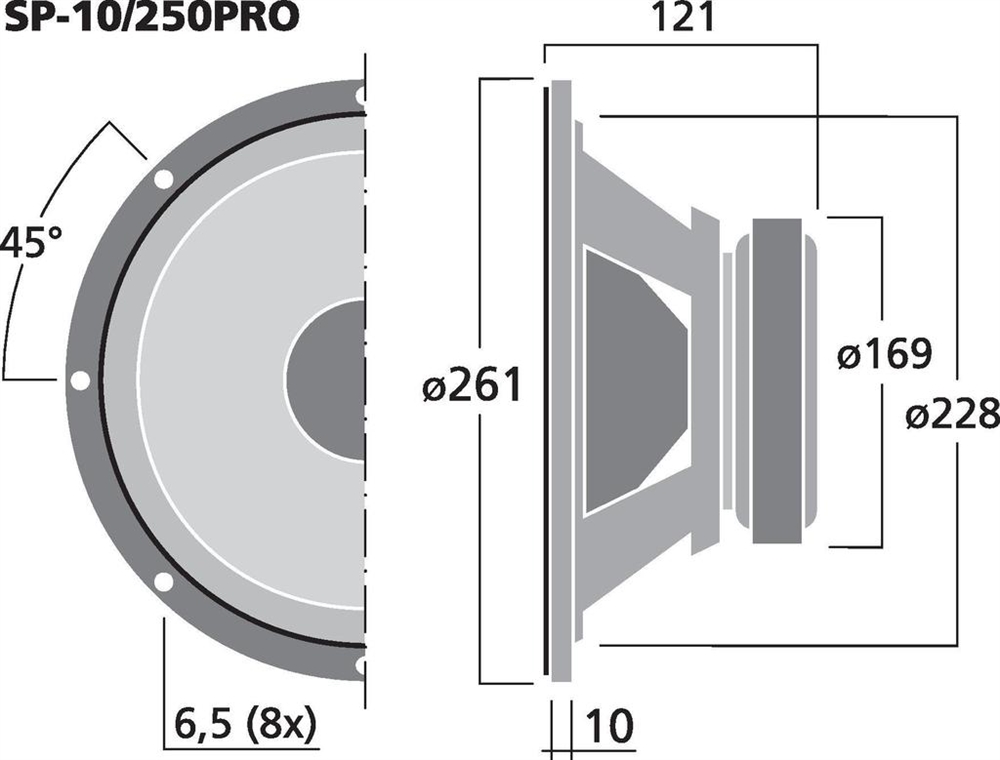

DimensionsØ 261 mm x 121 mm
Outside diameterØ 261 mm
WidthØ 261 mm
Height-
Depth121 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight5 kg
Packing unit1
Type of speaker10"
Varenr.: 105590
