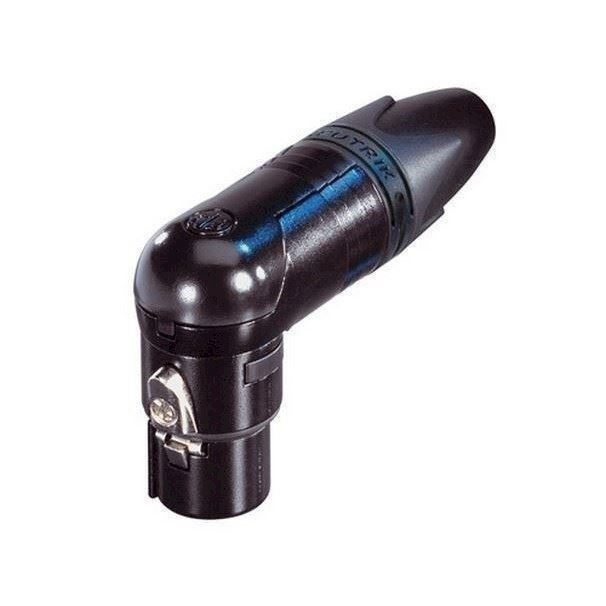

5 pole right angle female cable connector, black metal housing, gold contacts. The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to ass
Teknisk specifikationer Capacitance between contacts≤ 7 pF Contact resistance≤ 3 mΩ (inner) Dielectric strength1,5 kVdc Insulation resistance> 2 GΩ (initial) Rated current per contact7,5 A Rated voltage50 V Cabel O.D.3.5 - 8.0 mm Insertion force≤ 20 N With drawal force≤ 20 N Lifetime> 1000 mating cycles Wiresize max. 1.0 mm² Wiresize max. 18 AWG Wiring Solder contacts RW / Straightyes Locking device Latch lock Boot Polyuretan Bushing Polyamide (PA 6 15% GR) Contact plating0.2 µm Au hard alloy over 2 µm Ni Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal (POM) FlammabilityUL 94 HB Standard compliance IEC 61076-2-103 Protection classIP 40 SolderabilityComplies with IEC 68-2-20 Temperature range-30 °C to +80 °C
