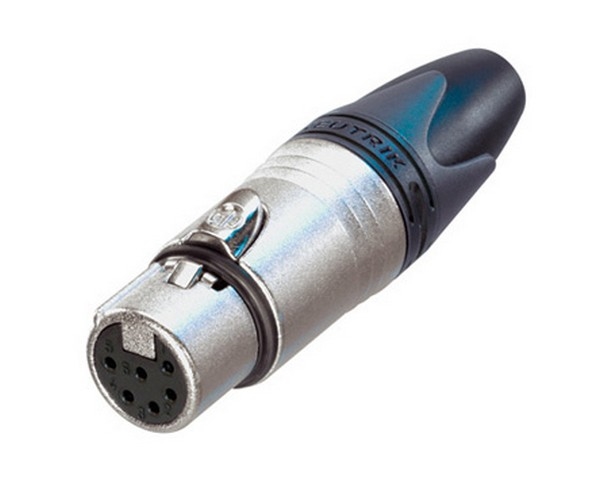

NC6FX XLR kabel fatning hun
Capacitance between contacts: = 7 pF
Contact resistance: = 3 mO
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GO (initial)
Rated current per contact: 7,5 A
Rated voltage: < 50 V
Cable O.D.: 3.5 - 8.0 mm
Insertion force: = 20 N
Withdrawal force: = 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 1.0 mm²
Wiresize: max. 18 AWG
Wiring: Solder contacts
Locking device: Latch lock
Boot: Polyurethan
Contact plating: 2 µm Ag over 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: St3K32 (latch) / Ck 67 (spring)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)
Approvals: UL
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
