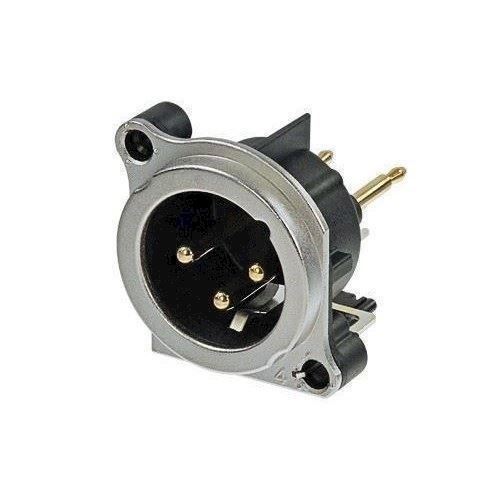

3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, steel retention lug, vertical PCB mount
Same as A series with exception of a metal mounting flange featuring continuous circumferential groun
Teknisk specifikationer Product Title NC3MBV Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ (inner) Dielectric strength1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 6 A Rated voltage 50 V Grounding Options Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiring vertical PCB mount Locking device Latch lock Mounting direction rear Chassis shape B Mounting B-Screw Material Contacts Brass (CuZn35Pb2) Insert Polyamide (PA 6.6 30 % GR) Locking element Stahl Ck67 Ring Zinc diecast (ZnAl4Cu1) Flange Metal Environmental Approvals UL Flammability UL 94 V-0 Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C
