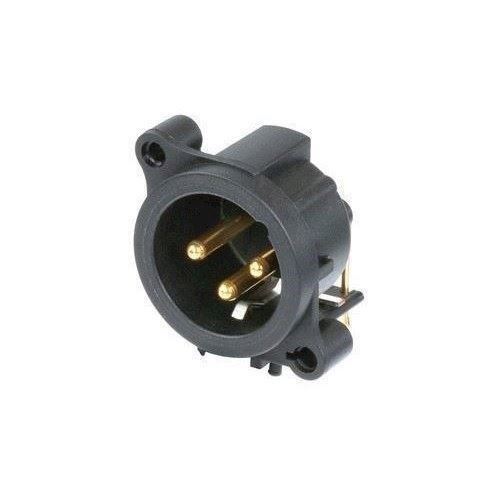

3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount
Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible
Teknisk specifikationer Capacitance
between contacts≤ 4 pF Contact resistance≤ 6 mΩ (inner) Dielectric
strength1,5 kVdc Insulation resistance> 2 GΩ (initial) Rated current
per contact6 A Rated voltage50 V Grounding OptionsSeparate ground contact
connected to mating connector shell and front panel, no connection to
Pin 1Mechanical Insertion force≤ 20 N Withdrawal force≤ 20
N Lifetime> 1000 mating cycles WiringHorizontal PCB mount Locking
deviceLatch lock Mounting directionrearChassis
shapeA MountingA-ScrewMaterial Contact plating0.2 µm AuCo over 2 µm
NiP15 (Tribor®) ContactsBrass (CuZn35Pb2) InsertPolyamide (PA 6.6 30 %
GR) FlangeBlack PlasticEnvironmental FlammabilityUL 94 HB Standard
complianceIEC 61076-2-103 Protection classIP 40 SolderabilityComplies
with IEC 68-2-20 Temperature range-30 °C to +80 °C
