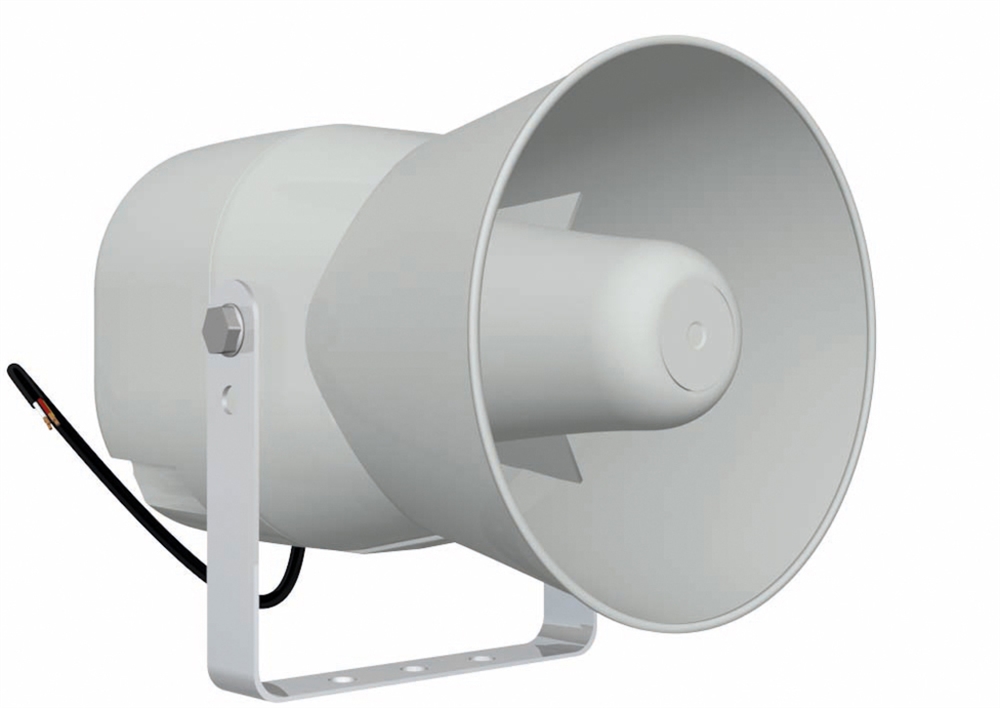

Technical specifications TR-6
| TR-6 |
|---|
| Active/passive |
passive
|
| Transmission technology |
100 V
|
| Total power rating |
6 W
|
| Power rating (RMS) |
6/3/1.5 W
|
| Frequency range |
500-13,000 Hz
|
| Number of speakers |
1
|
| SPL |
106 dB/W/m
|
| Max. rated SPL |
114 dB
|
| Radiation angle/beam angle |
90°
|
| Radiation angle, horizontal |
90°
|
| Radiation angle, vertical |
90°
|
| Housing material |
ABS
|
| Colour |
light grey, RAL 7035
|
| Mounting device |
mounting bracket
|
| Protection class |
IP54
|
| Admiss. ambient temp. |
-40 °C to +70 °C
|
| Dimensions |
Ø 130 mm x 175 mm
|
| Width |
Ø 130 mm
|
| Height |
Ø 130 mm
|
| Depth |
175 mm
|
| Weight |
1.4 kg
|
| Inputs |
cable connection
|
| Other features |
weatherproof
|
| Packaging dimensions (W x H x L) |
0.145 x 0.145 x 0.209 m
|
| Gross weight |
1.5 kg
|
| Net weight |
1.4 kg
|
| |
| TR-6 |
|---|
| EAN code |
4007754430073
|
| Net weight |
1.4 kg
|
| |
