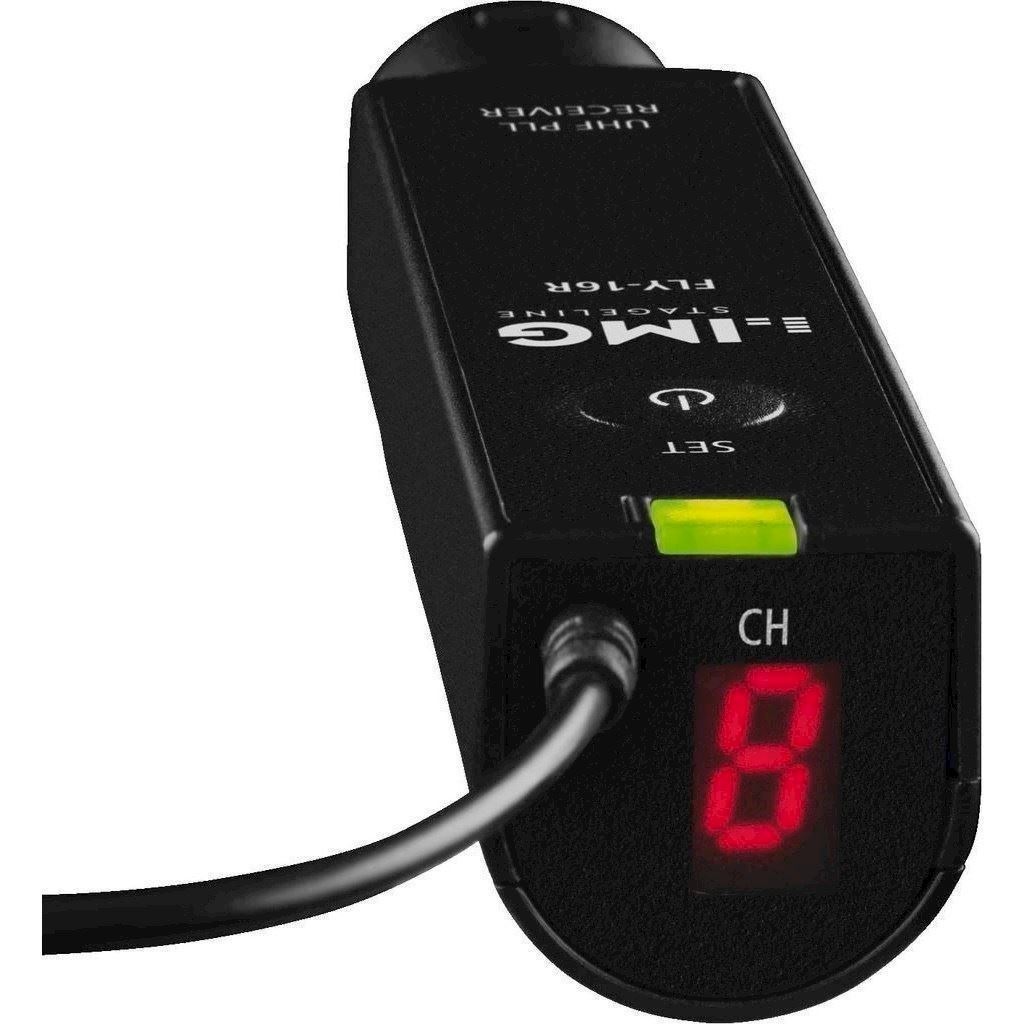

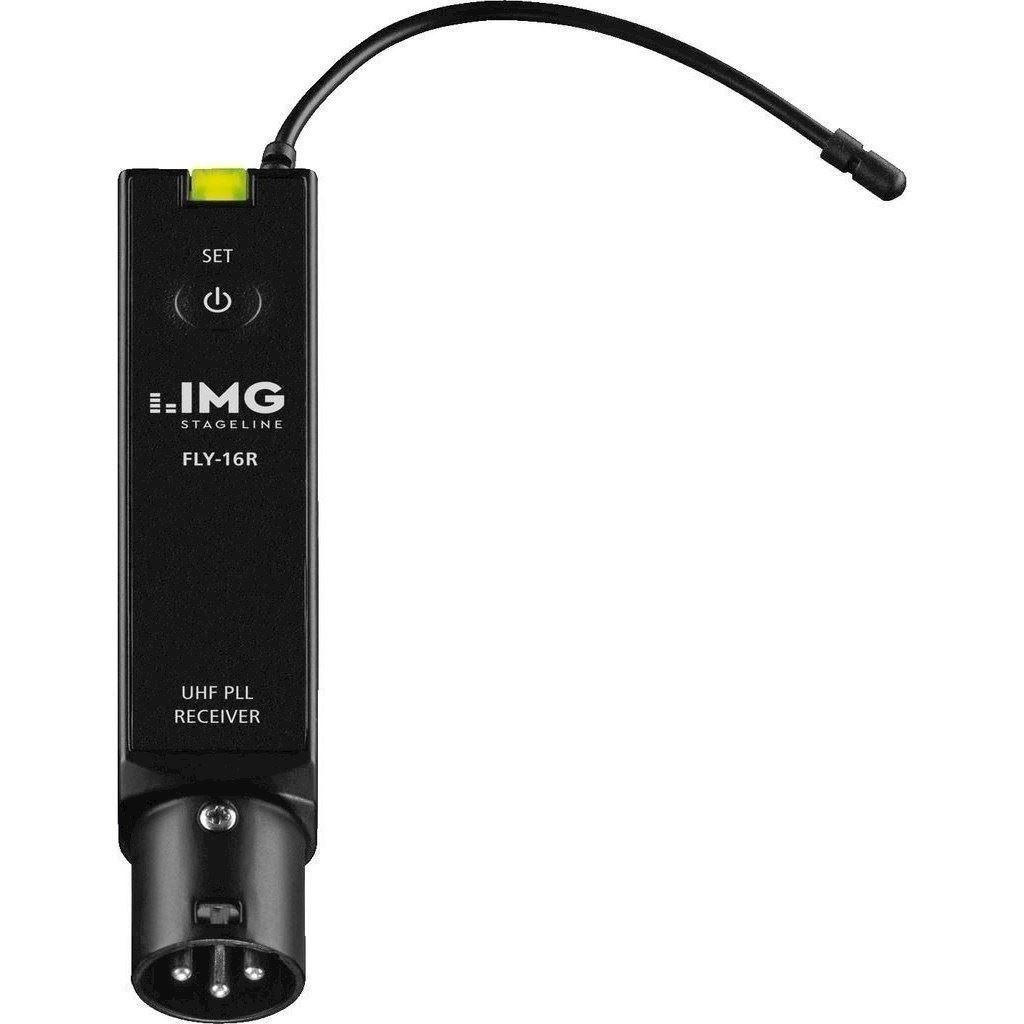

Trådløs receiver - FLY-16R

16-channel wireless PA audio receiver,

with UHF PLL technology.

For wireless transmission of audio signals in PA systems
Frequency range: 823-832 MHz
16 pre-programmed channels, selectable (10 intermodulation-free channels)
Audio transmission range: 30-17,000 Hz
Low-latency transmission
Multiple receivers FLY-16R can be operated via one transmitter FLY-16T
Indication for channel and battery status
3-pole XLR plug
Power supply via 1 x 1.5 V battery AA size (not supplied) or micro USB jack (5 V/150 mA)
Supplied with USB cable
Dimensions: 22 x 23 x 114 mm

Licence-free in the EU.

General information
Description	16-channel wireless PA audio receiver
Carrier frequency range	823-832 MHz
Audio frequency range	30-17,000 Hz
Channels	16
THD	0.3%
Dynamic range	-
RF S/N ratio	-
Operating time	-
Admiss. ambient temp.	0-40 °C
Power supply	-
Dimensions	-
Total weight	-
Connections	-
Specifications transmitter	-
Transmitting power	-
Operating range	-
Power supply transmitter	-
Width transmitter	-
Height transmitter	-
Depth transmitter	-
Weight transmitter	-
Connections transmitter	-
Specifications receiver
Audio signal receiver	-
Power supply receiver	1 x 1.5 V batt. AA size, DC 5 V/150 mA via micro USB jack
Width receiver	22 mm
Height receiver	23 mm
Depth receiver	114 mm
Weight receiver	31 g
Connections receiver	3-pole XLR plug

Varenr.: 259570
