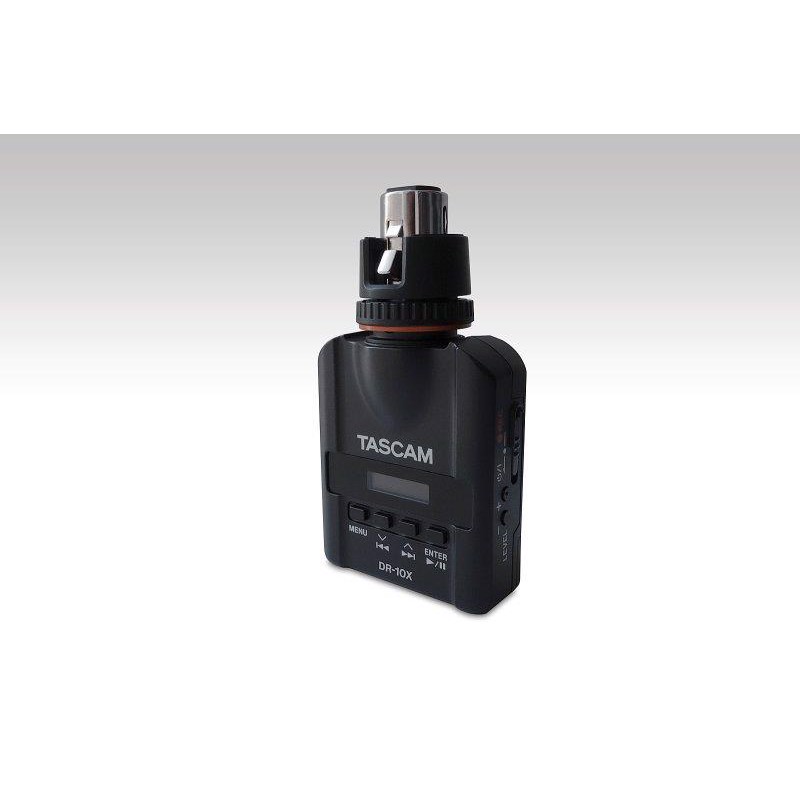

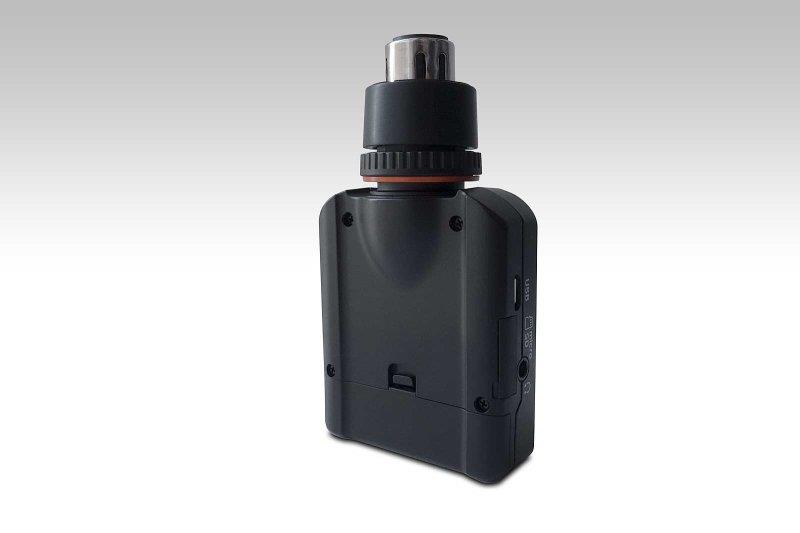

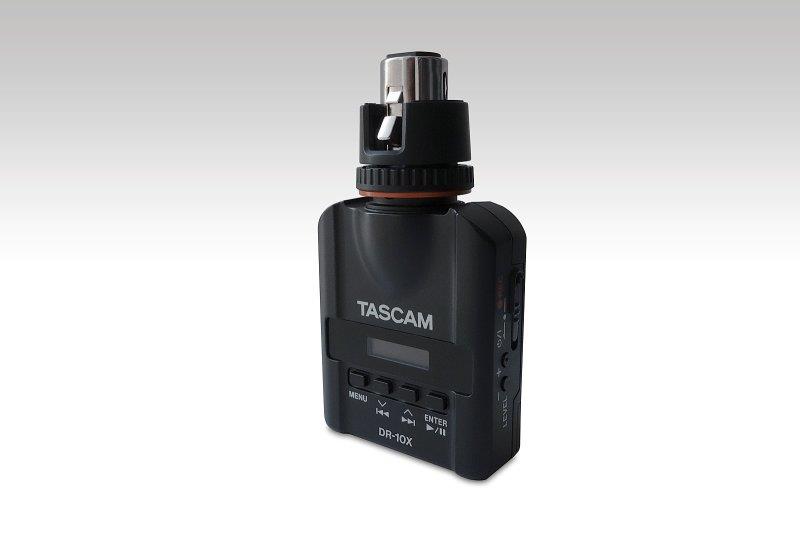

Tascam DR-10X audiorecorder til XLR dynamisk mikrofon

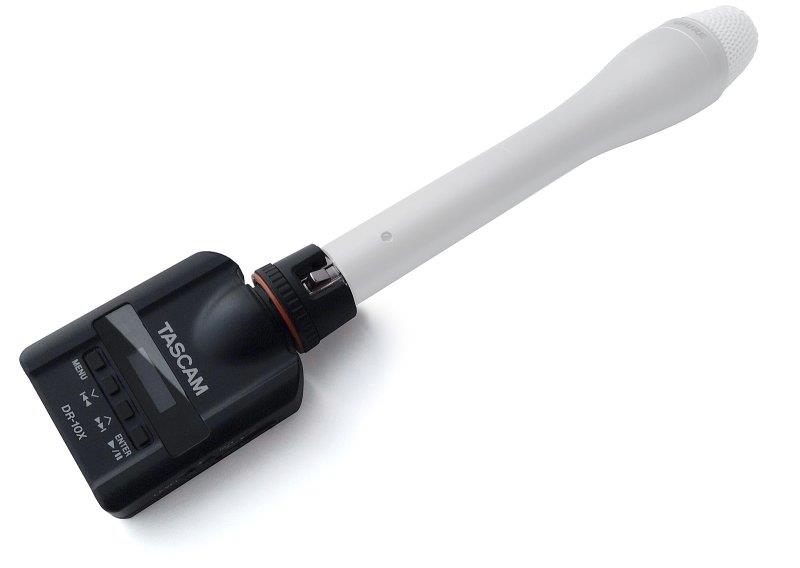

Den kompakte DR-10X lydoptager kan fastgøres til en håndholdt mikrofon. XLR-stikket kan fastgøres til enhver dynamisk mikrofon og opfange interviews i Broadcast WAV-format med en 48 kHz / 24 bit opløsning. Optagelser kan aflastes gennem et USB-stik eller ved at indlæse microSD-kortet i en computer. DR-10X tilbyder både manuel og automatisk gain-indstilling, et low-cut filter og en limiter som forhindrer overbelastning. Dual Recording-mode kan skabe en kopy af lyden på et lavere niveau i tilfælde af forvrængning. (Mikrofon medfølger ikke)
Recording media: microSD card (64 MB−2 GB), microSDHC card (4 GB−32 GB)
Recording/playback formats: 48 kHz/24 bit mono WAV (BWF format)
Microphone input: XLR (female) (1: GND, 2: HOT, 3: COLD)
When MIC GAIN set to EXT (unbalanced input)
Maximum input level: -8 dBu
Nominal input level: -24 dBu
When MIC GAIN set to LO/MID/HI (balanced input)
Maximum input level: -31 dBu
Minimum input level: -63 dBu
Mic input gain: LO: +29 dB, MID: +35 dB, HI: +45 dB
Input impedance: 10 kΩ or more
Headphones output: 3.5-mm stereo phone jack (dual mono audio output)
When MIC GAIN set to EXT (unbalanced input)
Frequency response: 20 Hz – 22 kHz, +1/−3 dB
Distortion: 0.05% (1 kHz sine wave, maximum input level)
S/N ratio: 92 dB or higher (maximum phones volume)
When MIC GAIN set to LO/MID/HI (balanced input)
Frequency response: 20 Hz – 22 kHz, +1/−3 dB
Distortion: 0.05% (1 kHz sine wave, maximum input level)
S/N ratio: 80 dB or higher (maximum phones volume)
Supported operating systems: Windows 7, Windows 8 (including 8.1), Mac OS X Mavericks (10.9), Mac OS X Mountain Lion (10.8)
Power supply: 1 AAA battery (alkaline, NiMH or lithium), USB bus power from a computer
Power consumption: 0.65 W (maximum)
Current consumption (USB bus power): 0.25A (maximum)
Date and time data retention: Built-in lithium battery
Dimensions (W x H x D, excluding protrusions): 52 x 95 x 28 mm
Weight: 68 g (with battery), 56 g (without battery)
Operating temperature range: 0–40 °C
