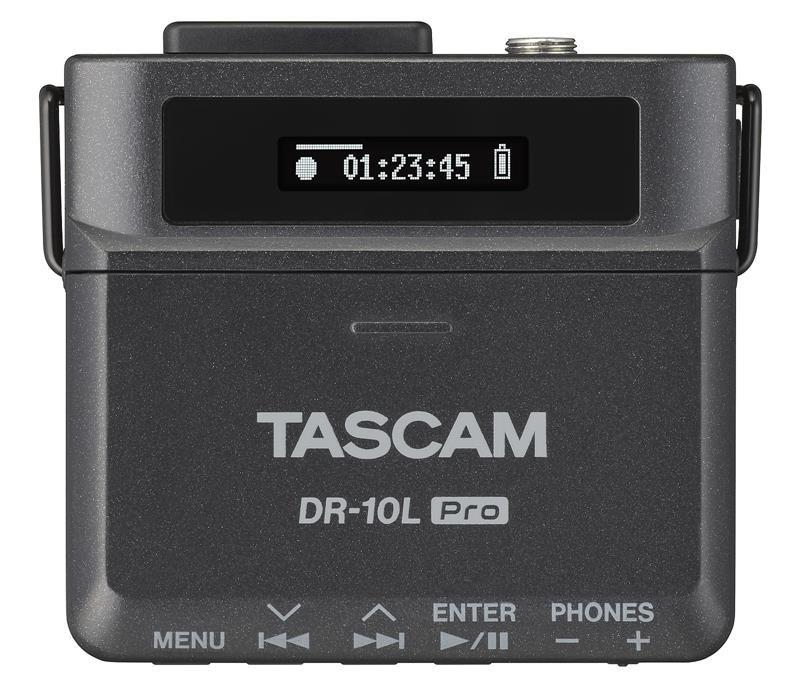

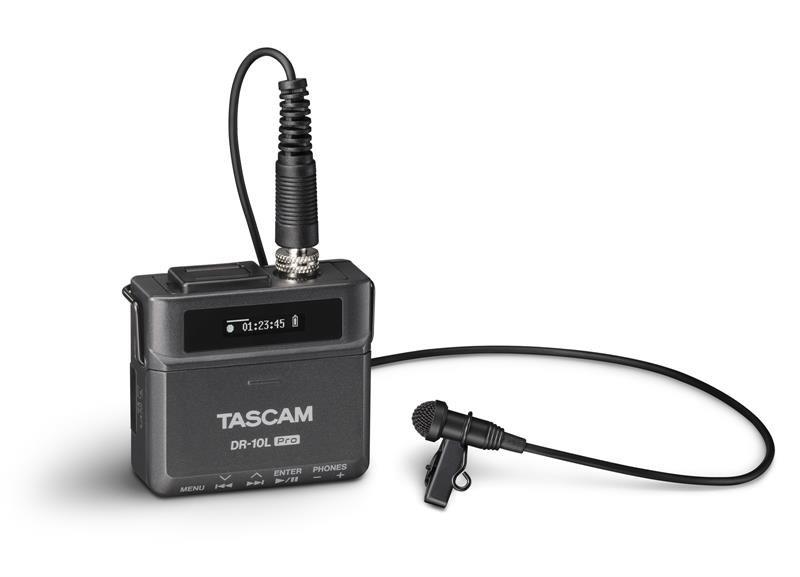

Tascam DR-10L Pro 32-Bit recorder med lavalier mikrofon
DR-10L Pro er en kombination af audio-recorder og en high performance lavalier-mikrofon i et handy ultrakompakt system, der giver professionelle lydoptagelser, hvilket gør booms og dyre trådløse systemer overflødige.
Lavalier-mikrofon er monteret med mini-Jack-stik med omløber og dermed kompatibelt med de fleste Sennheiser lavalier-mikrofoner ogandre mikrofoner med samme stik.
Videografer elsker Tascam DR-10L Pro bærbar optager med clip-on mikrofon som en nem og diskret løsning til at optage lyd til video.
Ved at kombinere bekvemmeligheden med en lavaliermikrofon med en ultrakompakt bærbar optager løser denne formfaktor mange af de problemer, som indholdsskabere ofte står over for.
Det er en overlegen løsning til travle begivenheder såsom bryllupper og filmoptagelser på stedet.
Mens traditionelle trådløse mikrofonsystemer kan give anledning til bekymringer om arbejdsgangen, er den bundsolide ydeevne af en Tascam-kablet lavalieroptager bevist og sikret.
Enkel plug-and-go-betjening gør også DR-10L Pro til et nemt backup-system til din typiske stemmeoptagelsesopsætning.
DR-10L Pros 32-bit float-optagelsesteknologi lader dig fange en hvisken, et skrig og alt derimellem med upåklagelig troskab, ultra-lav støj og ingen grund til at finjustere gain-niveauer.
Understøttelse af trådløs tidskodesynkronisering med Atomos-produkter, muligheden for trådløst at styre op til fem optagere fra appen*, plus lang batterilevetid og generøs lagerkapacitet gør DR-10L Pro ideel til professionelle applikationer.
DR-10L Pro er kompakt og vejer kun 65 gram inklusiv batteri.
Optager cirka 24,5 timer på 2 styk AAA lithium batterier.
Optager på microSD-/microSDHC og microSDXC-kort. (Op til 512 GB)
Leveres med mikrofon-clip, pop-filter. Kabellængde: 160 cm.
Ultra-lightweight and compact high-definition audio recorder with lavalier microphone
32-bit float resolution and dual A/D converter technology means you’ll never need to scrap a recording due to poor audio levels, and no need to fine-tune input levels
Records at least 24.5 hours using two AAA lithium batteries for all-day video shoots
Optional AK-BT1 Bluetooth adapter for
Remote control of up to five units using the dedicated app DR-10 L Pro CONNECT
Wireless timecode synchronisation with compatible products from Atomos
Huge storage capacity by using microSDXC cards up to 512 GBytes
Screw lock securely connects the microphone to the unit
Linear PCM recording (BWF-compatible WAV format)
Sampling rate: 44.1 kHz, 48 kHz
Resolution: 16 bit, 24 bit, 32 bit float
MP3 recording
Sampling rate: 44.1 kHz, 48 kHz
Resolution: 16 bit, 24 bit
Bit rate: 128/192 kbit/s (recording), 32–320 kbit/s (playback)
Automatic level control and switchable limiter to prevent clipping
Switchable low-cut filter to reduce low-frequency noise
Sliding record switch and lock function to prevent misoperation during recording
Automatic file closing function to prevent the loss of already recorded data
Headphones output for input monitoring and playback
High-contrast, easy-to-read electroluminescent (EL) display

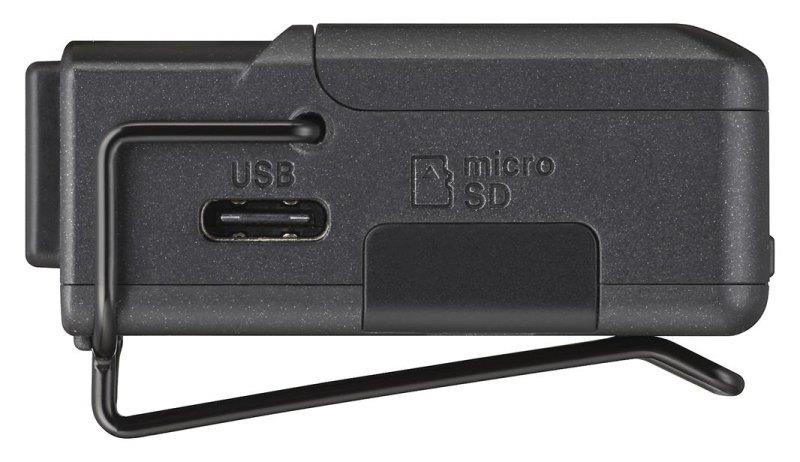

USB-C connector for easy data transfer with a computer
Included items: Lavalier microphone (TM-10L, cable length 160 cm), microphone clip, windscreen, belt clip, USB cable, iZotope RX Elements audio repair software (download voucher)
Remote control app DR-10L Pro CONNECT (requires optional AK-BT1 Bluetooth adapter)
Controls and monitors operation of up to five DR-10L Pro from a smartphone or tablet*
Waveform display for visual confirmation of input signal
Easy management of multiple units with unique names and identification colour settings
Metadata such as project name, scene name and take number can be included in the recording file (BEXT, iXML)
Presets can be saved and loaded with only a few taps
Date/time settings of the recorder can be synchronised with the smartphone/tablet
Storage media and file formats
Recording media
microSD card (64 MB – 2 GB)
microSDHC card (4–32 GB)
microSDXC card (64–512 GB)
Recording and playback formats
WAV: mono/poly (BWF format), 44.1/48 kHz, 16-bit, 24-bit, 32-bit float
MP3: 44.1/48 kHz, 128/192 kbit/s (recording) 32–320 kbit/s (playback)
Analogue audio inputs and outputs
Microphone input
3.5-mm mini TRS jack (with screw lock)
Maximum input level
–11 dBu
Gain range
7.5–38 dB
Input impedance
≥2 kΩ
Included microphone
TM-10L
Sensitivity
–42 dBV/Pa
Maximum sound pressure level
115 dB SPL
Supply voltage
2.3 V
Analogue output (Headphones jack)
3.5-mm mini stereo jack (dual mono audio output)
Maximum output power
10 mW + 10 mW (THD ≤0.1 %, 32 Ω)
Audio performance
Frequency response (input to recorded data)
20 Hz – 20 kHz, +0/–1 dB
Distortion
0.01 % (1 kHz, input level –21 dBV)
Dynamic range
≥105 dB
Power supply and other specifications
Power supply
2 AAA batteries (alkaline, NiMH or lithium rechargeable, sold separately)
USB bus power from a computer
Power consumption (batteries)
0.3 W (maximum)
Current consumption (USB bus power)
0.1 A (maximum)
Dimensions (W × H × D)
53 mm × 51 mm × 21 mm (excluding protrusions)
Weight
65 g (with batteries)
43 g (without batteries)
Permissible operating temperature range
0–40 °C
Battery operation time
Conditions: WAV recording at 48 kHz, 32-bit float, mic connected, headphones not connected, limiter off, mono file, continuous operation, in hours:minutes (JEITA CP-2905)
Alkaline battery (Evolta)
16:30
No Bluetooth connection
16:00
Bluetooth connection
NiMH battery (Eneloop)
11:30
No Bluetooth connection
10:30
Bluetooth connection
Lithium battery (Energizer Ultimate Lithium)
24:30
No Bluetooth connection
23:00
Bluetooth connection
