Tascam BD-MP1 Mk2 Blu Ray afspiller
Imponerende billedkvalitet, forbløffende lyd og Videoafspillernes arbejdshest

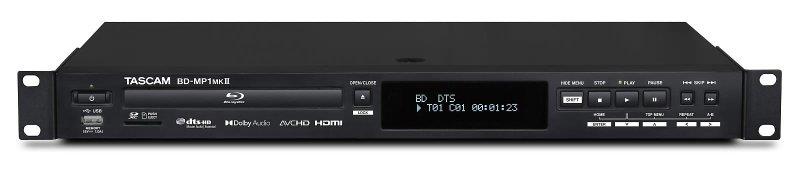

BD-MP1MKII er en robust multimedie-videoafspiller med enkelt rackplads til professionelle applikationer som permanent installation og touring.
Med udgangspunkt i succesen med Tascam BD-01U og BD-MP1 kan denne højopløselige afspilningsenhed styres via LAN, RS-232C og en trådløs fjernbetjening,
hvilket gør den til en ideel komponent i integrerede mediesystemer og en pålidelig videoafspiller til kommerciel AV, uddannelse, kirker, bestyrelseslokale eller live touring.
Afspilning fra en række medietyper
Den alsidige BD-MP1MKII kan automatisk afspille indhold i en lang række filformater via en hvilken som helst af de tre frontpanel-medieindgange, inklusive Blu-ray, DVD, CD, USB Flash-hukommelse og SD-kort.
BD-MP1MKII tilbyder enkeltkildeafspilning for en lang række medie- og filformater, og eliminerer behovet for diskrete lyd-/videoafspilningsenheder i en installation.
Dets omfattende udvalg af filformater inkluderer
videoformater som MPEG1, MPEG2, MPEG4 AVC, VC-1, AVCHD og WMV,
billedformater som JPEG, GIF og PNG samt
lydformater som LPCM, MP3, AAC og WMA.
Single-rackspace Blu-ray, DVD, CD and solid-state player
Controllable via Ethernet network (Telnet), RS-232C or wireless remote control
Plays video and audio material stored on following media:
BD25, BD50, BD-ROM, BD-R, BD-RE
DVD, DVD+R, DVD-R, DVD+RW, DVD-RW
CD, CD-R, CD-RW
SD cards (up to 512 GB)
USB flash media
Support for a wide range of file formats
NTSC/PAL conversion
BD-Live function
HDMI high-definition audio/video out, supports HDMI CEC which allows the connected display to be switched on/off in correct order
Separate 7.1 surround sound outputs
XLR balanced and RCA unbalanced stereo outputs
Up to 40 dB attenuation for analogue and digital stereo outputs
Coaxial digital audio output (SPDIF, Dolby, DTS)
Power-on play (start playback when power comes up)
Resume (continue after power cycle)
Repeat (chapter, title, A–B)
Instant replay (10 seconds)
Lock function (panel, tray, or IR remote)
On-screen information switchable on or off
Dimmable front-panel display
Firmware update via disc or USB memory

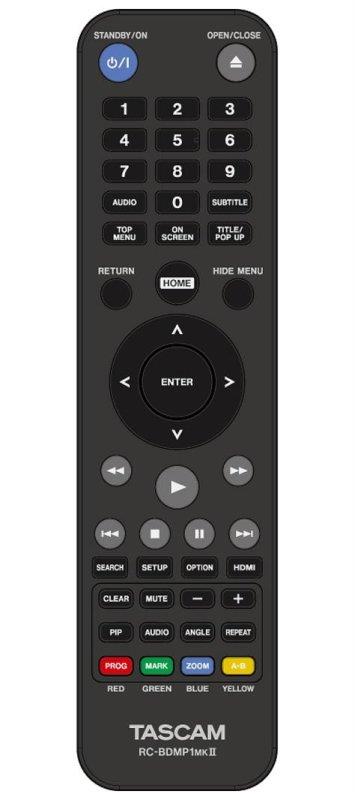

Infrared remote control included as standard
Media
Blu-ray
BD25, BD50, BD-ROM, BD-R (SL, DL), BD-RE (SL, DL) (Blu-ray 3D supported)
Disc formats
BDMV, BDAV
DVD
DVD, DVD+R (SL, DL), DVD-R (SL, DL), DVD+RW, DVD-RW
Disc formats
DVD-Video, DVD-VR, AVCHD
CD
CD-DA, CD-R, CD-RW
SD
SD card with up to 512 GB total capacity
Supported file systems
FAT16, FAT32, exFAT, NTFS
USB
USB flash drive (mass storage class) with up to 2 TB total capacity
Supported file systems
FAT16, FAT32, exFAT, NTFS
Supported file formats
Video
3GP, ASF, AVI, DAT, M2TS, MKV, MOV, MP4, MPG, OGM, RMVB, TP, TS, WMV
Audio
AAC, APE, FLAC, MP3, WAV, WMA
Still image
JPEG, GIF, PNG
Subtitles
SUB, ASS, IDX+SUB
Audio resolution
BD/DVD/USB/SD
Sampling frequency:
44.1/48/64/88.2/96/176.4/192 kHz
Bit width: 16/24 bit
CD
Sampling frequency: 44.1/48 kHz
Bit width: 16/24 bit
MP3/WMA
Sampling frequency: 32/44.1/48 kHz
Bit width: 16/24 bit
MP3 bit rate: 112–320 kbit/s
WMA bit rate: 48–192 kbit/s
Video
Resolutions
Auto, 480i/576i, 480p/576p, 720p, 1080p
Aspect ratios
16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
Colour systems
NTSC, PAL, Multi (if supported by TV)
HDMI colour space
RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr (4:2:2)

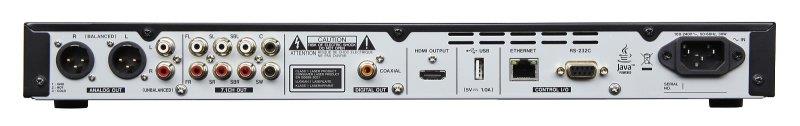

Analogue audio outputs
Balanced
XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output level
+4 dBu (1.23 Vrms)
Maximum output level
+20 dBu (7.75 Vrms)
Output impedance
≤200 Ω
Unbalanced
RCA pin jacks
Nominal output level
–10 dBV (0.316 Vrms)
Maximum output level
+6 dBV (2.0 Vrms)
Output impedance
≤210 Ω
7.1
8 × RCA pin jacks
Nominal output level
–10 dBV (0.316 Vrms)
Maximum output level
+6 dBV (2.0 Vrms)
Output impedance
≤210 Ω
0 dBu ≙ 0.775 Vrms, 0 dBV ≙ 1 Vrms
Audio performance
Frequency response
20 Hz – 20 kHz, ±0.5 dB
Signal-to-noise ratio
≥ 96 dB (JEITA)
Total harmonic distortion
≤ 0.03 % (1 kHZ, JEITA)
Dynamic range
≥ 96 dB (JEITA)
Channel separation
≥ 89 dB
JEITA: Compliant with JEITA CP-2150
Digital outputs
HDMI output
19-pin HDMI, Type A
Coaxial audio output
RCA pin jack
Format
IEC 60958-3 (SPDIF)
Output impedance
75 Ω
Other inputs and outputs
RS-232C
D-sub 9-pin
Mode
Full duplex
Baud rate
9600, 38400 bits/s (selectable)
Ethernet
RJ45
Supported standards
10BASE-T, 100BASE-TX
Cable requirements
Category 5e or better
USB
USB A-type (1 × front, 1 × rear)
Protocol
USB 2.0 compliant
Rated supply voltage
DC 5 V, 1 A
Power supply and other specifications
Power connector
IEC receptacle
Power requirements
AC 100–240 V, 50/60 Hz
Power consumption
30 W (typical)
< 0.5 W (standby)
Dimensions (W × H × D)
483 mm × 44 mm × 281 mm
Weight
3 kg
Permissible operating temperature
5–35 °C
Permissible operating humidity
25–85 %, no condensation
Included accessories
IR remote control (RC-BDMP1), AC power cable, rack-mounting kit (4 screws, 4 washers), Owner’s manual
