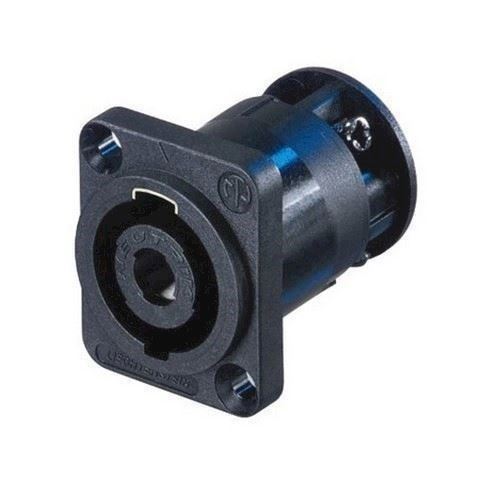

4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination. This chassis connector is not airtight.The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feat
Teknisk specifikationer Contact
resistance≤ 3 mΩ Dielectric strength4 kVdc Insulation resistance> 1 GΩ
Rated current per contact30 A rms continuous Rated current per contact40
A audiosignal, duty cycle 50 % Rated voltage250 V (AttentionspeakON is NOT to
be used as an AC mains or power supply connector) Lifetime> 5000 mating
cycles Locking device Quick Lock Chassis shape D Layoutstandard hole
position, thru holes Contact plating 4 µm Ag Contacts Bronze
(CuSn6) Shell Polyamide (PA 6 30 % GR) black Flammability UL 94
HB Solderability Complies with IEC 68-2-20 Temperature range-30 °C to +80
°C
