SMD-LED Bar - Cameo RGBW

SMD-LED Bar - Cameo RGBW
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for SMD-LED Bar - Cameo RGBW
    Produktet er endnu ikke bedømt
  •
    3.319,00DKK ved 1
Vis uden moms
Billigst på PriceRunner

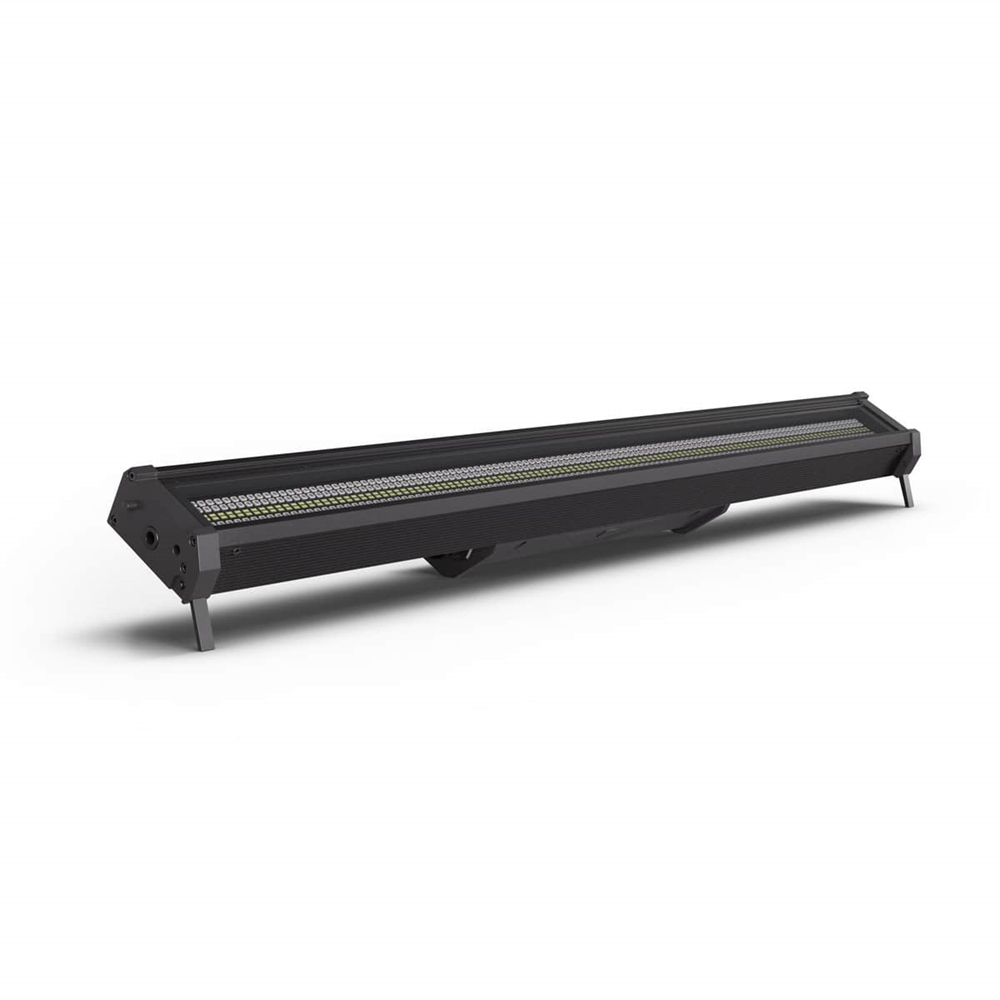

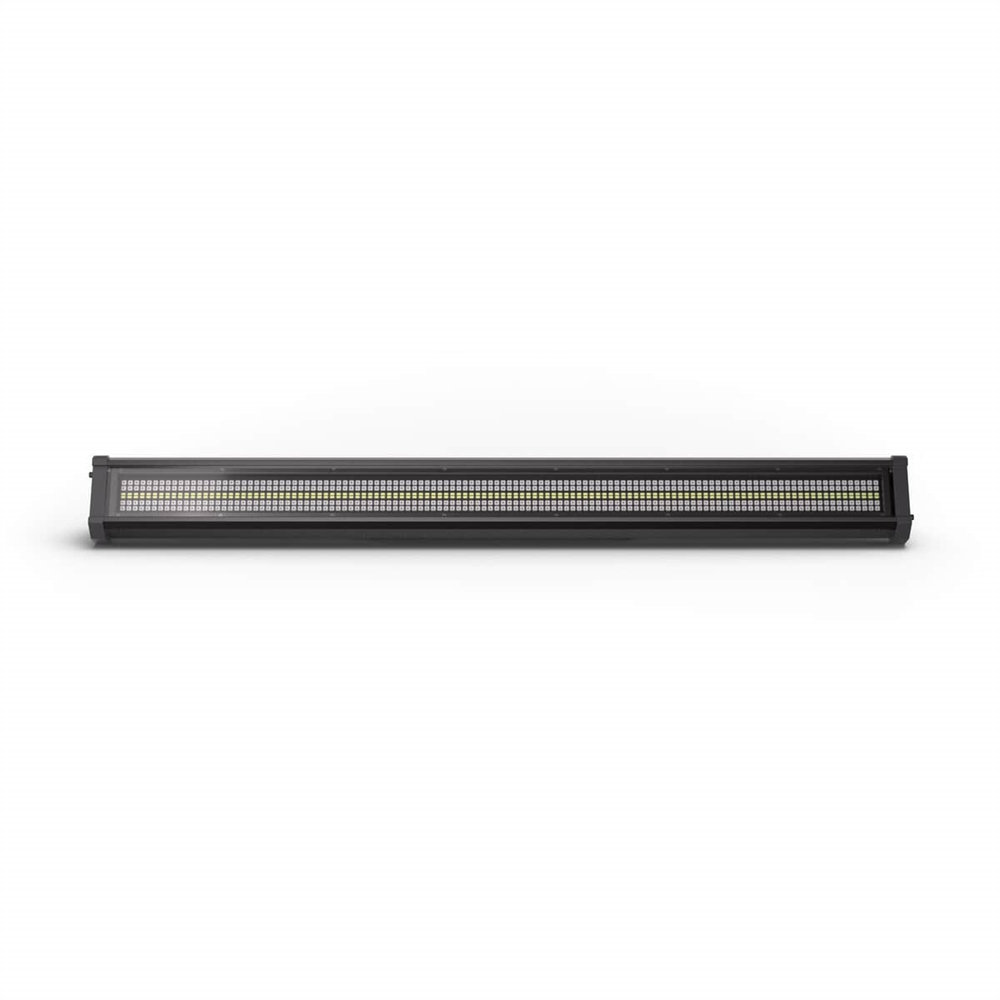

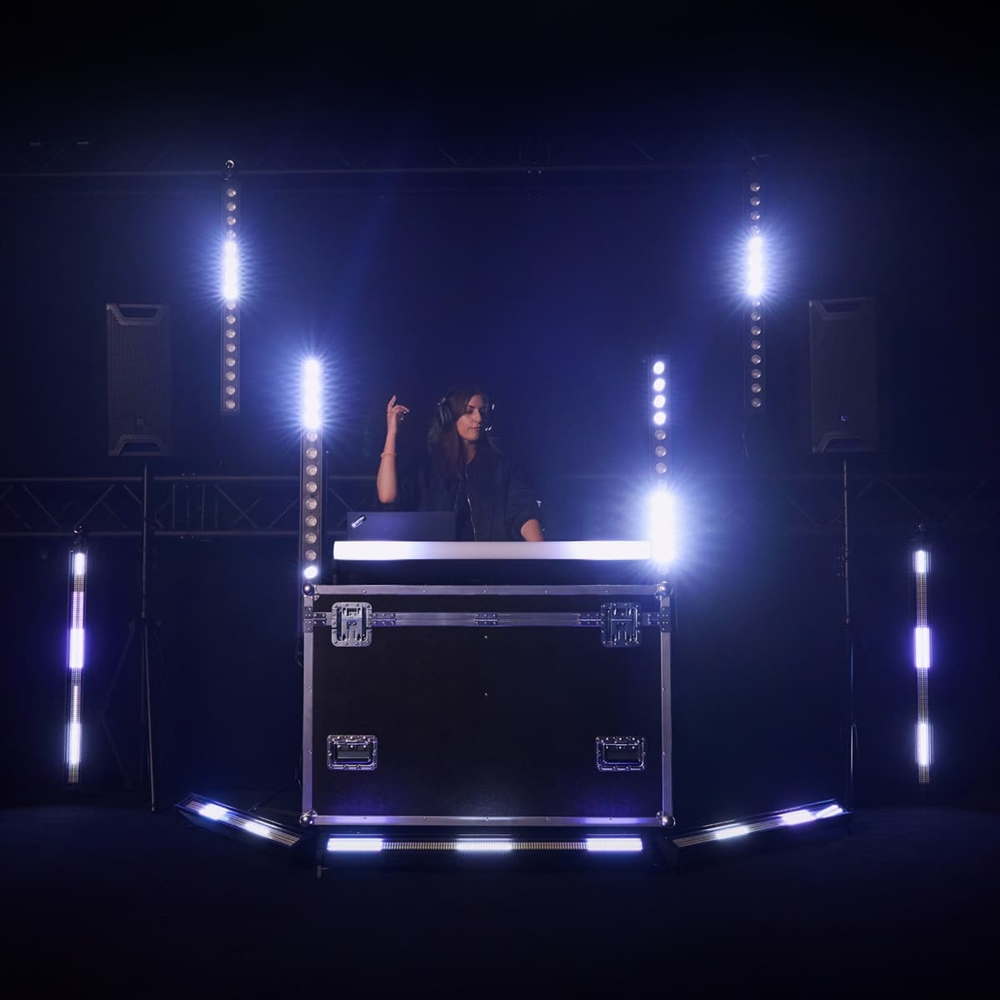

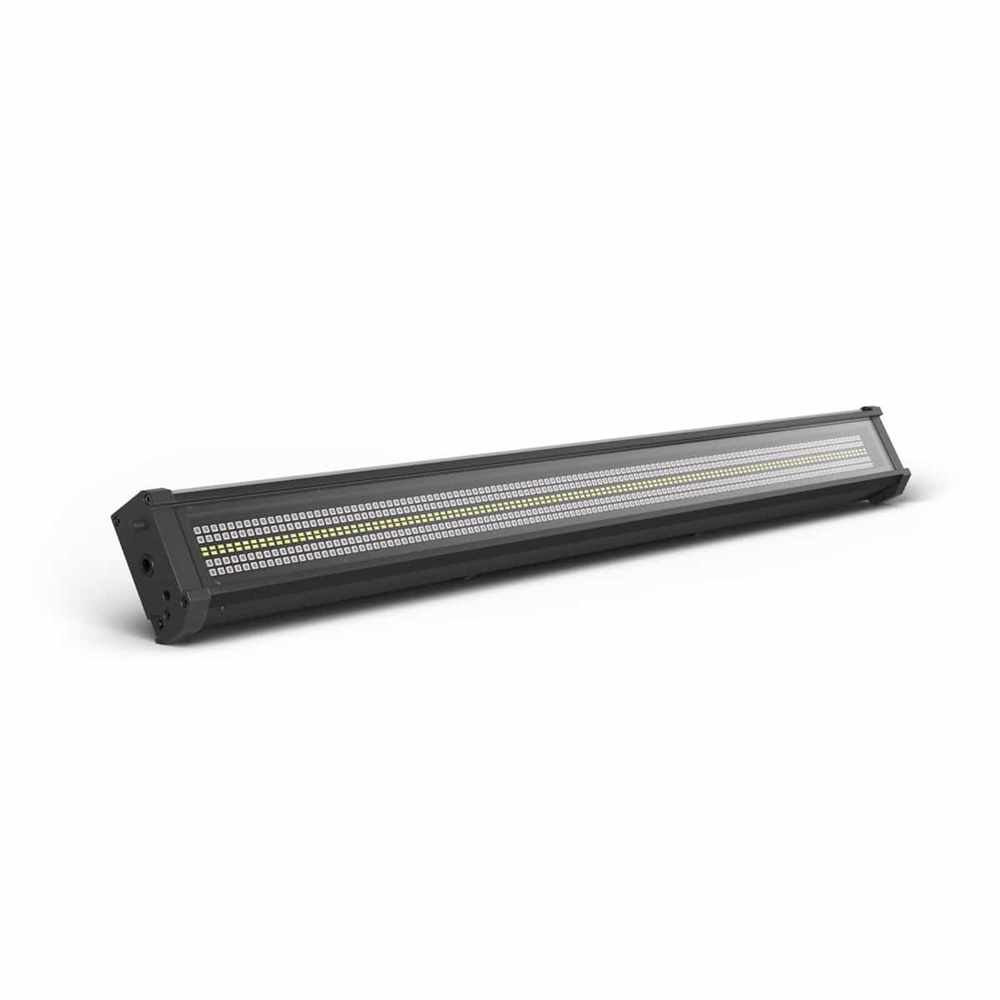

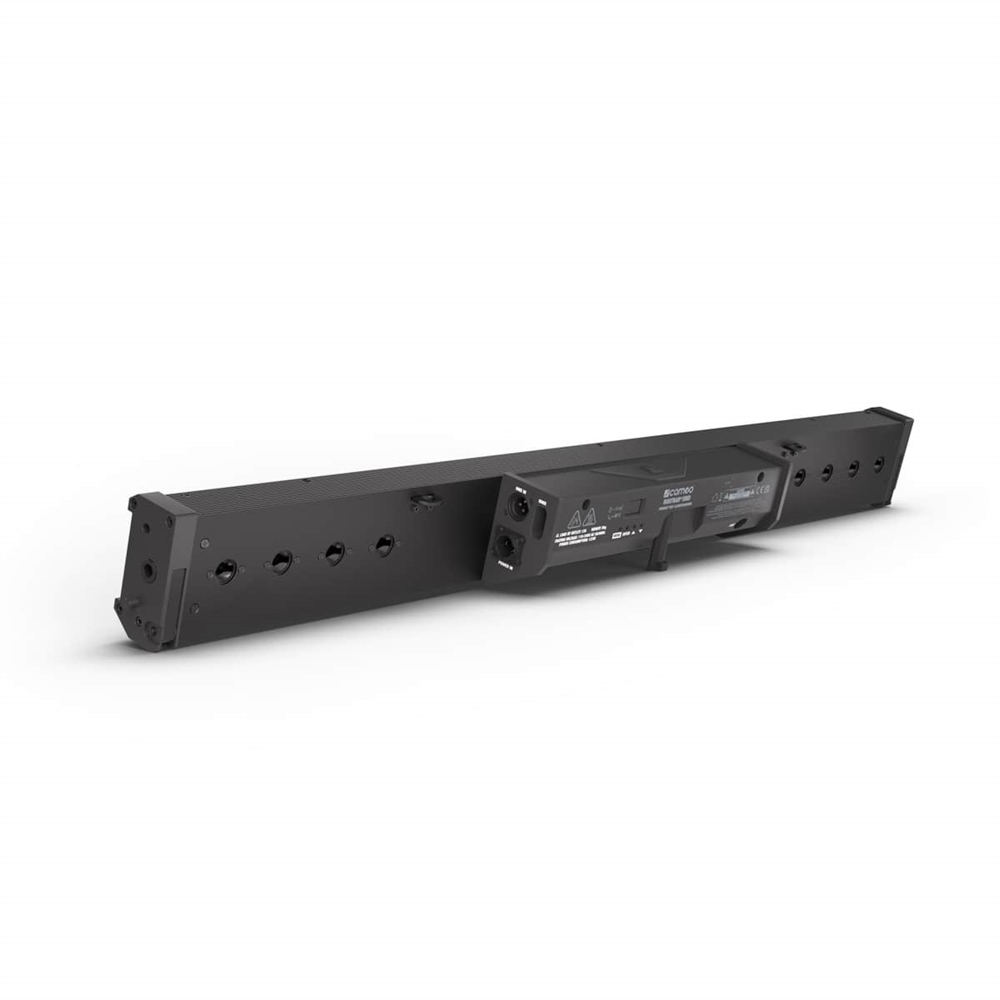

The Cameo ROOT® BAR is a linear LED bar available in three versions. Its compact design and impressive versatility make it ideal for creative lighting in trendy clubs, small bars, or exclusive events, providing stunning lighting effects in any setting.

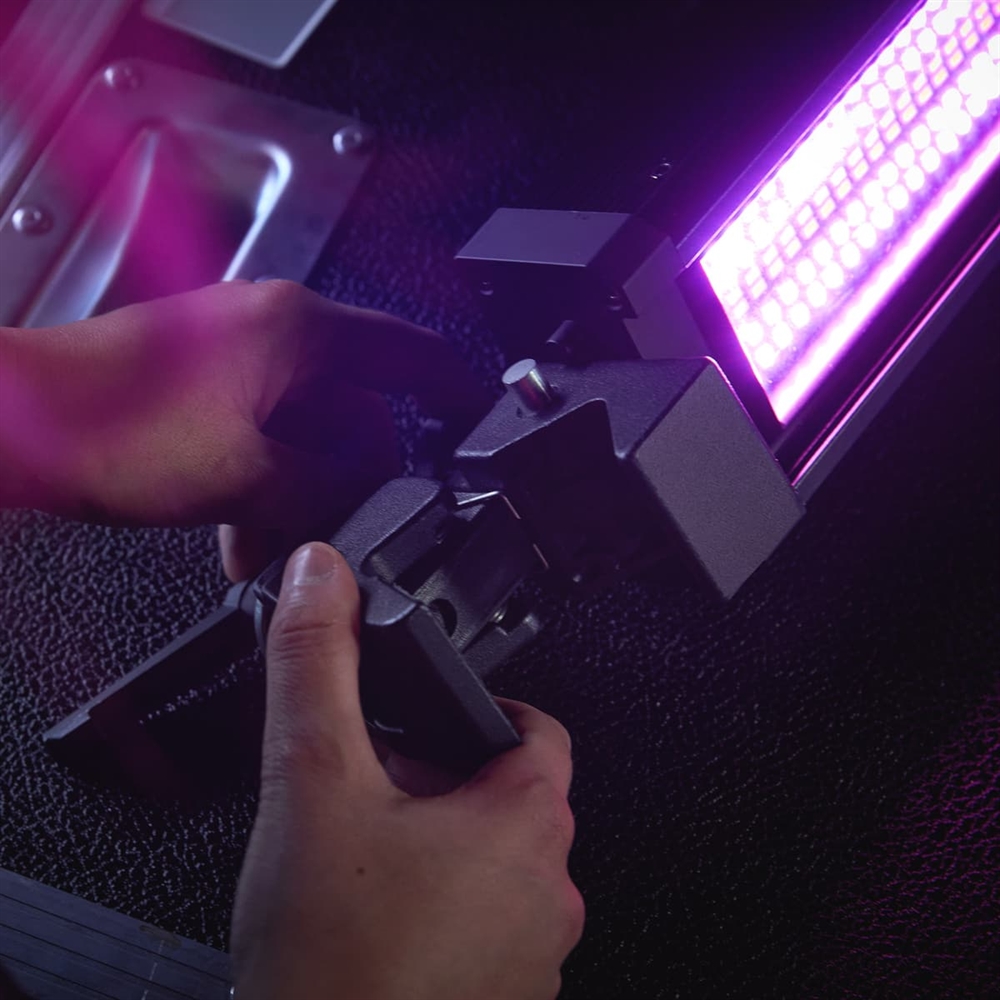

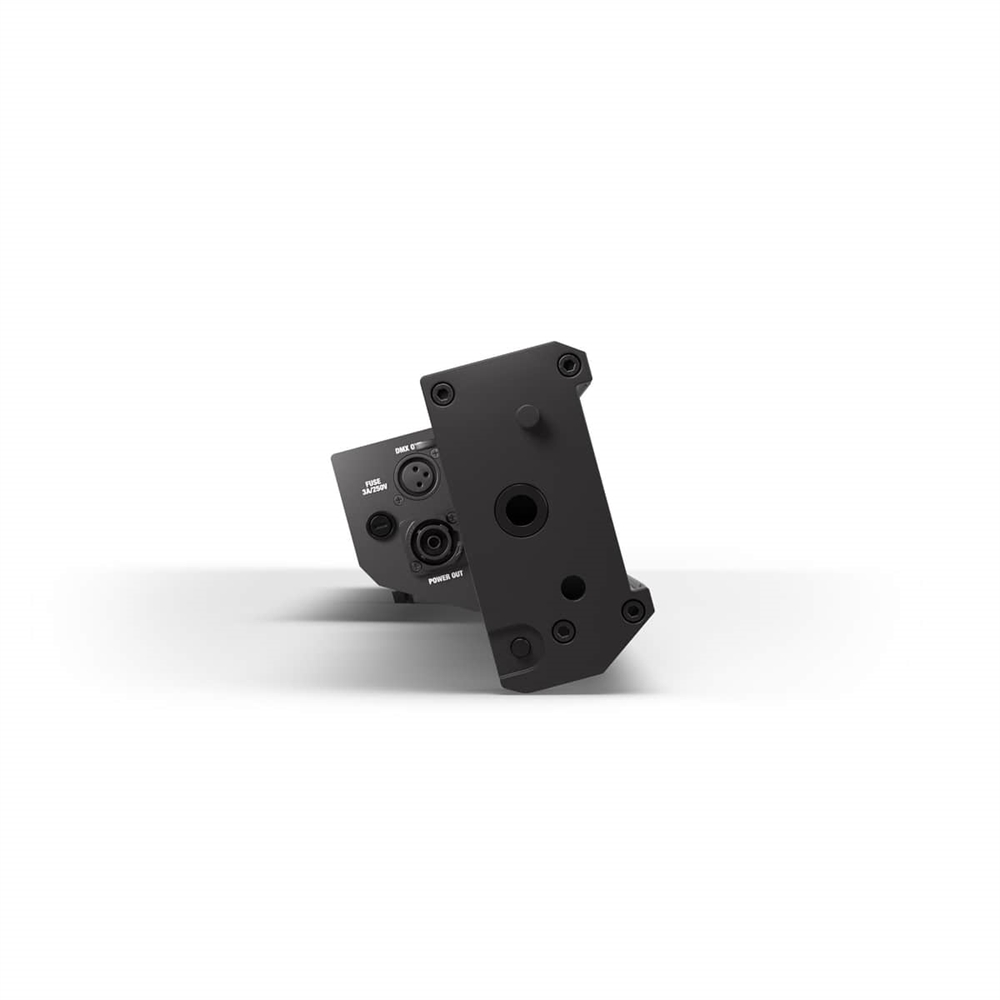

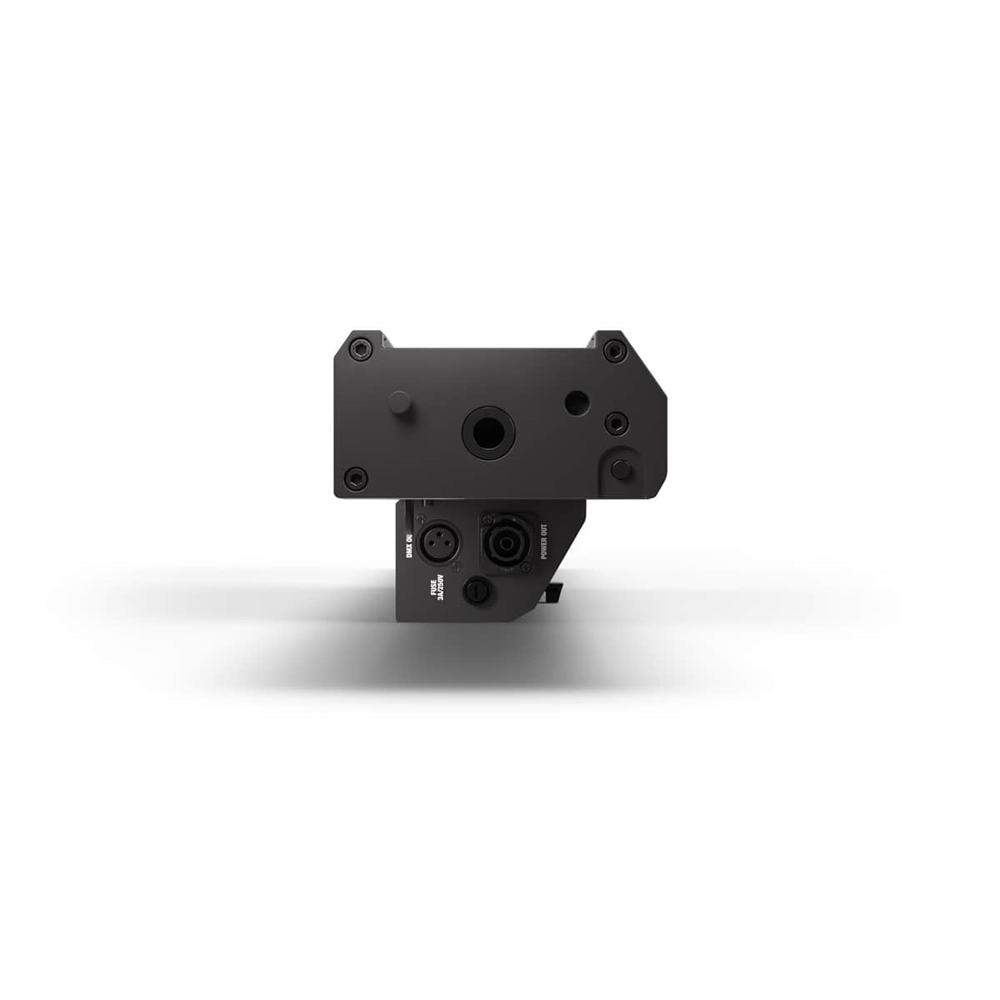

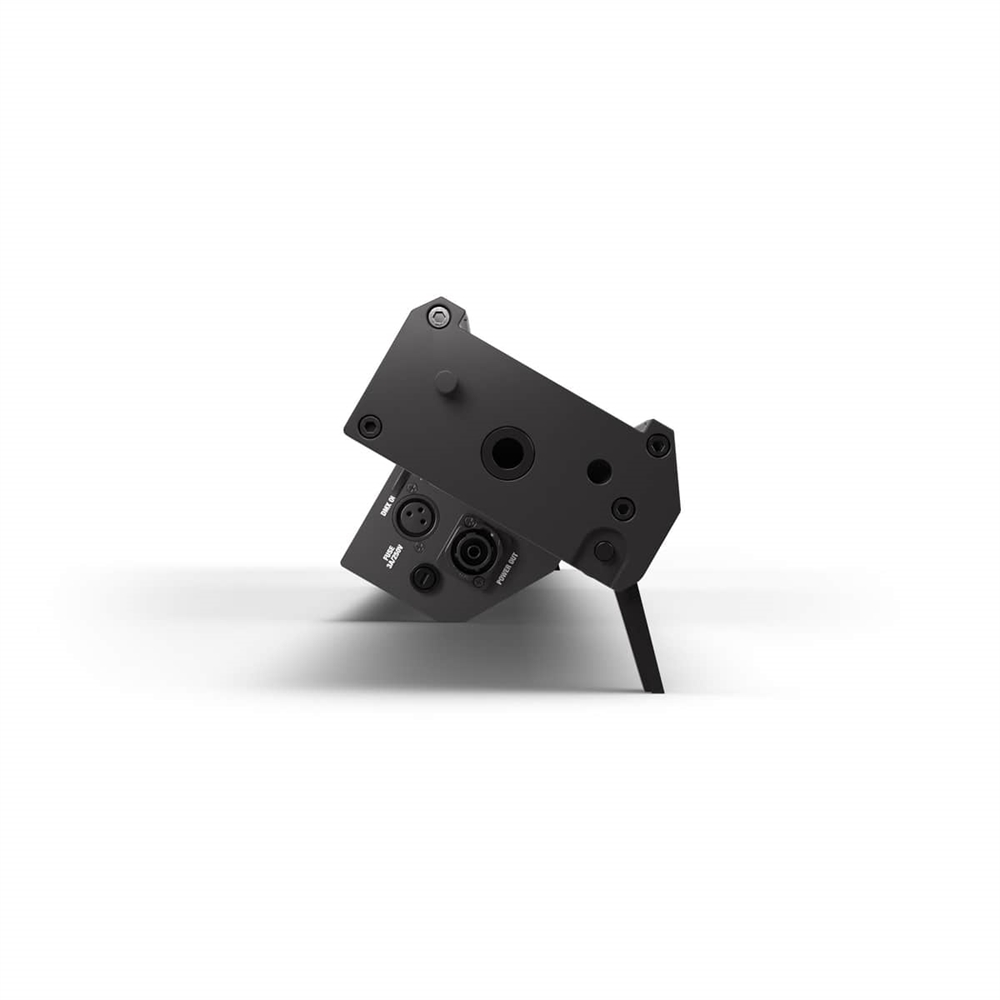

The intelligent design allows for flexible positioning at various angles without the included feet. The practical threaded mount supports both hanging and standing use, making it adaptable to different environments.

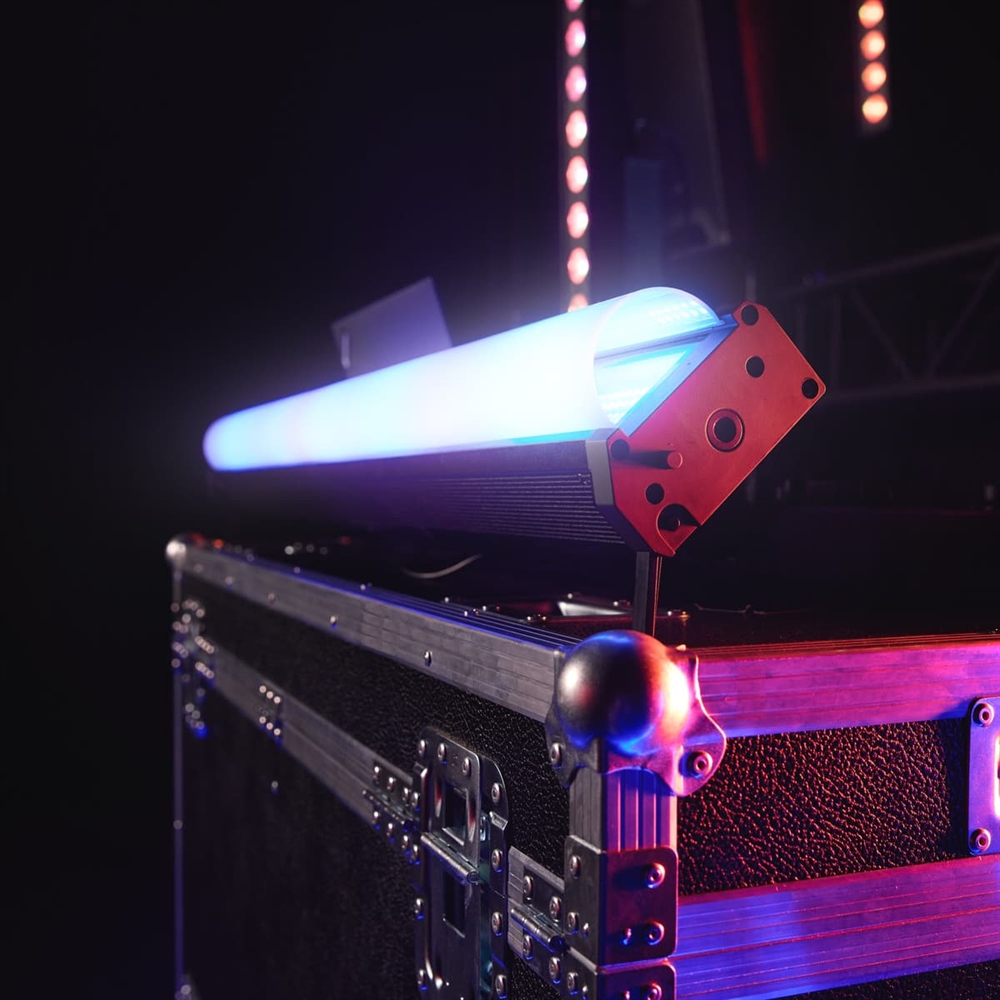

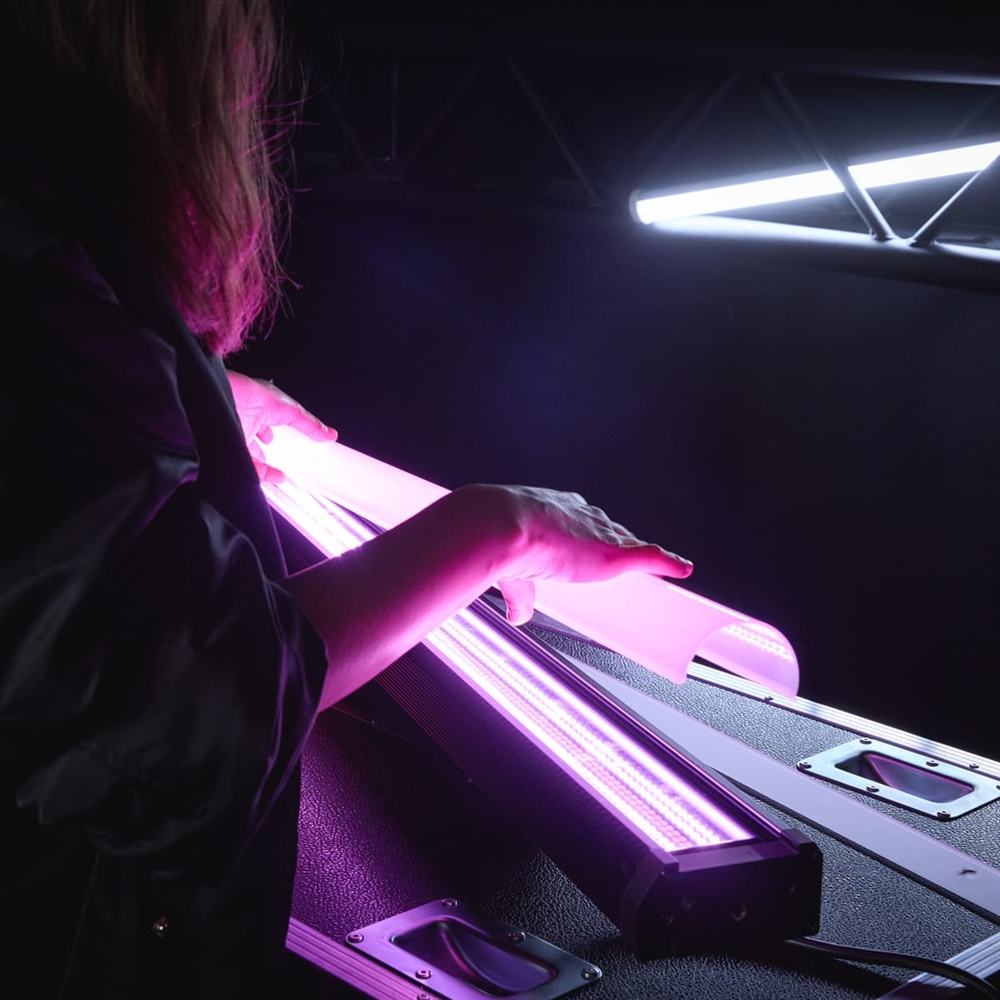

The magnetic Quick Alignment System, combined with various Quick Lock options, enables quick and precise alignment of multiple LED bars, creating seamless transitions and spectacular lighting installations. The included neon tube filter and glare shield provide numerous creative possibilities, adding impressive visual accents.

In addition to DMX protocol control, the ROOT® BAR can be remotely controlled via the optional IR remote. For wireless DMX connection via W-DMX™, the ROOT® BAR features a USB port for connecting the Cameo iDMX® Stick. Additionally, the unique patented EZchase® DMX delay function allows for the creation of captivating chase patterns and colour transitions with minimal programming effort.

The Cameo ROOT® BAR stands for high quality, reliability, and modern design. It sets new standards in event lighting and transforms any venue into an unforgettable experience.
  • Compact LED bar available in three versions
  • Flexible positioning at various angles, with or without feet

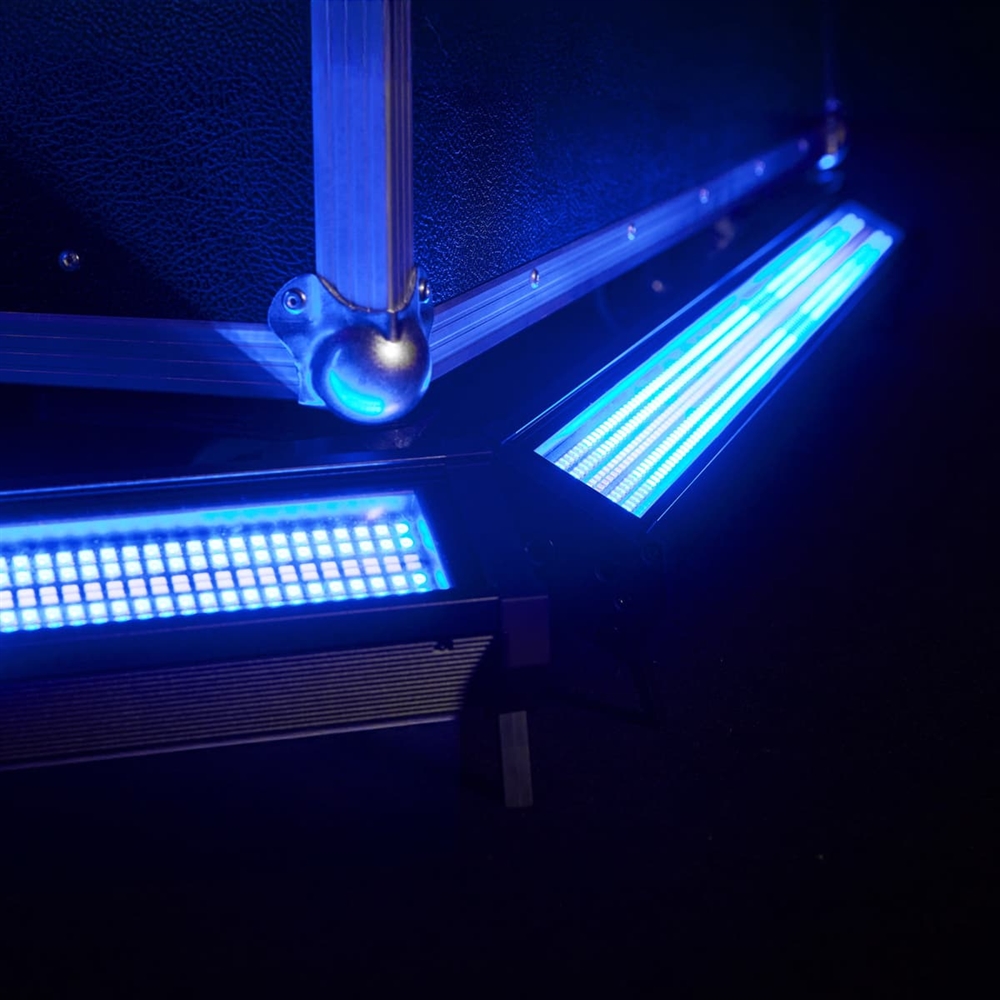

  • Magnetic Quick Alignment System for precise alignment of multiple units

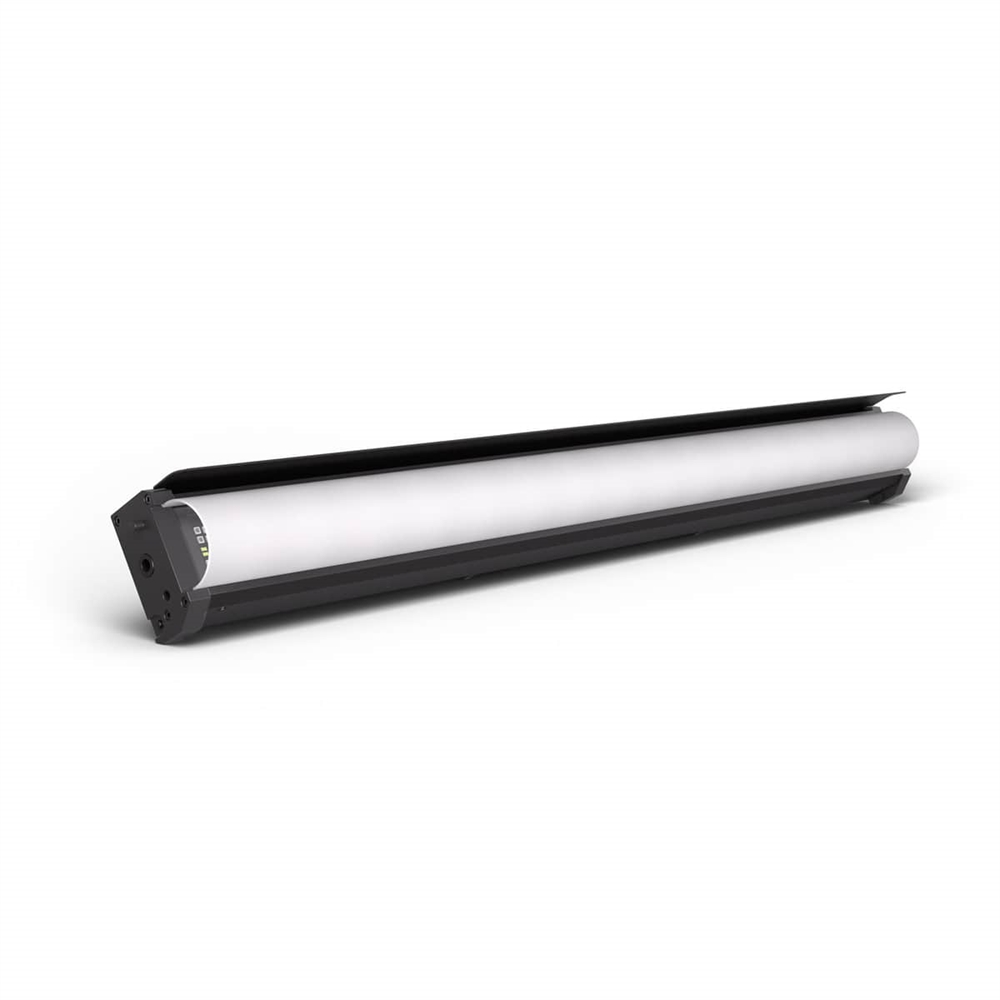

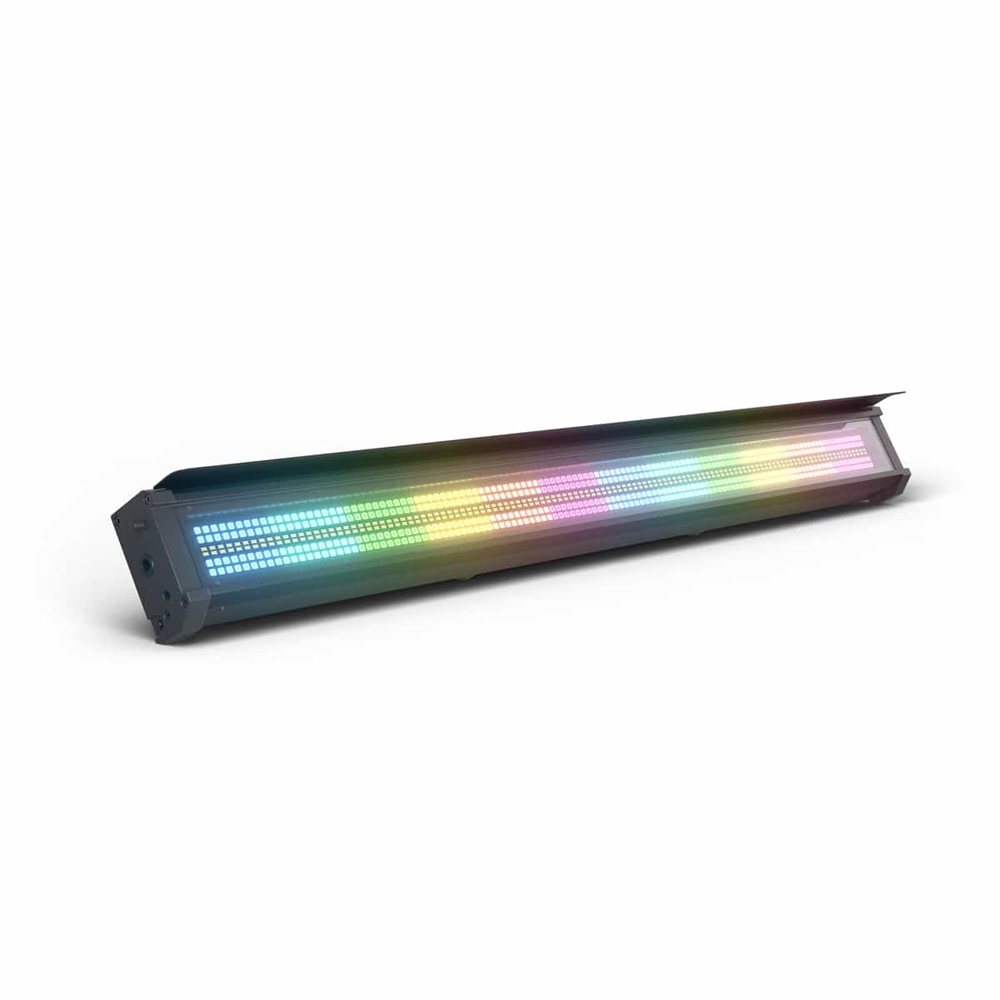

  • Includes neon tube filter and glare shield for versatile lighting effects
  • Control via DMX or W-DMX (with optional Cameo iDMX Stick)
  • Patented EZchase® DMX delay function for chase effects

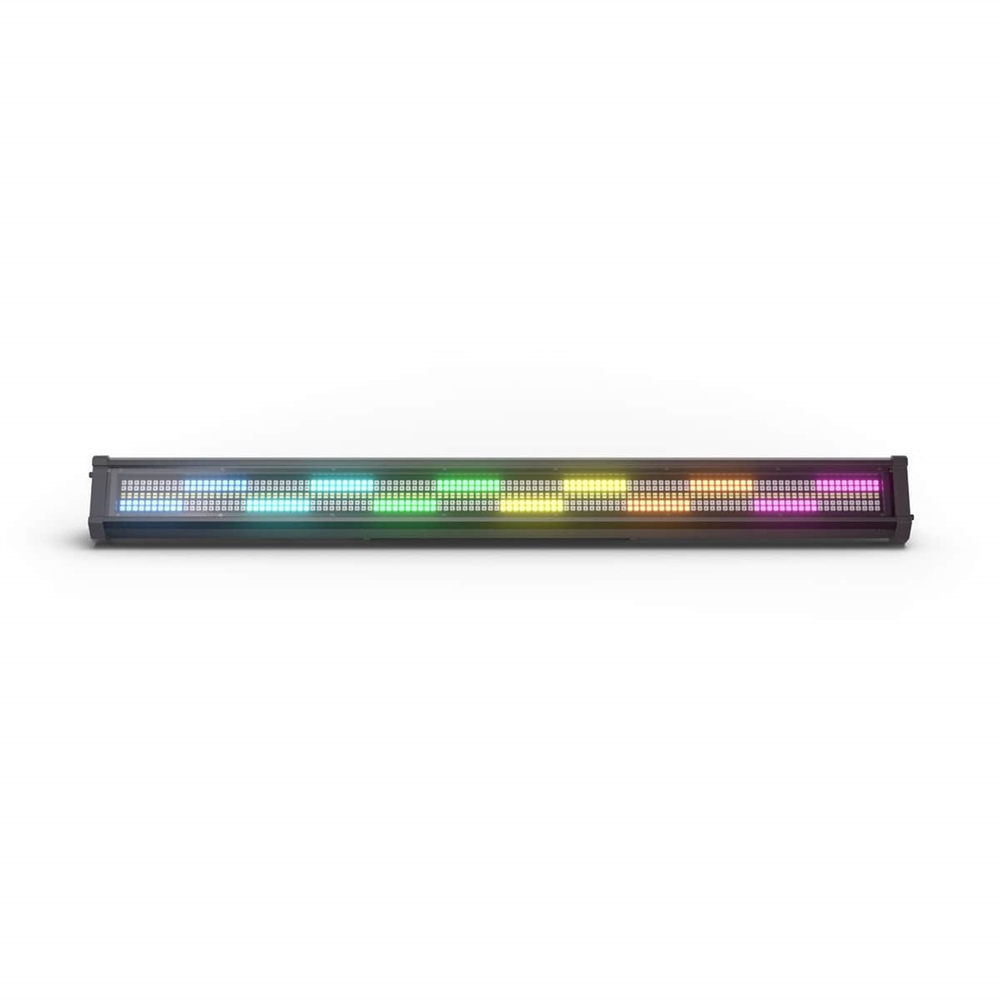

  • 16-bit resolution for smooth dimming and high-performance RGBW LEDs

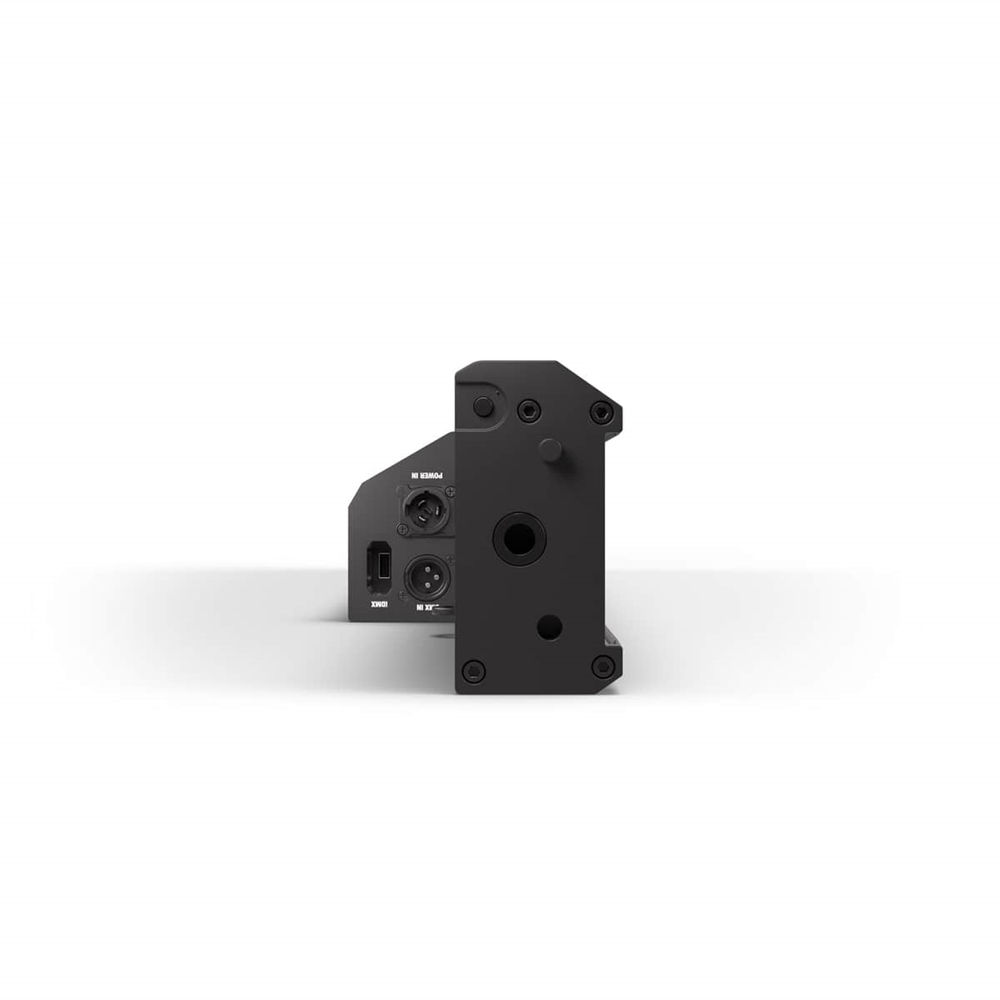

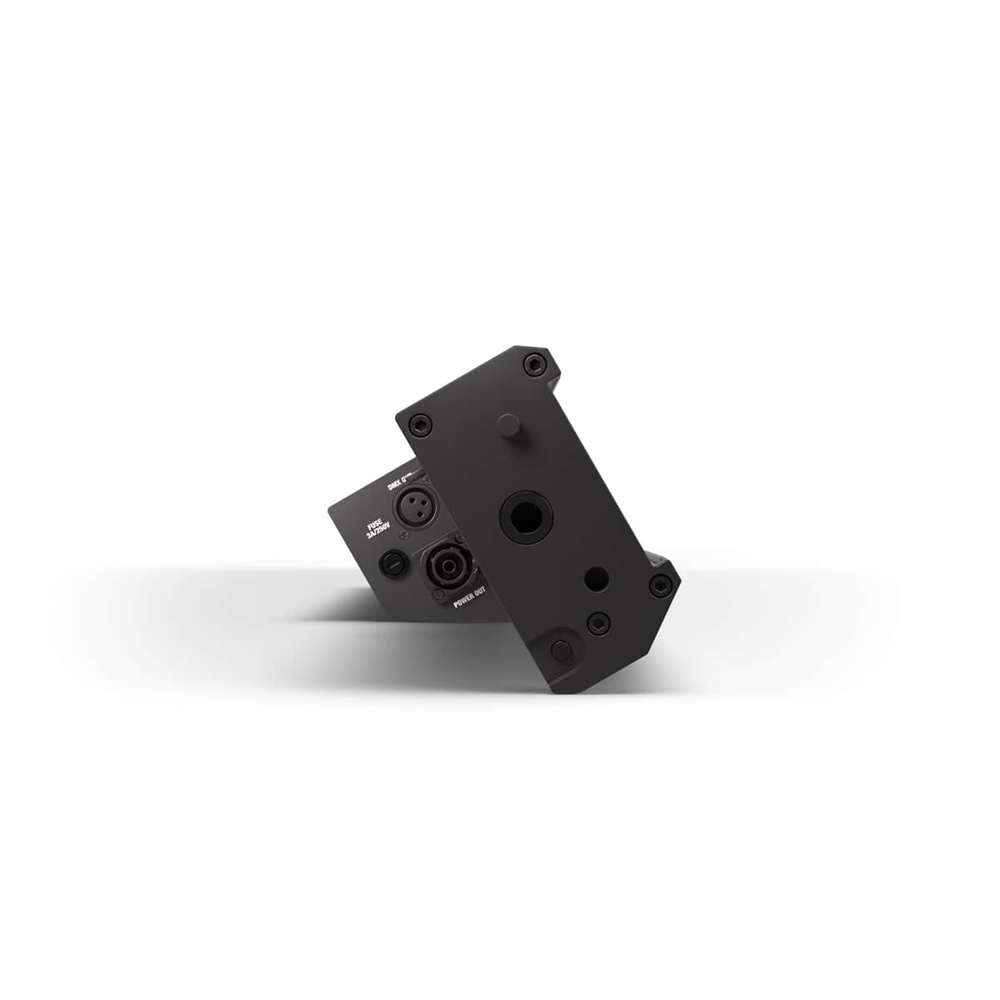

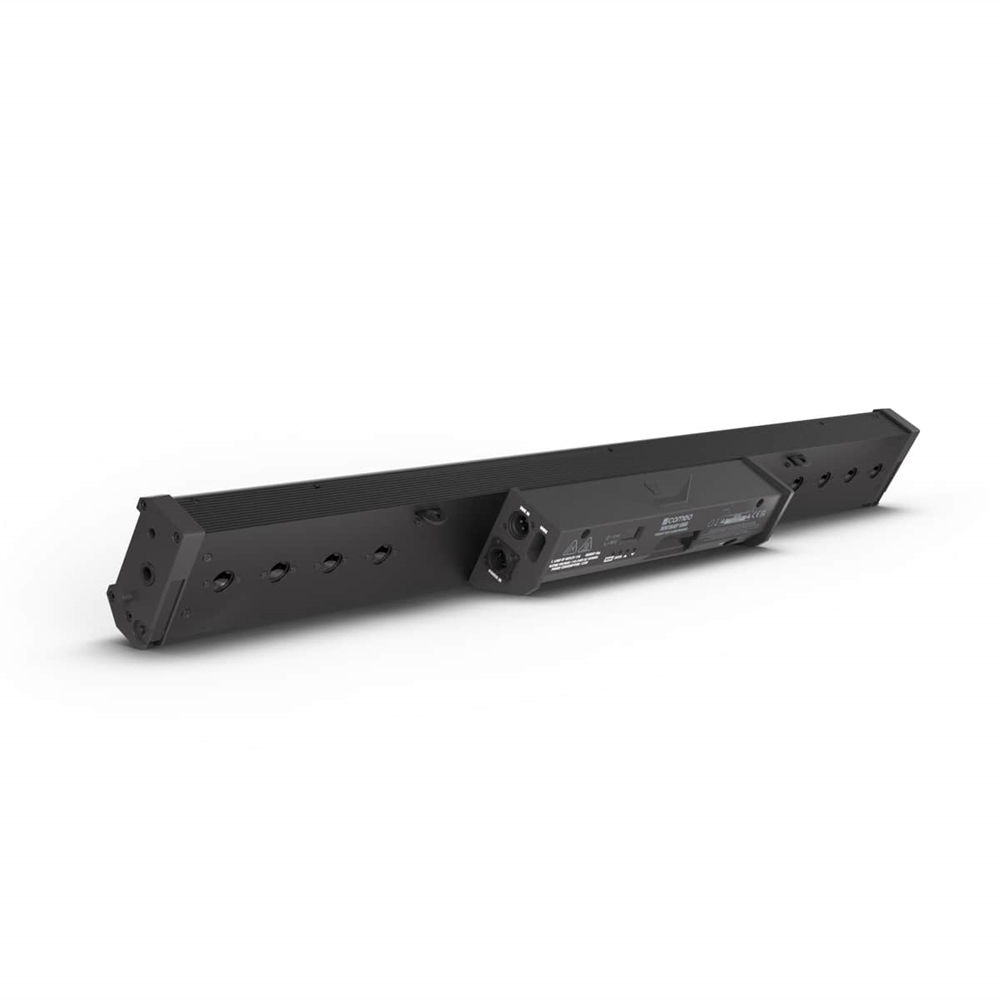

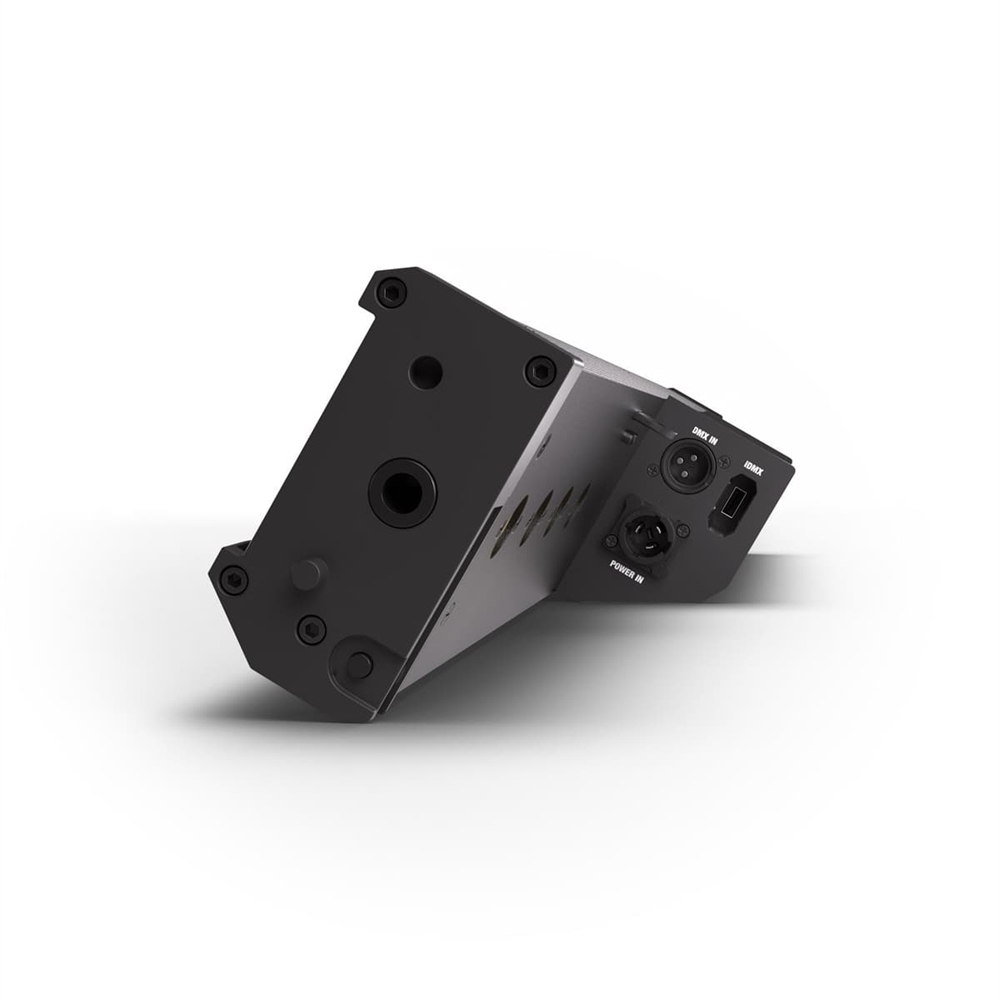

  • Power input via Neutrik powerCON and DMX connectors for daisy-chaining multiple units
  • Silent, fanless cooling design ideal for noise-sensitive environments

Photometric values

Illuminant typeLED RGBW
LED data480 x 0.2 W LED RGB (24 x 20) | 240 x 0.5 W LED white
Luminous flux5,200 lm
Beam/Field angle102° / 127°
LED PWM frequency12 kHz
Dimmer resolution16 Bit
Dimmer curvesLinear, Exponential, Logarithmic, S curve

Colours

Colour mix functionsRGB
LED coloursRed, Green, Blue, White
Colour rendering index (CRI)> 70

Effects

Strobe0 - 20 Hz

Control

Controller protocolsDMX512
Additional DMX featuresDMX delay, LED segment dimmer, System settings
Stand alone operating modesSound controlled, Autorun, Master/slave, Static, Endless loop
Data in connectorXLR 3-pole male
Data out connectorXLR 3-pole female

Mains operation

Operation voltage100 V AC - 240 V AC / 50 - 60 Hz
Rated power135 W
Mains connectorMains socket male power in
Power outMains plug female power out
Mains fuseF3AL/250 V

Housing

Chassis materialAluminium, Plastic
ColourBlack

Cooling

Cooling systemConvection cooling

Environmental

Protection classIP20
Noise level in operation0 dB
Ambient temperature0 - 40 °C
Maximum air humidity (non-condensing)80 %

Dimensions & weight

Width1,024 mm
Height116 mm
Depth106 mm
Weight5 kg
Varenr.: A-CLROOTBARSMD
