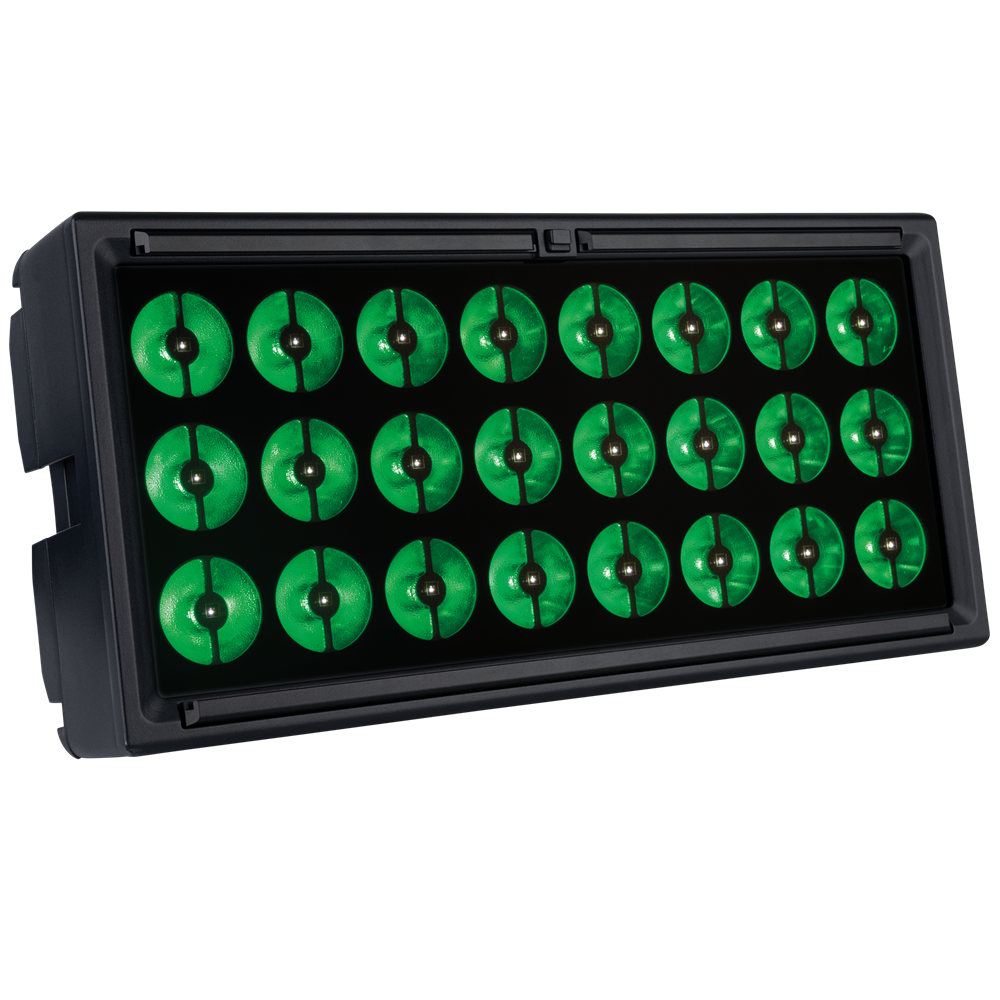

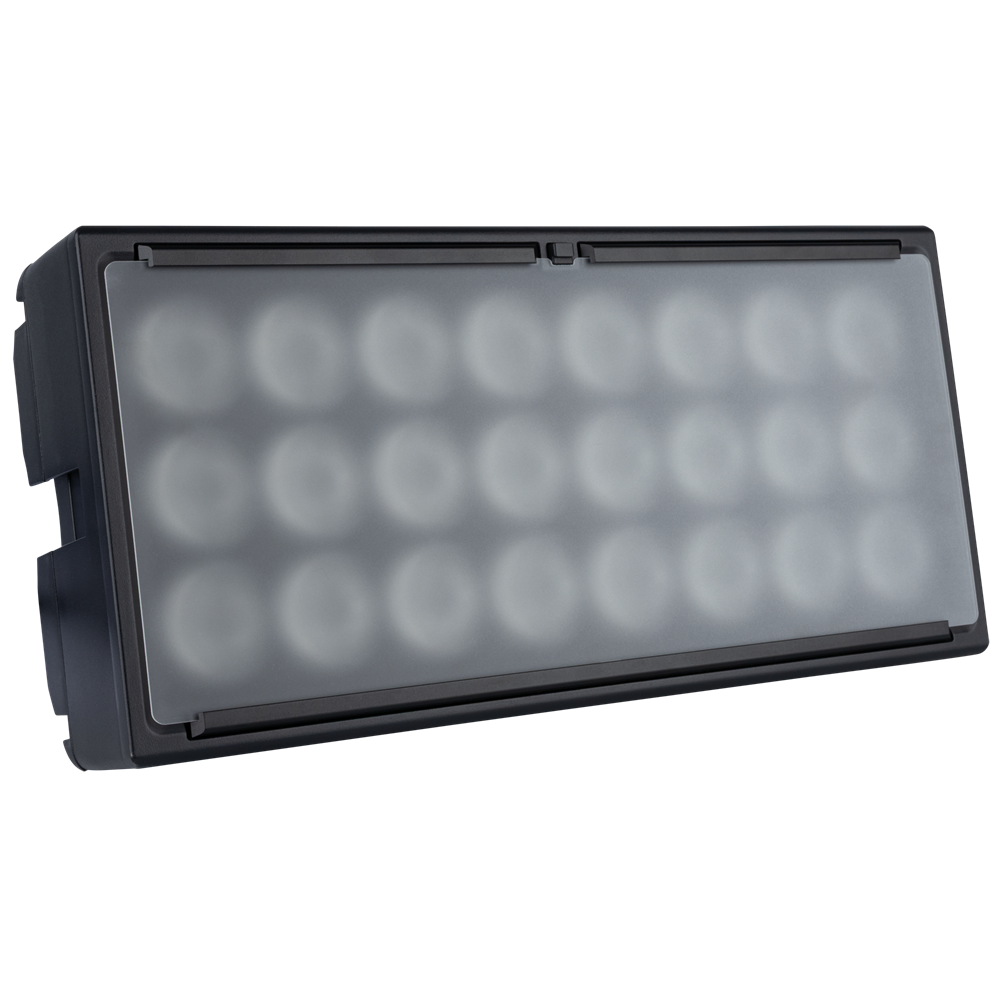

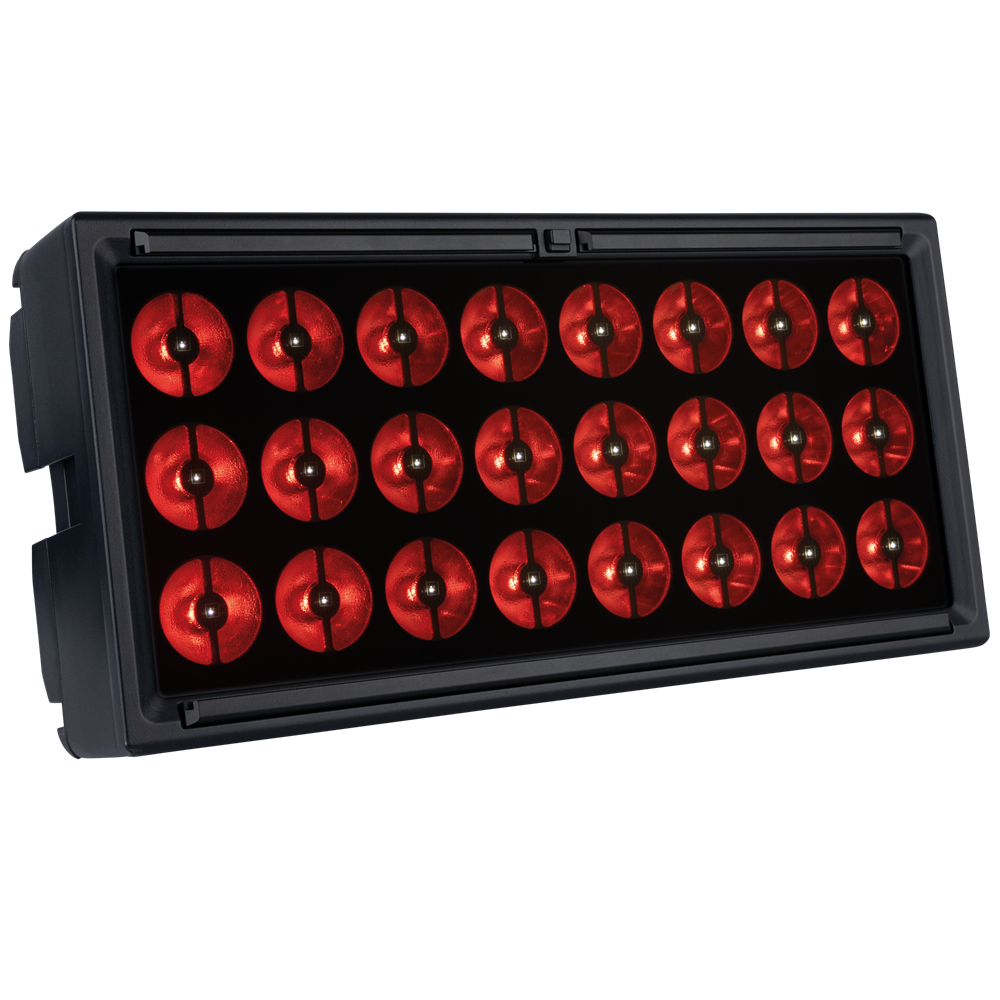

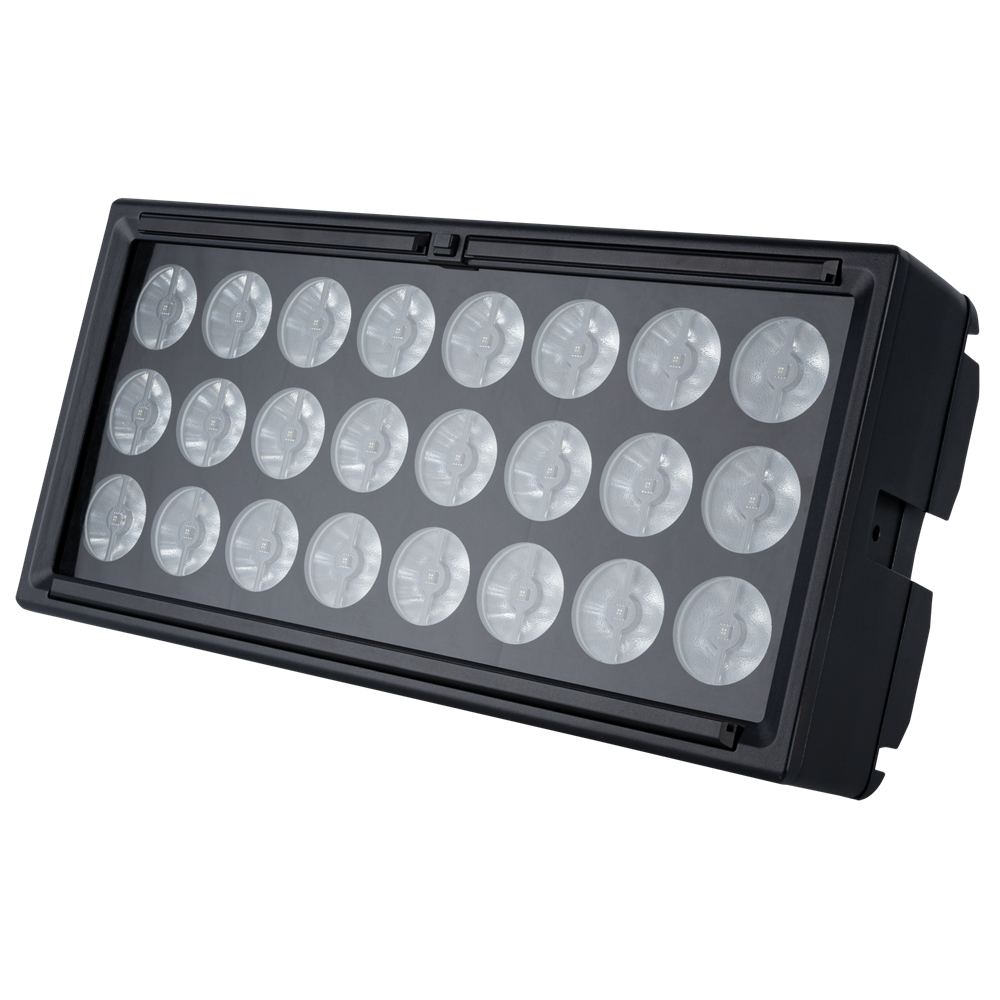

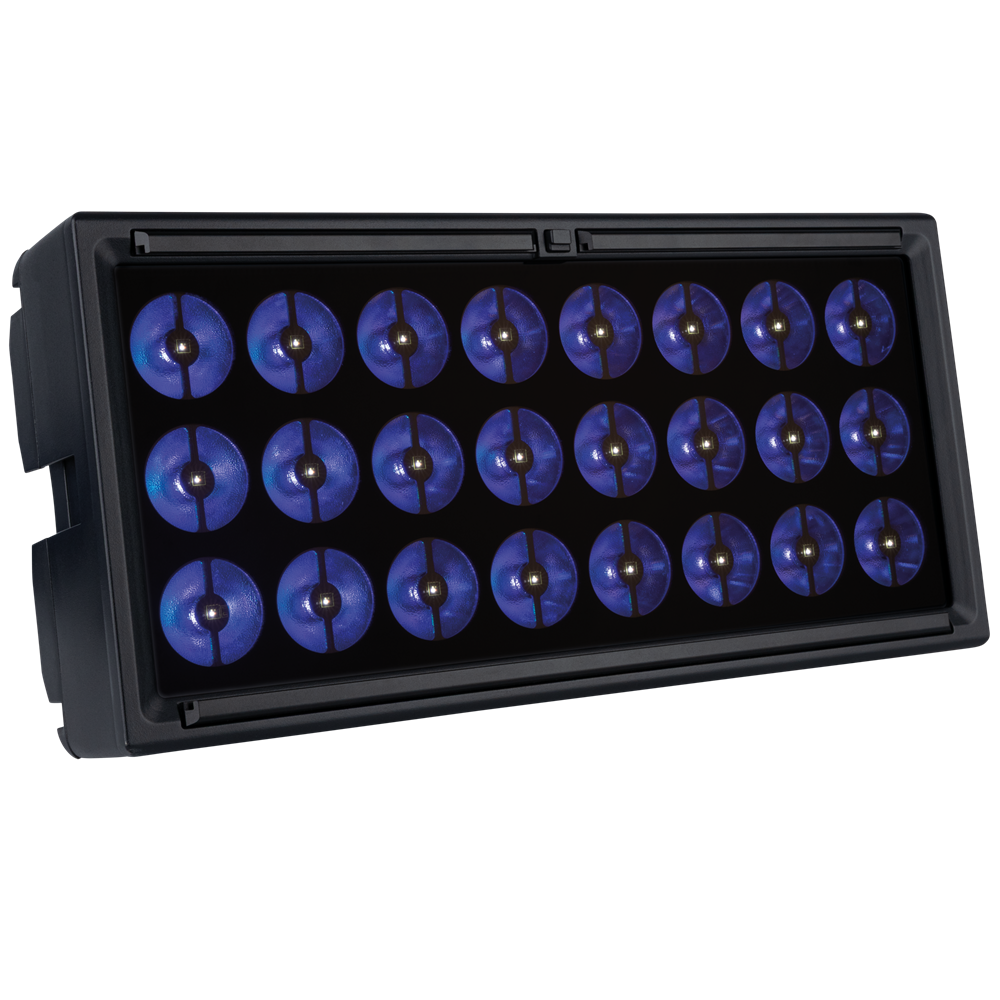

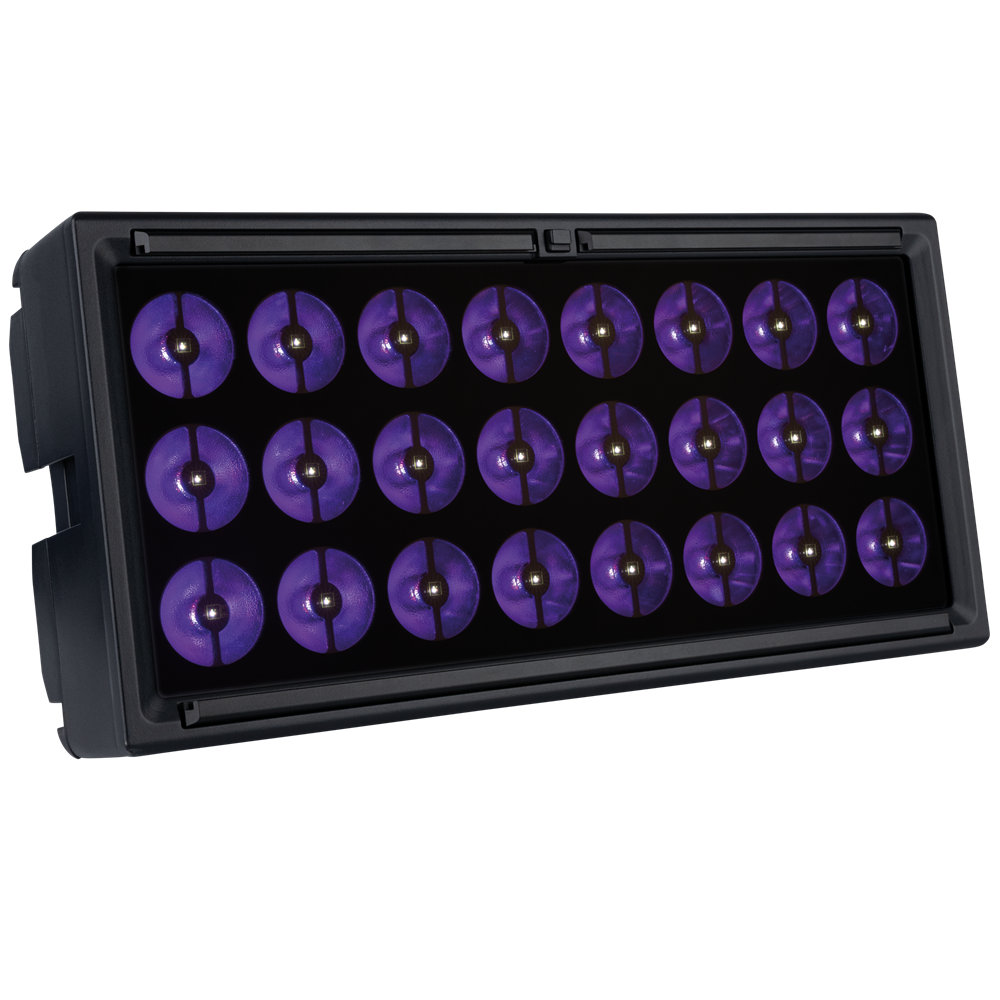

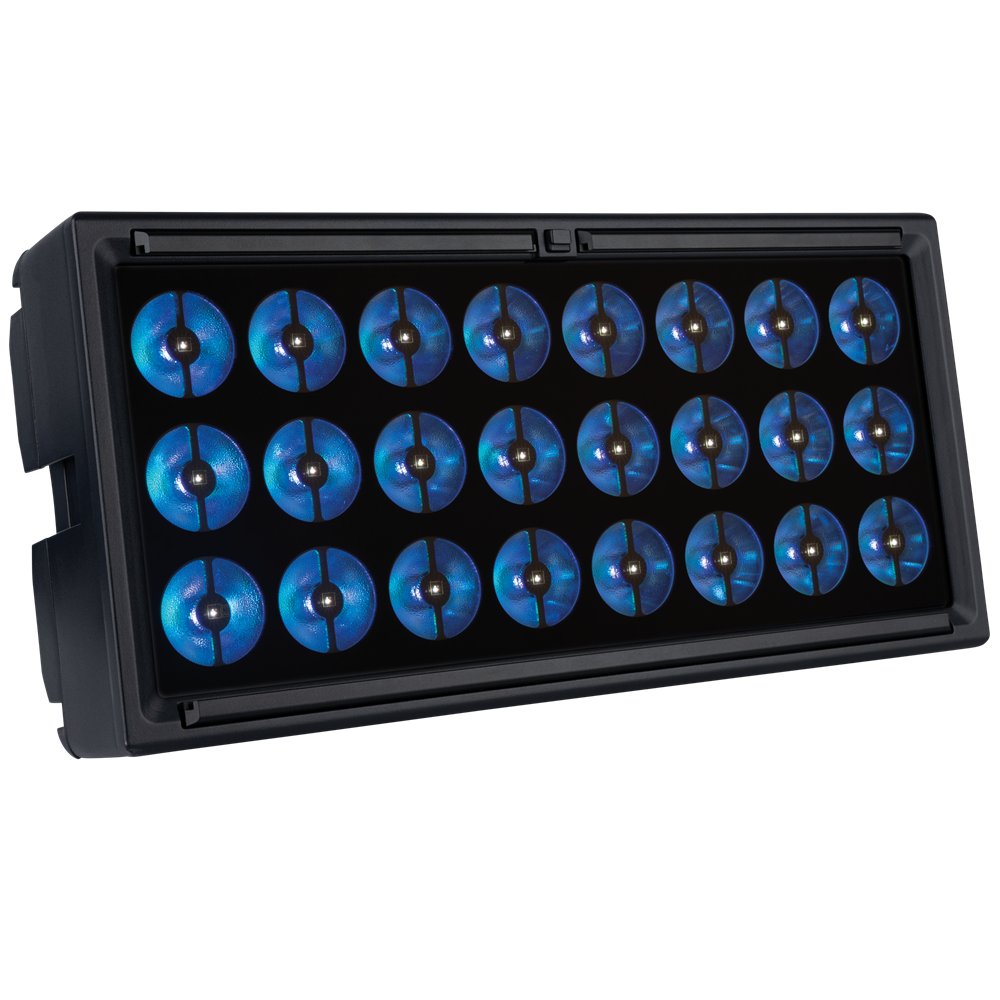

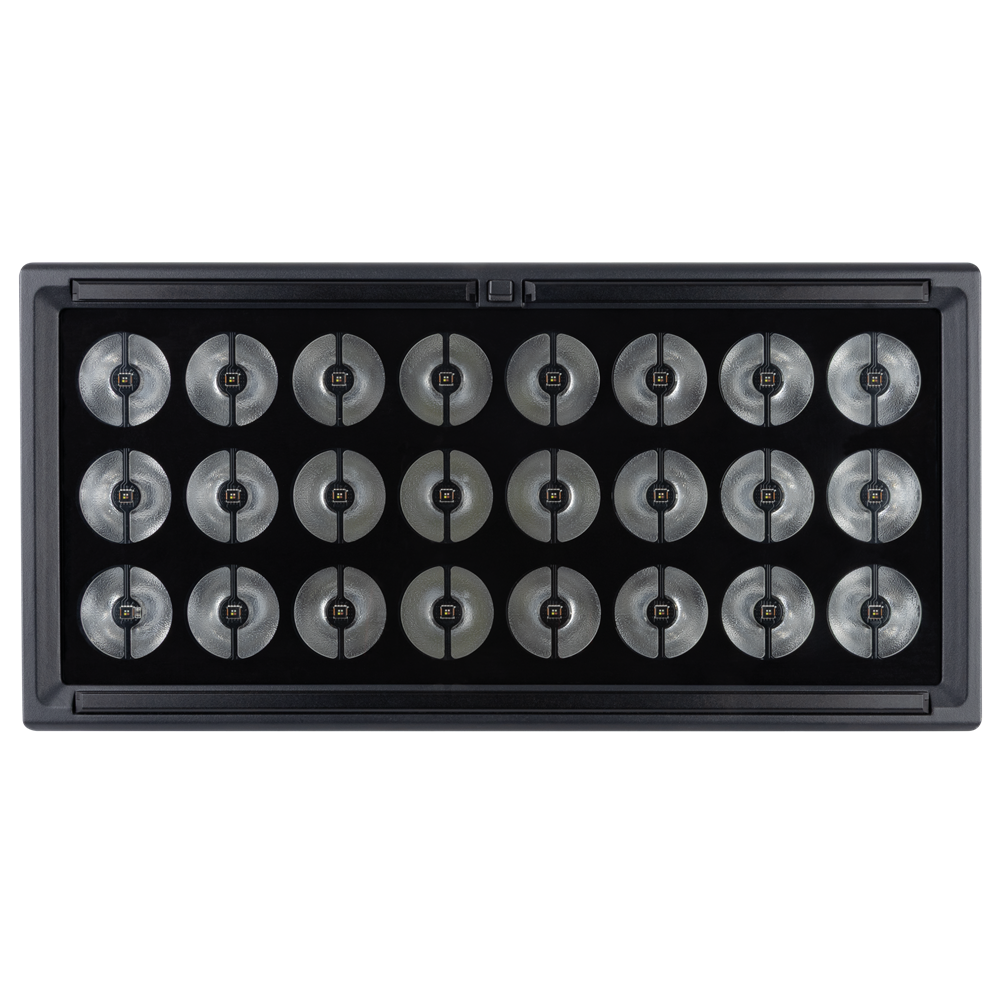

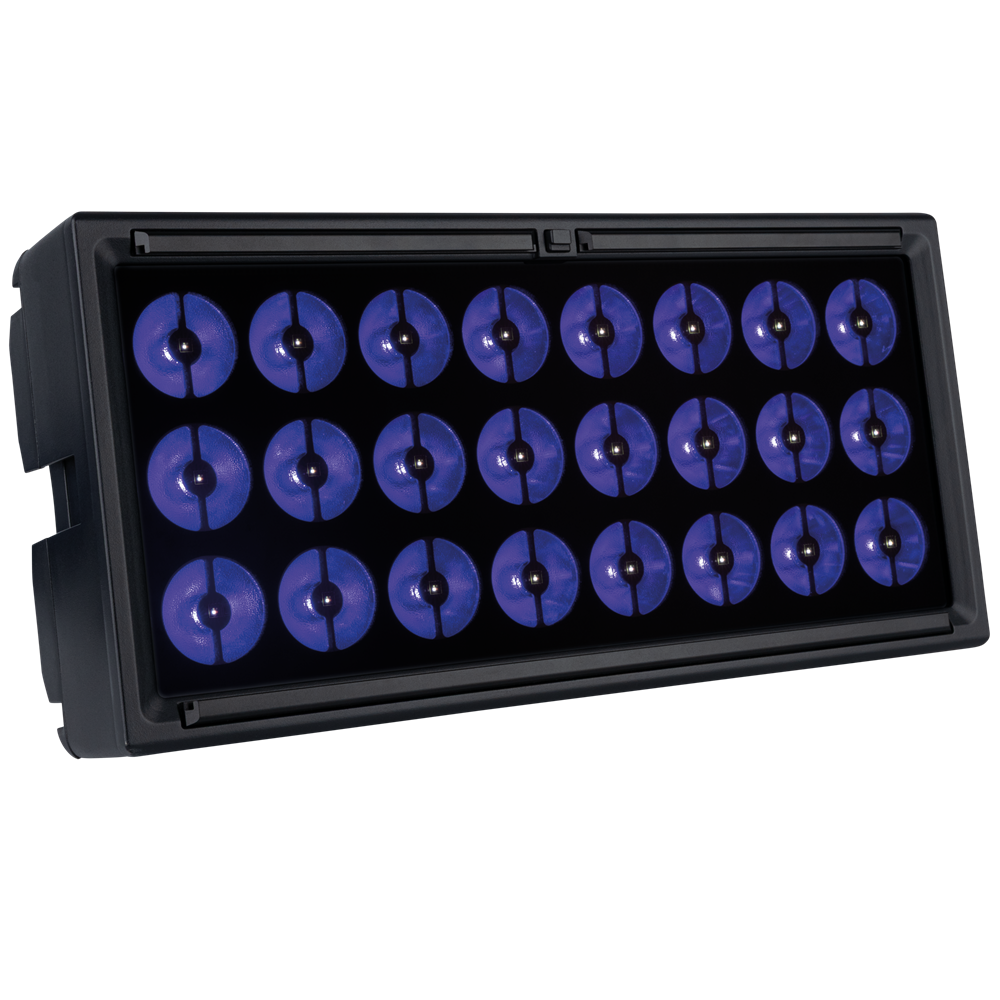

The Titan Matrix FX is a matrix light with fully controllable pixels. It features 3 rows of 8 RGBW LEDs (24 in all) that are covered with a lens and in front of each lens is a 6 W RGBW LEDs (another 24). This combination makes it possible to create bold, colourful. geometric patterns, making the Titan Matrix FX an excellent choice for live events, studios and more. With an IP65 rating, it can also be used outdoors.

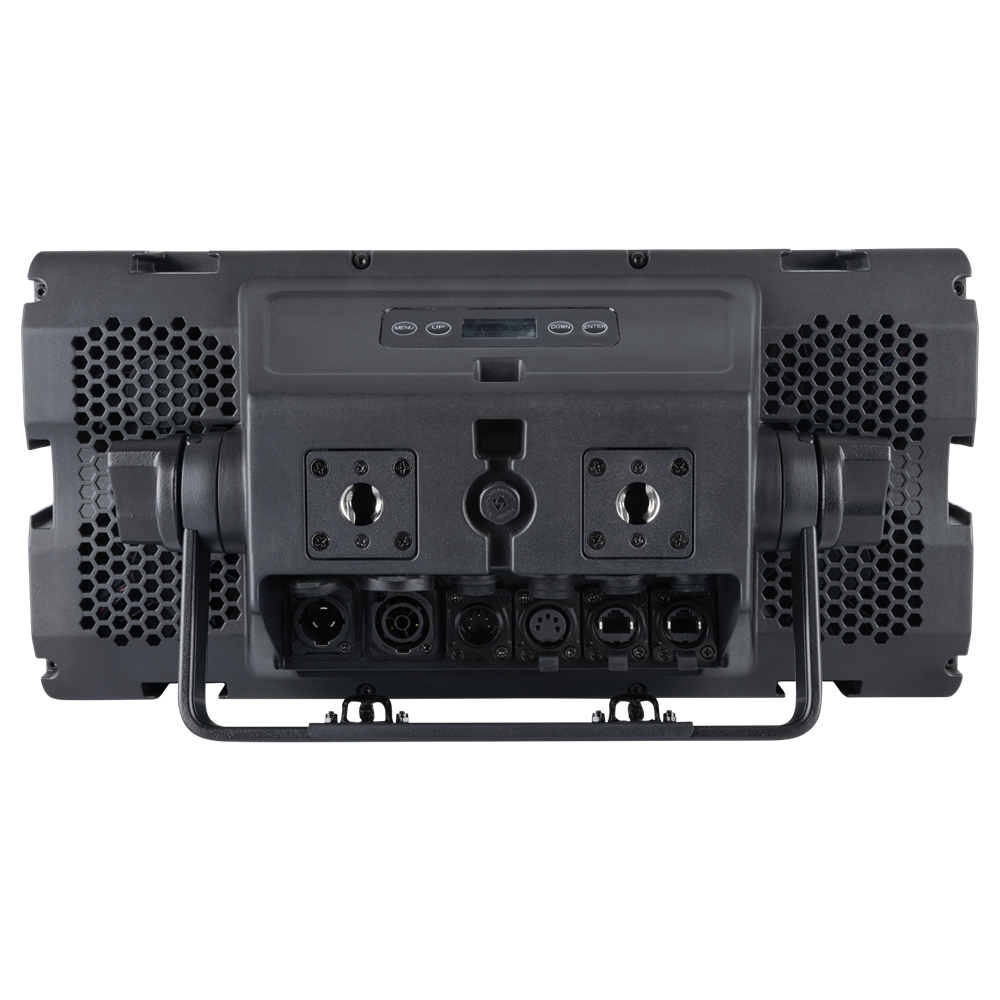

For ultimate flexibility, the fixture can be controlled with DMX (incl. RDM), Art-Net, sACN or manually. Connection options include 5-pin XLR, etherCON and Power Pro True inputs and outputs. Unique horizontal and vertical setups with multiple fixtures can be built quickly and easily using the optional Titan Connection Blocks.
Light Source Type: LED
Light Source Quantity: 48
Light Source Power: 40 W
LED Colour Type: RGBW
Luminous Flux (Total): 8219 lm
Control Mode: Art-Net / DMX / Manual / RDM / sACN
Protocols: Art-Net / DMX / RDM / sACN
Dimmer: 0-100 %
Strobe: 0-25 Hz
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 700 W
Power Connector In: Power Pro True
Power Connector Out: Power Pro True
DMX Connector: XLR 5P In/Out
Data Connector: etherCON In/Out
Height (mm): 200 mm
Width (mm): 407 mm
Depth (mm): 169 mm
Weight: 8.8 kg
IP Rating: IP65
Housing: Aluminium die-cast
Colour: Black
