4 DMX inputs, 2 DMX outputs
Patchable input-to-output configuration
5 merge modes: HTP, LTPC, LTPU, Backup, Append
RDM support for remote device management
Compact and reliable for professional use

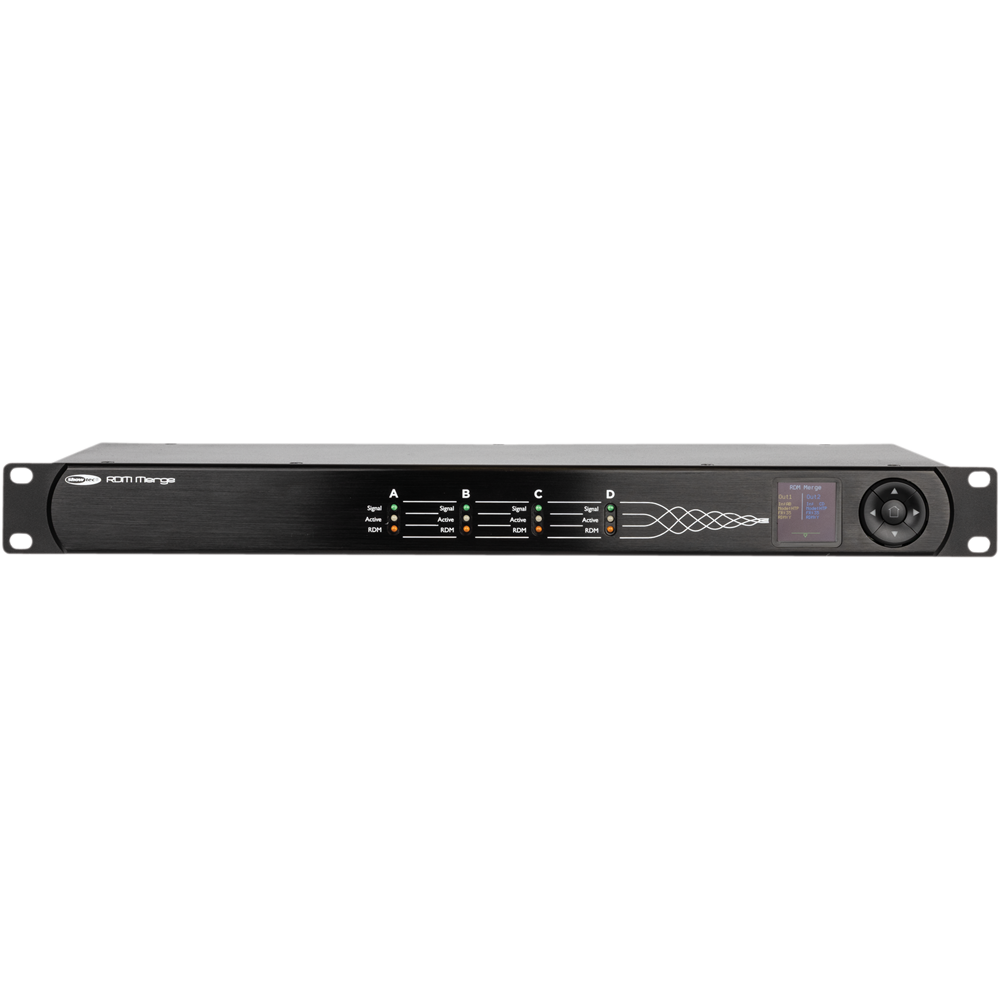

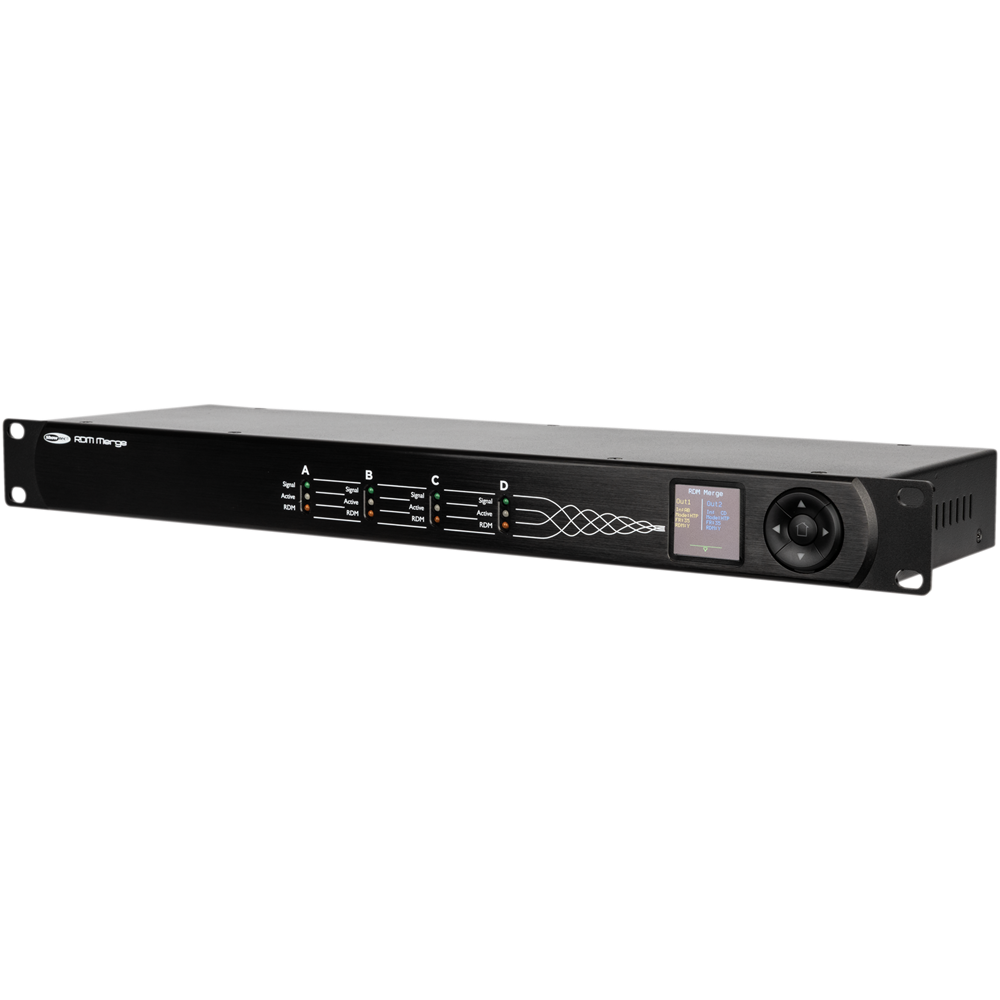

The Showtec RDM Merge is a professional-grade 4-to-2 DMX merger with full RDM support, designed to offer flexible signal management in complex lighting setups. With four DMX inputs and two outputs, it allows users to patch and merge multiple sources into one or two outputs, depending on the needs of the installation. Each output can be configured to combine specific inputs, giving you full control over signal routing.
This unit supports a range of advanced merge modes, including HTP (Highest Takes Precedence), LTPC (Latest Takes Precedence by Channel), LTPU (Latest Takes Precedence by Universe), Backup mode for automatic failover, and Append mode for splitting DMX channels between sources. These modes provide powerful options for managing signal priority, redundancy, and channel distribution, making the RDM Merge an essential tool for live events, fixed installations, and touring setups.
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 8 W
Power Connector In: Power Pro Blue
DMX Connector: XLR 5P In/Out
Length (mm): 140 mm
Width (mm): 483 mm
Height (mm): 44 mm
Weight: 2 kg
IP Rating: IP20 Rear
Housing: Aluminium / Metal
Colour: Black
Control Mode: DMX / RDM
DMX Channels: 1024
Display: LCD
Universes: 2
