The Pinspot Bar 4 WW is a high-output bar with 4 individual pin spots. This bar is lightweight, which makes it ideal for many different events and purposes. The included 20° beam shapers make the bar very suitable for highlighting buffets, displayed products, or pointing out tables.

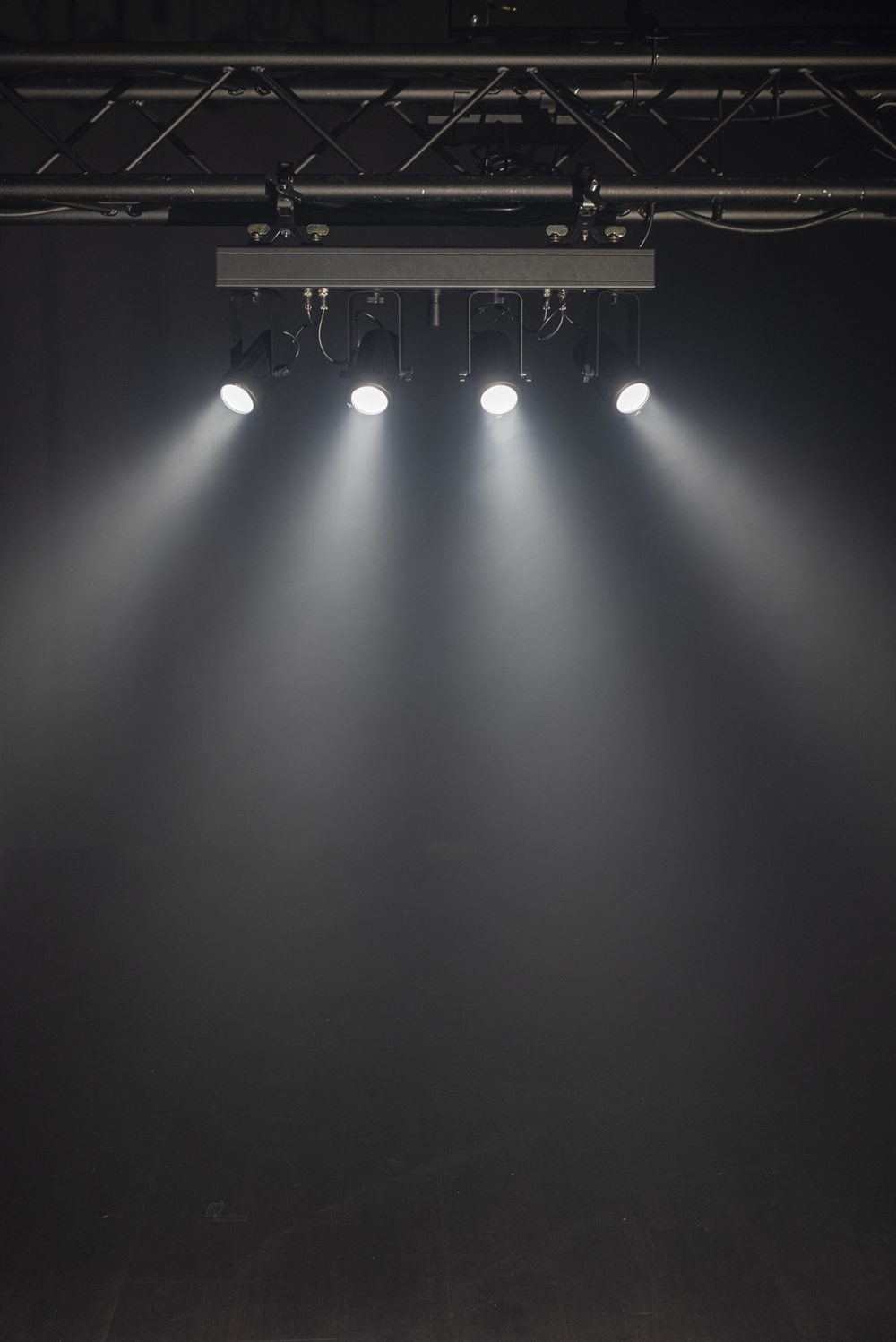

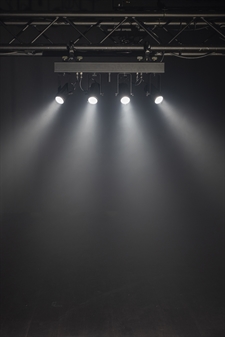

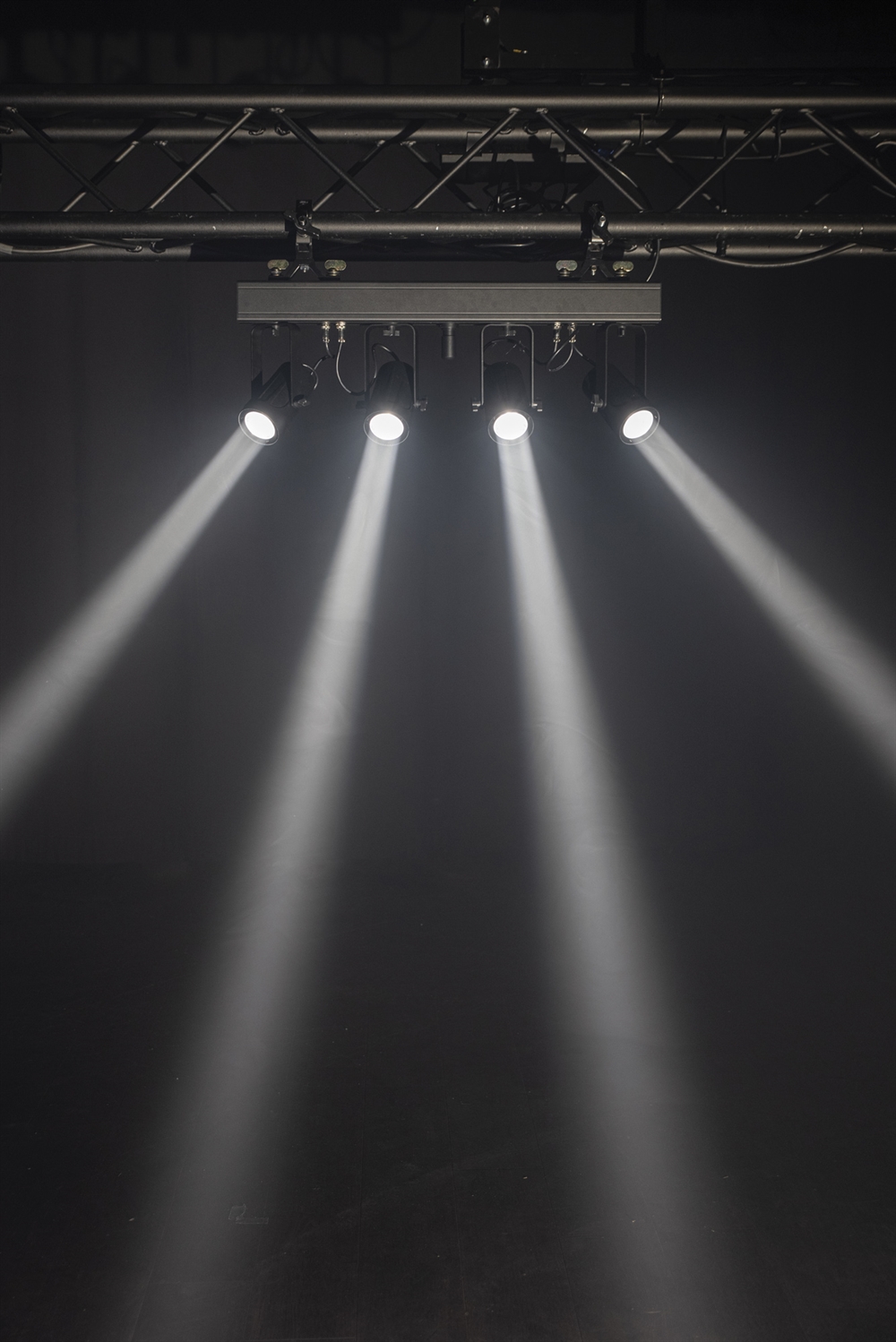

This superb bar produces a bright, narrow 4.5° beam or a 20° wash of warm white light (3000 K) output.

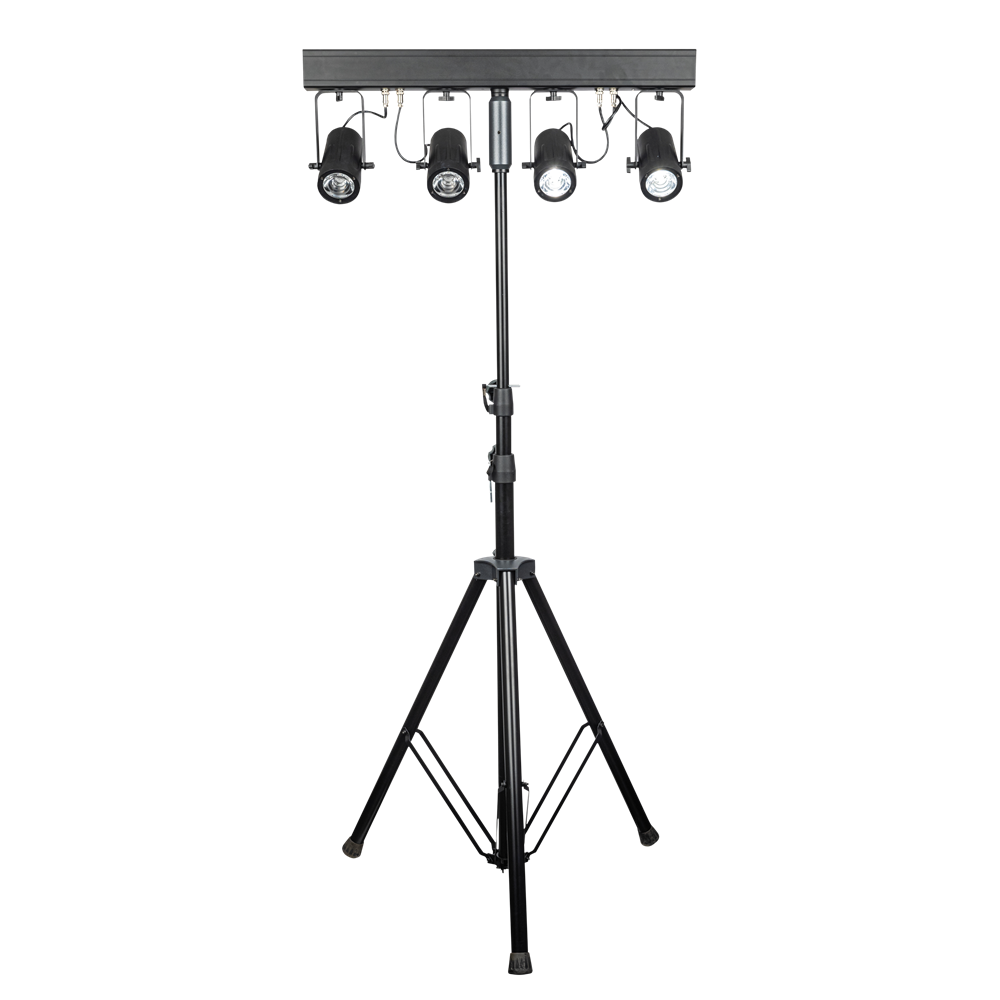

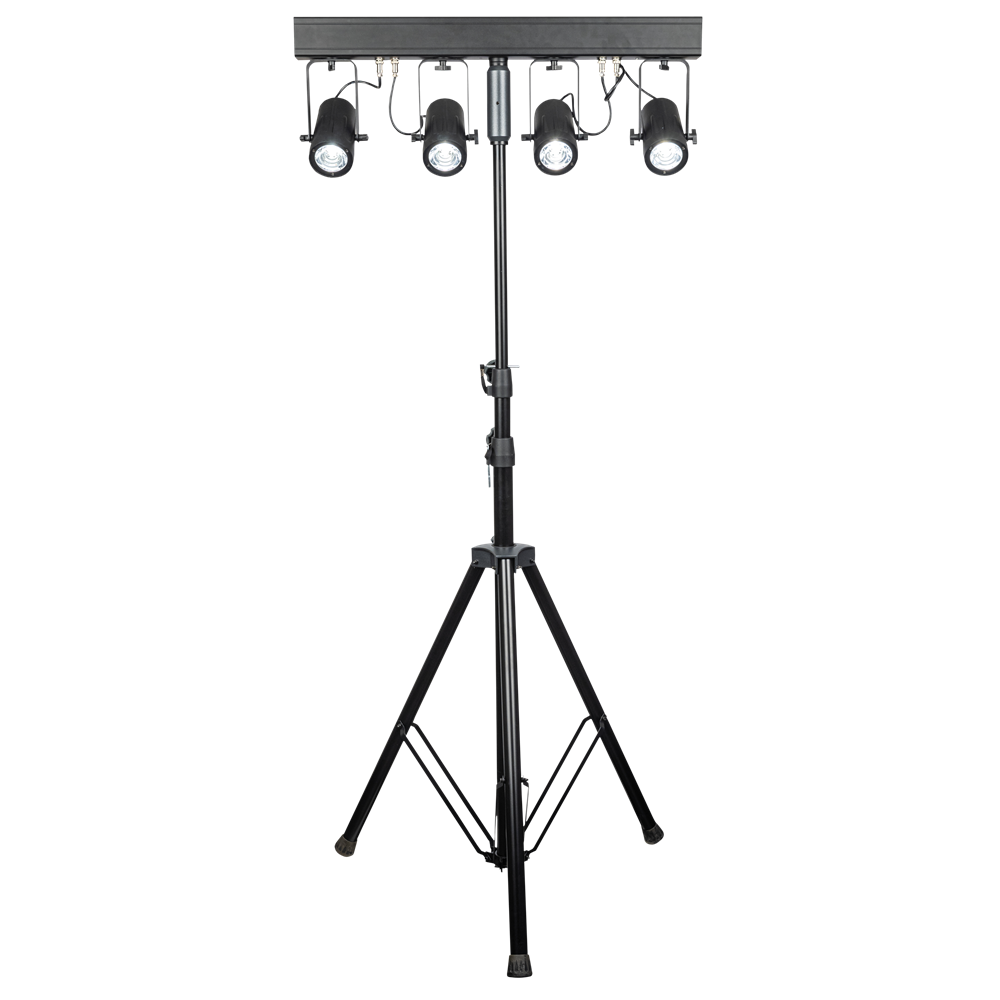

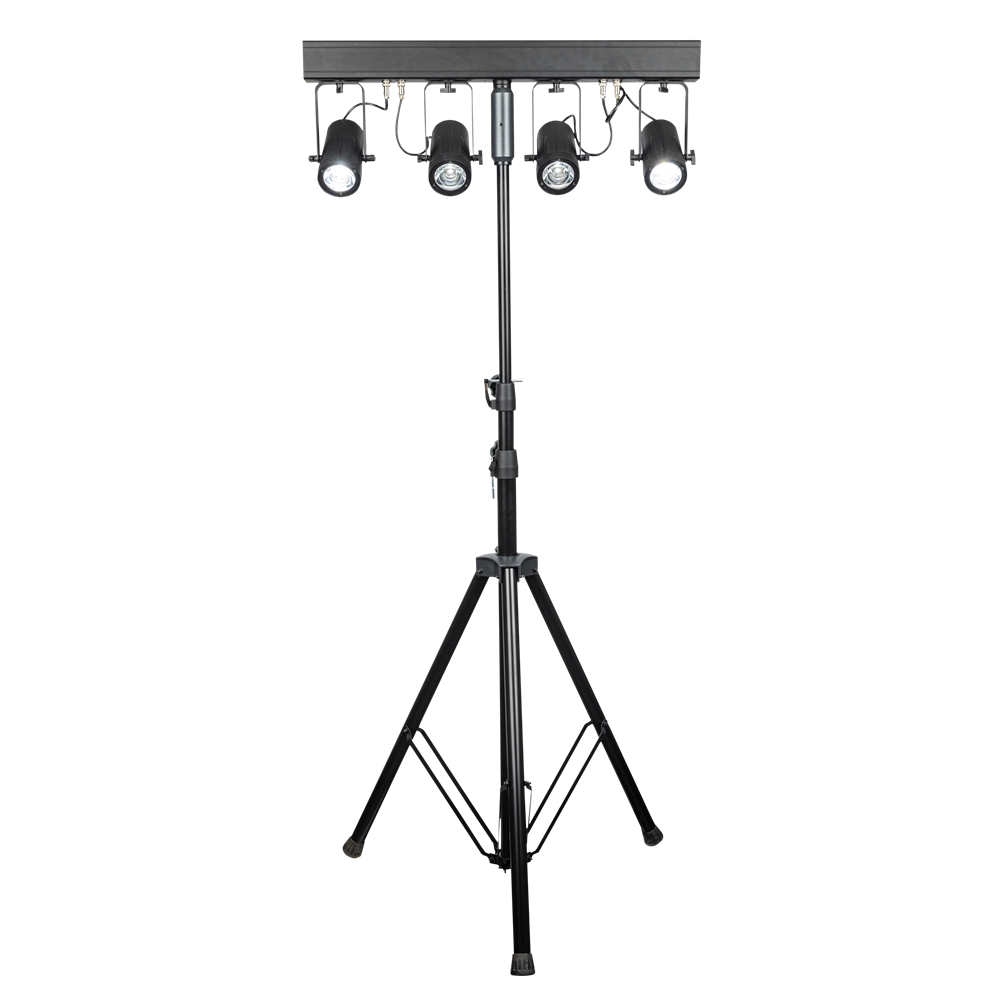

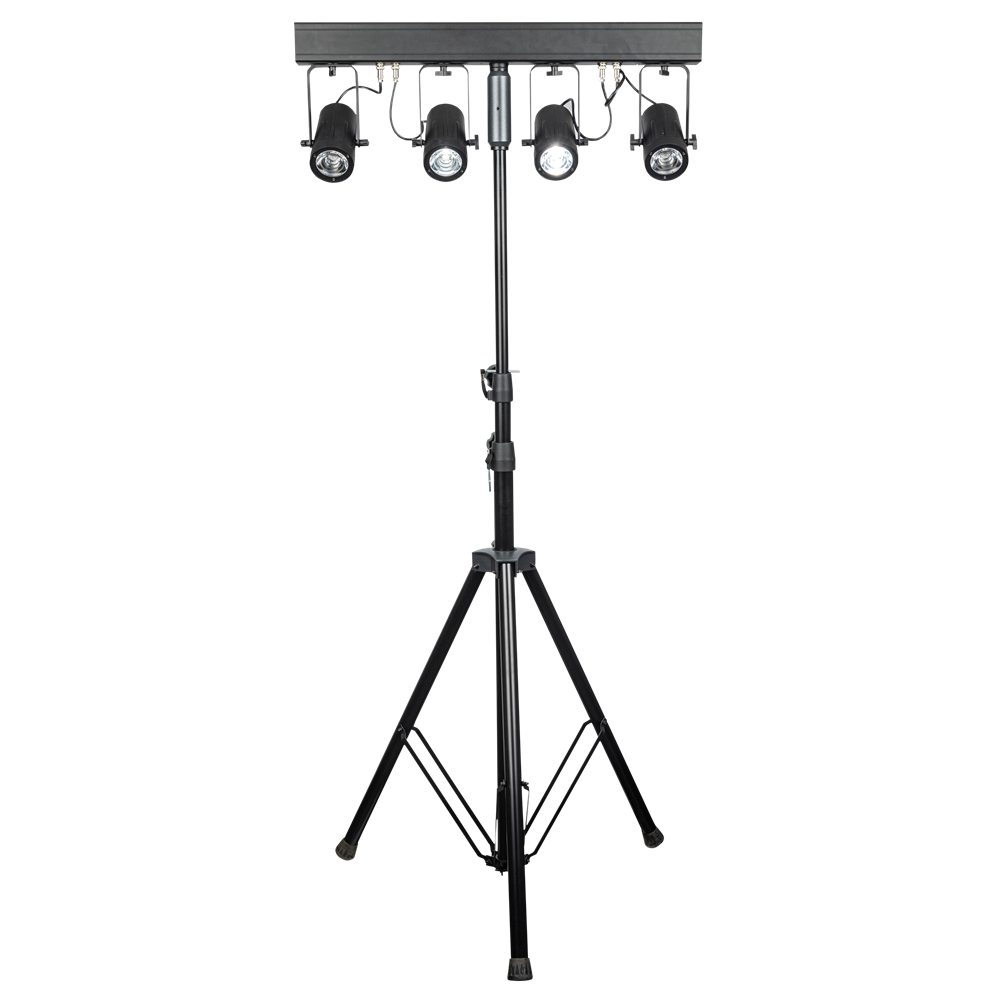

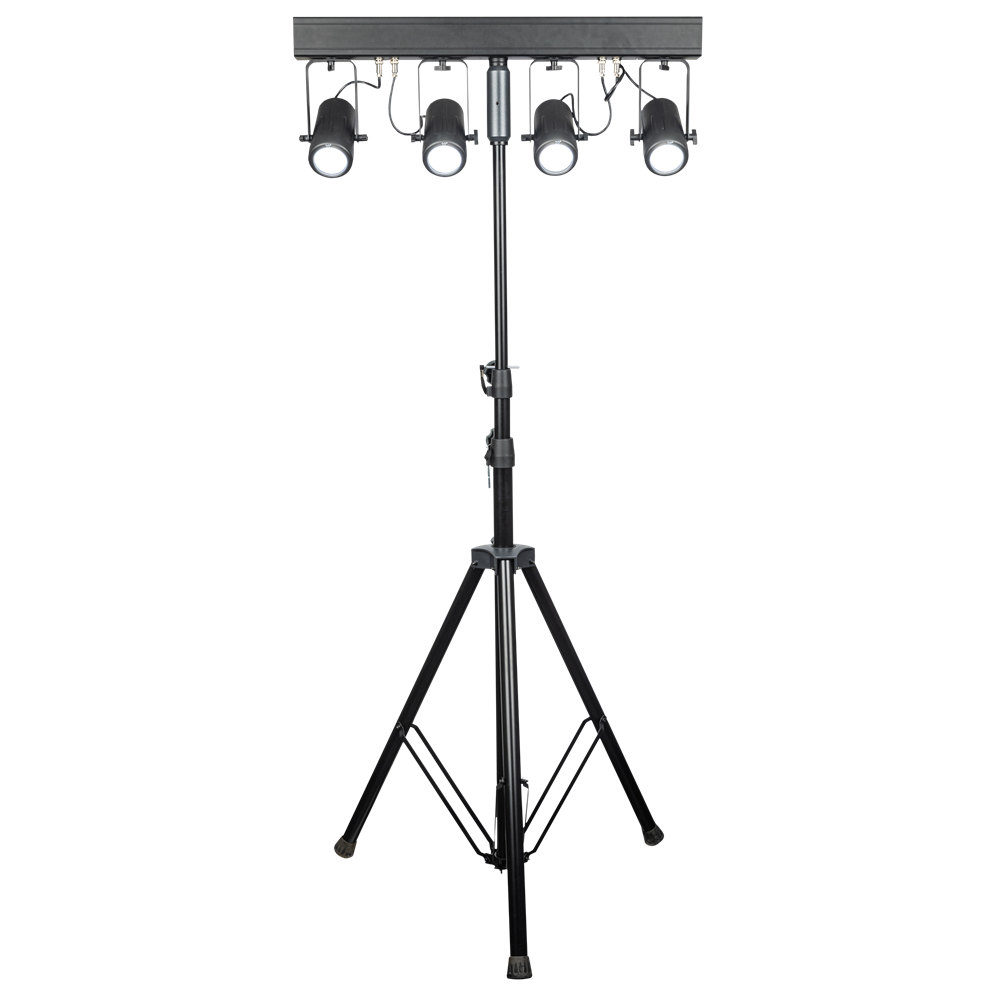

The T-bar can be placed on a stand with the included 28-mm spigot, or hanged on a truss with the included Quick-Lock brackets. Direct mounting of a clamp is also possible thanks to the M10 thread holes.
You can easily setup each individual spot with the onboard controls. Just connect the main power of the bar and you are ready to go.
Light Source Type: LED
Light Source Quantity: 4
Light Source Power: 15 W
LED Colour Type: WW
Life Expectancy: 50000 h
CCT: 3000 K
Beam Angle (Circular): 4.5°
Control Mode: Auto / DMX / Manual / Master Slave / Sound
DMX Channels: 1 / 2 / 4 / 6 / 7 / 10
Protocols: DMX
Display: OLED
Dim Curve: Linear / Square / I-Square / S-Curve
Dimmer Resolution: 8 bit
Dimmer: 0-100 %
Strobe: 0-20 Hz
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 75 W

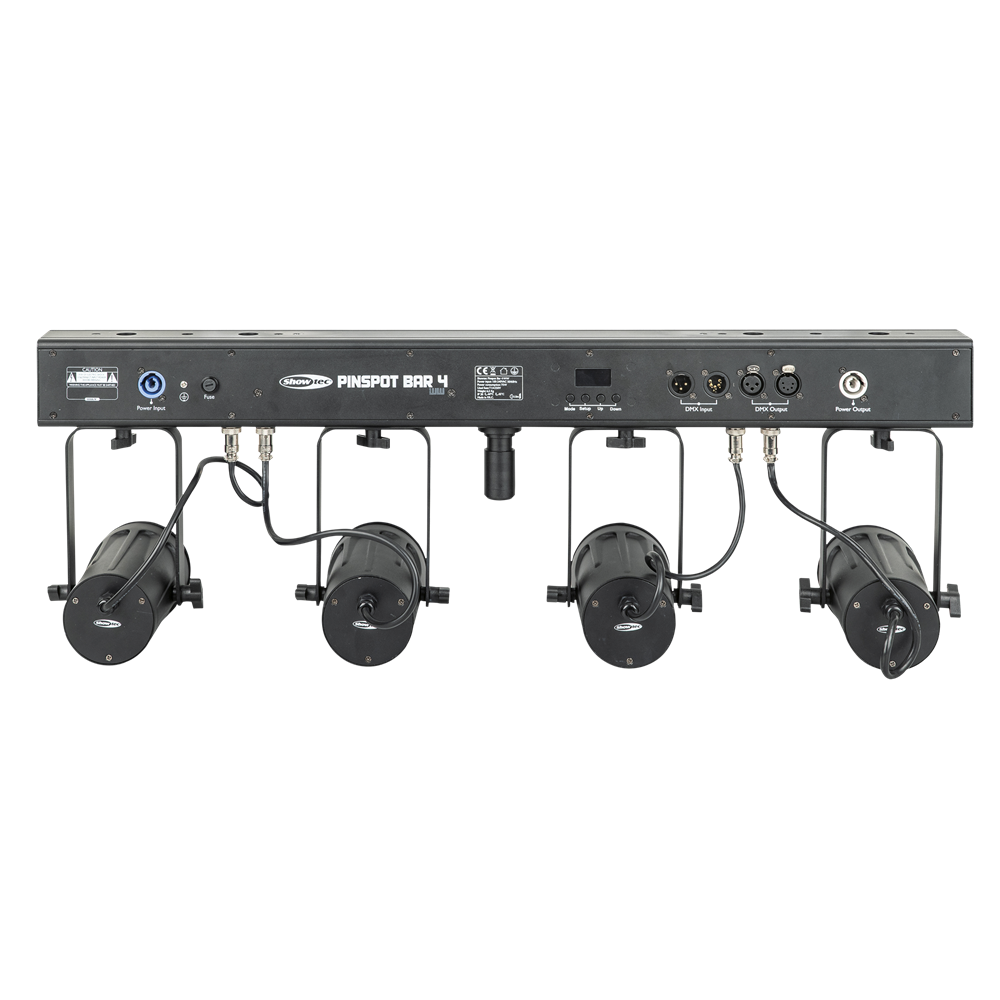

Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
DMX Connector In: XLR 3P / XLR 5P
DMX Connector Out: XLR 3P / XLR 5P
Height (mm): 278 mm
Width (mm): 800 mm
Depth (mm): 177 mm
Weight: 6.5 kg
IP Rating: IP20 (indoor use only)
Housing: Aluminium die-cast
Colour: Black
Cooling: Axial fan
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: -10 °C
Included Cables: powerCON cable
Included Rigging: Quick-Lock Bracket / Rigging Eye
