1x 60 W + 45x 15 W RGBW LEDs
Pixel-controlled for dynamic effects
Sharp 4.5° beam angle
IP65-rated for outdoor use
Art-Net & DMX/RDM control with remote addressing
PWM 1–12 kHz for flicker-free performance

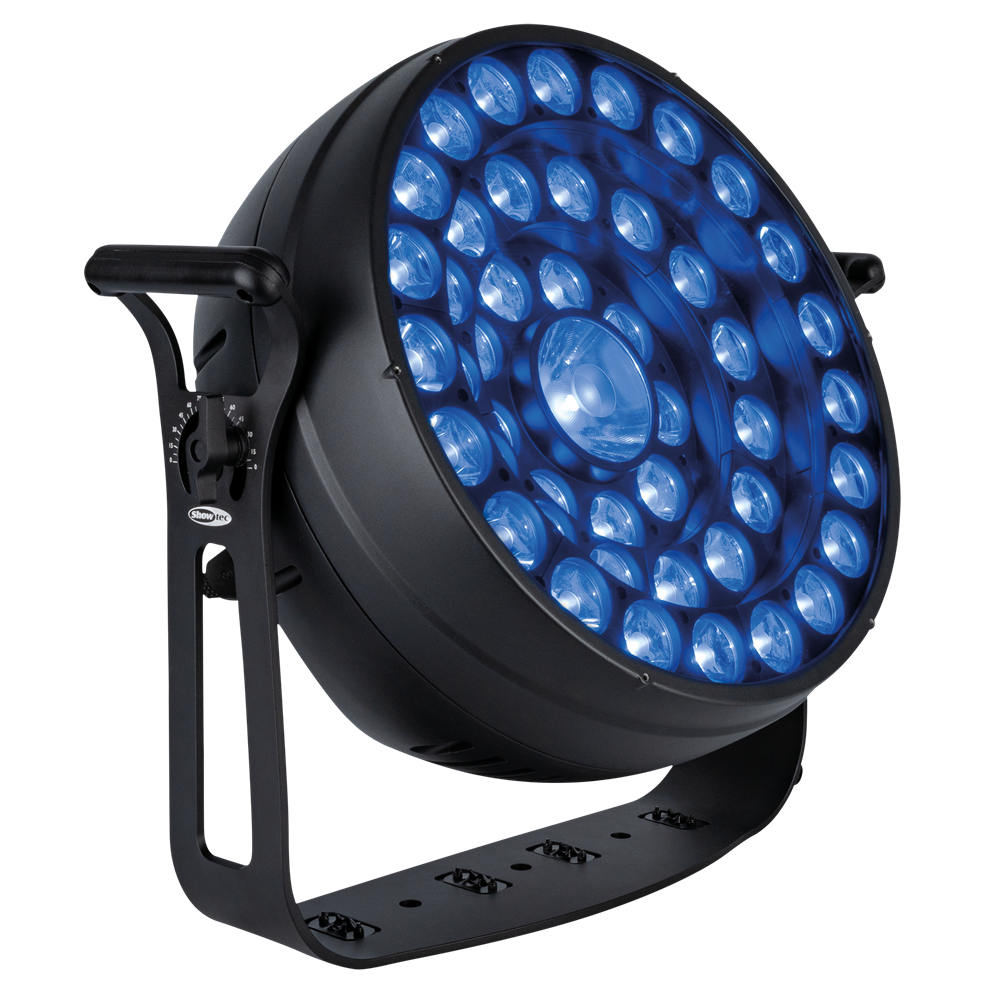

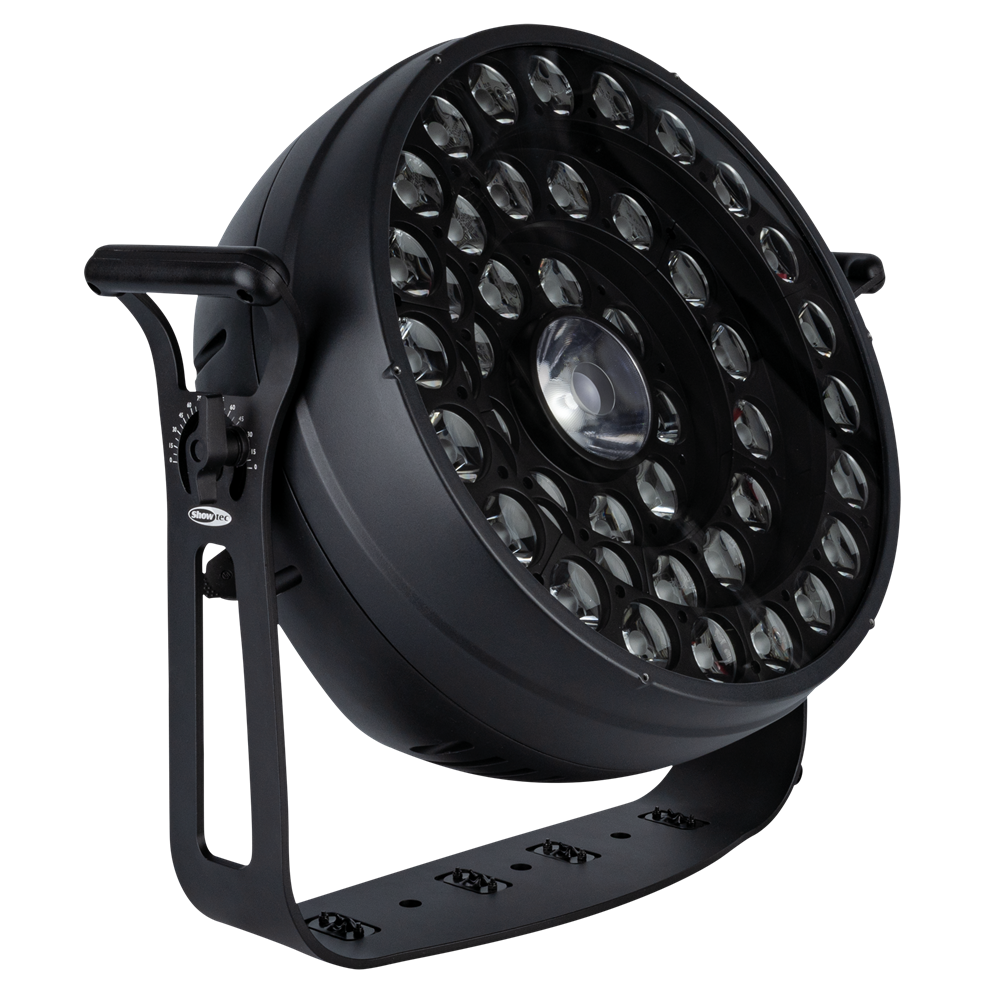

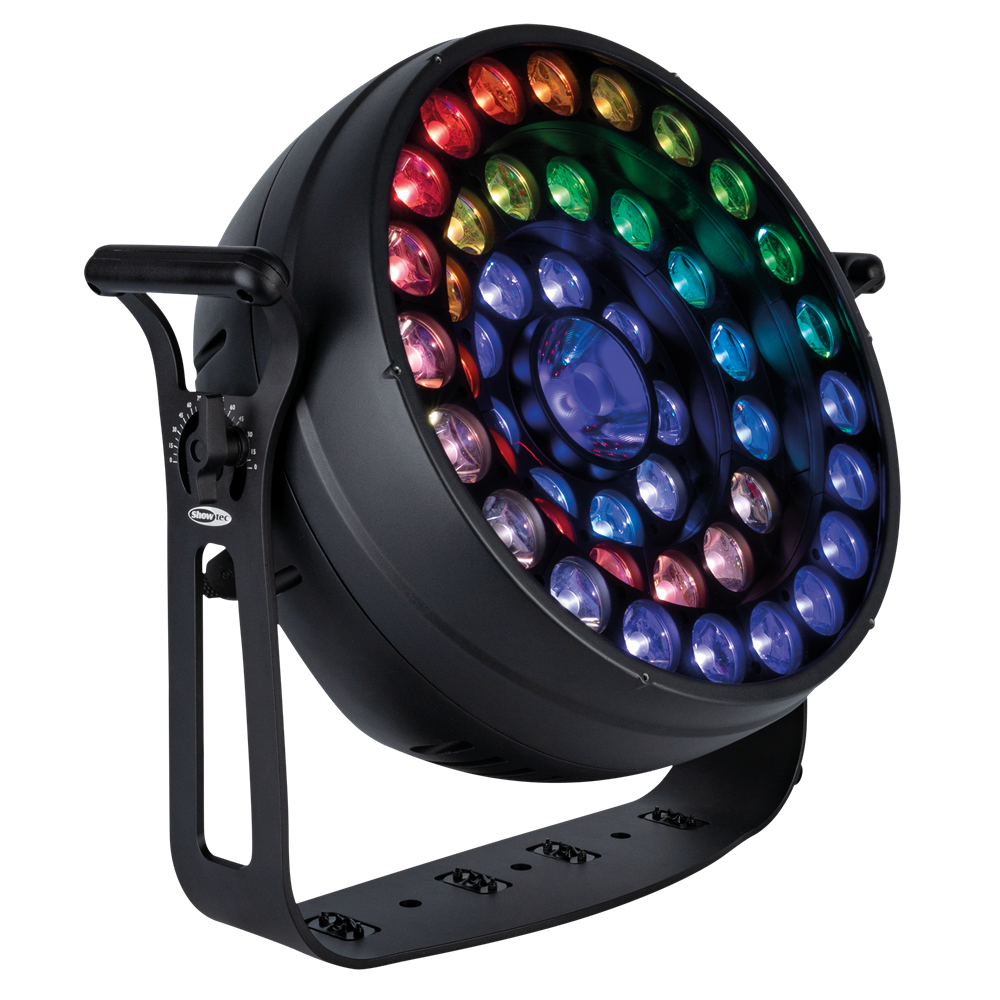

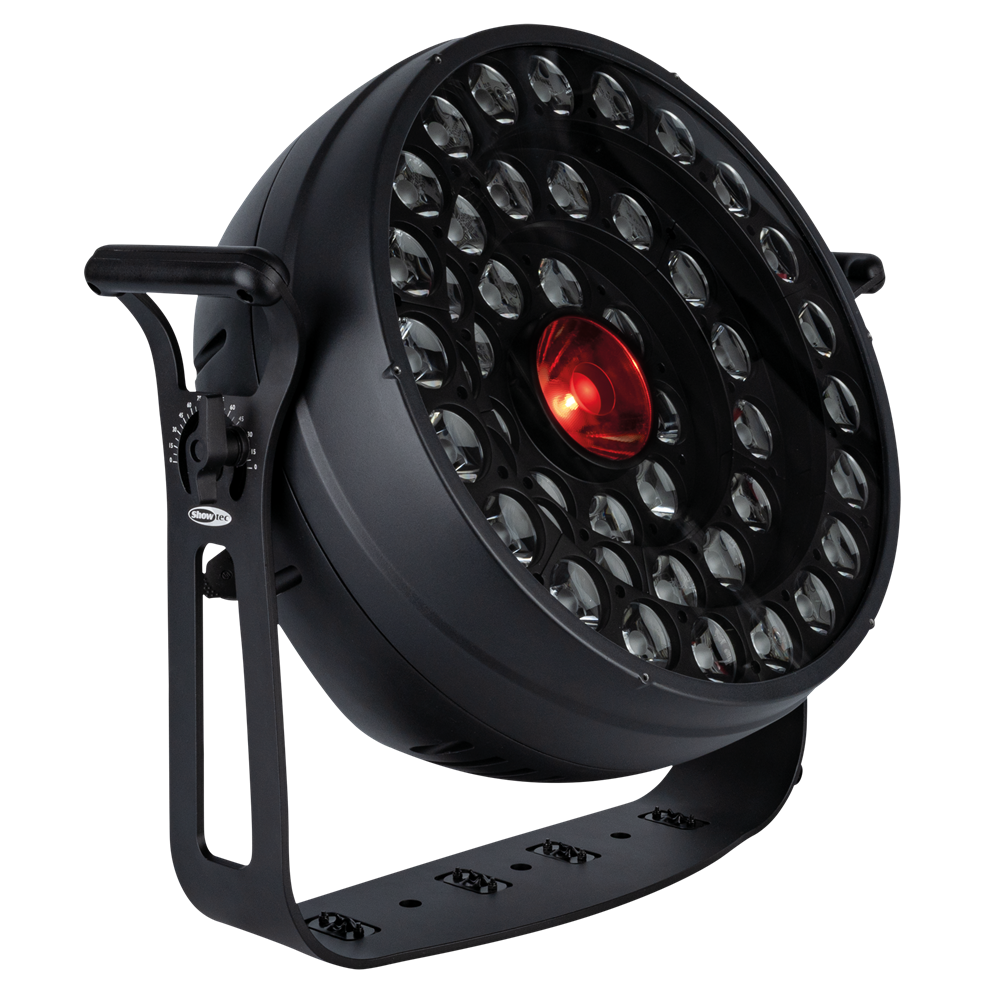

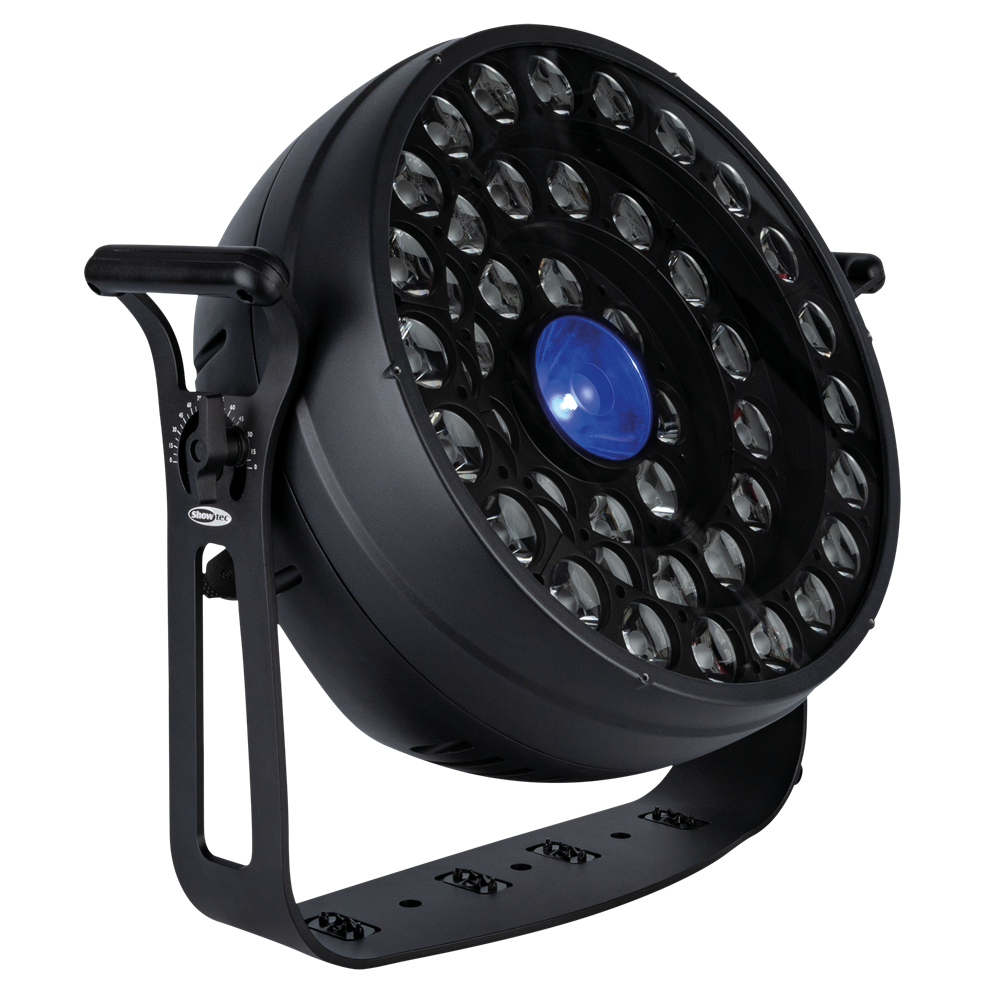

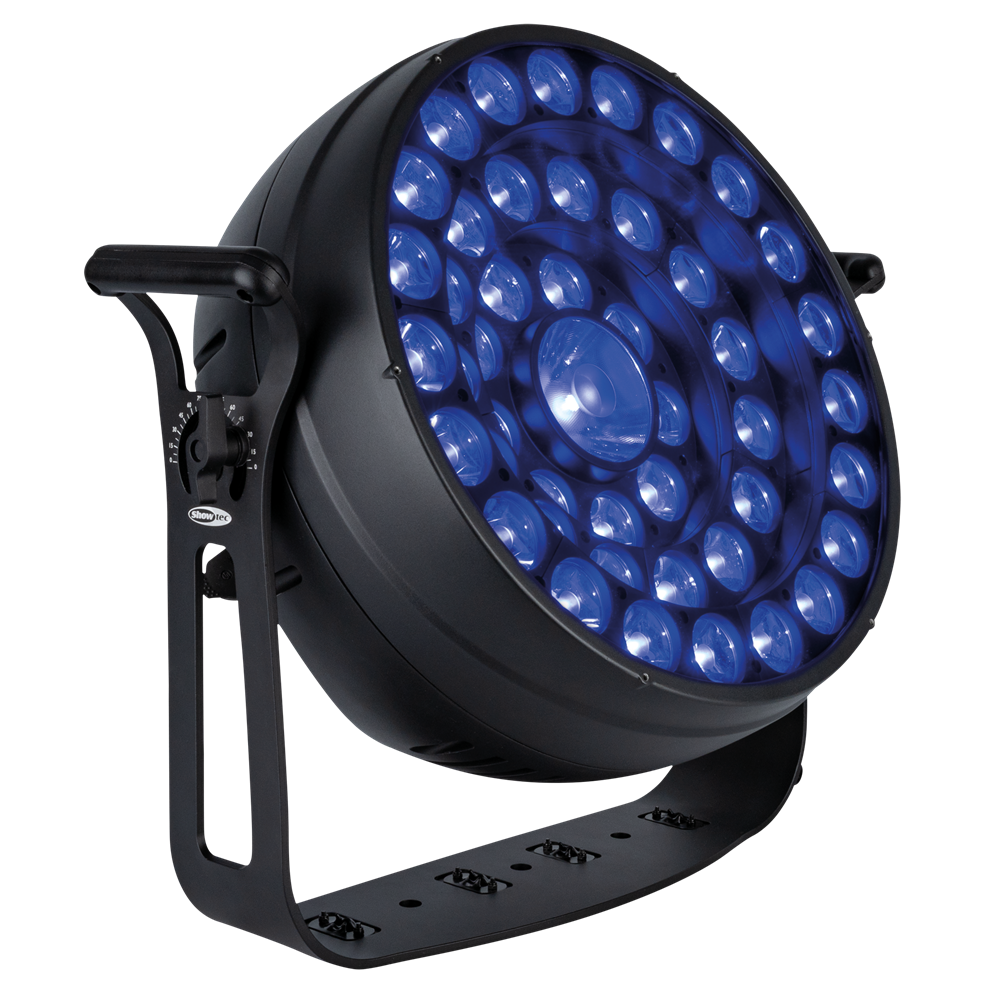

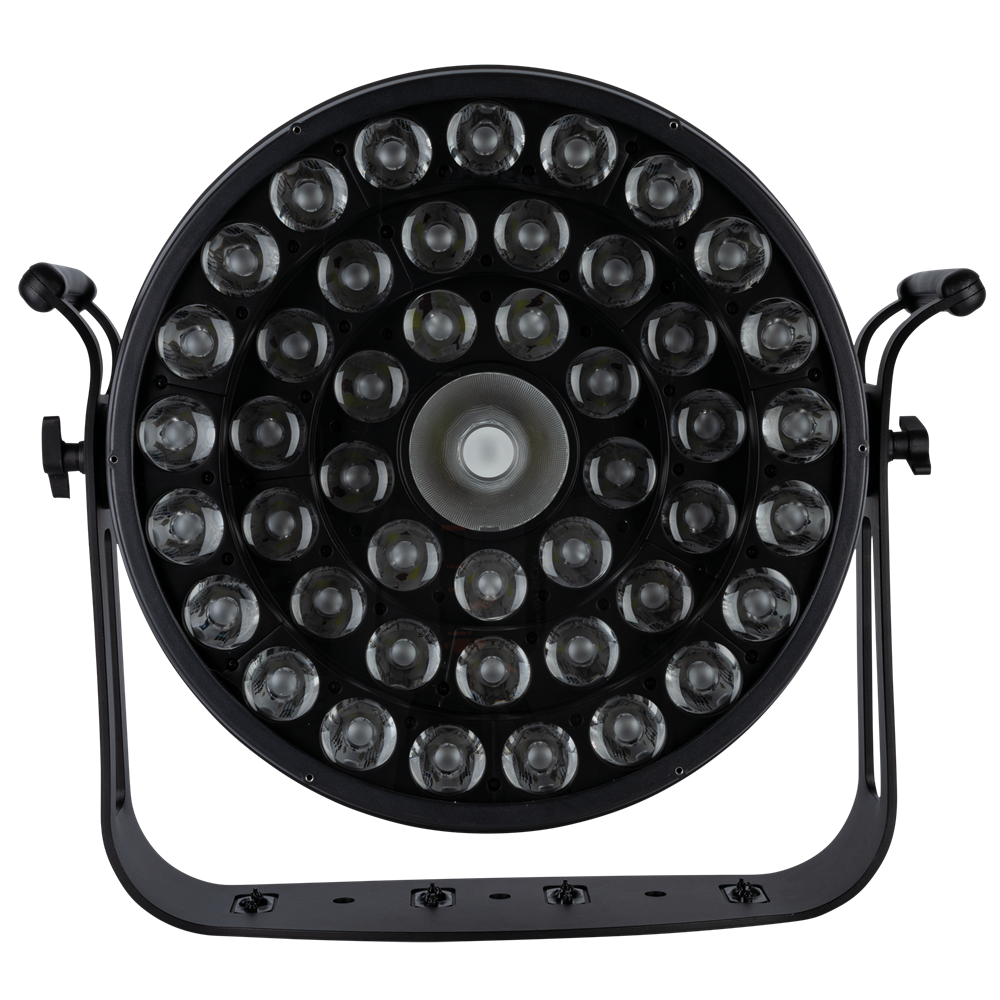

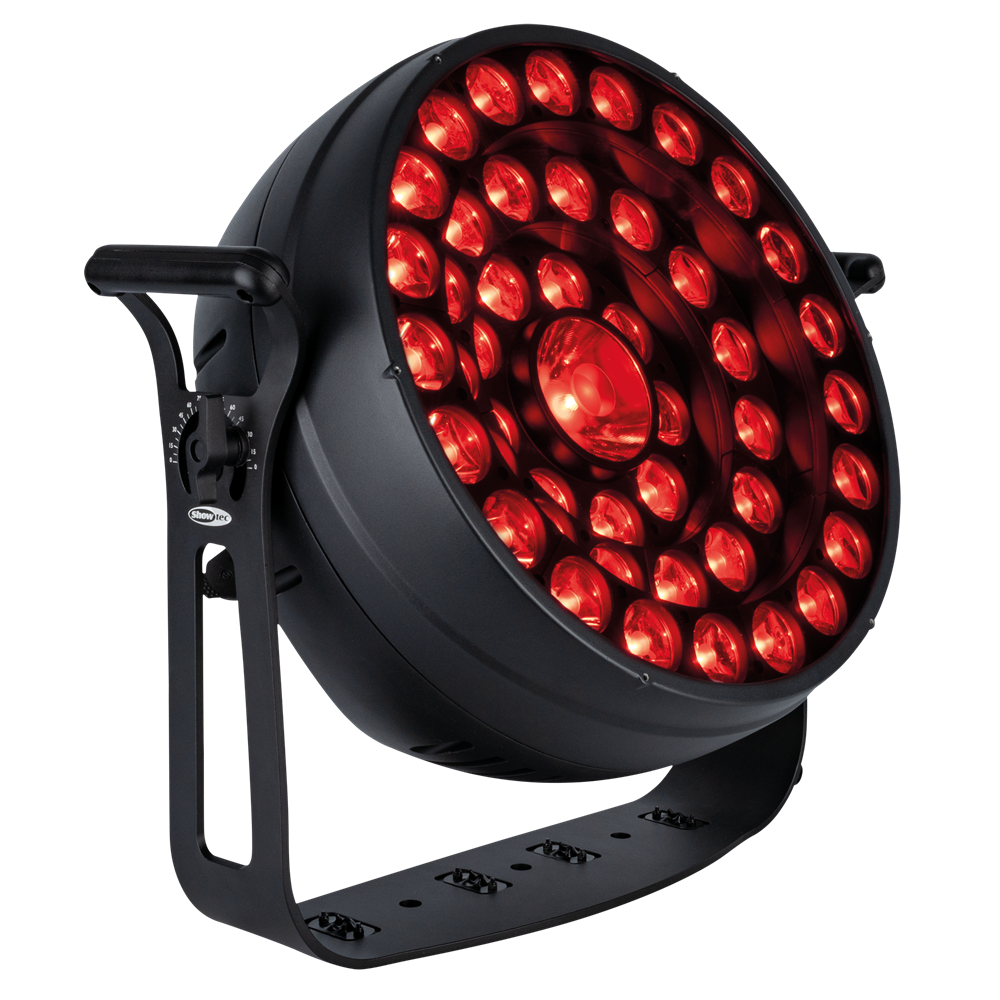

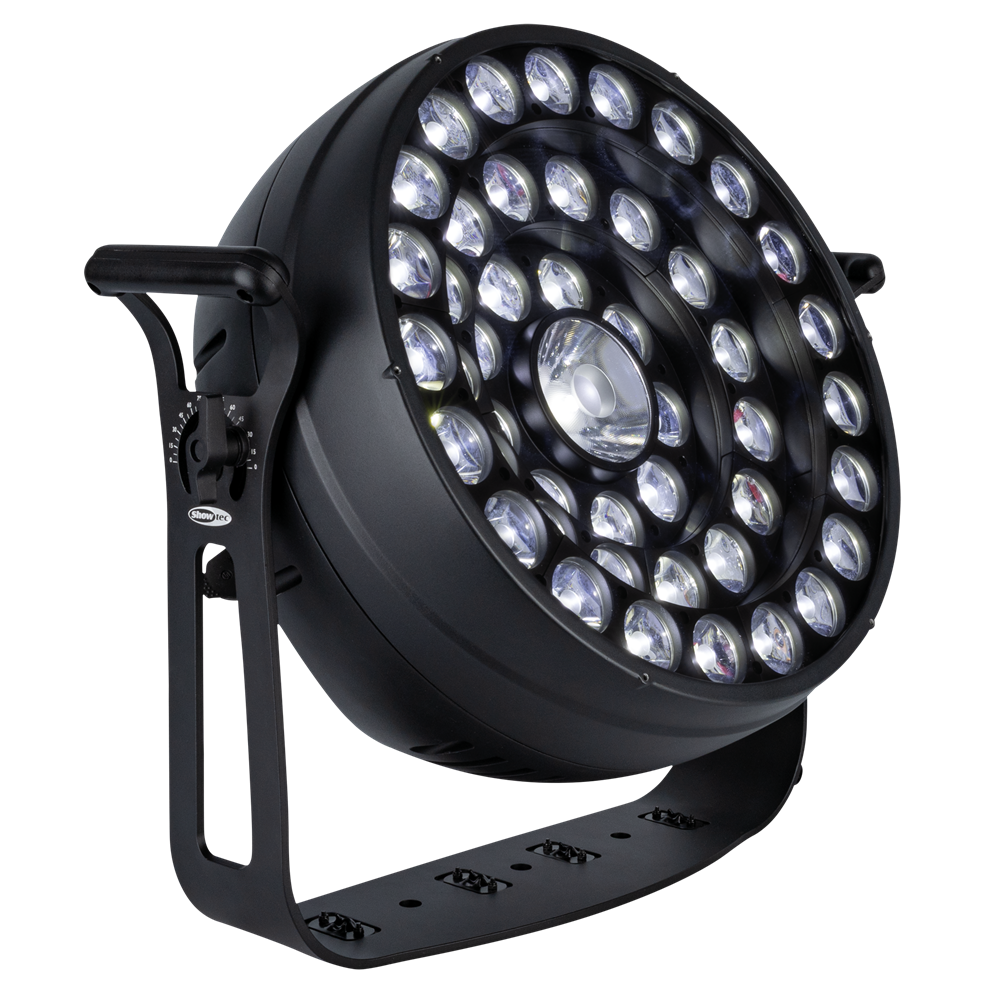

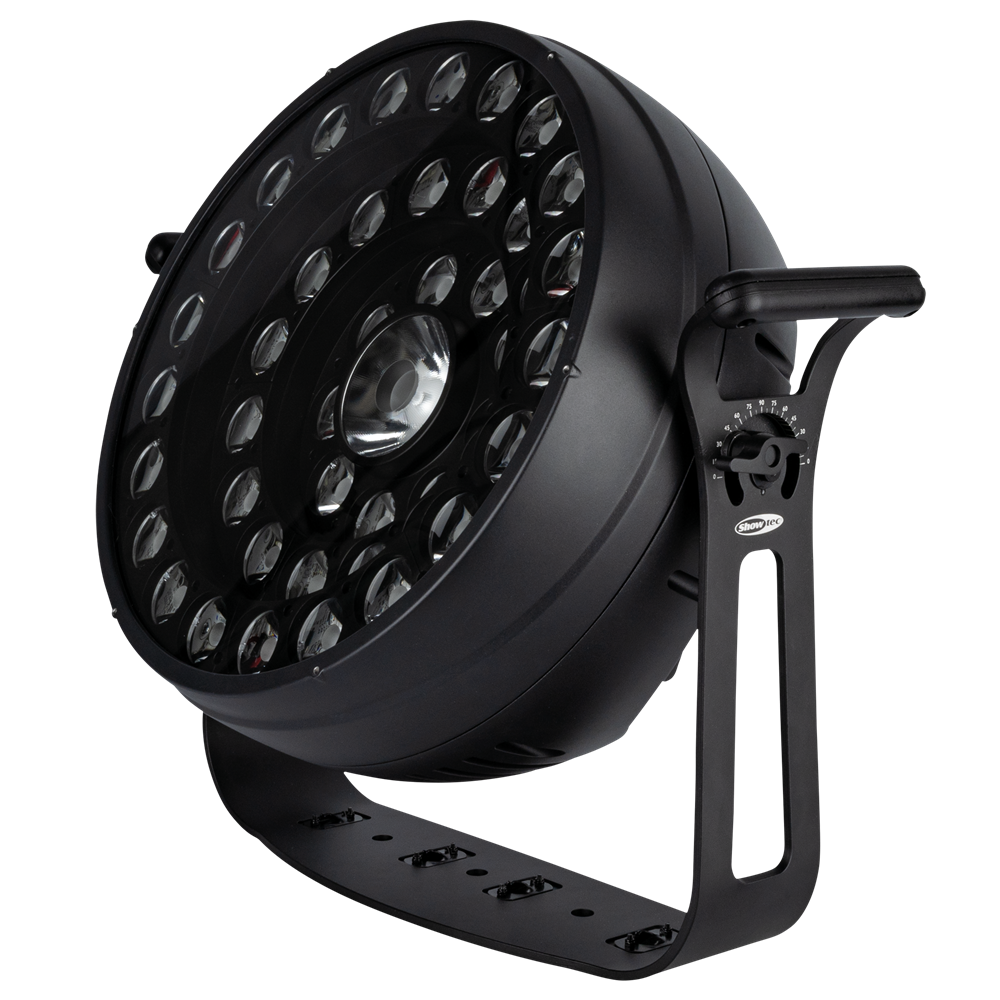

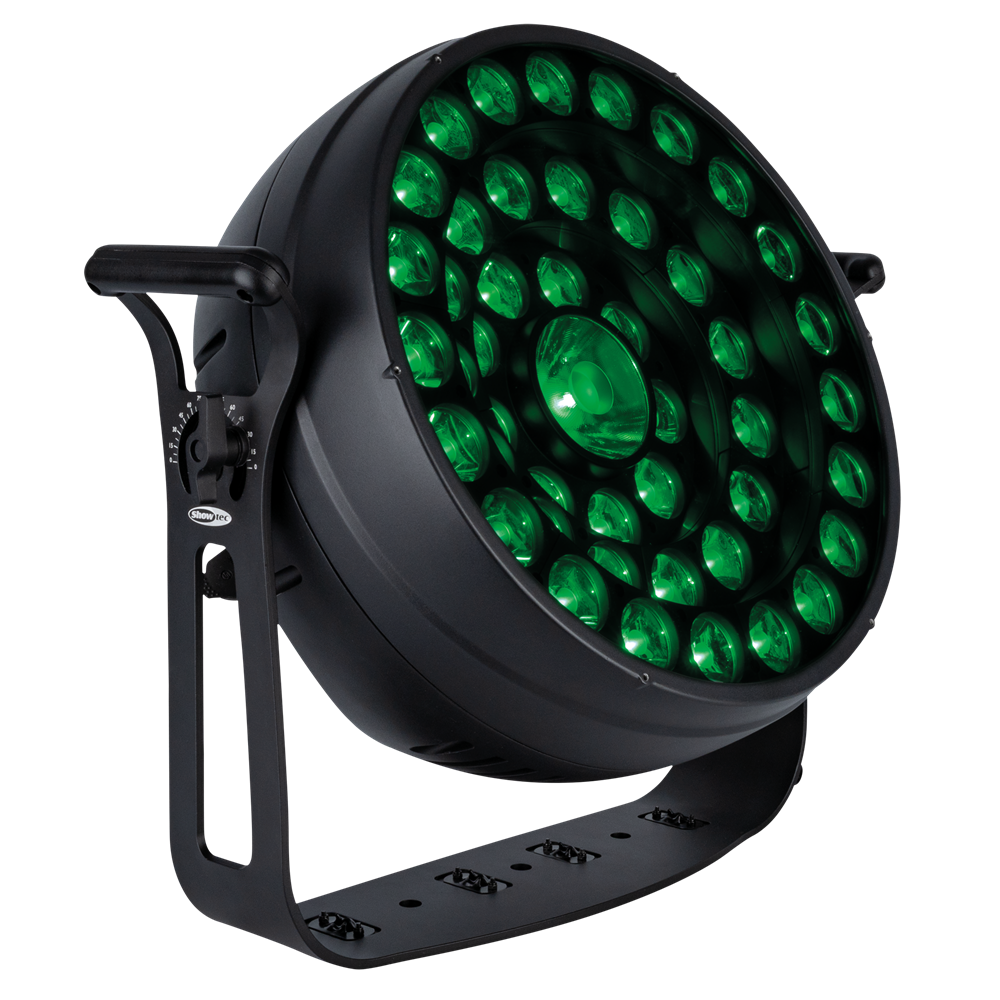

The Showtec Lumina Beam is a powerful outdoor beam blinder designed for dynamic effects and creative lighting. At its core, a 60 W RGBW LED delivers a sharp 4.5° beam angle for intense, focused output. Surrounding the centre LED are 45 RGBW LEDs (15 W each), all pixel-controlled for stunning multi-layered effects and endless design possibilities.
With an IP65-rated housing, the Lumina Beam is built for all-weather reliability. Control options include Art-Net, DMX/RDM, Auto, and Manual modes, with up to 150 DMX channels for advanced programming. Thanks to RDM, you can remotely change the DMX address and switch DMX modes without physical access. The fixture also features 4 selectable dimming curves, Power Pro True connectors, and 5-pin DMX connections for secure and professional setups. High-frequency PWM (1–12 kHz) ensures flicker-free performance for broadcast and camera applications.
A range of optional accessories is available to soften the LED appearance, modify the beam look, or create distinctive patterns for a vintage or Goliath-style appearance.
Light Source Type: LED
Light Source Quantity: 46
Light Source Power: 15 W
LED Colour Type: RGBW
Life Expectancy: 20000 h
Refresh Rate: 1000 Hz
Refresh Rate (Max.): 12 kHz
Luminous Flux (Total): 14240 lm
Luminous Flux (Red): 4645 lm
Luminous Flux (Green): 10898 lm
Luminous Flux (Blue): 2420 lm
Luminous Flux (White): 13271 lm
Beam Angle (Horizontal): 4.5°
Beam Angle (Vertical): 4.5°
Control Mode: Art-Net / Auto / DMX / Manual / RDM
DMX Channels: 8 / 12 / 27 / 184 / 199
Protocols: DMX / RDM
Display: OLED
Fan mode: Yes
Dim Curve: Linear / Square / I-Square / S-Curve
Dimmer: 0-100 %
Strobe: 0-20 Hz
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 450 W

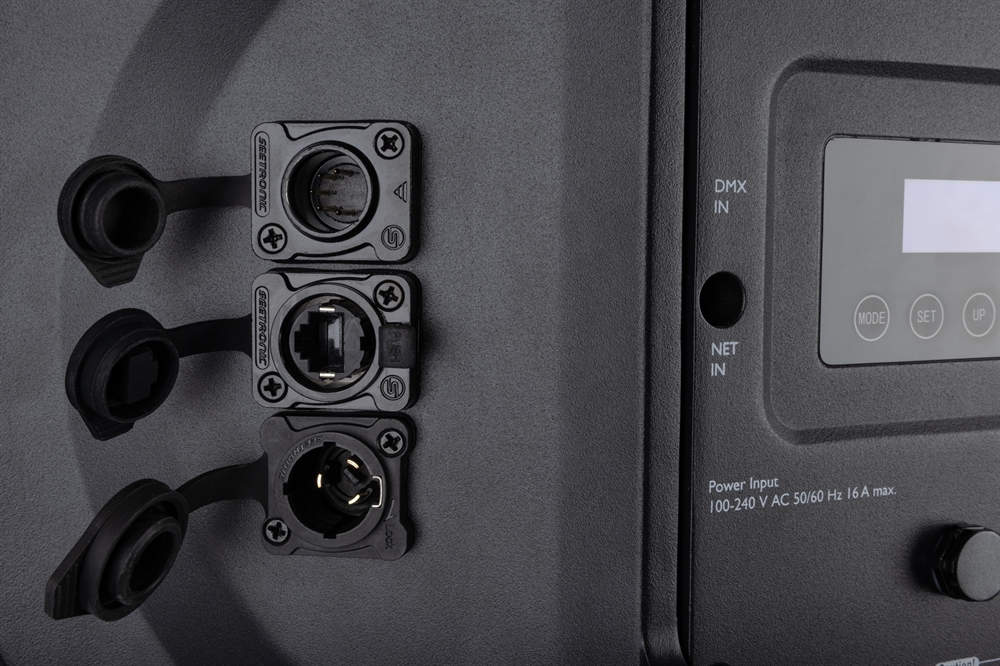

Power Connector In: Power Pro True

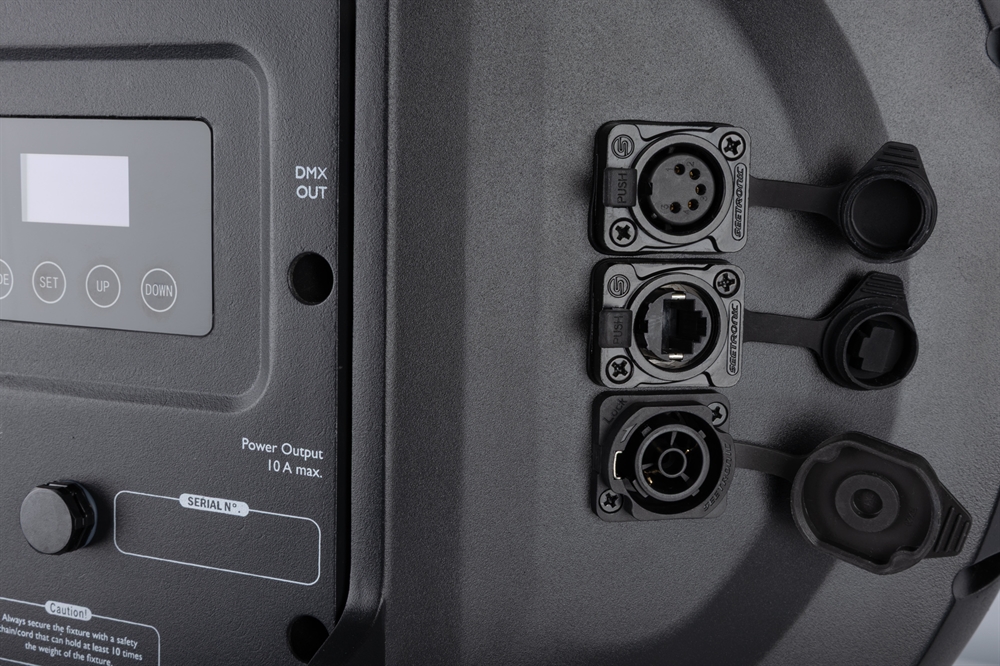

DMX Connector: XLR 5P In/Out
DMX Connector In: XLR 5P
DMX Connector Out: XLR 5P
Data Connector: RJ45 In/Out
Data Connector In: RJ45
Data Connector Out: RJ45
Length (mm): 265 mm
Width (mm): 555 mm
Height (mm): 481 mm
Weight: 27 kg
IP Rating: IP65
Material: Aluminium
Housing: Aluminium
Colour: Black
Cooling: Convection/Axial fan
Maximum Ambient Temperature: 40 °C
Maximum Surface Temperature: 70 °C
Included Cables: Power Pro True Cable
