DMX LED dimmer with E27 socket
Manual and DMX control

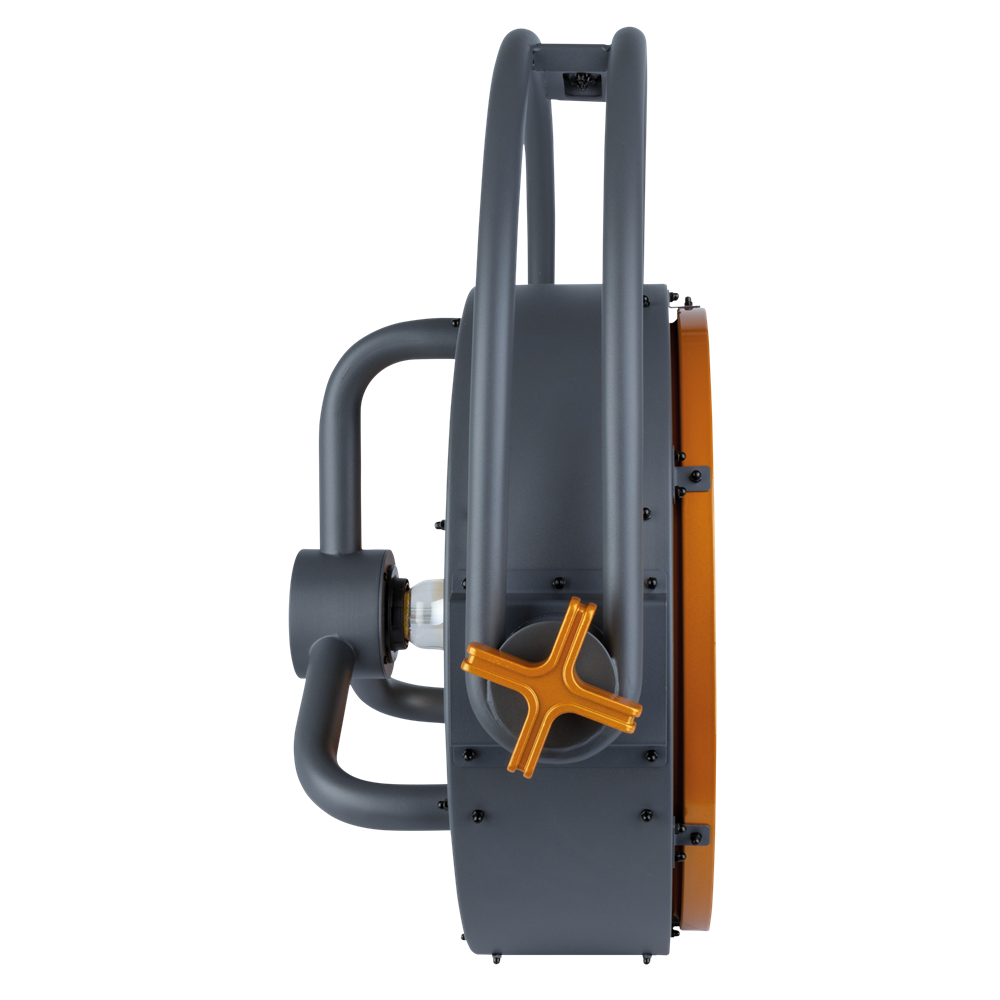

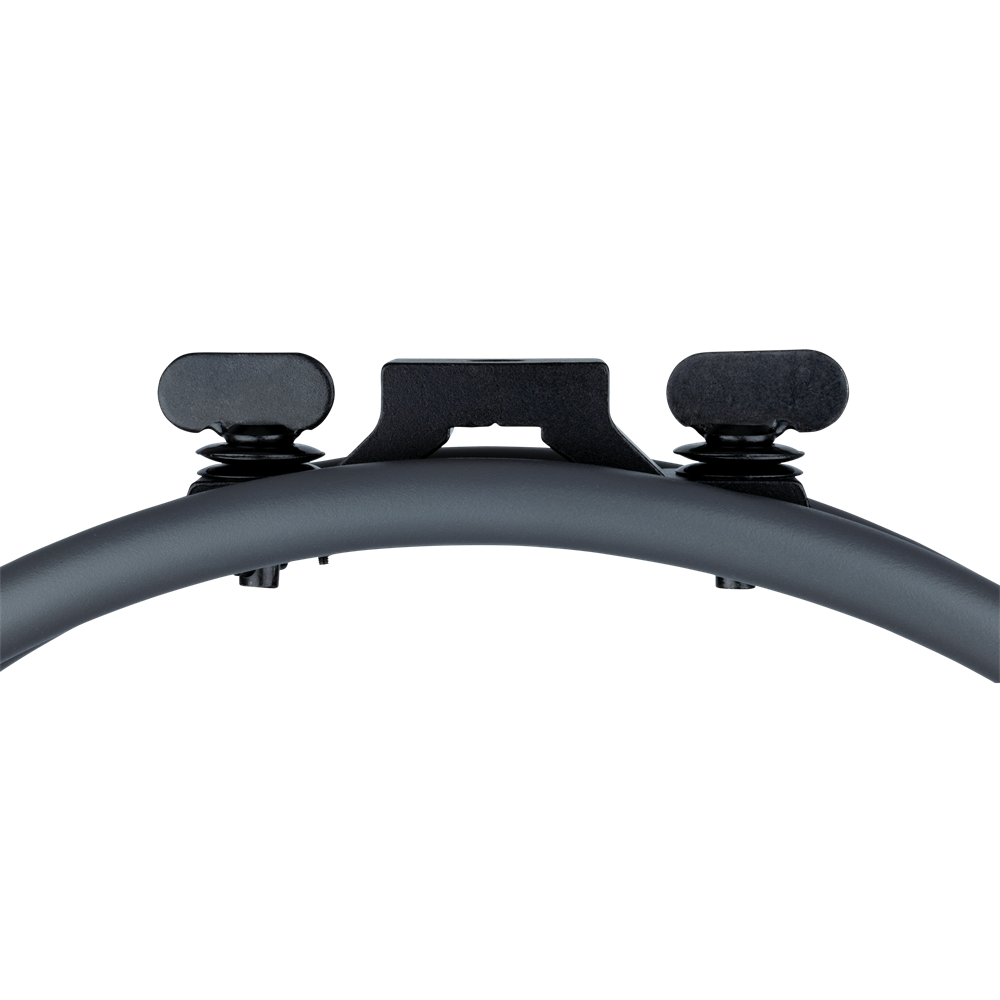

Quick-lock mounting bracket included

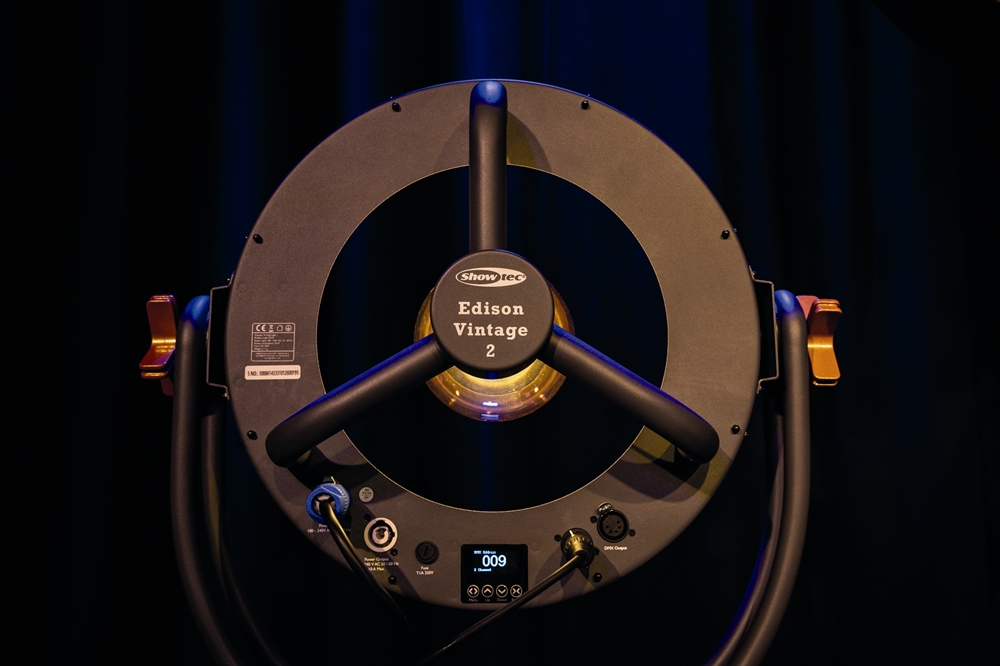

OLED display for easy control

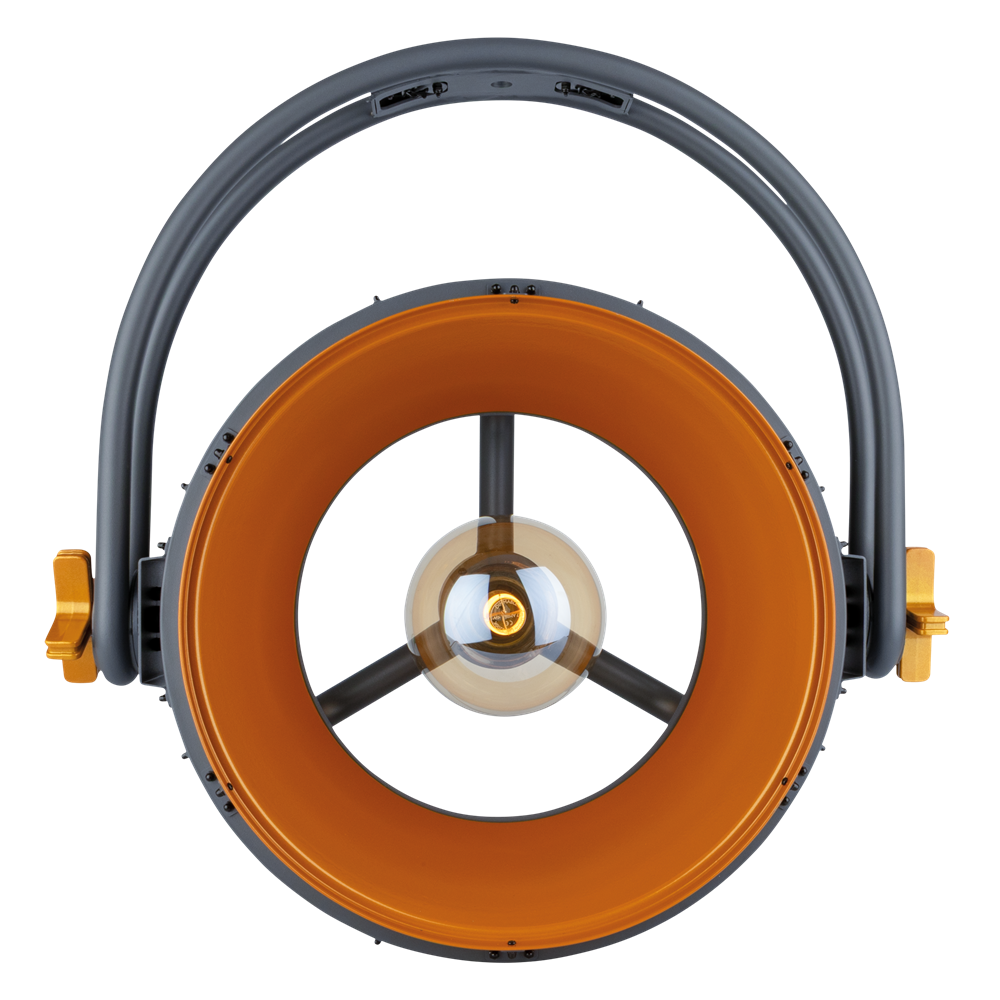

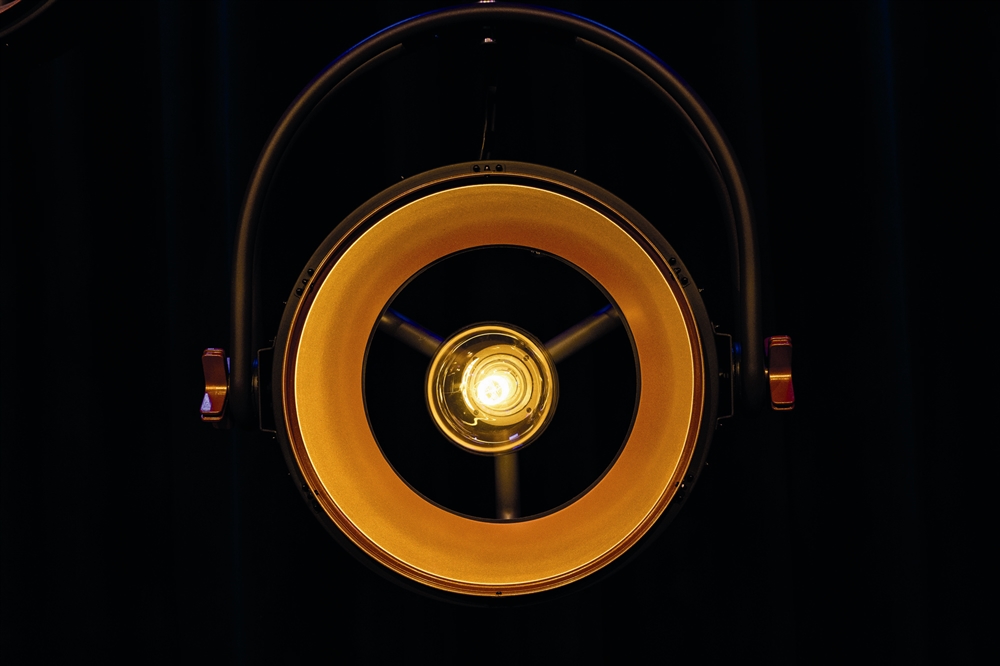

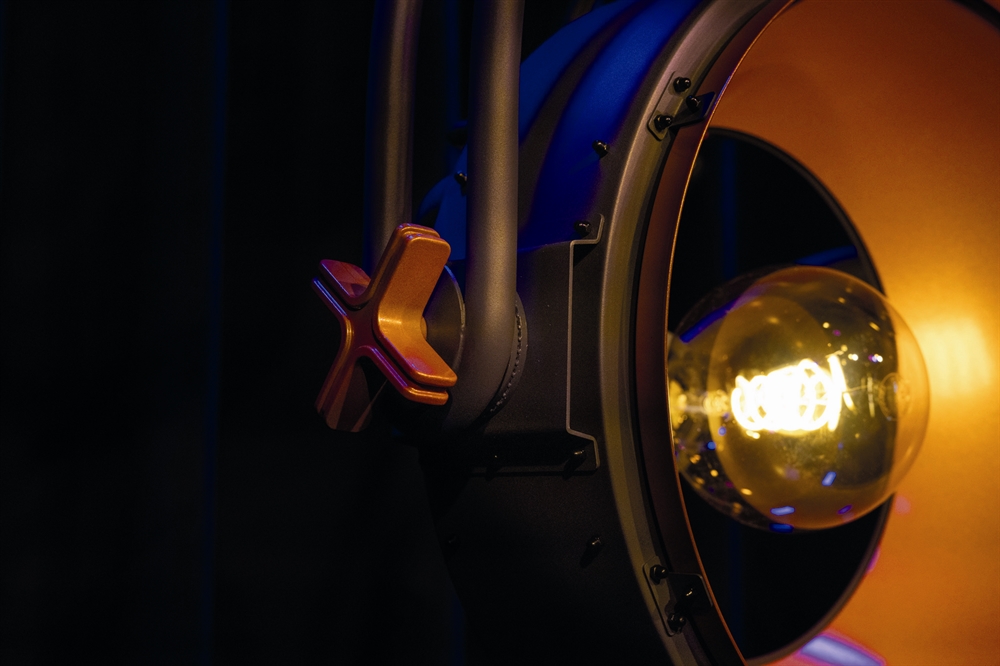

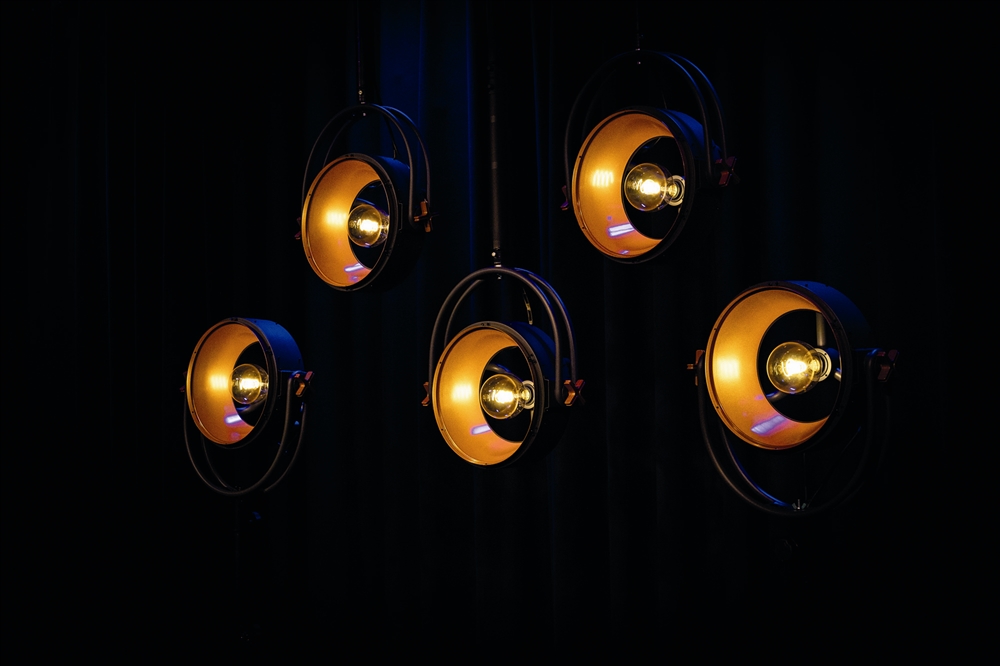

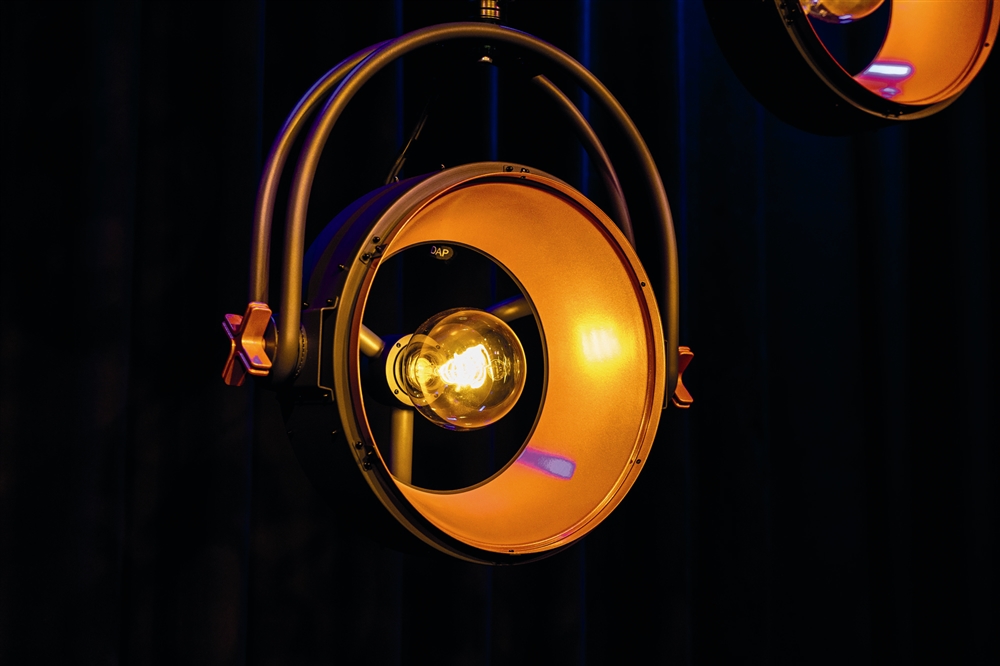

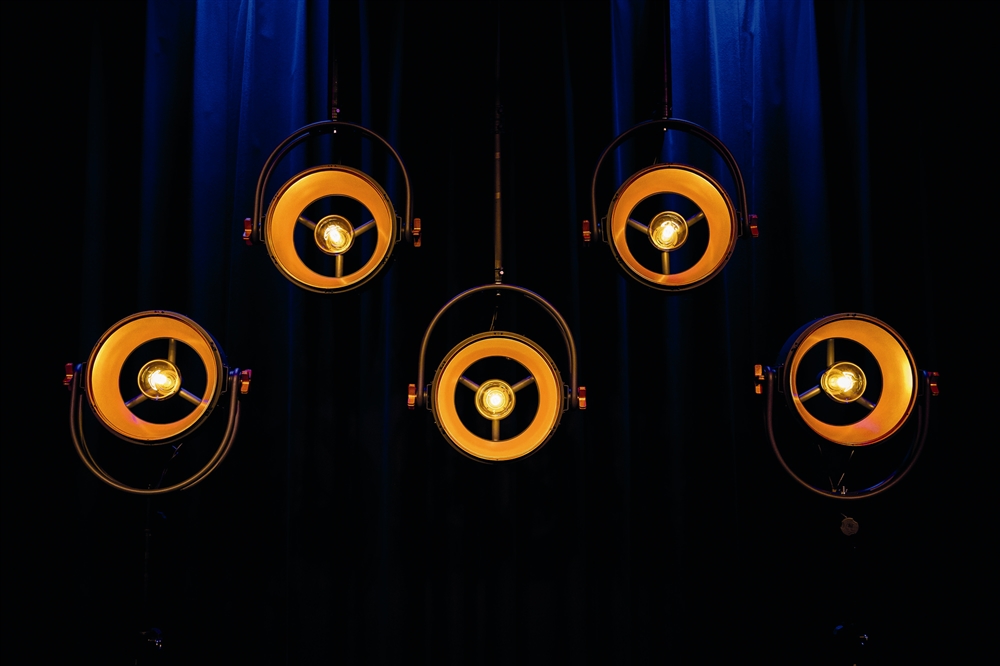

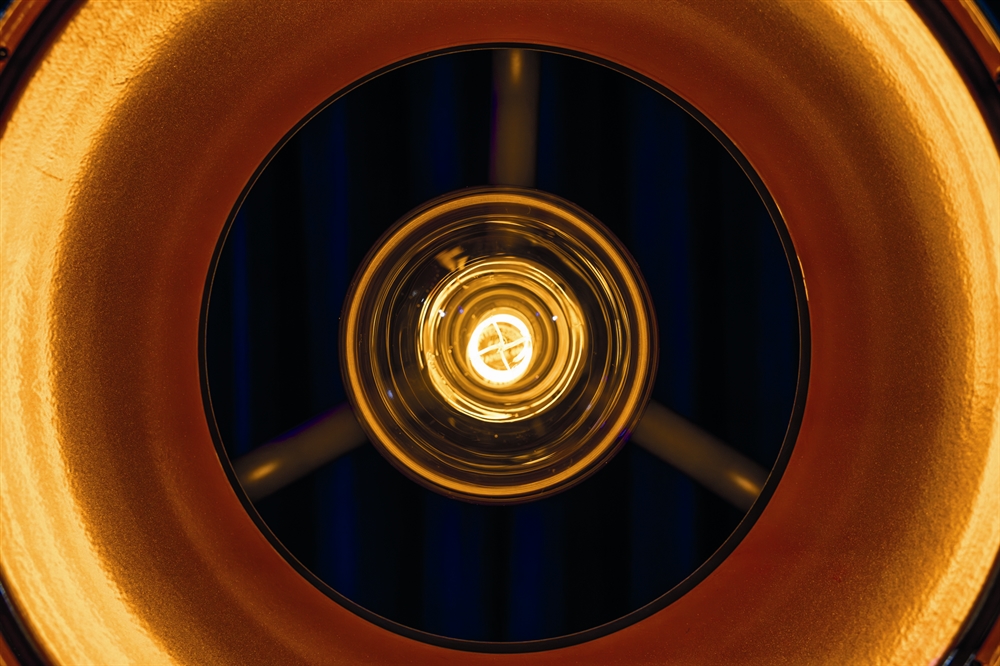

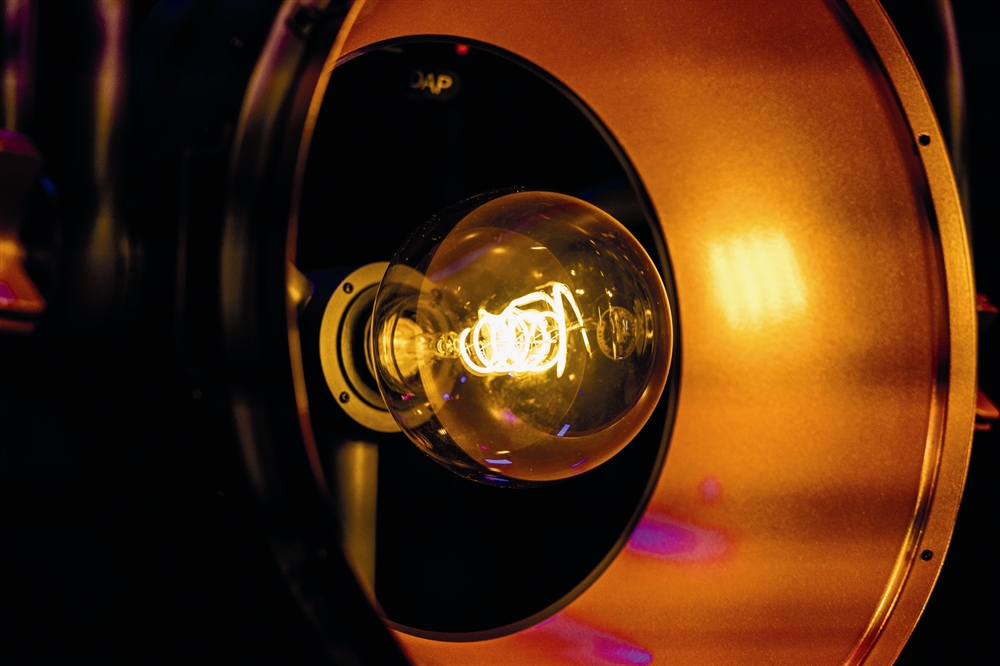

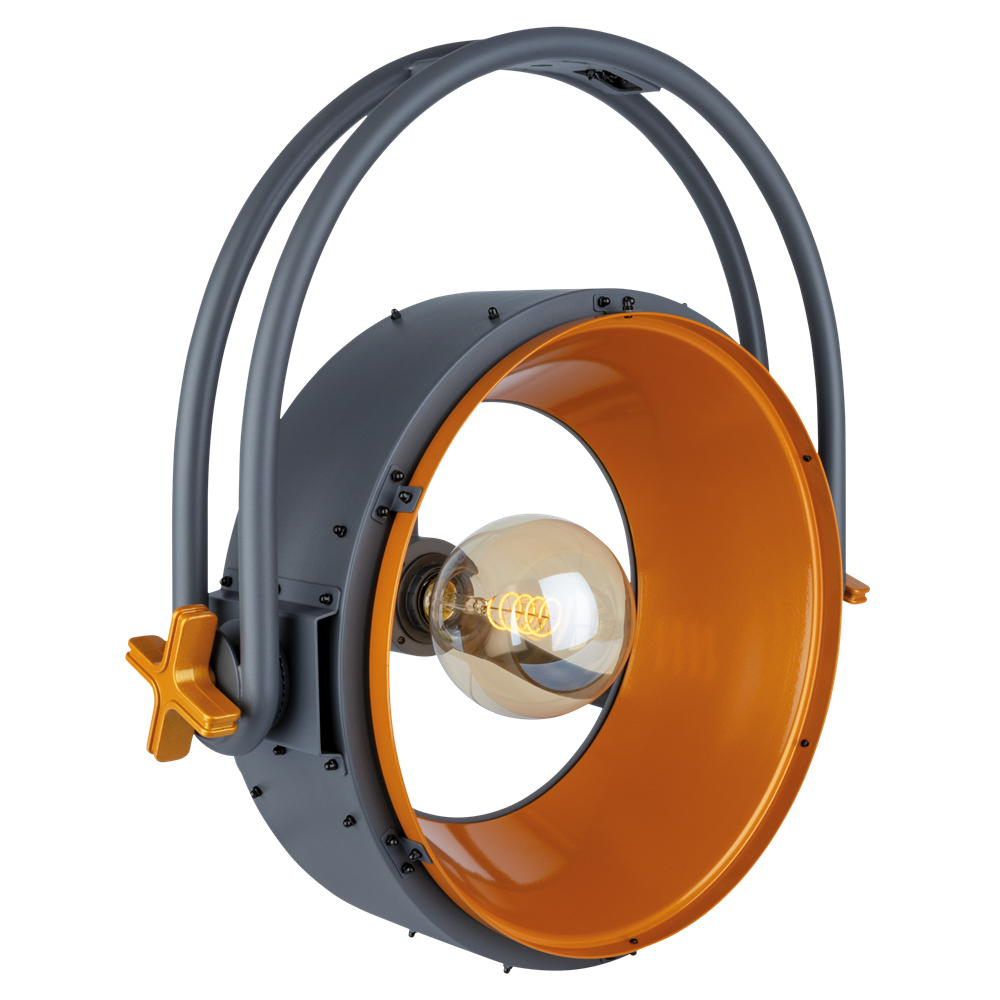

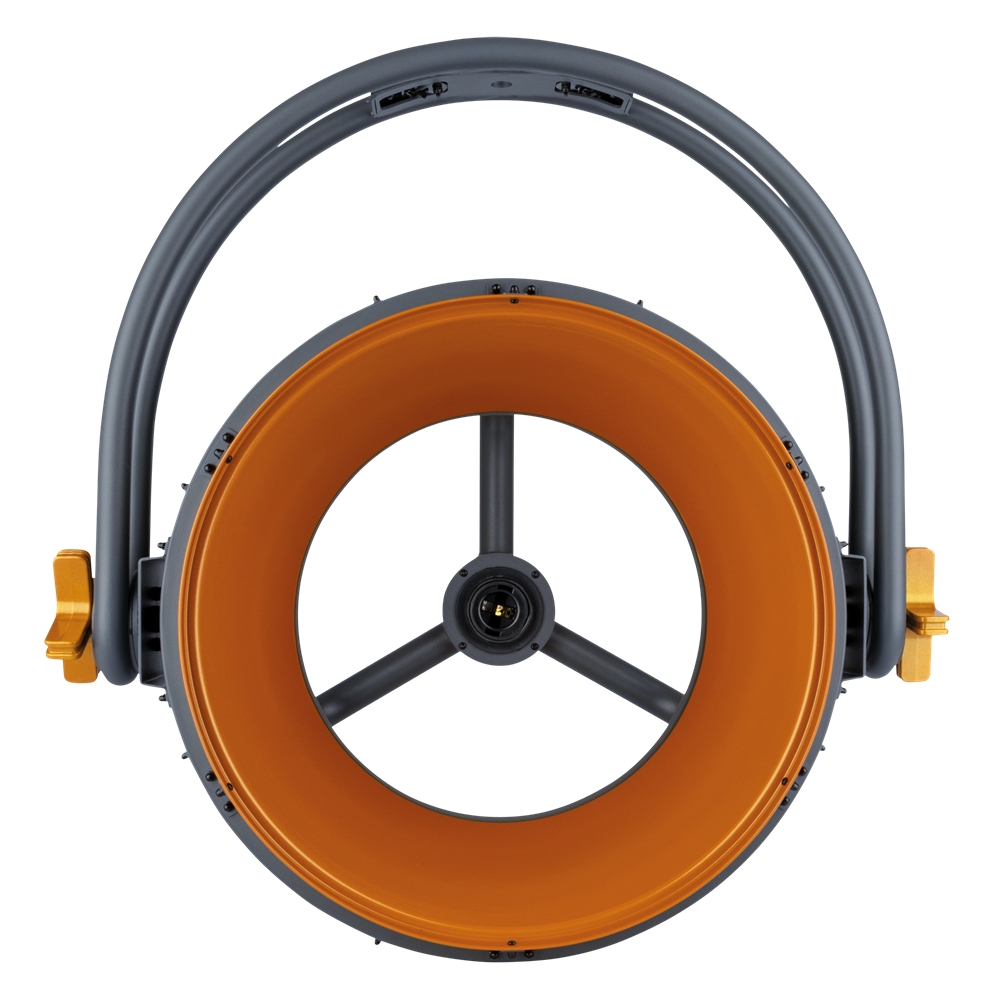

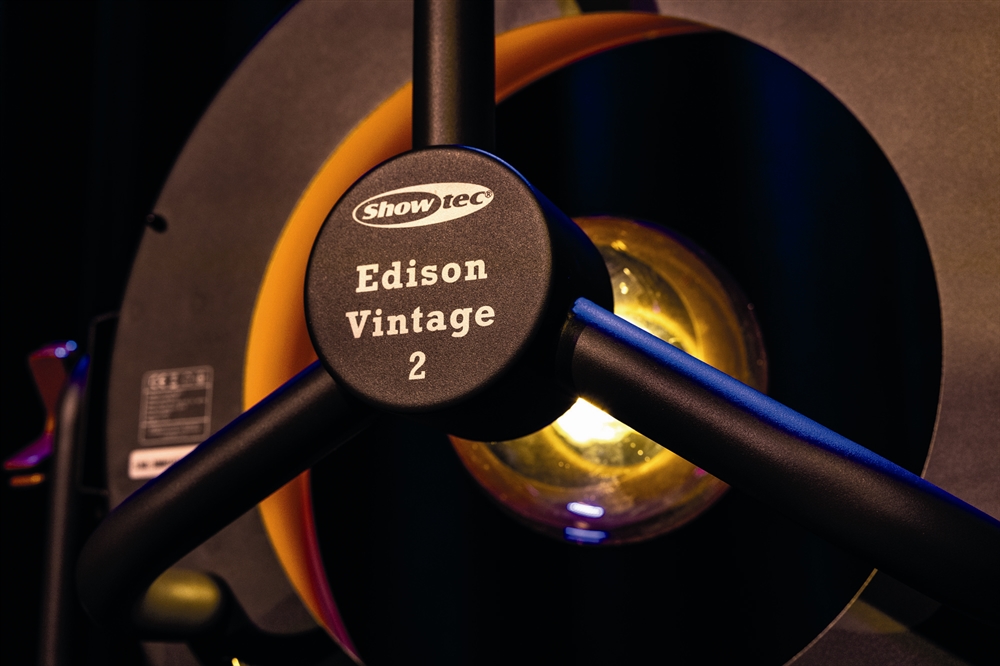

The Showtec Edison Vintage 2 is a vintage-style luminaire. Combining a new design with the same trusted functionality as the Edison Vintage 1, it brings the charm of vintage lighting into the modern era. With an E27 socket, it delivers a cosy glow and elegant retro-inspired look, making it a perfect addition to stages, studios, themed venues and decorative installations. The built-in dimmer supports both DMX control and manual operation, with smooth, non-linear voltage-based dimming for authentic incandescent-style fades. An intuitive OLED display ensures easy configuration, while the quick-lock bracket allows for fast, secure mounting on truss or 50 mm pipe systems.
LED bulb not included.
Light Socket: E27
Number of Sockets: 1
Control Mode: DMX / Manual
DMX Channels: 1 / 2
Protocols: DMX / RDM
Display: OLED
Display Size: 1.3"
Dim Curve: Linear / Square / I-Square / S-Curve
Dimmer Resolution: 16 bit
Dimmer: 0-100 %
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 6.7 W
Max. power consumption: 20 W
Fuse: 1 A

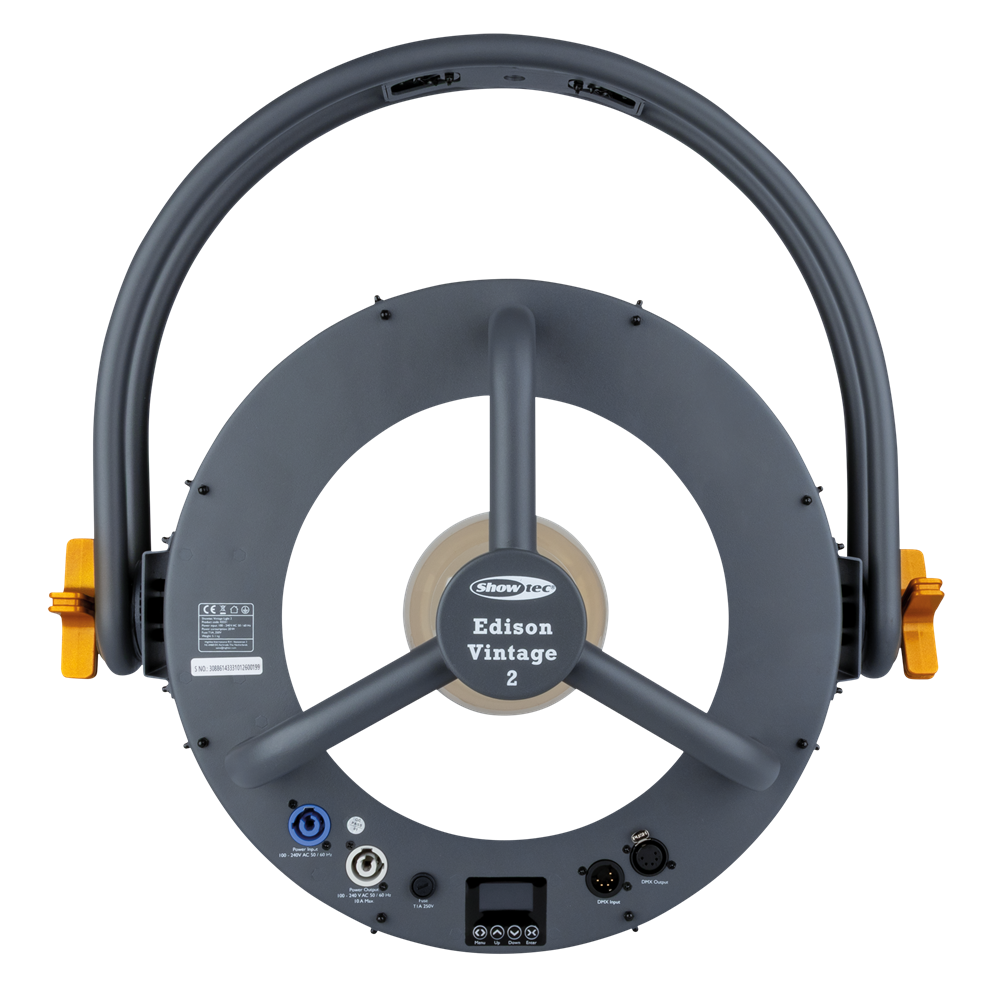

Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
DMX Connector: XLR 5P In/Out
DMX Connector In: XLR 5P
DMX Connector Out: XLR 5P
Cable Length: 1.5 m
Height (mm): 541 mm
Width (mm): 526 mm
Depth (mm): 239 mm
Weight: 5.3 kg
IP Rating: IP20 (indoor use only)
Material: Aluminium / Metal
Housing: Aluminium / Metal
Colour: Pale Gold / Grey
Cooling: Convection
Mounting Options: Clamp / Quick-Lock
Maximum Ambient Temperature: 45 °C
Minimum Operating Temperature: 0 °C
Included Cables: Power Pro Cable
Included Rigging: Quick-Lock Bracket
