140 W LED source

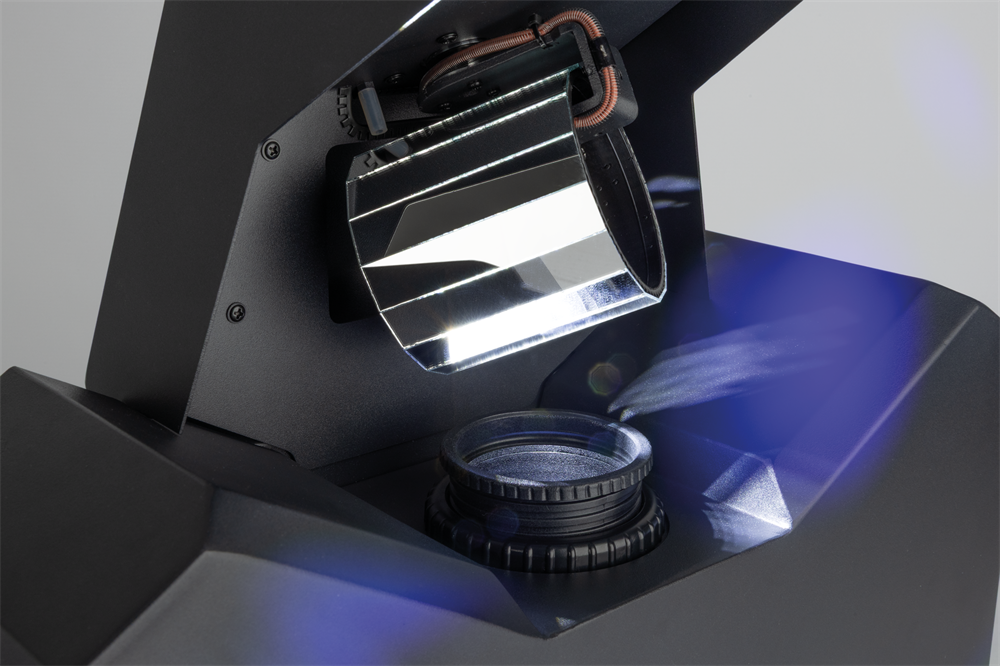

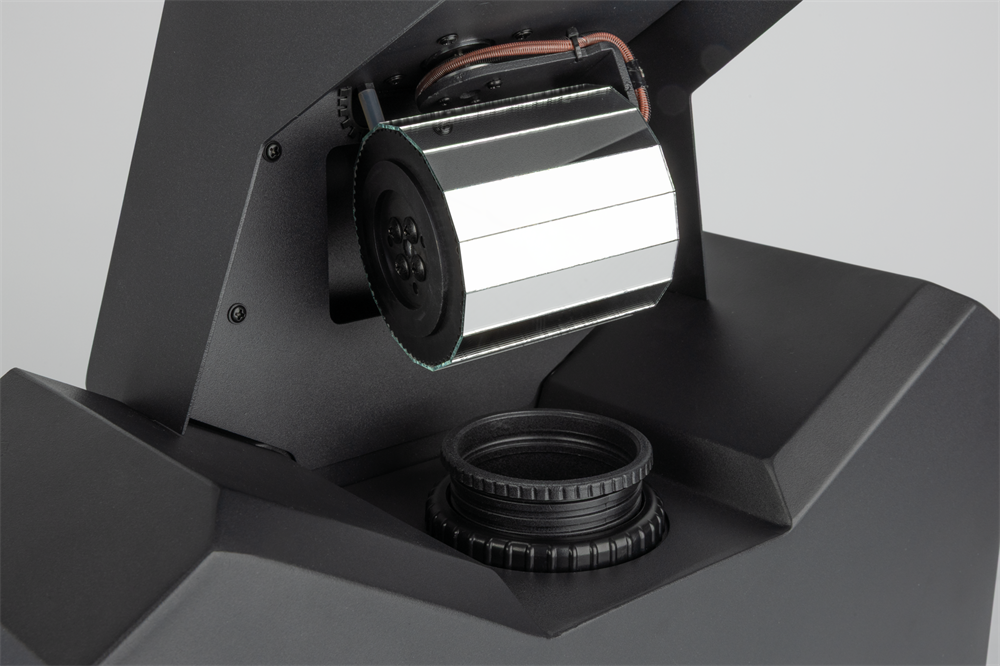

Barrel and moonflower mirrors with infinite rotation
Colour wheel (9 colours + open) with split colour function

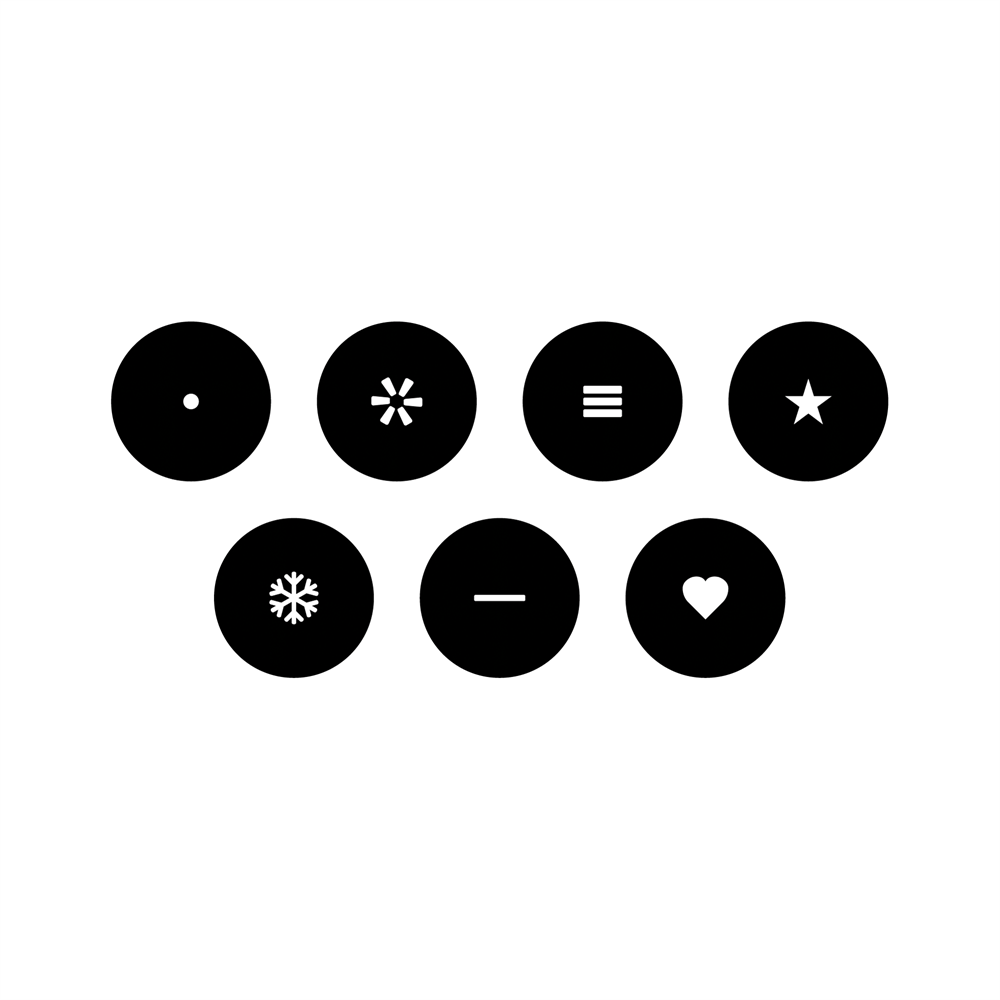

Gobo wheel (7 gobos + open) with replaceable rotating gobos
DMX/RDM, auto programs, and sound-to-light mode

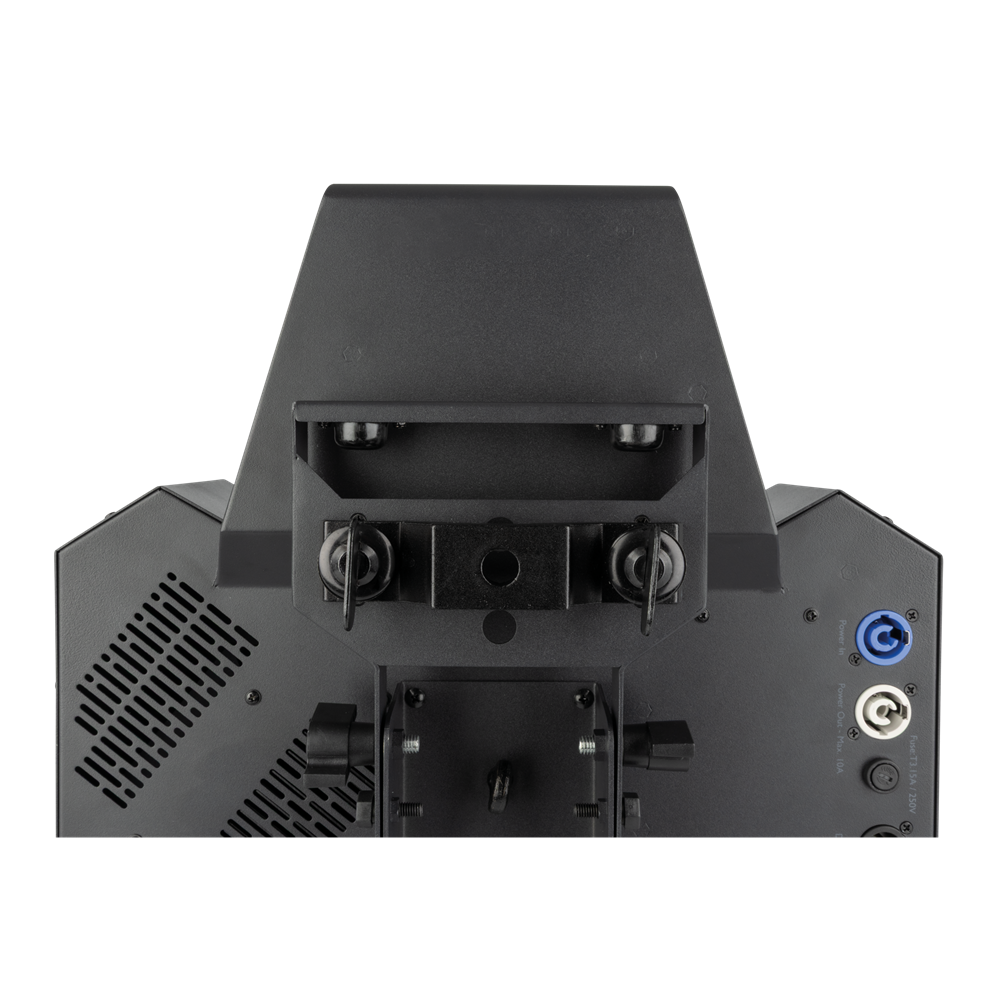

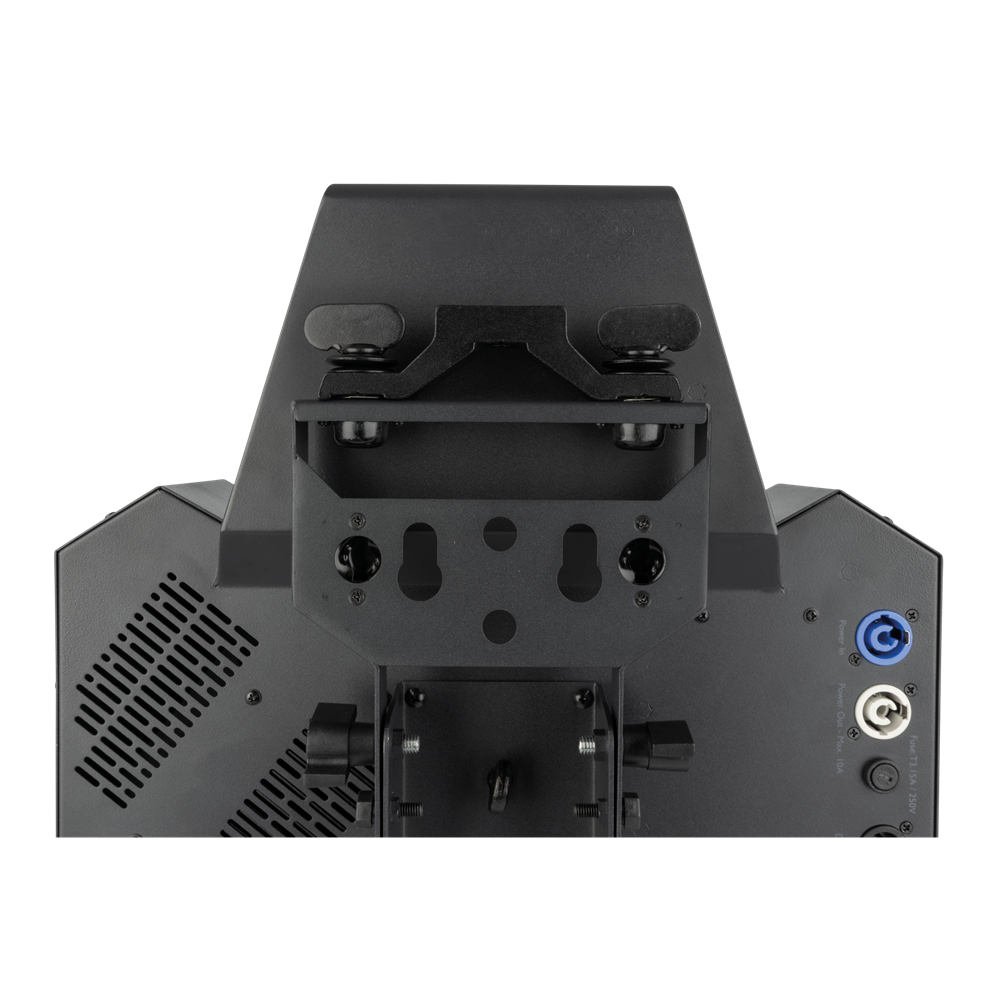

Quick-lock bracket included

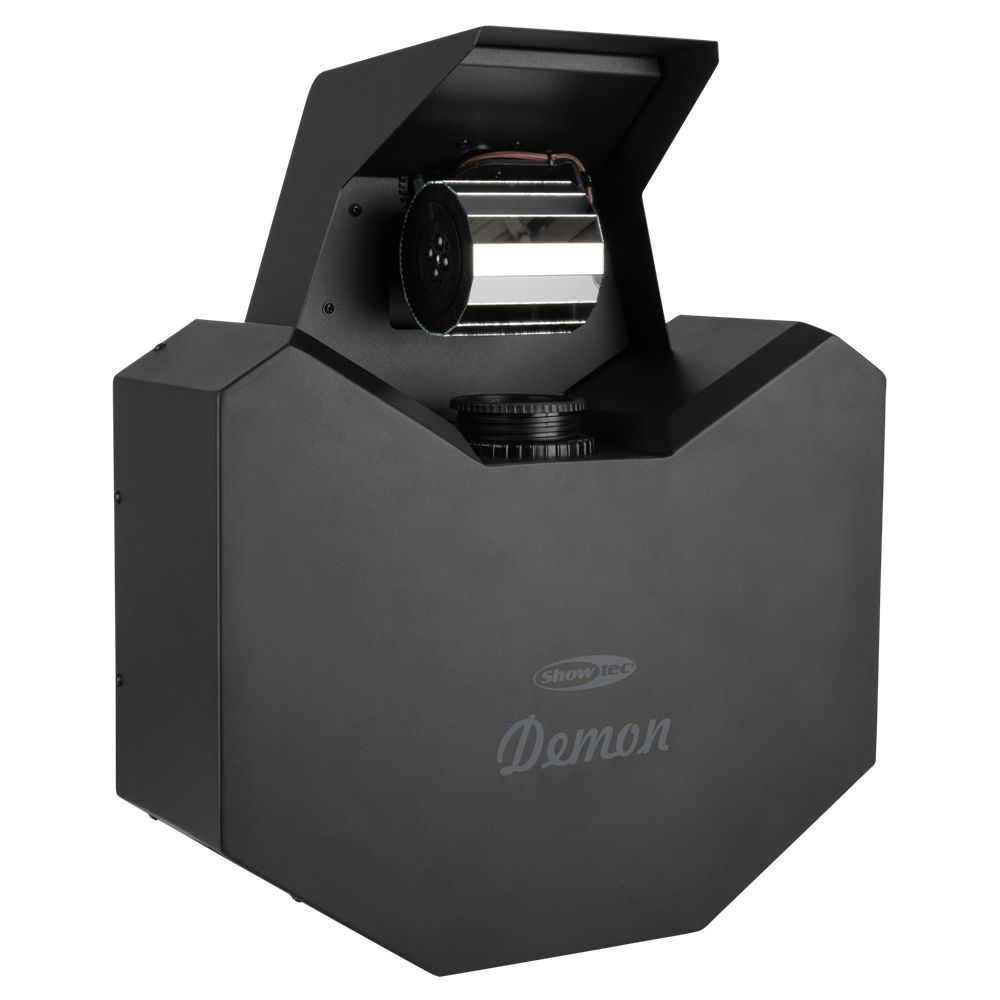

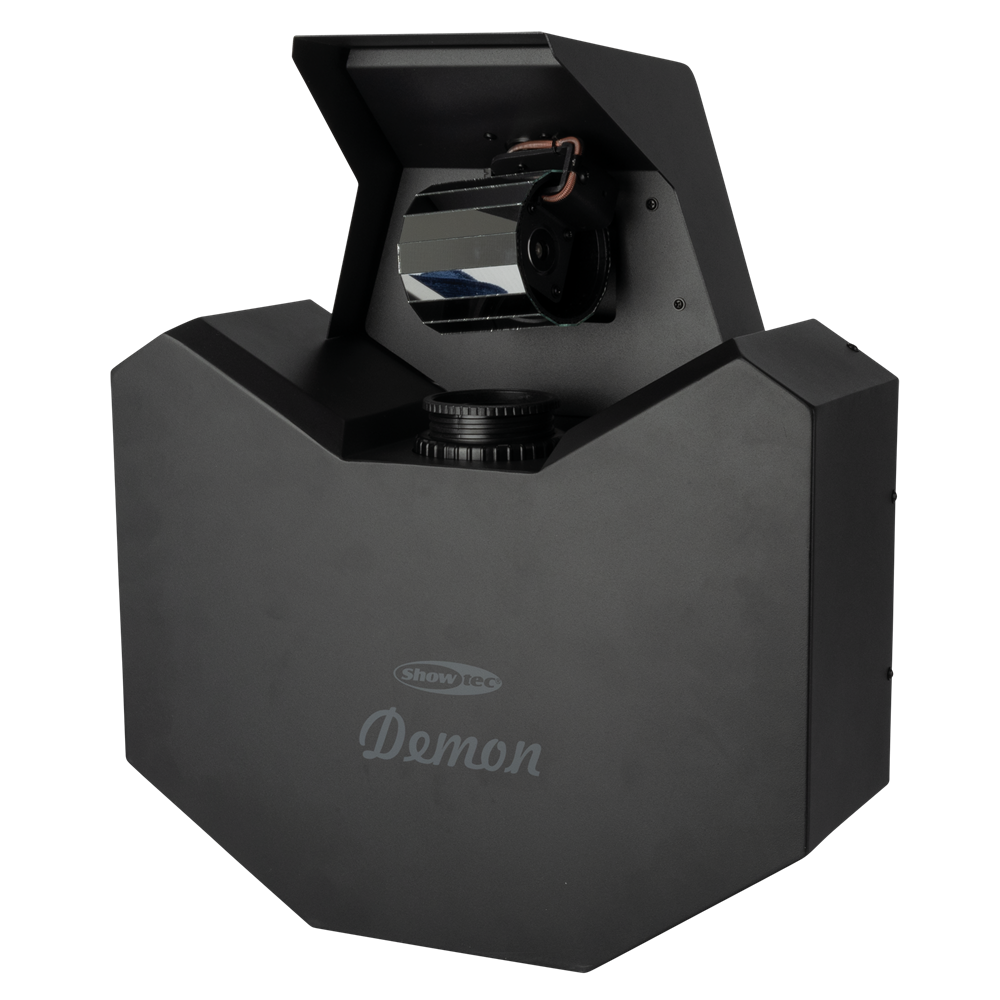

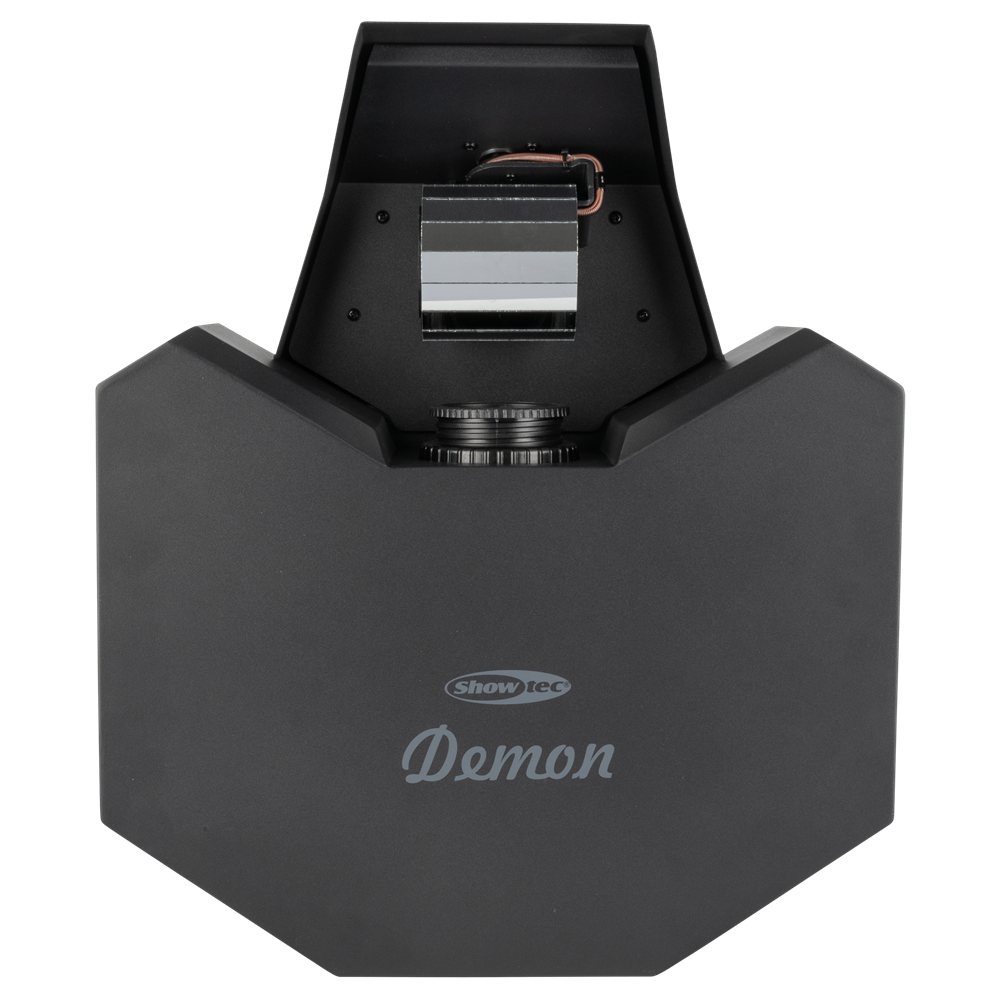

The Showtec Demon is a dynamic barrel scan effect designed to deliver vibrant, high-energy visuals for clubs, stages, and events. It features an internal rotating moonflower mirro r, a colour wheel, and a gobo wheel for endless creative possibilities. Powered by a 140 W LED source, the Demon produces bright, colourful beams with sharp projections.

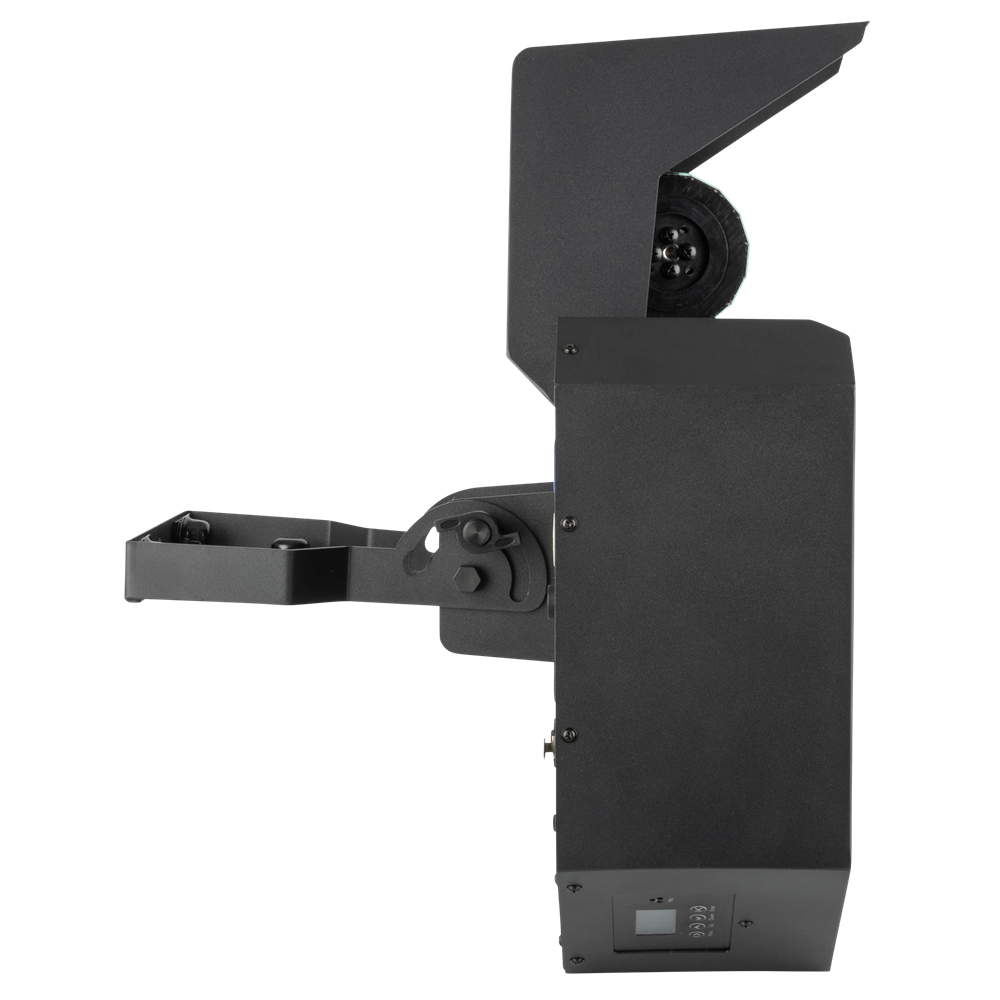

Control options include DMX/RDM, auto programs, and sound-to-light mode, with selectable 3-, 9-, or 12-channel DMX modes for flexible programming. The colour wheel offers 9 fixed colours + open, while the software enables split colour effects for up to 16 colour combinations. The gobo wheel includes 7 gobos + open, with replaceable rotating gobo for dynamic patterns. The barrel mirror and moonflower mirror both feature infinite rotation, creating continuous movement and immersive effects. With 180° pan, internal programs, and sound-reactive operation, the Demon is perfect for energising any show. Installation is easy thanks to the included quick-lock bracket, which supports truss mounting. The fixture can also be wall-mounted using its standard bracket.
Light Source Type: LED
Light Source Quantity: 1
Light Source Power: 140 W
LED Colour Type: White
Refresh Rate: 1000 Hz
Luminous Flux (Total): 5200 lm
CRI: 70
Beam Angle (Circular): 22.6°
Focus: Manual
Control Mode: Built-in Program / DMX / Manual / Master Slave / RDM / Sound
DMX Channels: 3 / 9 / 12
Protocols: DMX / RDM

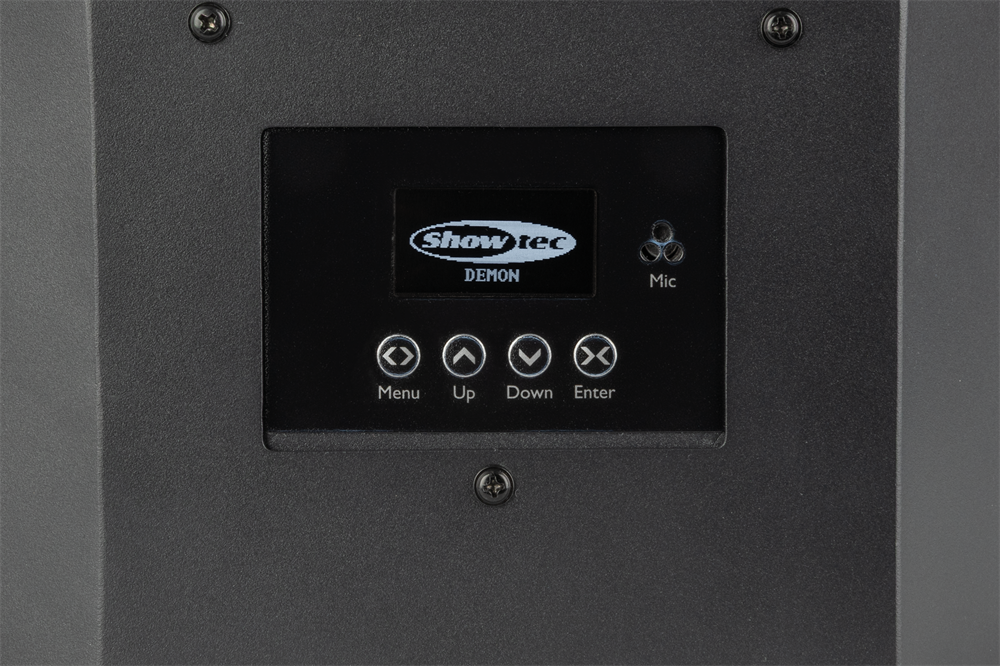

Display: OLED
Dimmer: 0-100 %
Strobe: 0-20 Hz
Colour System: Colour Wheel
Colour Wheel Index & Rotate: Yes
Dichroic Colour Wheel 1: 9 + Open
Gobo System: Metal
Gobo Wheel Index & Rotate: Yes

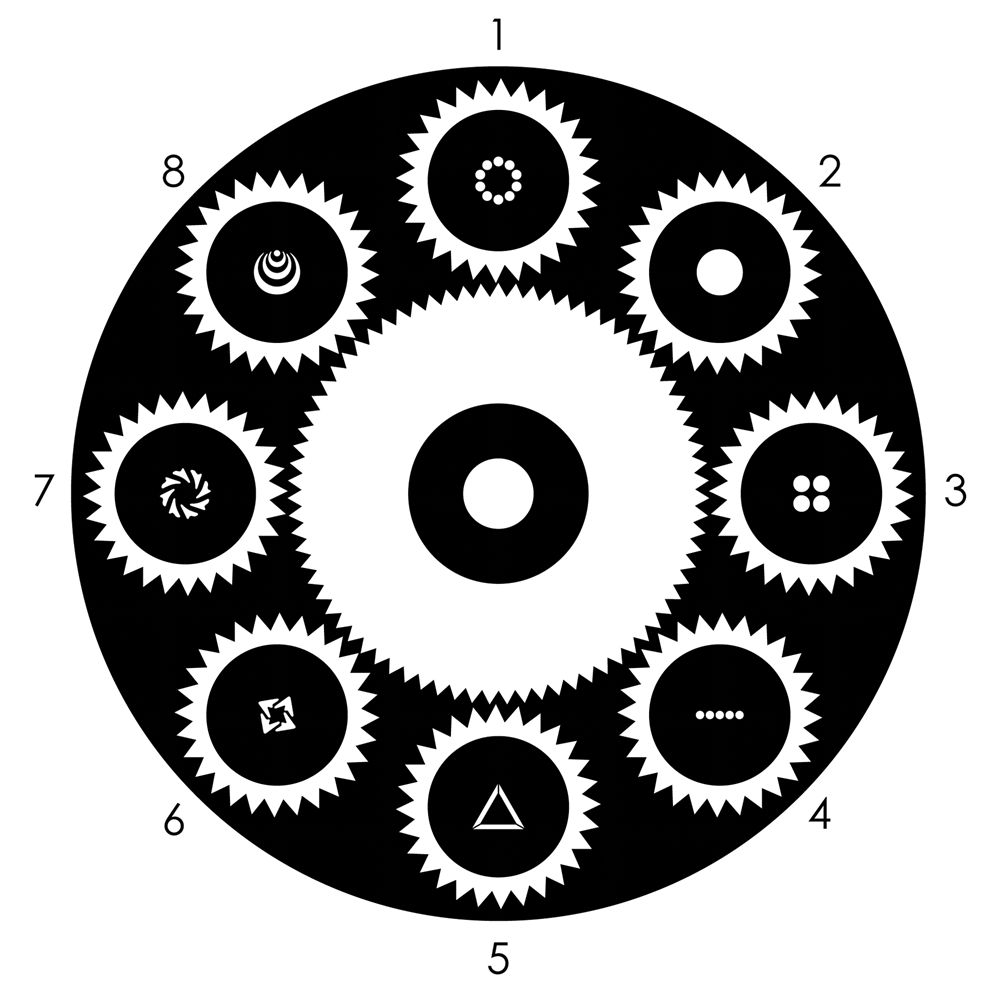

Gobo Wheel 1: 7 + Open
Pan: 180°
Tilt: 360°
Continuous Movement: Barrel / Mirror Disc Bi-directional
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 175 W

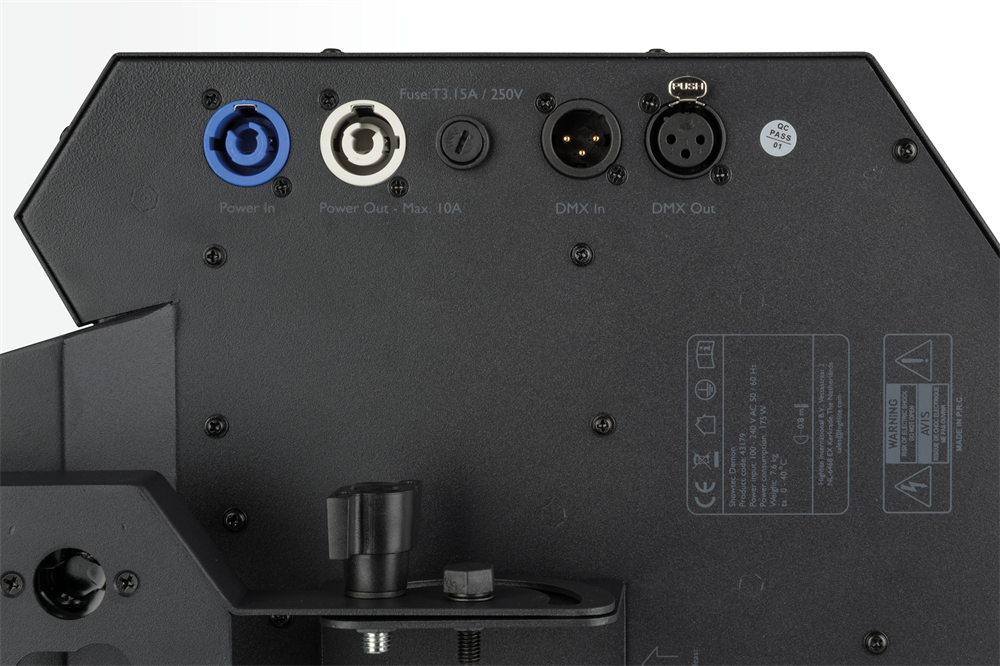

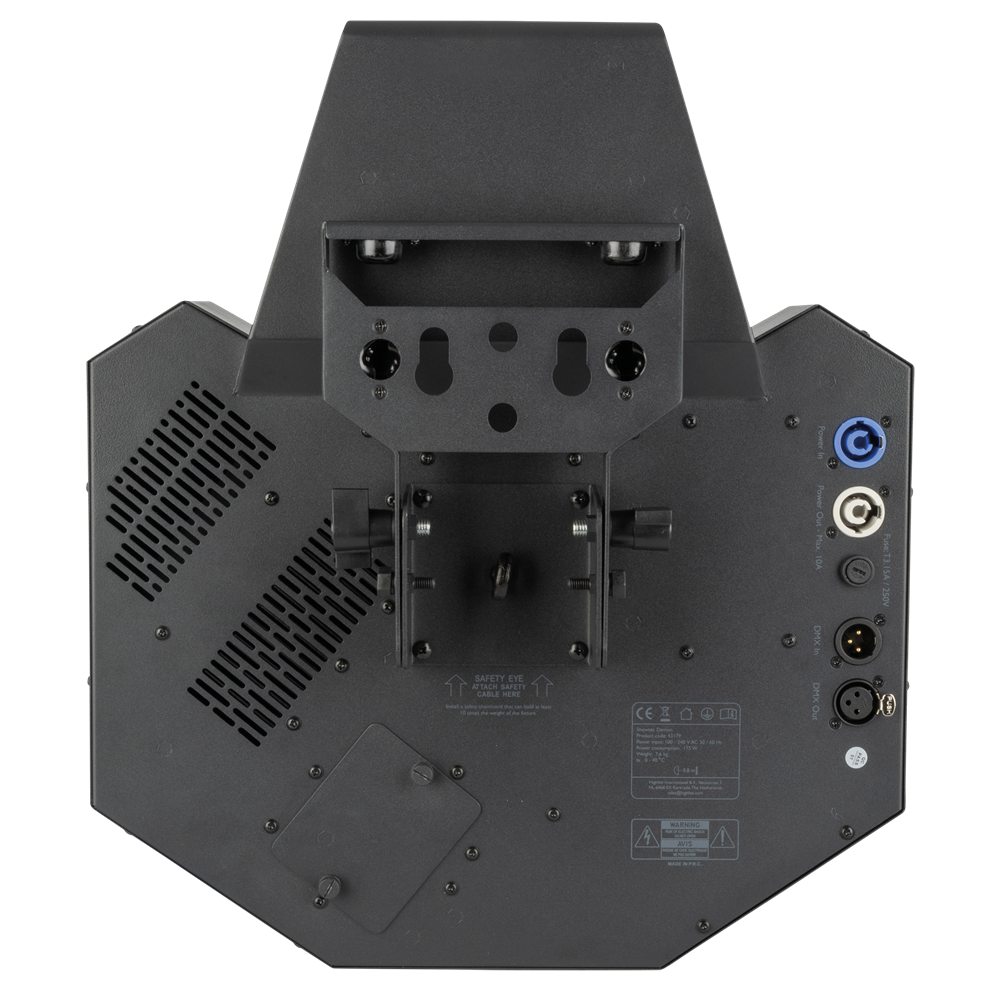

Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
DMX Connector: XLR 3P In/Out
Length (mm): 451 mm
Width (mm): 381 mm
Height (mm): 205 mm
Weight: 7.6 kg
IP Rating: IP20 (indoor use only)
Housing: Metal
Colour: Black
Cooling: Active
Mounting Options: Clamp / Quick-Lock / Wall
Safety Attachment: Yes
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: 0 °C
Included Cables: Power Pro Cable
Included Rigging: 1x Quick-Lock Bracket
