100 W RGBAL LED engine with tuneable white from 2700 K to 10,000 K
High colour quality (CRI > 90)
Manual zoom from 19.6° to 35.3°

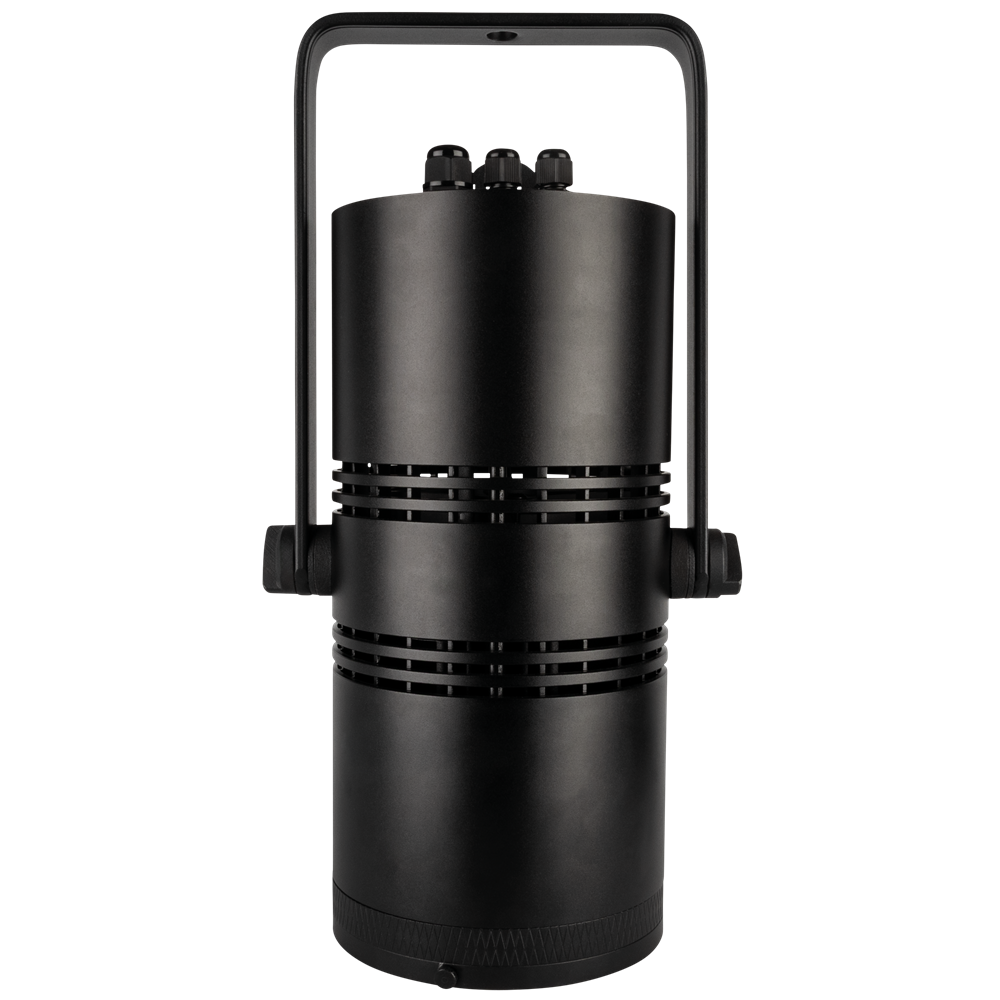

Cable gland for direct 230 V installation

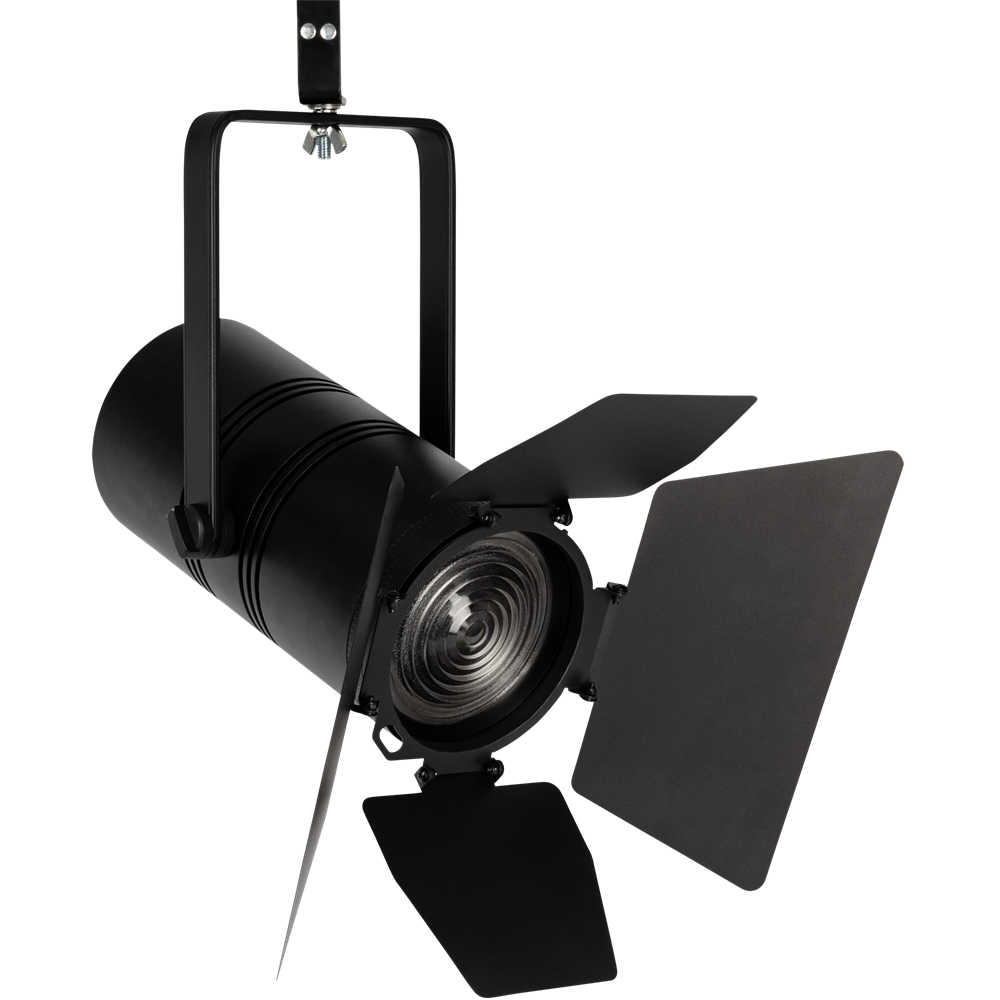

Barndoor included

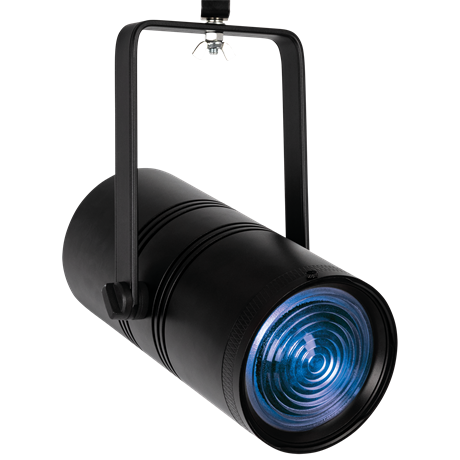

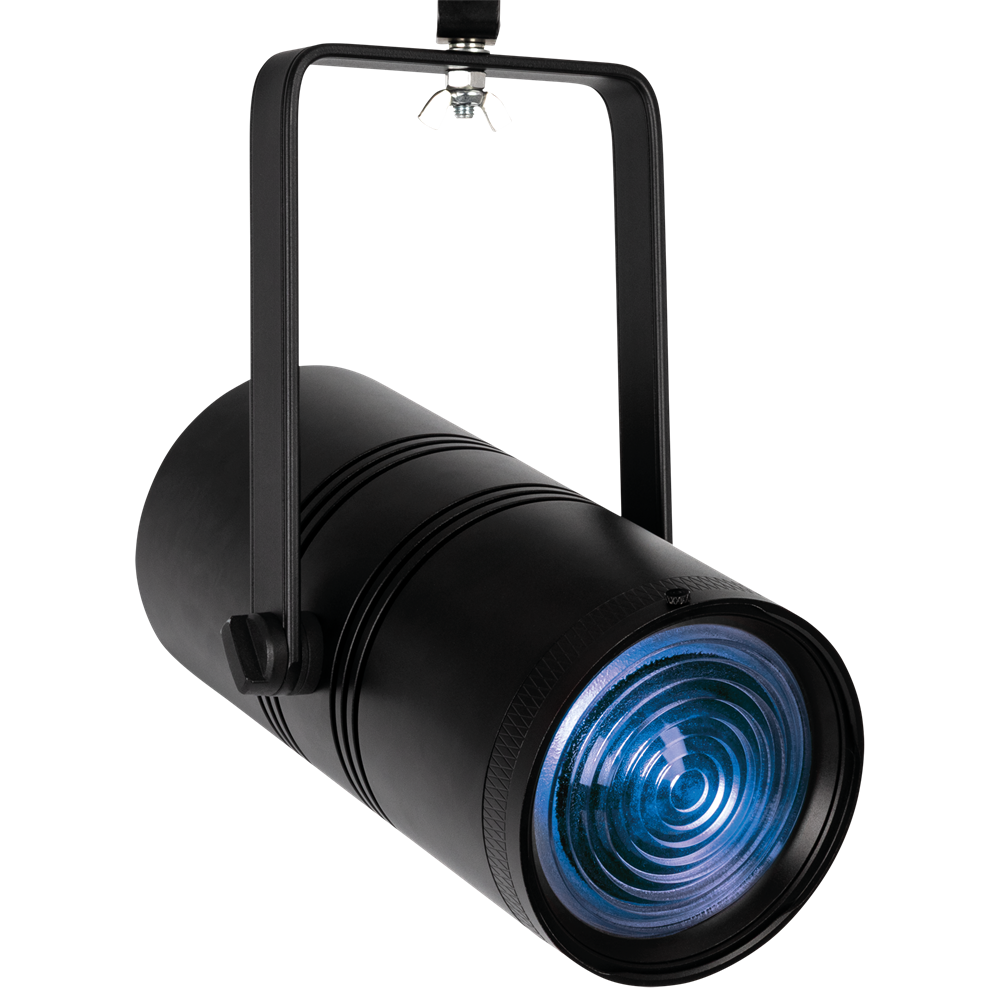

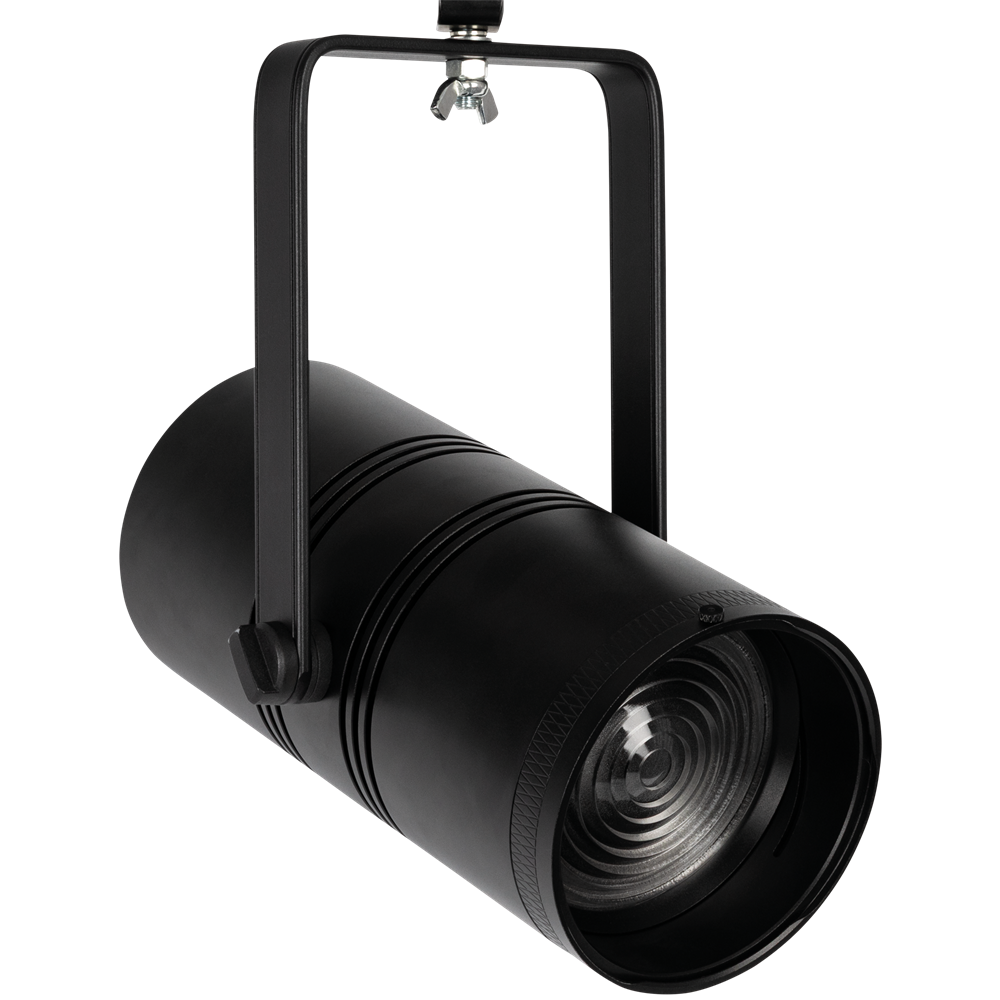

The Showtec ACT House Light 100 W RGBAL is a versatile lighting fixture designed for auditoriums, halls and other venues where reliable, high‑quality room lighting is required. Thanks to its compact design, colour capabilities and connection options, it can be used not only as a traditional house light, but also as a pendant fixture or even as a front light.

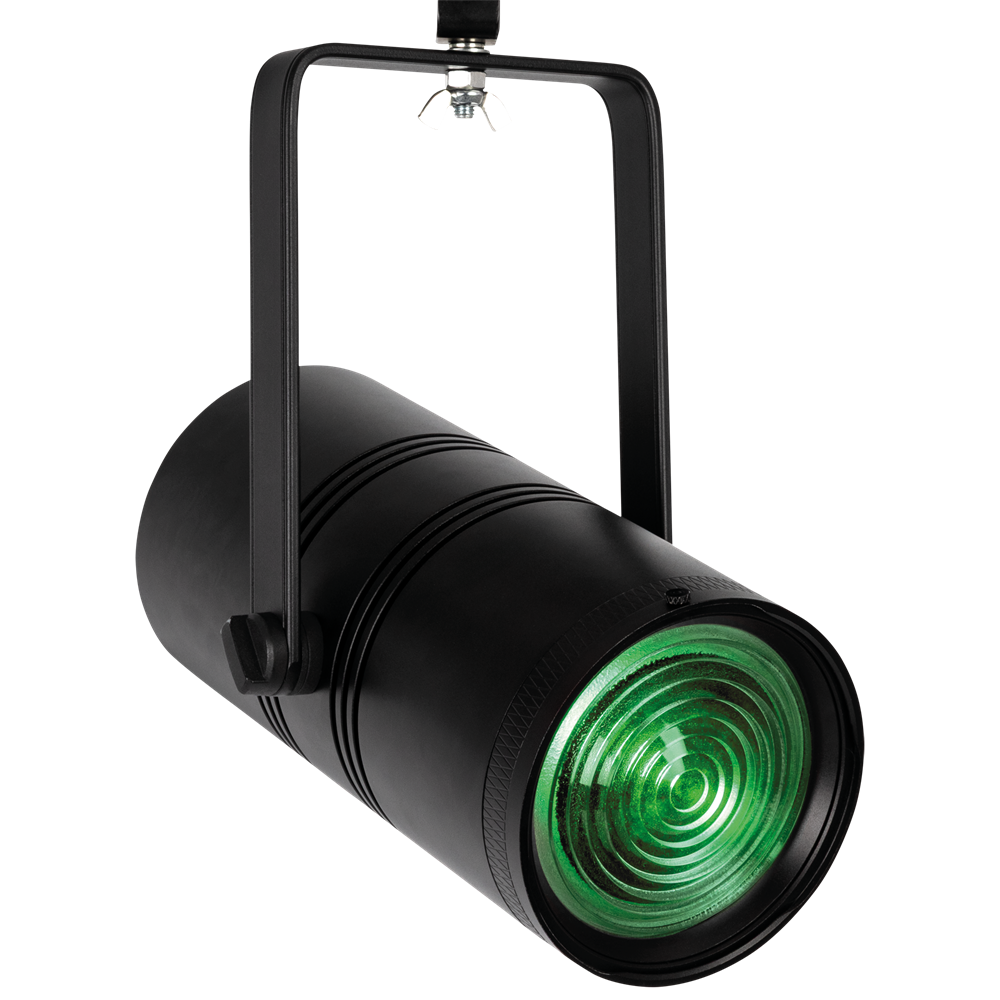

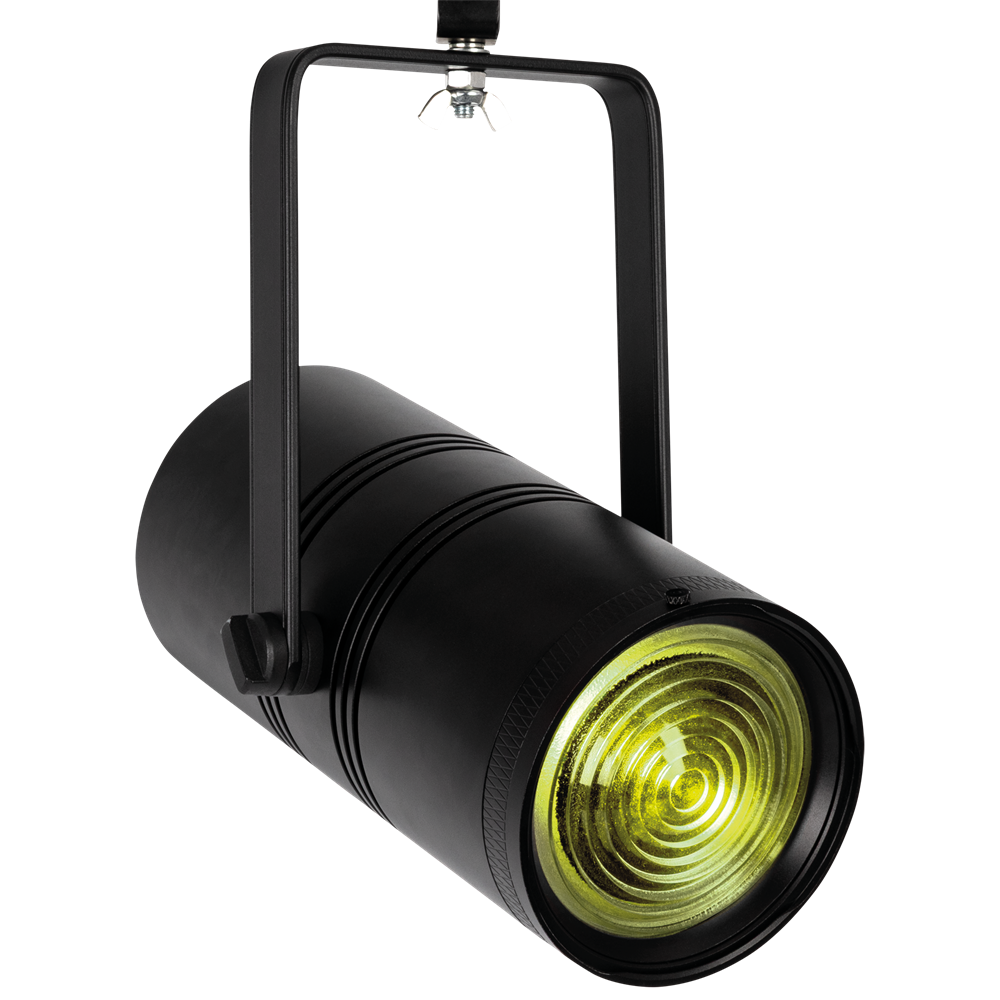

Like the other fixtures in the ACT series, it features an RGBAL LED engine with high CRI (>90) that offers a wide colour palette, including tuneable whites ranging from 2700 K to 10,000 K. The unit is equipped with a manual zoom from 19.6° to 35.3°, making it easy to adapt the beam angle to the room or application. Its OLED display provides a clear overview of the settings.

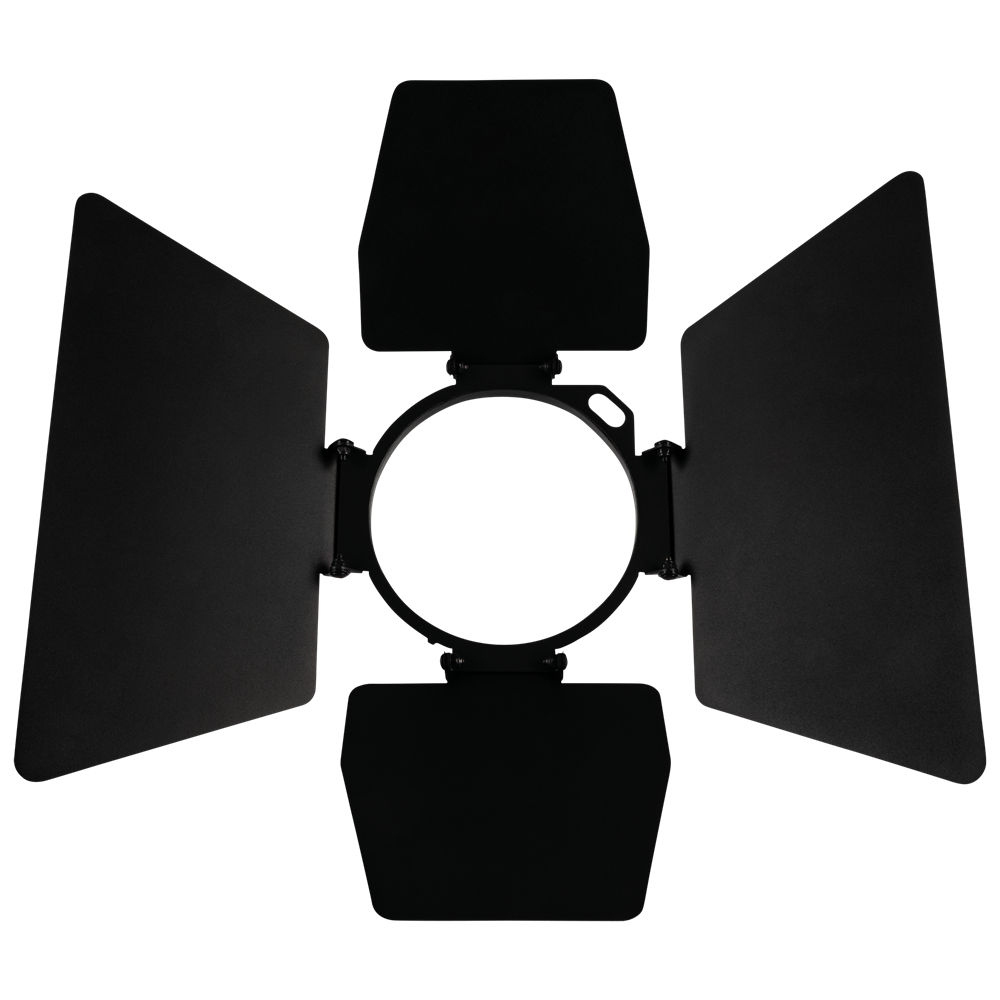

For installations, the fixture can be powered using either a standard Power Pro connector or a terminal connection, the latter offering a cleaner, more discreet finish in fixed setups. A barndoor is included for fine‑tuning the beam.
Light Source Type: LED
Light Source Quantity: 1
Light Source Power: 150 W
LED Colour Type: RGBAL
Illuminance @ 2 m: 2671 lx
Illuminance @ 3 m: 1187 lx
Illuminance @ 5 m: 427 lx
Luminous Flux (Total): 1611 lm
Luminous Flux (Red): 4909 lm
Luminous Flux (Green): 9288 lm
Luminous Flux (Blue): 2602 lm
Luminous Flux (Amber): 3939 lm
Luminous Flux (Lime): 9329 lm
CRI: 90
Minimum CCT: 2700 K
Maximum CCT: 10000 K
Beam Angle Minimum (Circular): 19.6°
Beam Angle Maximum (Circular): 38.4°
Field Angle Minimum (Circular): 35.3°
Field Angle Maximum (Circular): 54.4°
Zoom Type: Manual
Zoom Minimum: 19.6°
Zoom Maximum: 34°
Control Mode: DMX / Manual / RDM
Protocols: DMX / RDM
Display: OLED
Display Size: 1.3"
Dim Curve: Linear / Square / I-Square / S-Curve
Power Supply: 120-250 V AC 50/60 Hz
Power Consumption: 100 W
Fuse: 3.15 A

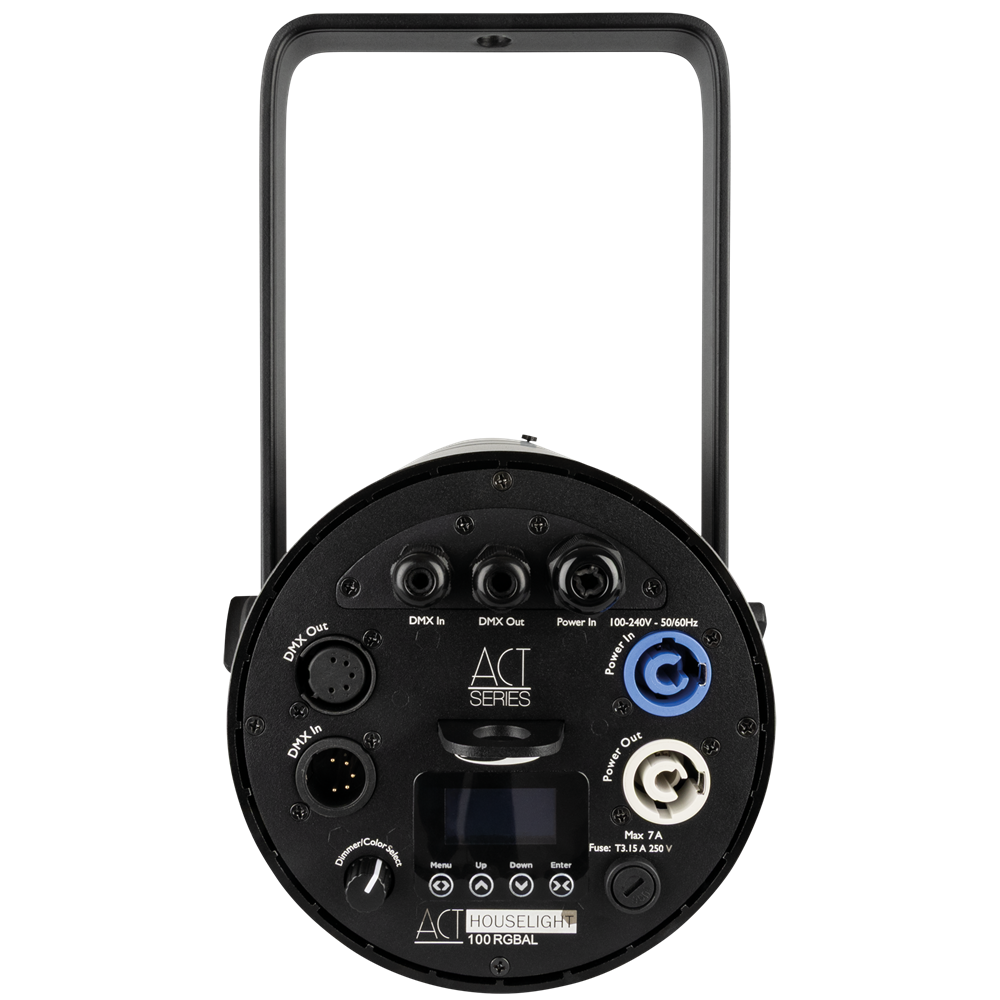

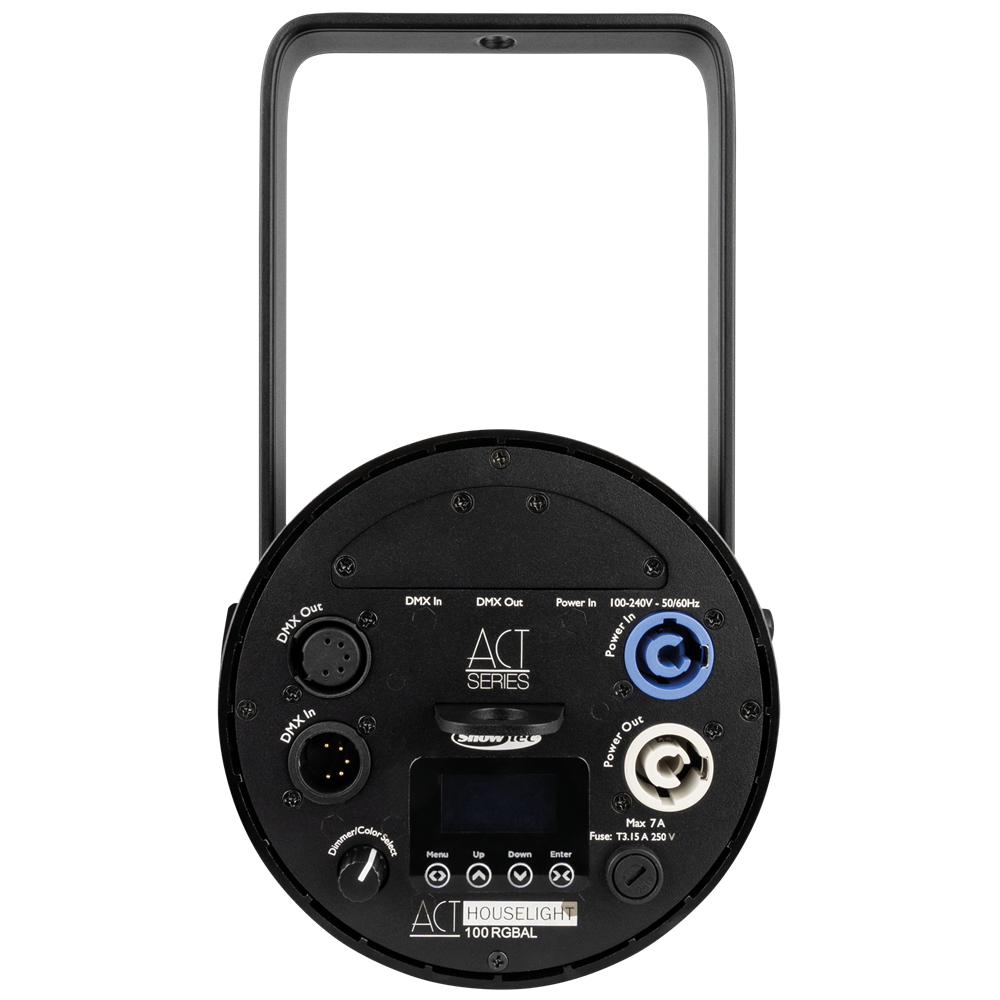

Power Connector In: Power Pro Blue / Terminal
Power Connector Out: Power Pro Grey / Terminal
DMX Connector: XLR 3P In/Out
DMX Connector In: XLR 3P
DMX Connector Out: XLR 3P
Length (mm): 182 mm
Width (mm): 150 mm
Height (mm): 405 mm
Weight: 5.85 kg
IP Rating: IP20 (indoor use only)
Housing: Aluminium die-cast
Colour: Black
Cooling: Forced Convection
Mounting Options: Bracket / Eye bolt
Maximum Ambient Temperature: 45 °C
Minimum Operating Temperature: 0 °C
Included Cables: Power Pro Cable
