For extending and distributing Multipin S19 and Socapex 19-pin cables
3 Multipin S19 connectors (1 in, 2 out)
Compatible with Multipin S19 and Socapex 19-pin connectors
M10 mounting hole

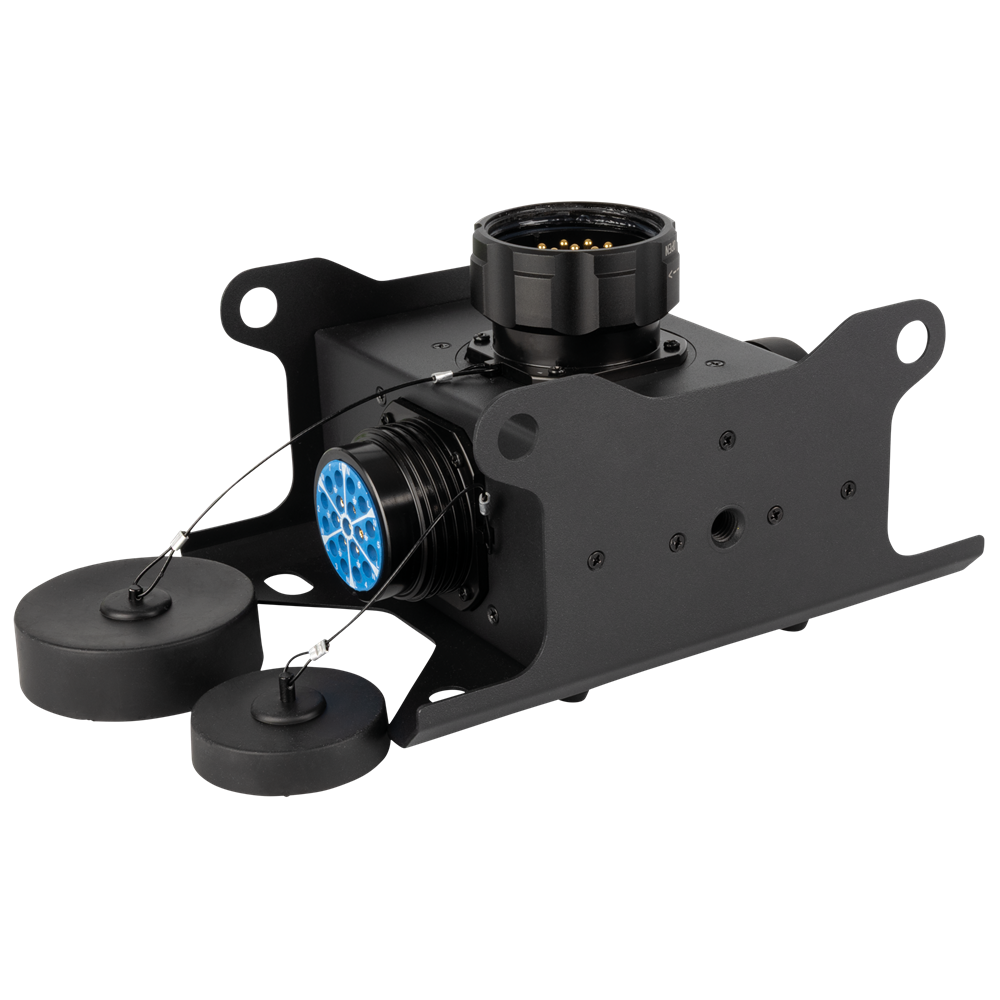

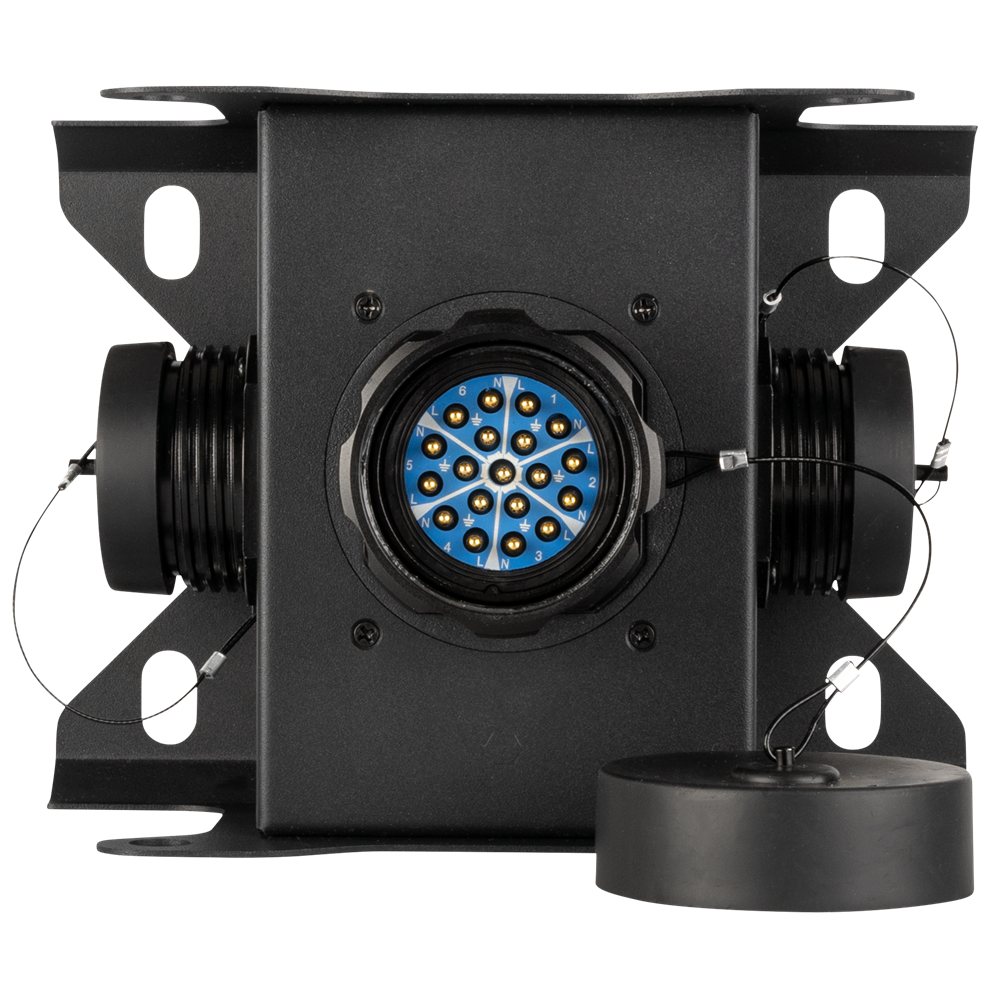

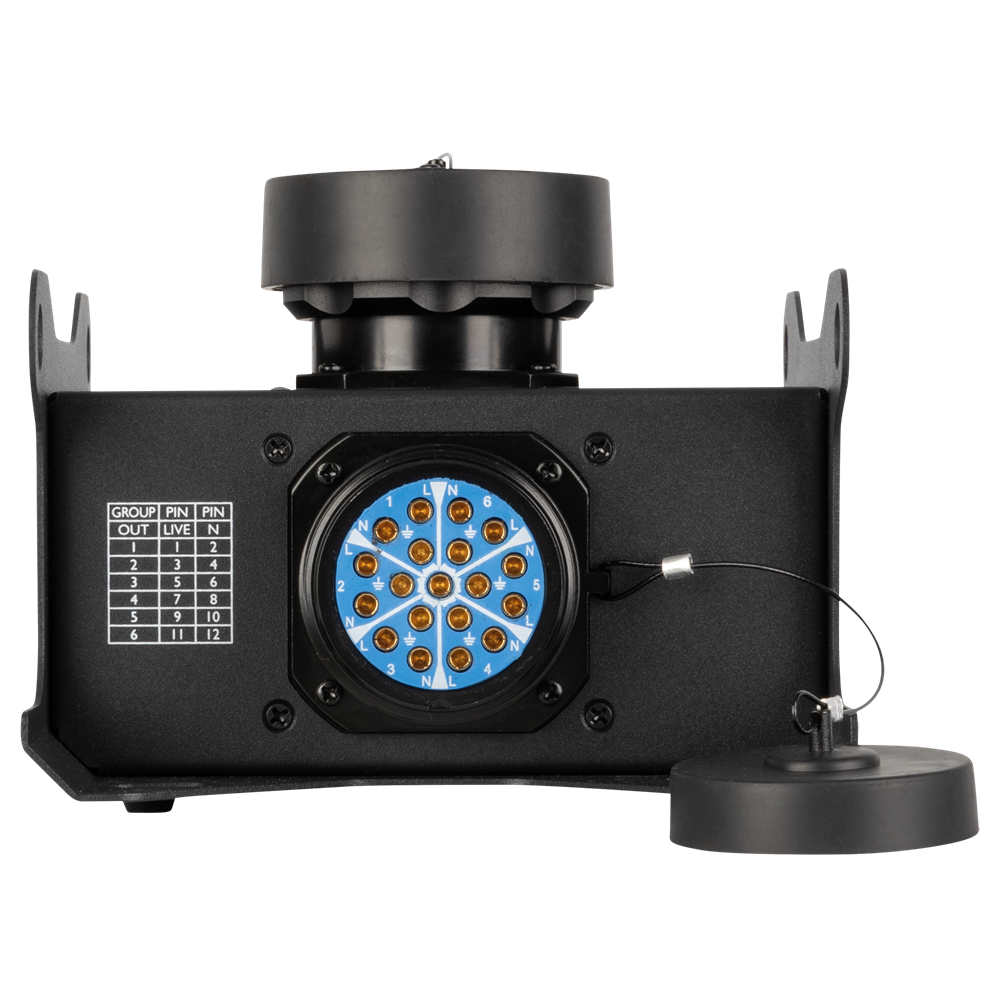

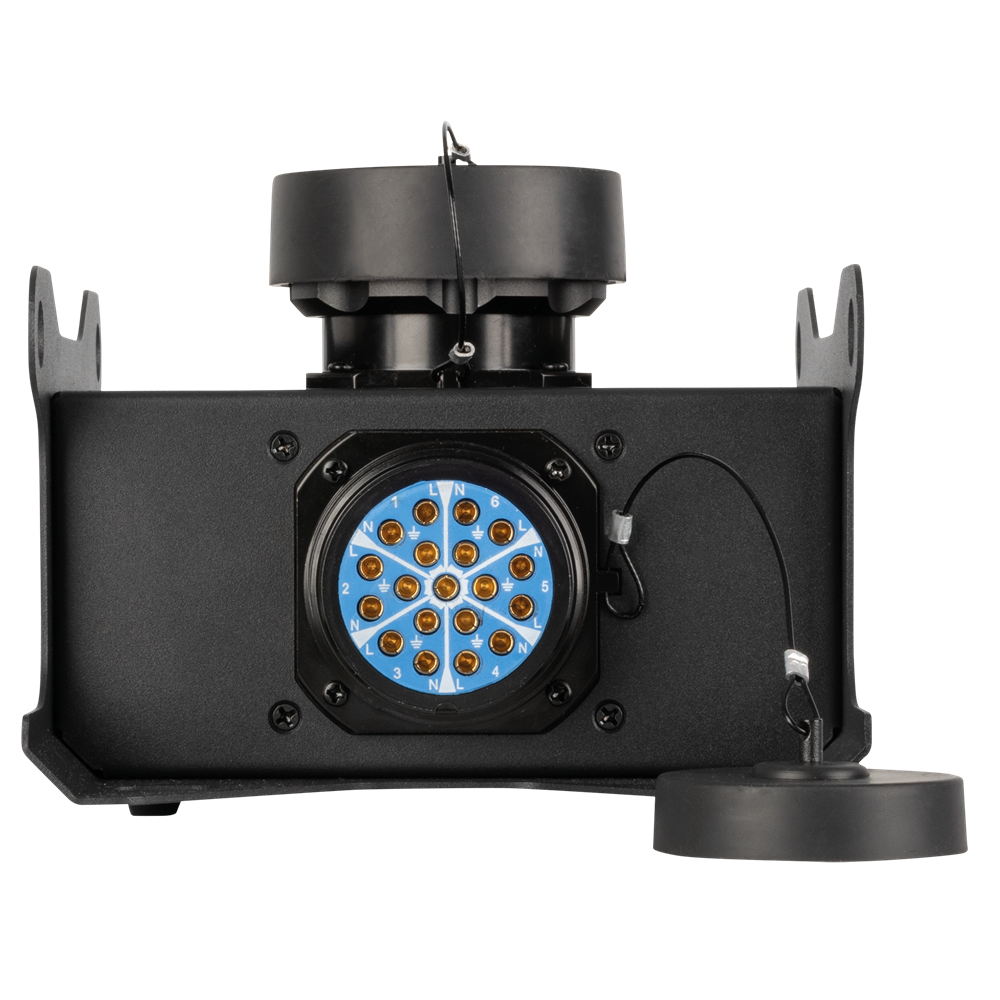

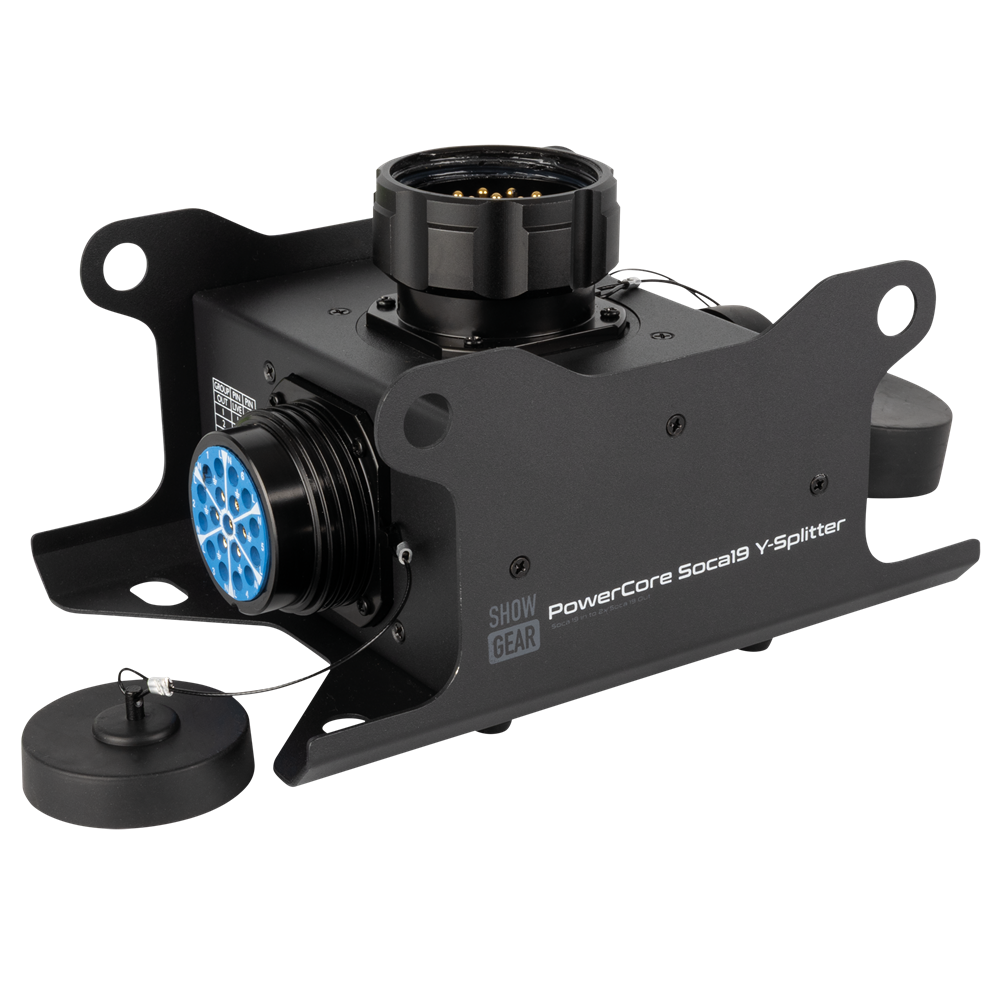

The Showgear PowerCore Multipin S19 Y Splitter is a robust and reliable solution for extending and splitting your Multipin S19 and Socapex 19-pin cables. It converts a single Multipin S19 input into two Multipin S19 outputs, making it an essential accessory for flexible power distribution setups. It is designed for seamless integration with the Showgear PowerCore series and is compatible with all PowerCore units equipped with a Multipin S19 output connector, as well as other power distributor brands with Socapex 19-pin connectors. For flexible installation, the PowerCore Multipin S19 Y Splitter offers an M10 mounting hole for attaching a clamp.
Power Supply: 100-240 V AC 50/60 Hz
Rated Current (A): 16 A
Power Connector In: Multipin S19
Power Connector Out: Multipin S19
MCB Rated Current: 0 A
MCB Poles: 0
RCCB Poles: 0
Length (mm): 200 mm
Height (mm): 125 mm
Width (mm): 150 mm
Weight: 1.9 kg
IP Rating: IP20 (indoor use only)
Housing: Metal
Colour: Black
Mounting Options: Clamp / Wall
Fixed Mounting Option: 11 mm / M10
Safety Attachment: Yes
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: -5 °C
