For extending and distributing Multipin H16 and Harting HAN16 cables
3 Multipin H16 connectors (1 in, 2 out)
Compatible with Multipin H16 and Harting HAN16
M10 mounting hole

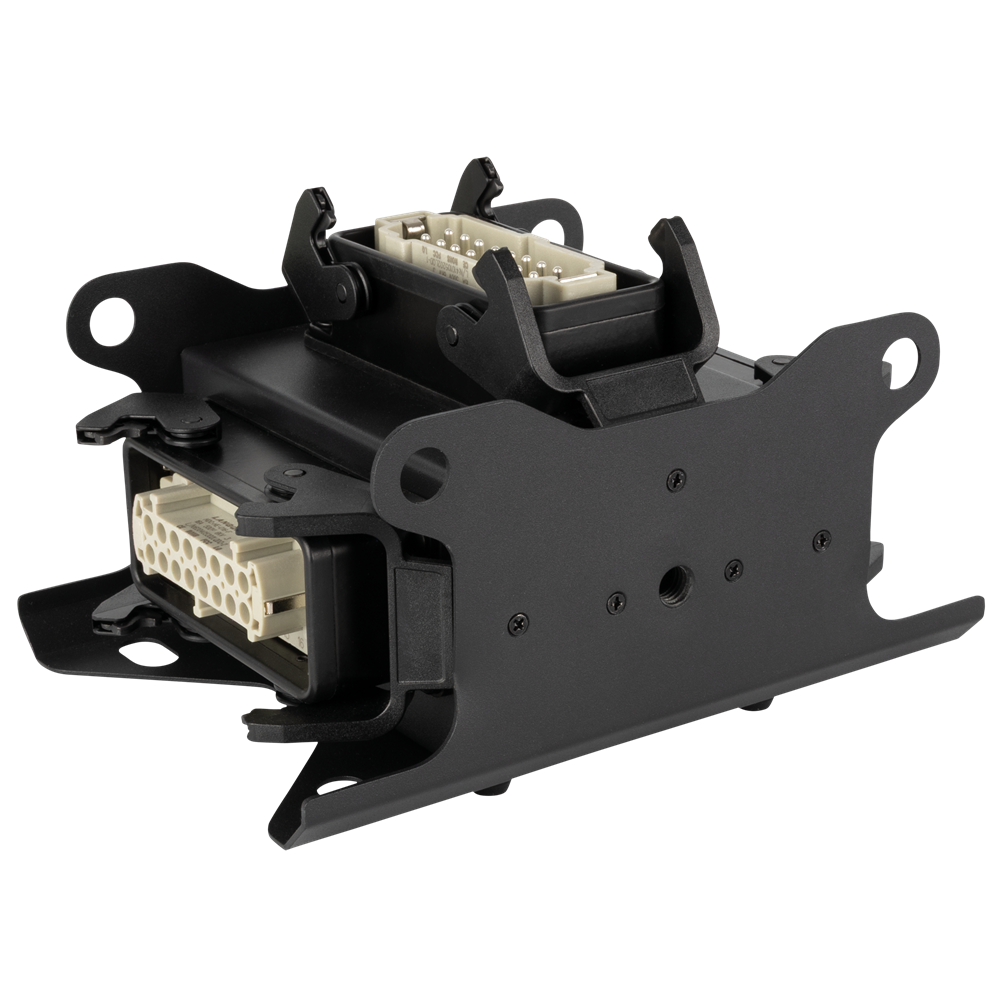

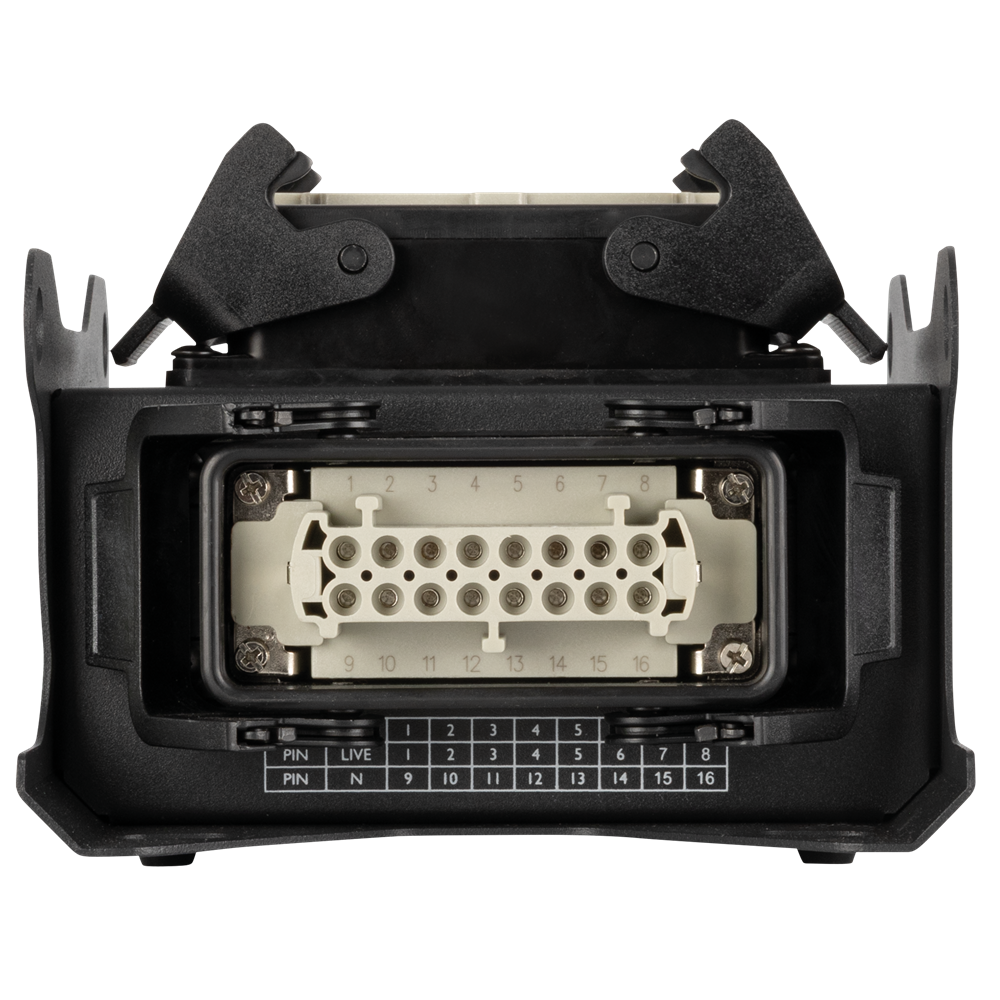

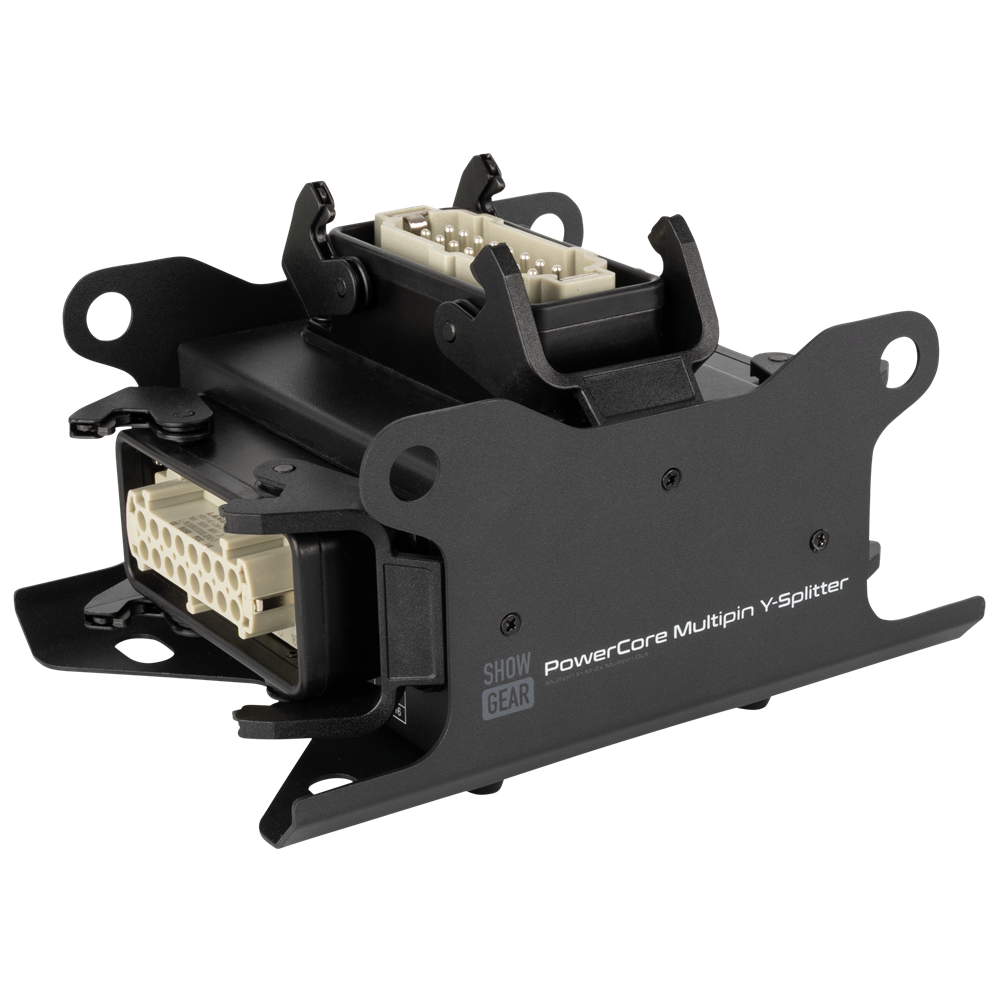

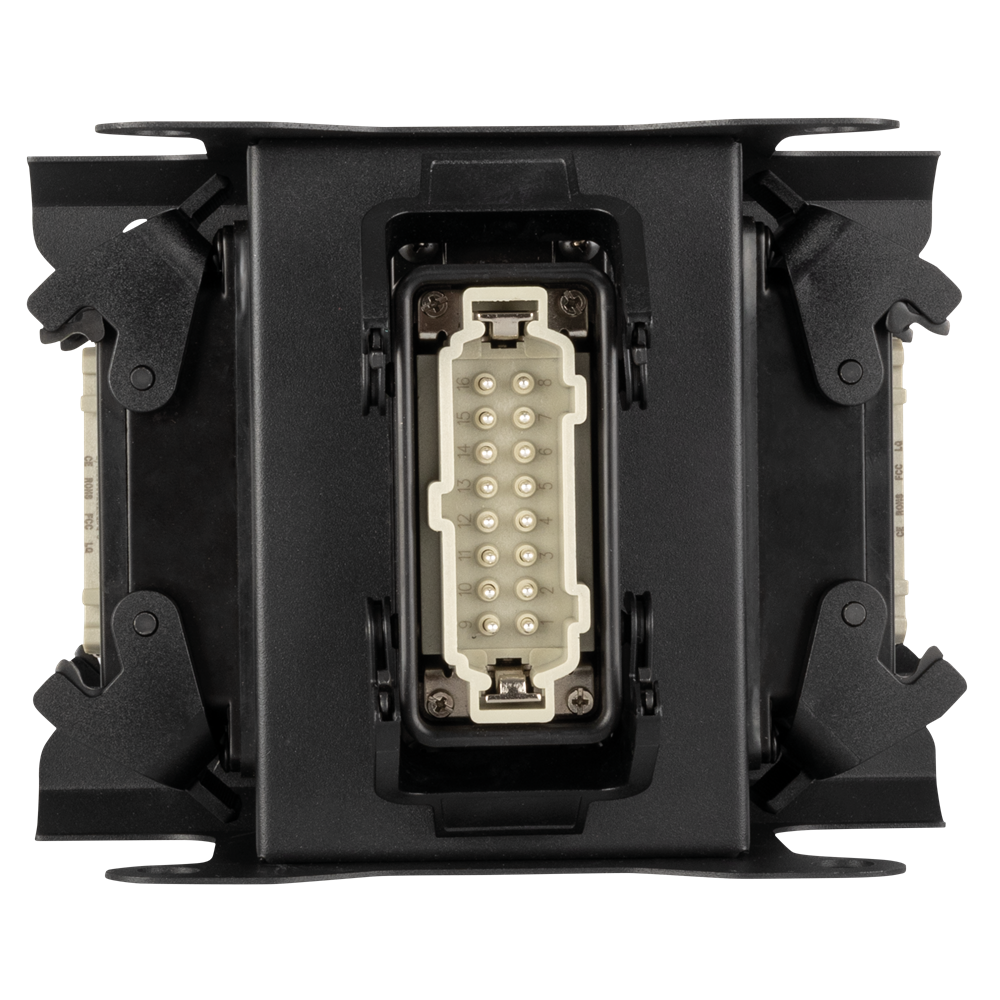

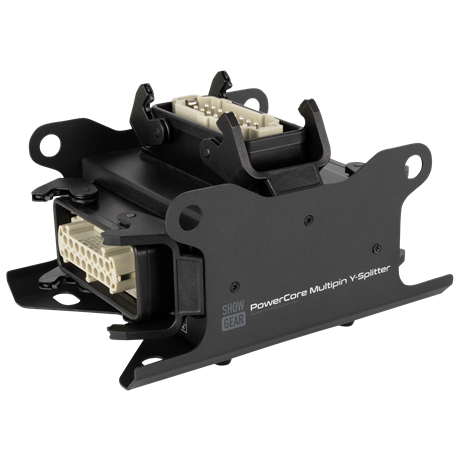

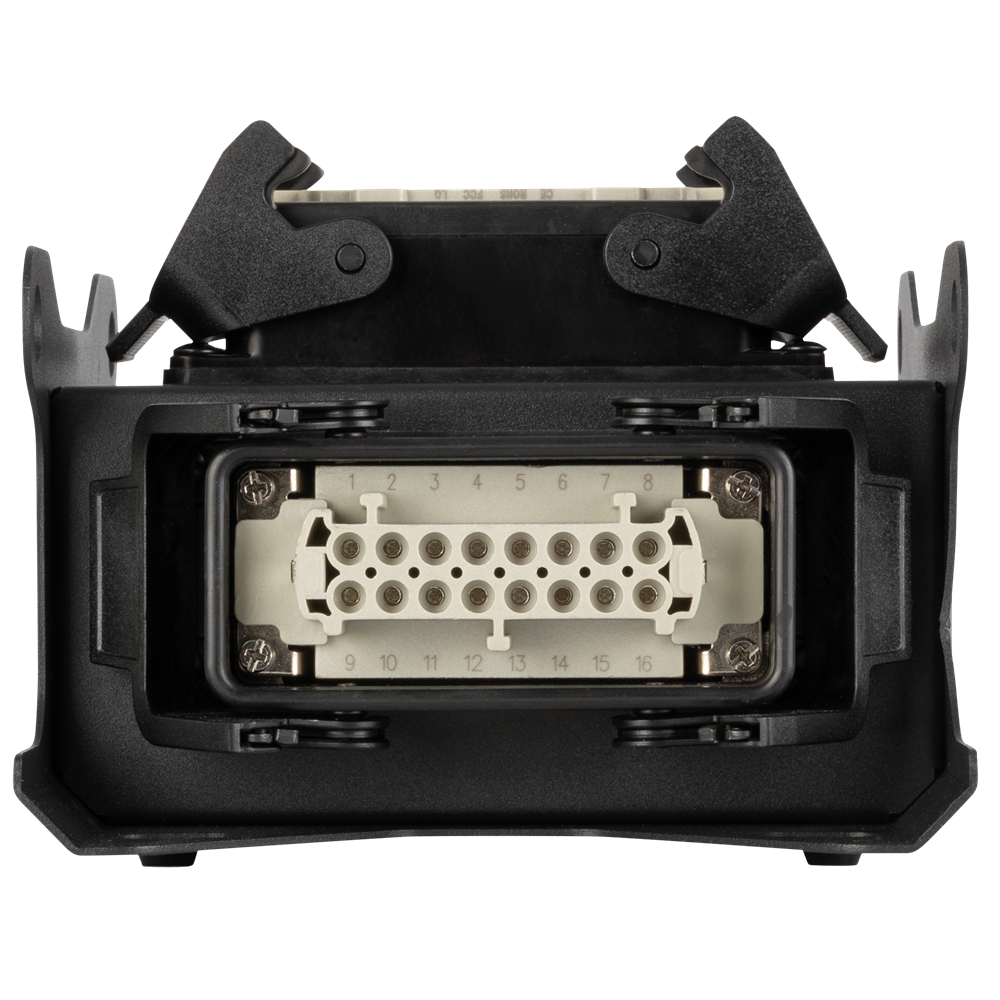

The Showgear PowerCore Multipin H16 Y-Splitter is a robust and reliable solution for extending and splitting your PowerCore Multipin H16 cables. It converts a single Multipin H16 input into two Multipin H16 outputs, making it an essential accessory for flexible power distribution setups. It is designed for seamless integration with the Showgear PowerCore series and is compatible with all PowerCore units equipped with a Multipin H16 output connector. It is also compatible with Harting HAN16 and other power distributor brands. For flexible installation, the PowerCore Multipin H16 Y-Splitter offers an M10 mounting hole for attaching a clamp.
Power Supply: 100-240 V AC 50/60 Hz
Rated Current (A): 16 A
Power Connector In: Multipin H16
Power Connector Out: Multipin H16
MCB Rated Current: 0 A
MCB Poles: 0
RCCB Poles: 0
Length (mm): 200 mm
Height (mm): 125 mm
Width (mm): 150 mm
Weight: 1.9 kg
IP Rating: IP20 (indoor use only)
Housing: Metal
Colour: Black
Mounting Options: Clamp / Wall
Fixed Mounting Option: 11 mm / M10
Safety Attachment: Yes
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: -5 °C
