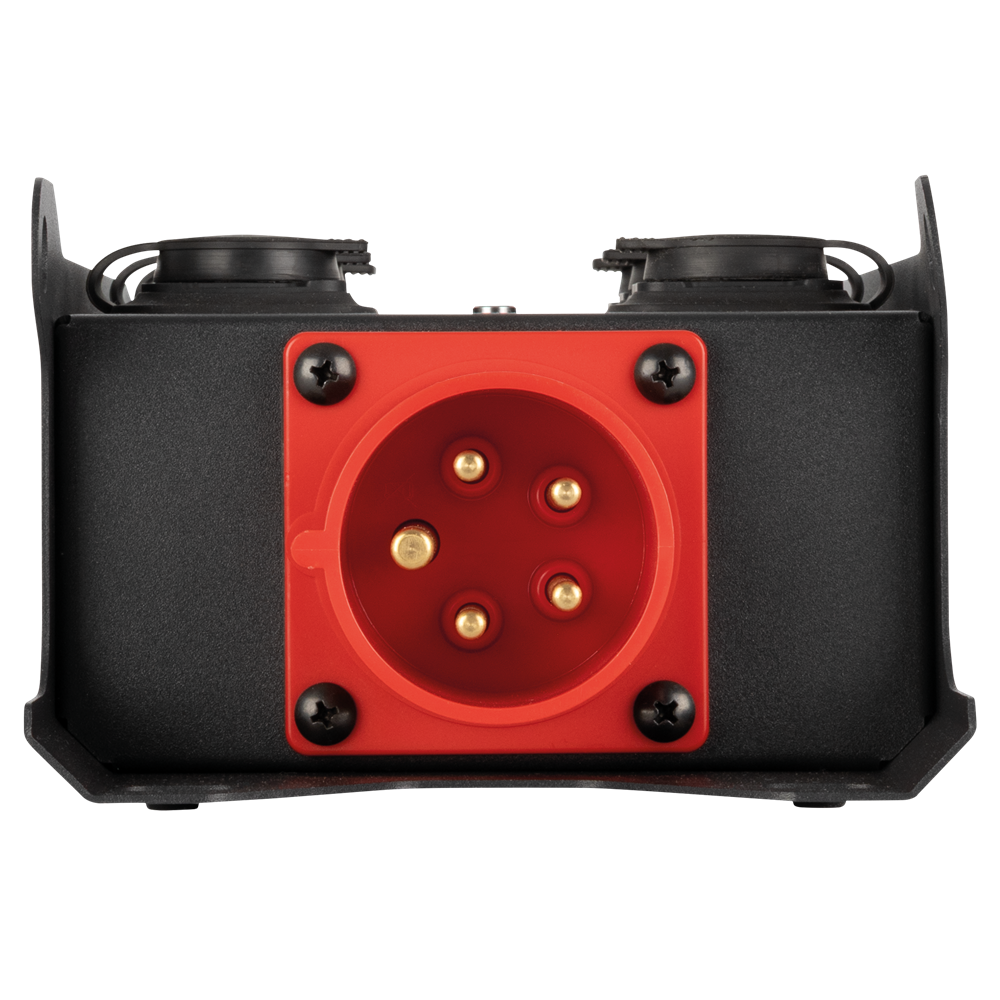

1 5-pin CEE 16 A input connector
6 Power Pro True outlets from Seetronic

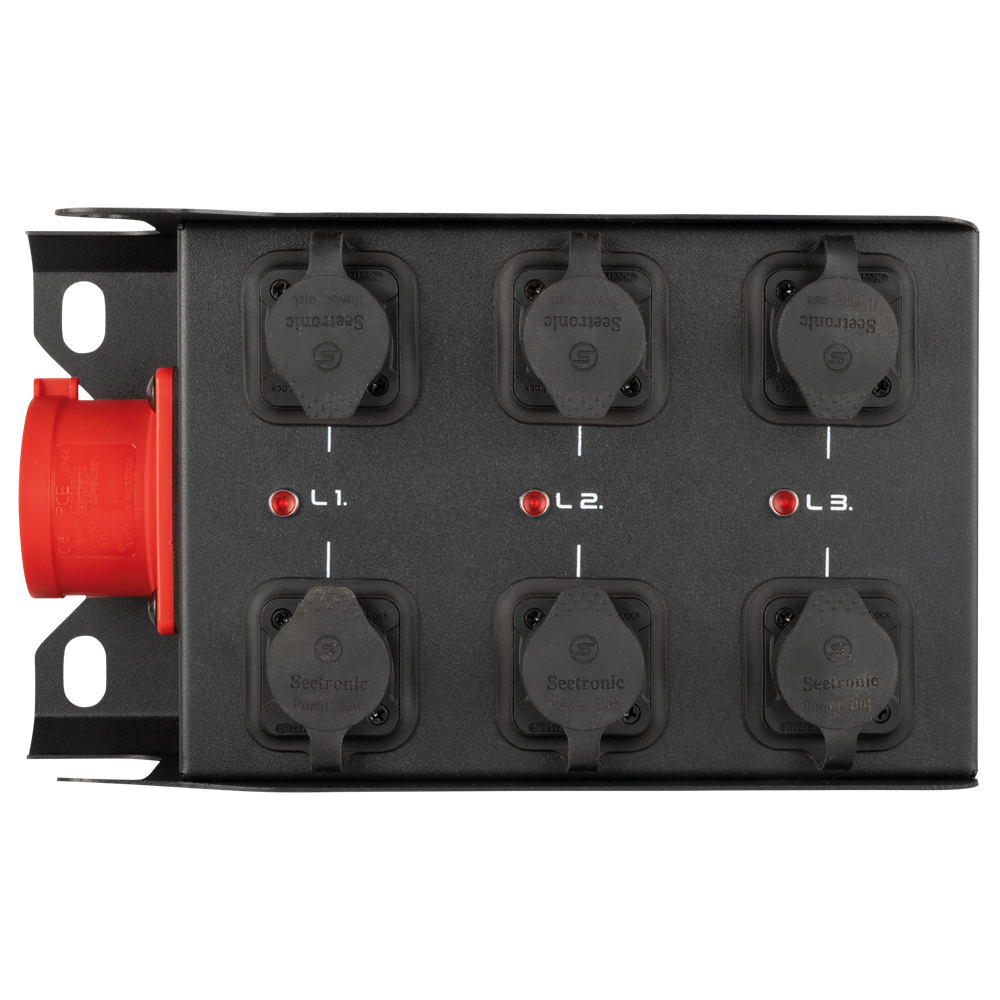

Voltage indication LED per phase
Balanced power distribution (each phase powers two outlets)
Quick-lock mounting option for easy installation

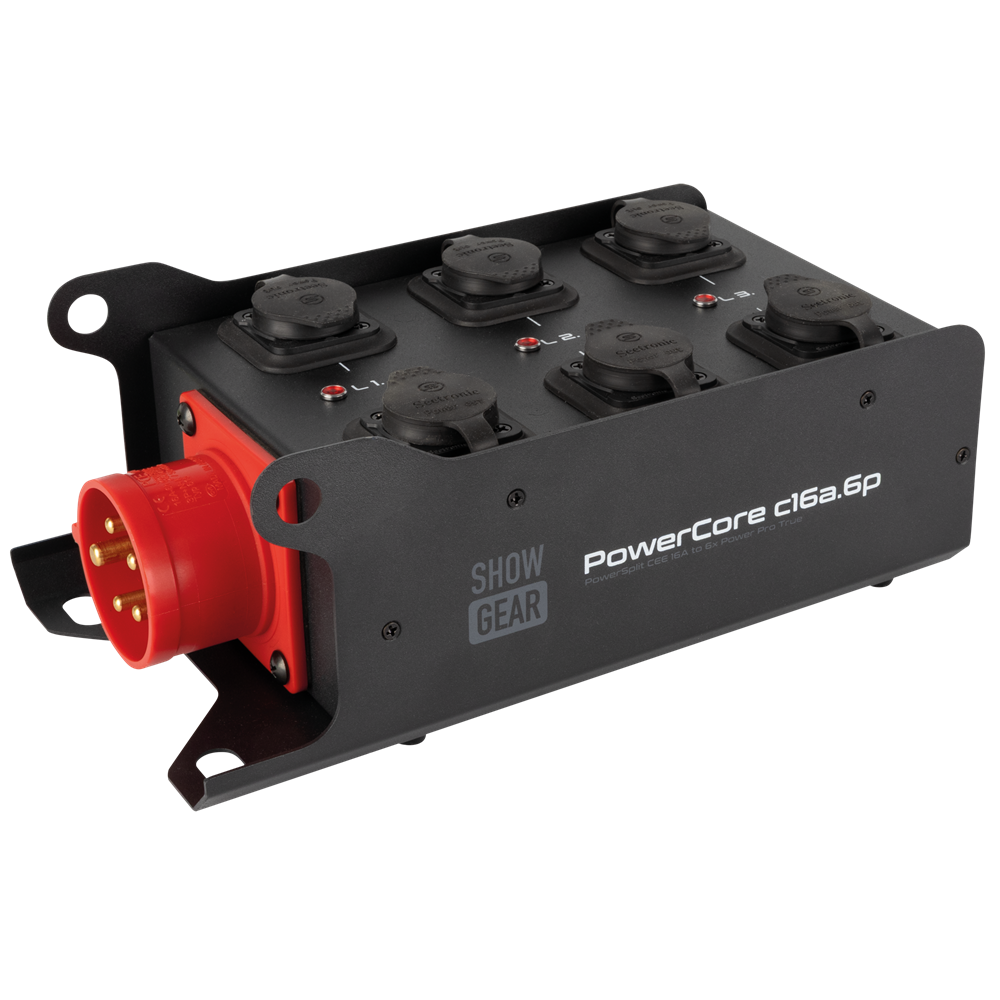

The Showgear PowerCore c16a.6p is a professional power splitter designed to convert a CEE 16 A (5P) input into six high-quality Power Pro True outlets from Seetronic. Each phase is distributed across two Power Pro True outlets , ensuring balanced and reliable power delivery. For quick and convenient monitoring, the unit features voltage indication LEDs per phase, allowing instant status checks. For flexible installation, the PowerCore c16a.6p offers multiple mounting holes for permanent setups and a quick-lock mounting point for fast, tool-free attachment using the optional PowerCore Quick Lock Bracket.
Rated Current (A): 16 A
Power Connector In: CEE5P 16 A
Power Connector Out: Power Pro True
MCB Rated Current: 0 A
MCB Poles: 0
RCCB Poles: 0
Length (mm): 260 mm
Height (mm): 107 mm
Width (mm): 150 mm
Weight: 2.1 kg
IP Rating: IP20 (indoor use only)
Housing: Metal
Colour: Black
LED Indicators: Power
Ground Lug Position: 6H

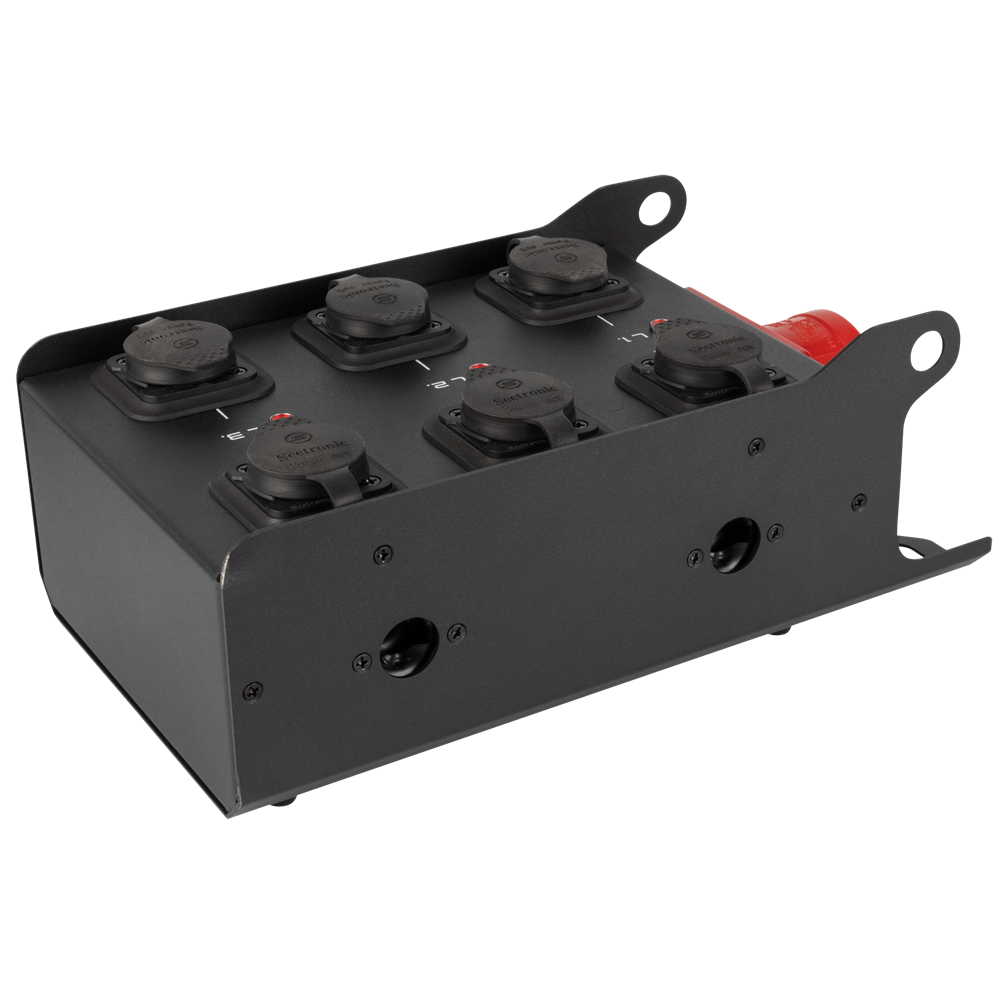

Mounting Options: Quick-Lock / Wall
Fixed Mounting Option: 11 mm
Safety Attachment: Yes
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: -5 °C
