Power and DMX splitter in one
2 Multipin H16 connectors (1 in, 1 out) with loop-through functionality
6 Power Pro True outlets from Seetronic
6-way DMX splitter (5-pin in/out)
Status LEDs on each power and DMX output
Compatible with Multipin H16 and Harting HAN16
Quick-lock mounting option for easy installation

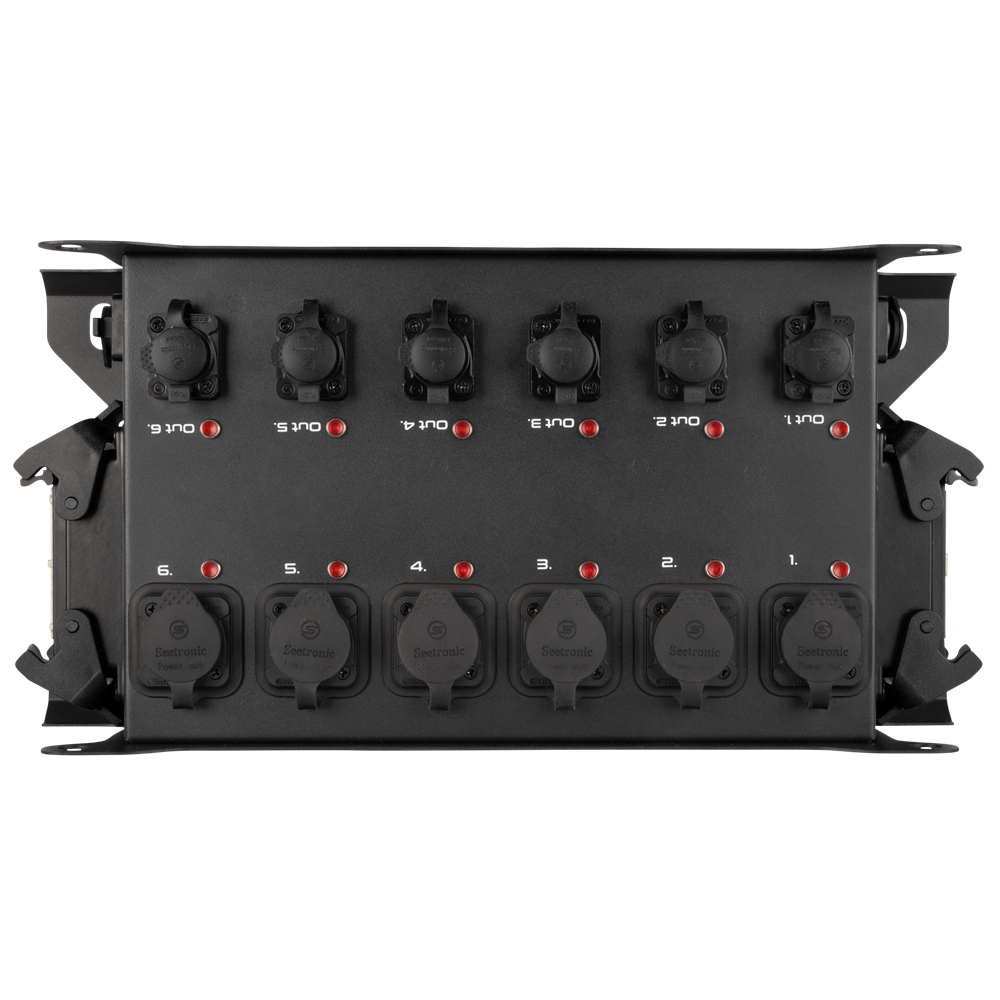

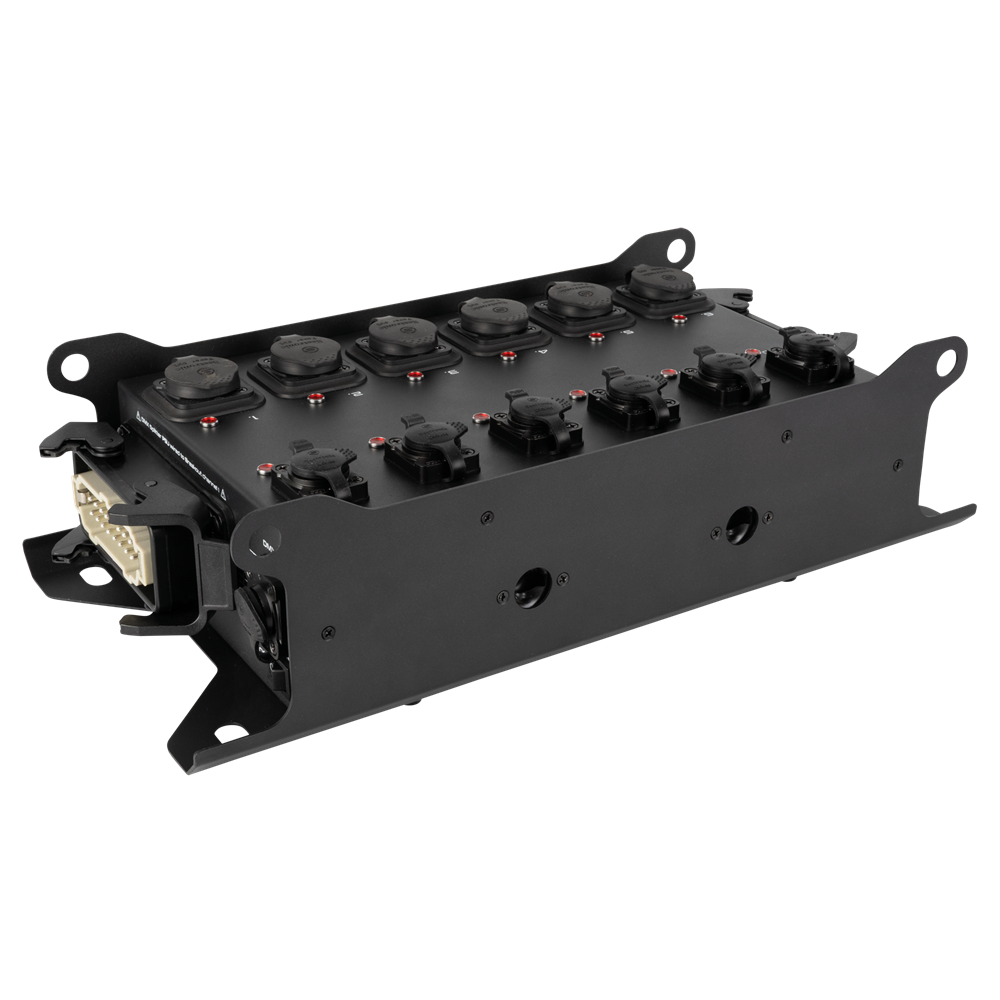

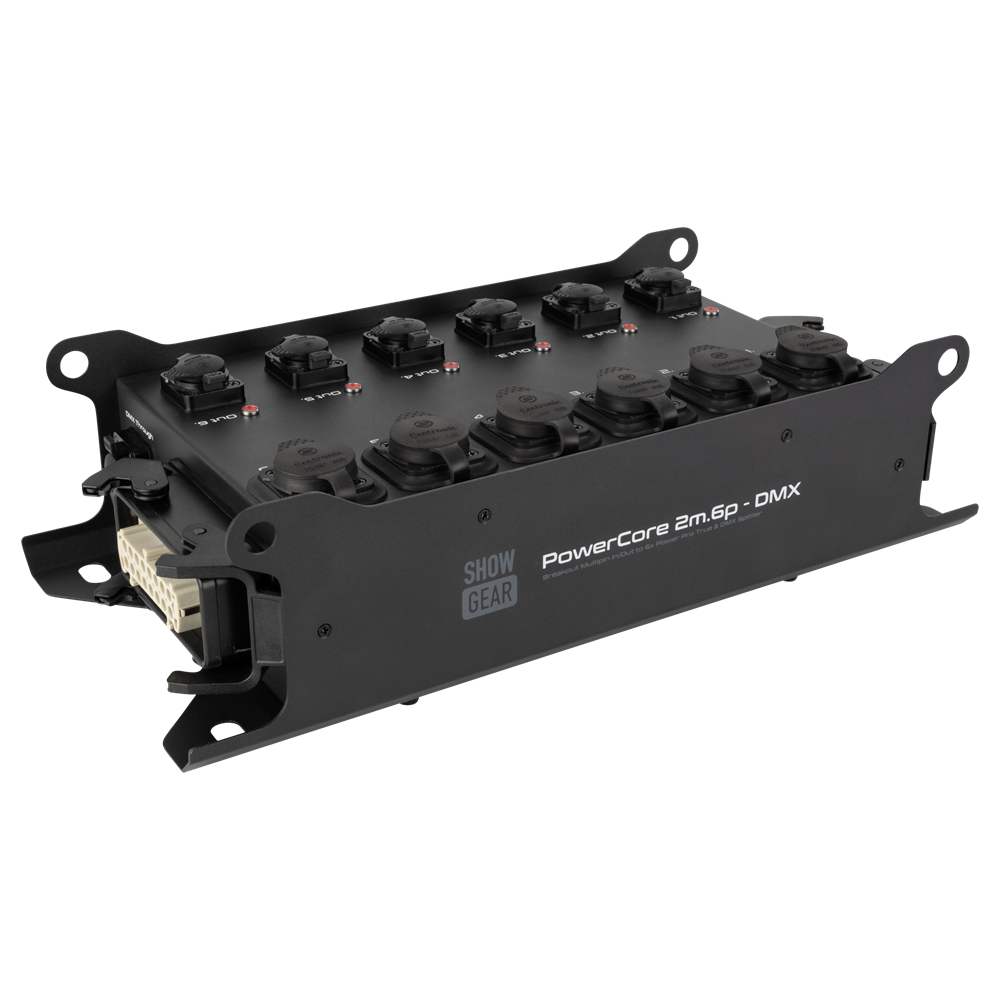

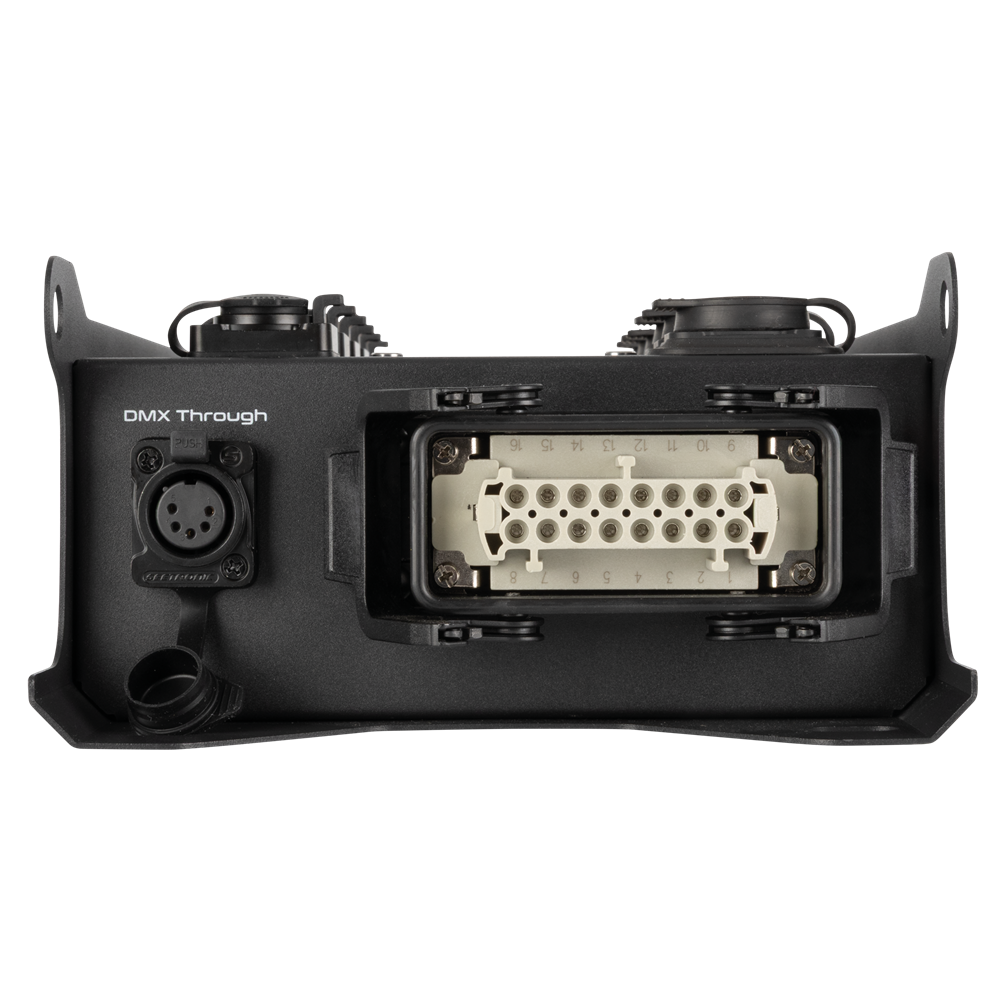

The Showgear PowerCore 2m.6p - DMX combines power and DMX signal distribution in one breakout box. It has two Multipin H16 connectors (male/female), 6 high-quality Power Pro True outlets from Seetronic and an integrated, 6-way DMX splitter. Its loop-through design connects all 8 channels from input to output, while channels 1-6 power the Power Pro True outlets. The 5-pin DMX input is split into six 5-pin DMX outputs. For quick and convenient status checks, each power outlet includes a voltage indication LED, while each DMX output includes an activity LED.

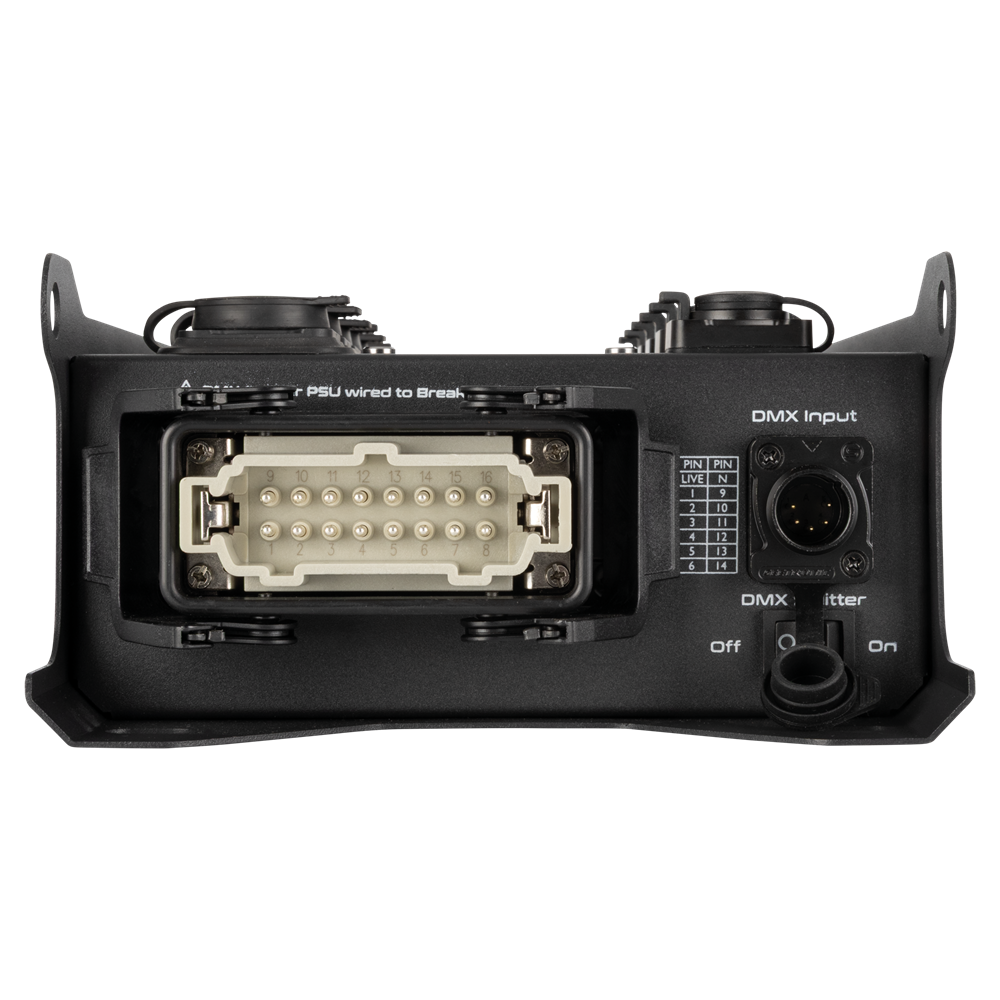

It is designed for seamless integration with the Showgear PowerCore series and is compatible with all PowerCore units equipped with a Multipin H16 output connector. It is also compatible with Harting HAN16 and other power distributor brands that use the 1-9 standard (pin 1+9 is channel 1, pin 2+10 is channel 2, etc.).
For flexible installation, the PowerCore 2m.6p - DMX offers multiple mounting holes for permanent setups and a quick-lock mounting point for fast, tool-free attachment using the optional PowerCore Quick Lock Bracket.
Power Supply: 230 V AC 50/60 Hz
Power Consumption: 8 W
Rated Current (A): 16 A
Power Connector In: Multipin H16
Power Connector Out: Multipin H16 / Power Pro True
DMX Connector In: XLR 5P
DMX Connector Out: XLR 5P
Length (mm): 405 mm
Height (mm): 112 mm
Width (mm): 198 mm
Weight: 4.3 kg
IP Rating: IP20 (indoor use only)
Material: Metal
Colour: Black
LED Indicators: Power / Signal
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: -5 °C
Mounting Options: Quick-Lock / Wall
Fixed Mounting Option: 11 mm
Safety Attachment: Yes
