Versatile mounting on 30 x 30 cm truss

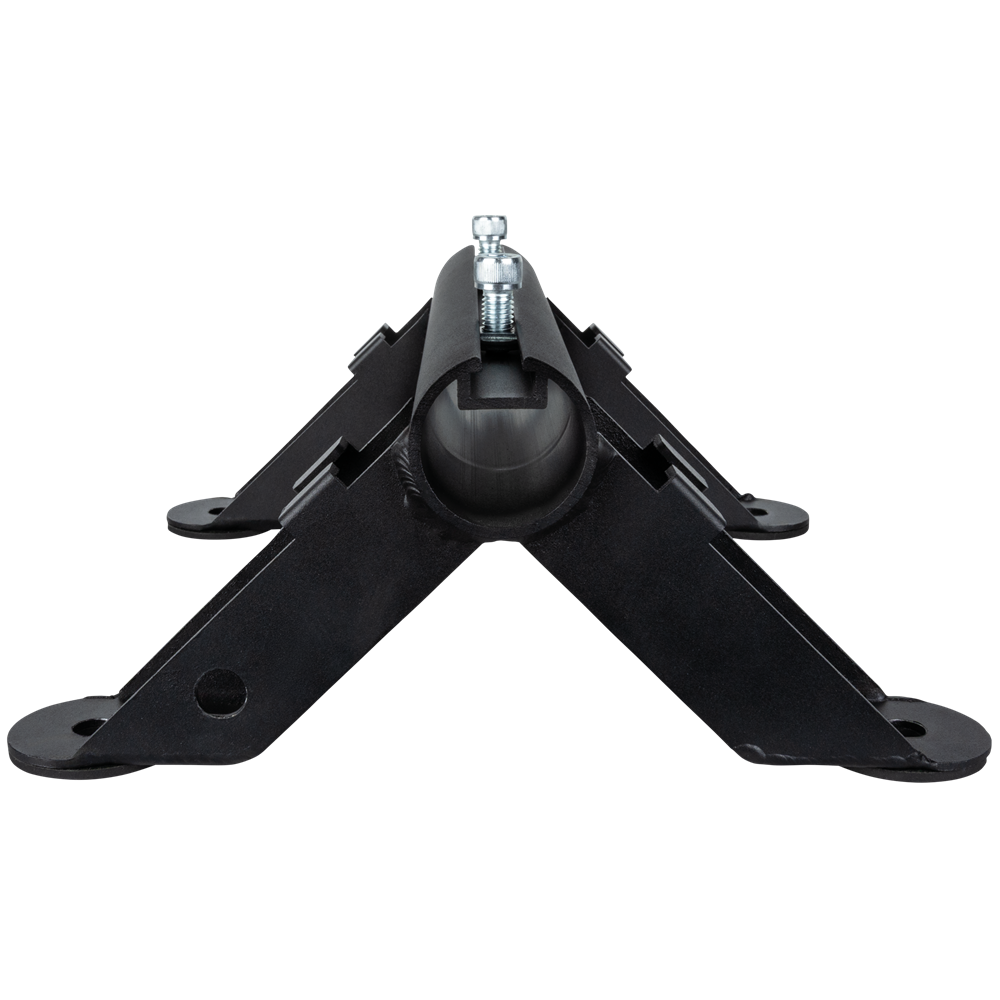

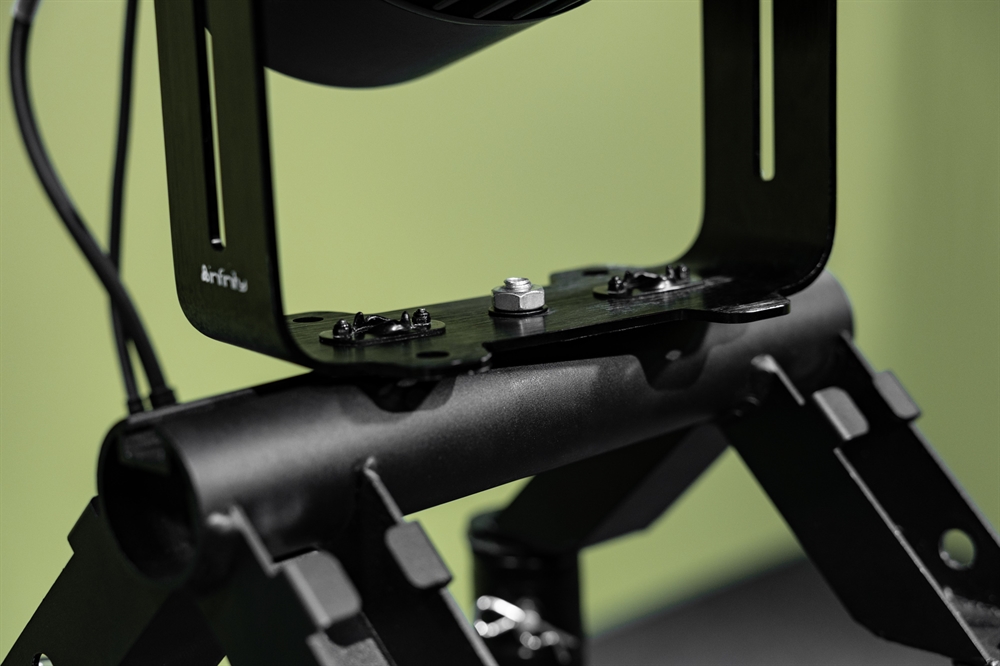

T-slot compatible with M10 bolts and sliding nuts

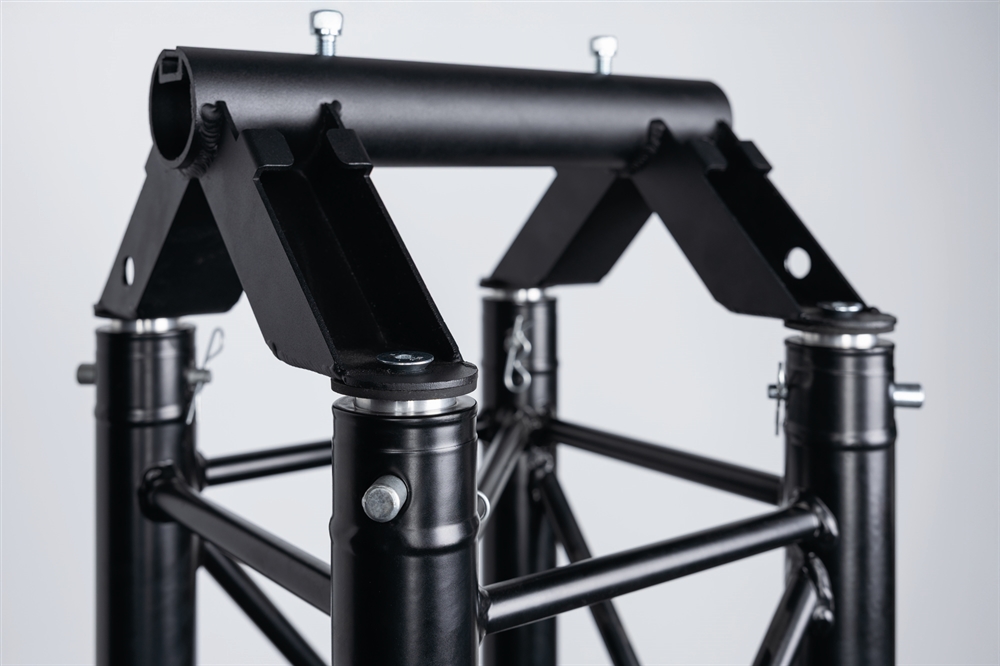

Can be installed on a 30 cm square truss, for use as a pillar or suspension
Anti-slip rubber feet
Easily stackable

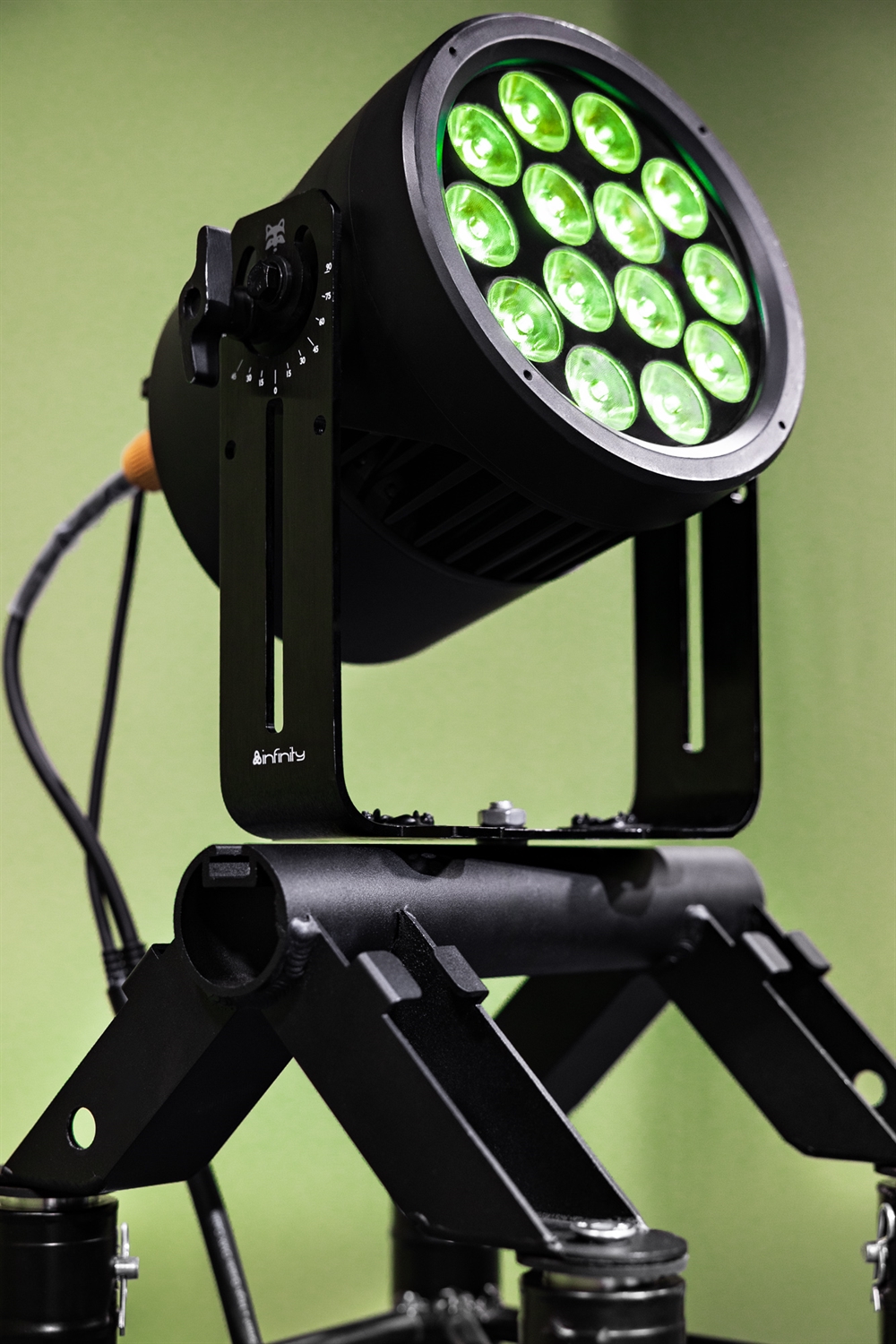

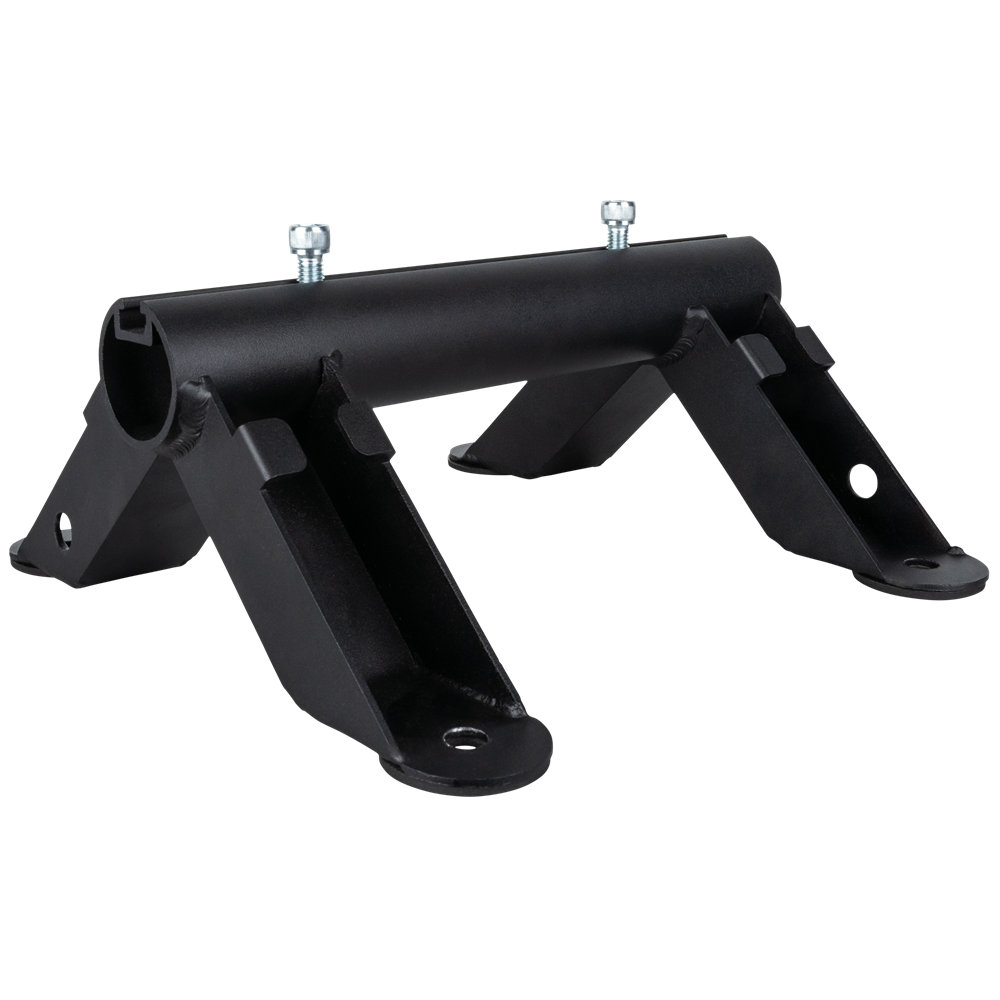

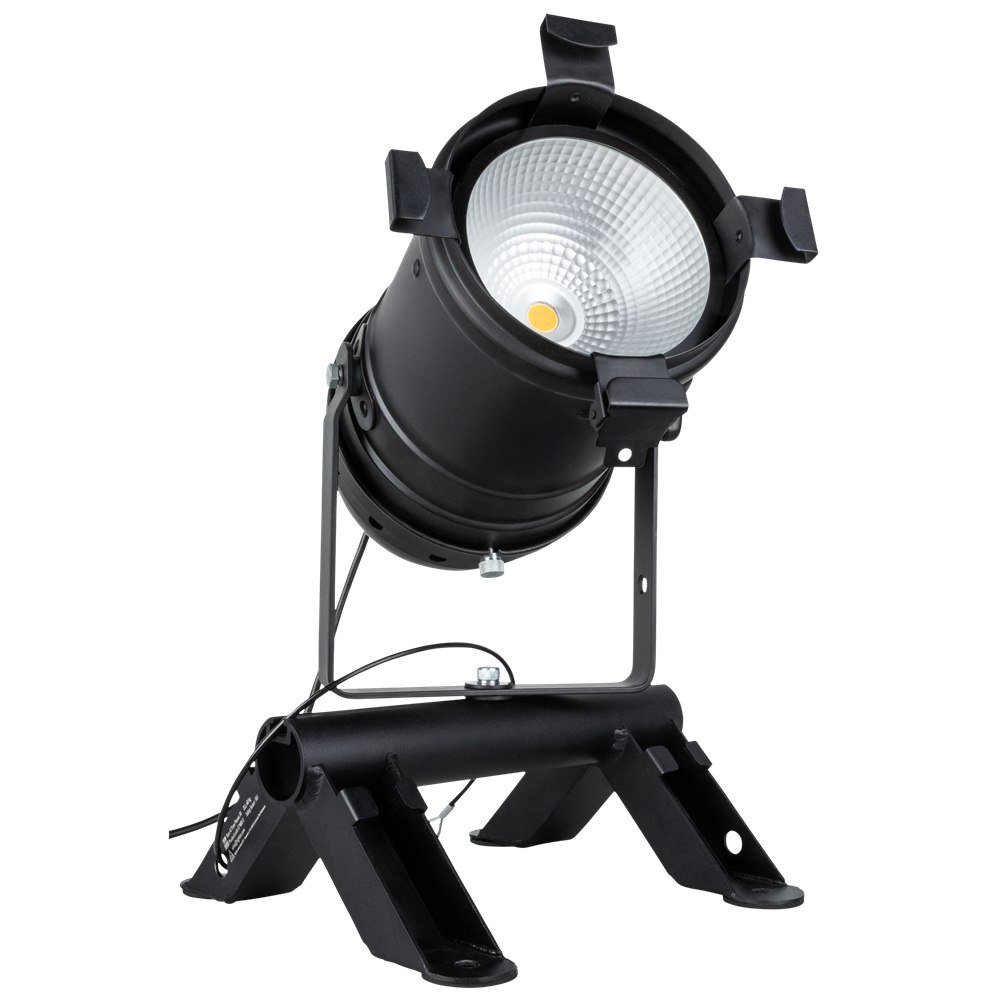

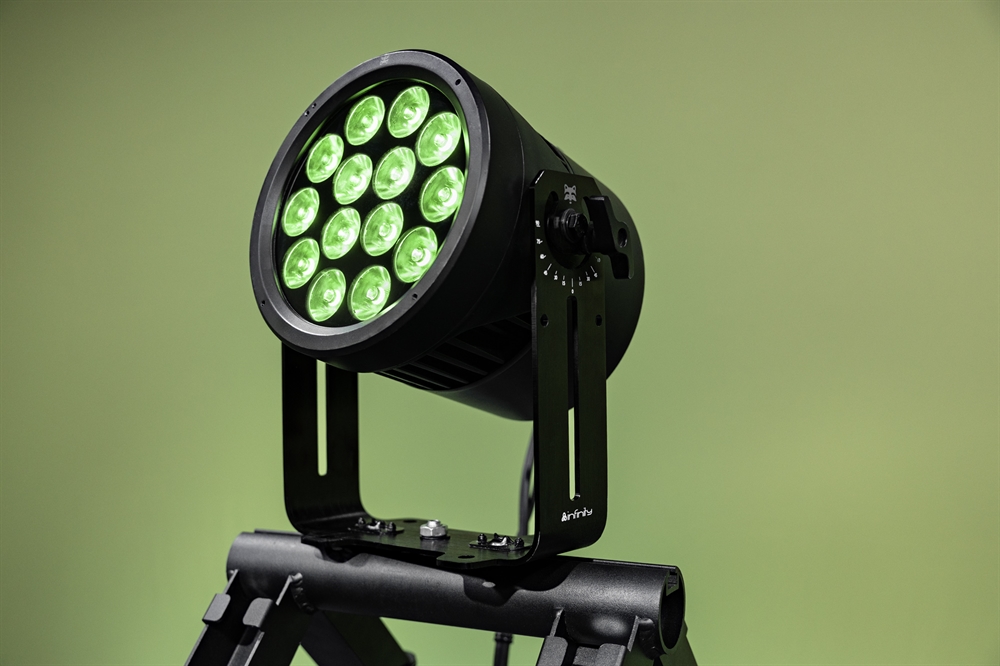

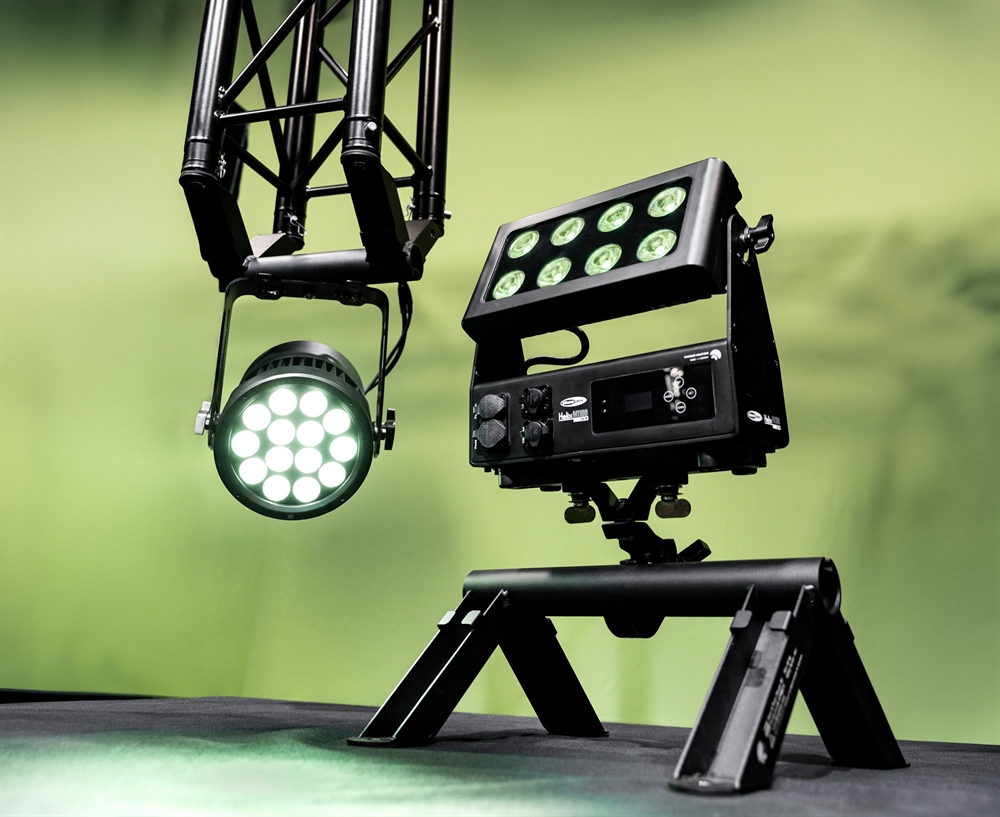

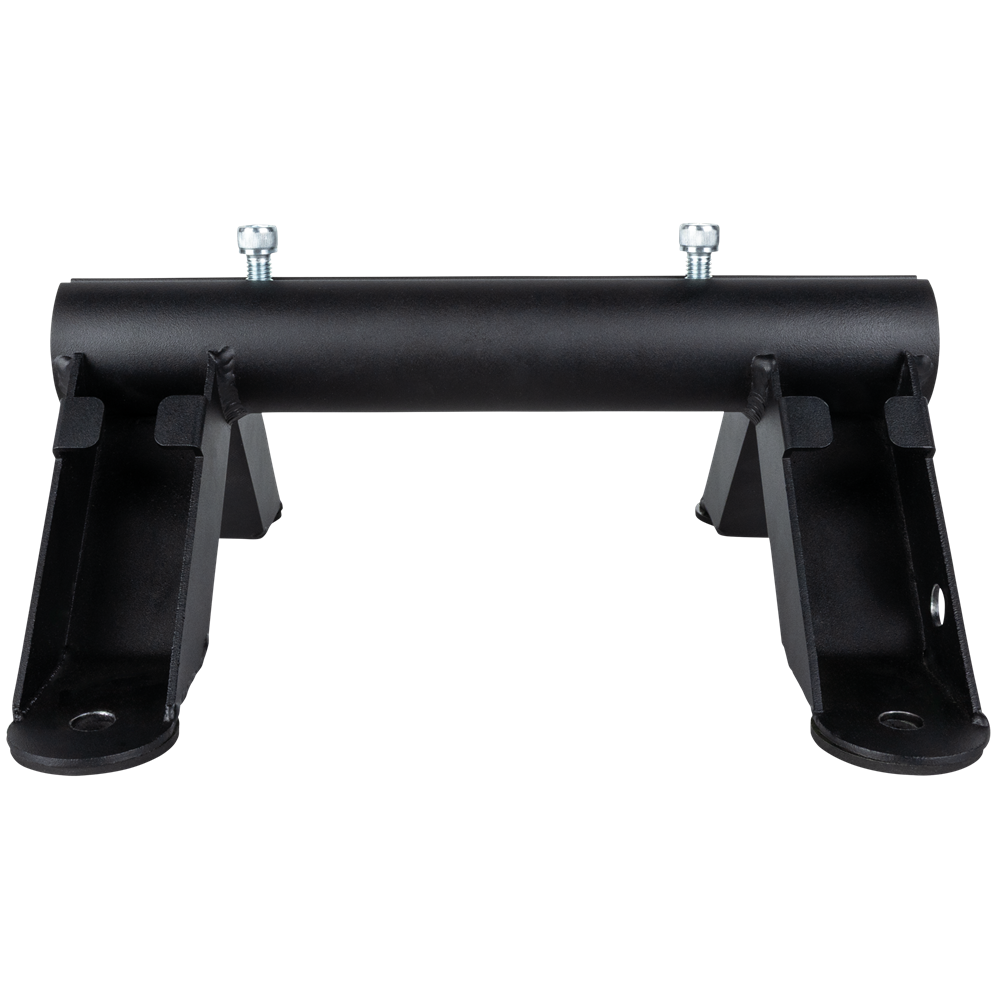

The Showgear Base & Truss Mount 30 is a versatile solution for mounting fixtures on the floor or integrating them into truss structures. Measuring 30 x 30 cm and featuring a 50 mm tube with a T-slot, this mount offers exceptional flexibility for theatres, rental setups, and event applications. An M10 bolt or sliding nut fits perfectly into the T-slot, allowing easy attachment of clamps and accessories.

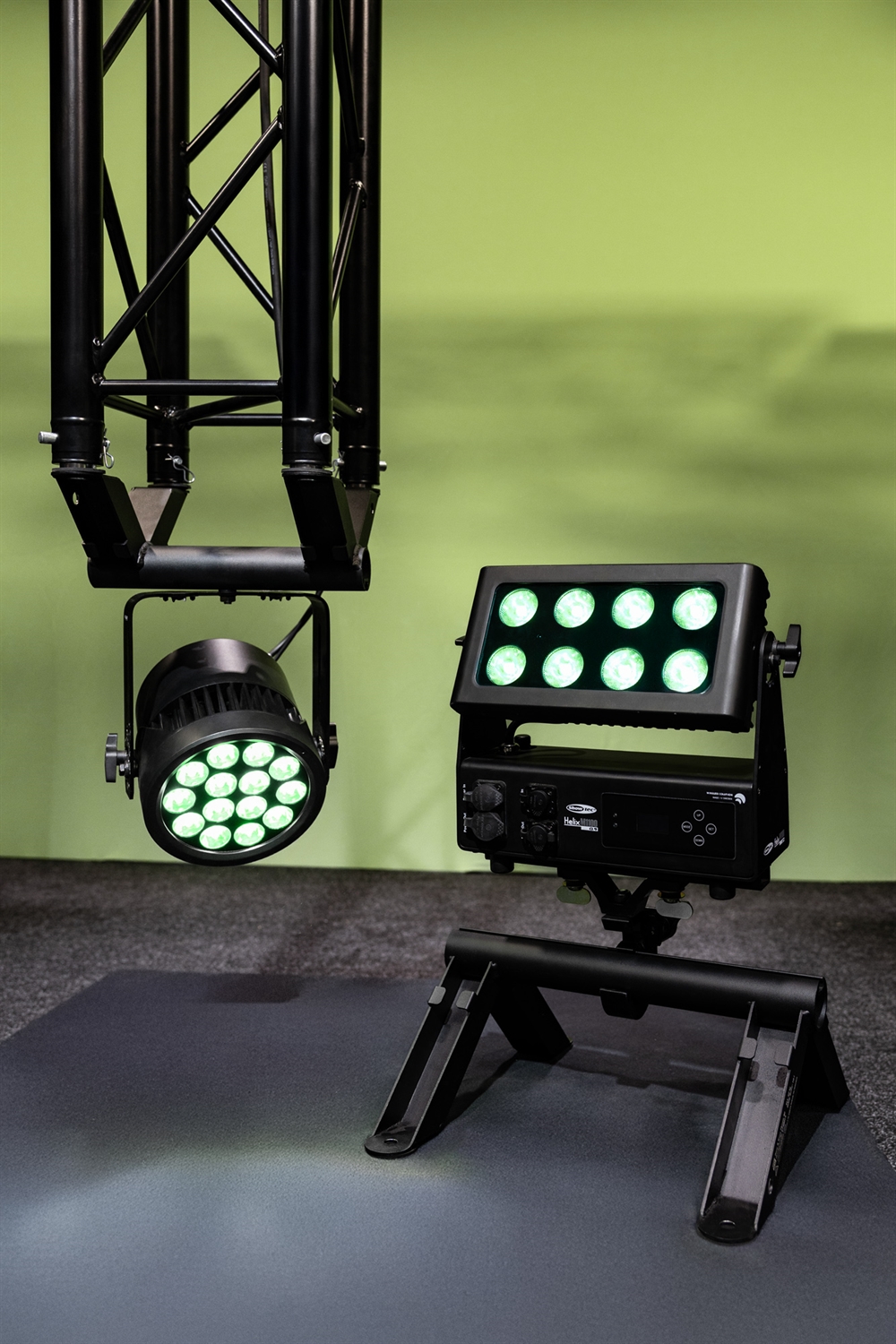

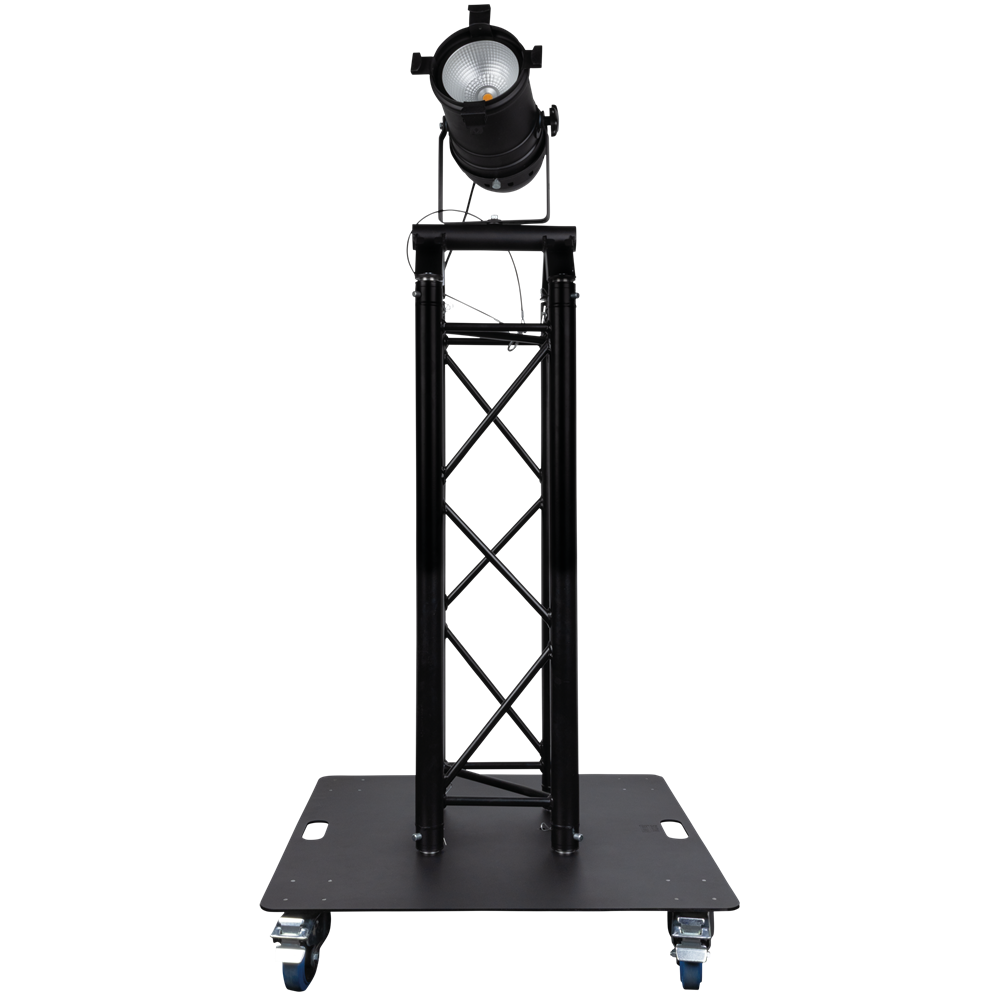

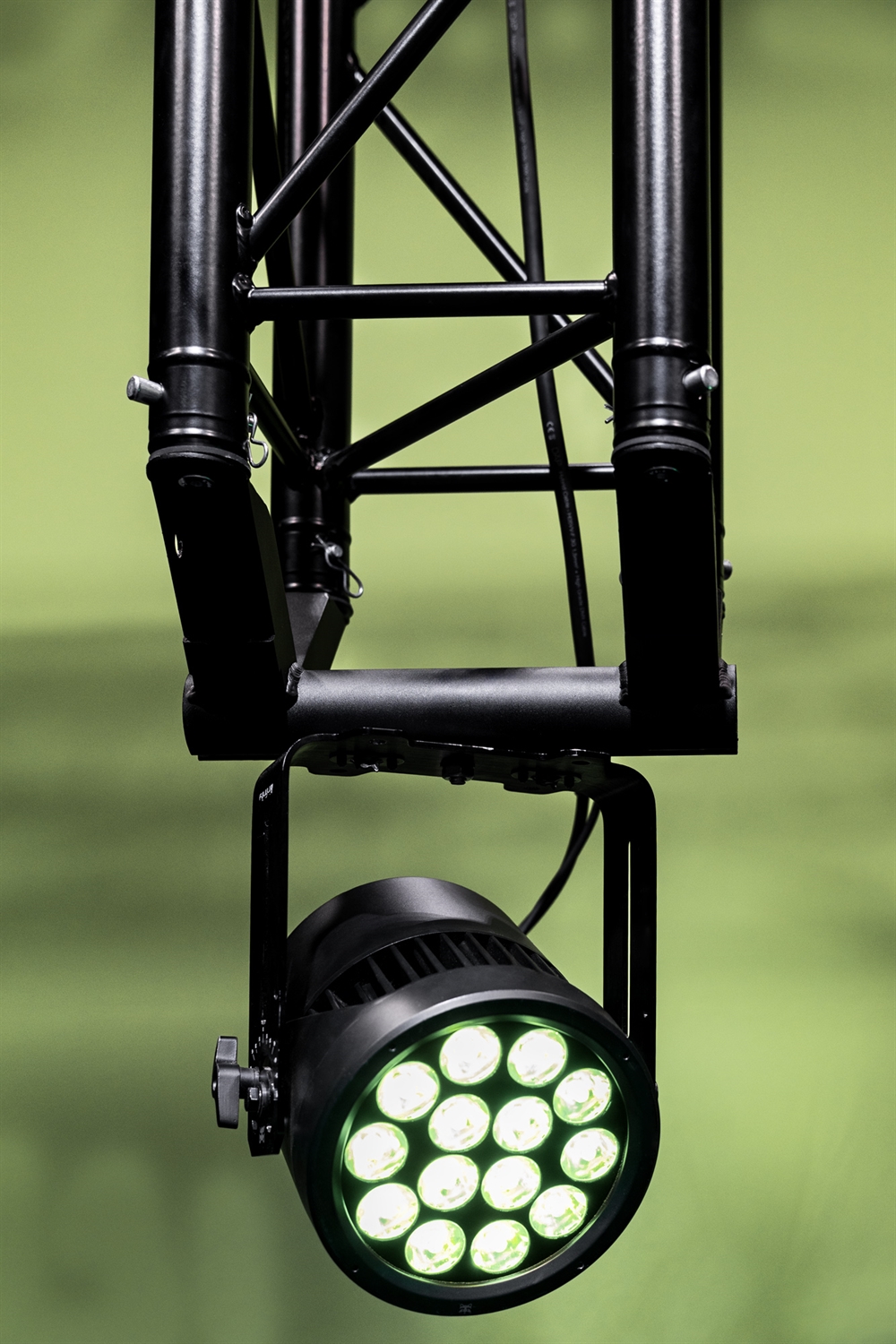

Supplied with Allen bolts and sliding nuts, the Base & Truss Mount 30 can be used as a top bracket for downward truss mounting, installed under a 30 cm square truss to create a suspension point, or mounted on a truss to create a pillar. Equipped with rubber feet to prevent slipping and designed for easy stacking, this mount combines stability, adaptability, and convenience in one compact unit.
WLL (kg): 60 kg
Material: Aluminium
Finish: Powder Coating
Colour: Black
Length (mm): 290 mm
Height (mm): 126 mm
Width (mm): 310 mm
Safety Factor: 10:1
Tensile Strength: daN
