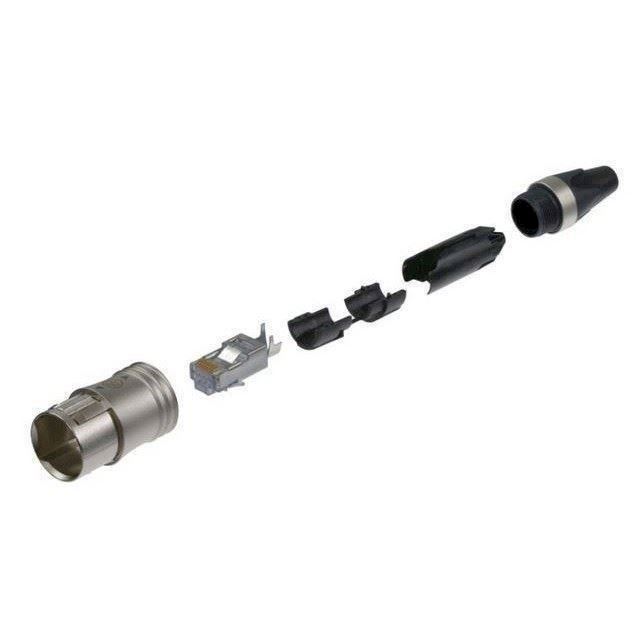

The set NE8MC6-MO includes a cable plug carrier offering a robust metal shell with Push-Pull locking system, proven Neutrik chuck-type strain relief and a CAT6 RJ45 plug. The set can accommodate STP und UTP cables with O.D. of 5.5 to 6.5mm and gauge of AW
Teknisk specifikationer Cabel O.D.5.5 - 6.5 mm Insertion force≤ 40 N With drawal force≤ 20 N Lifetime> 1000 mating cycles Wire size28 - 22 AWG Locking device Push-Pull Boot Polyuretan Bushing Polyamide (PA 6 15% GR) Contact plating 0.7 µm Au over 1.2 µm Ni plating Contacts Bronze (CuSn8) Insert Polyamdie (PA 6.6 30 % GR) Shell Zinc diecast (ZnAl4Cu1) Shell plating NickelStrain relief Polyacetal (POM) CAT6 Plug Molex Part Nr. 44915-0021 FlammabilityUL 94 HB Standard compliance CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173 Protection classIP 65 Temperature range-10 °C bis +60 °C
