RCF MQ50C 2-vejs indbygn. højttaler 16 Ohm + 100V, hvid

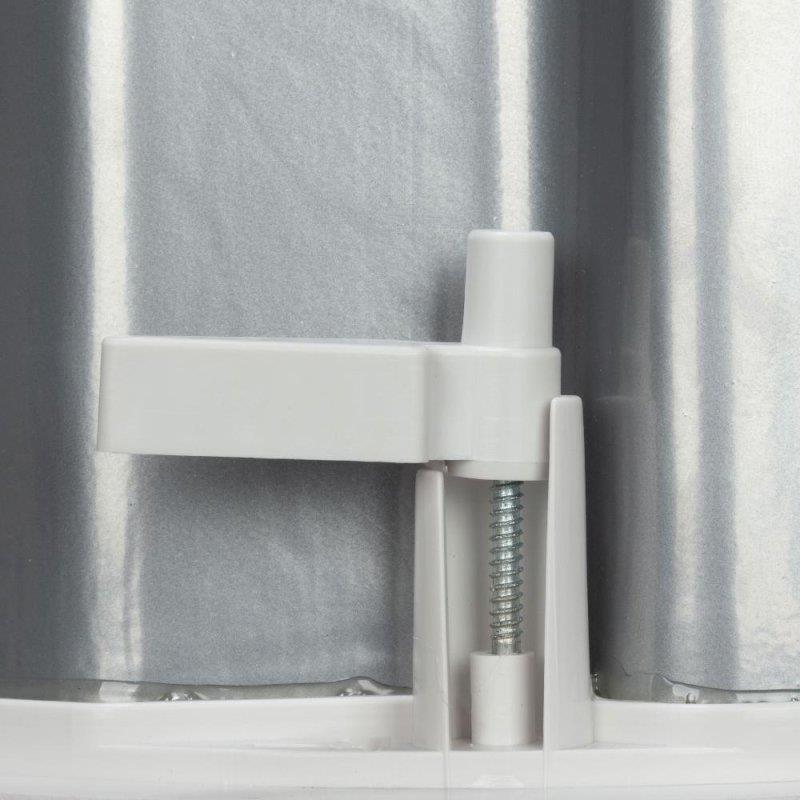

MQ50C er en 2-vejs lofthøjtaler, ideelt til brug i PA-systemer og til baggrunds/forgrundsmusik hvor kvalitetslyd er påkrævet. Dome-tweeteren sidder på en Q-waveguide og giver en naturlig lydreproduktion og en bred spredningsvinkel. Installation af MQ50C er både nemt og hurtigt ved brug af de indbyggede roterende kroge.
Cut out diameter 245 mm
5" woofer with 1" dome tweeter
Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
91 dB sensitivity
Colour white RAL 9016 and black RAL 9005
Self-extinguishing plastic frame and back can, steel grille

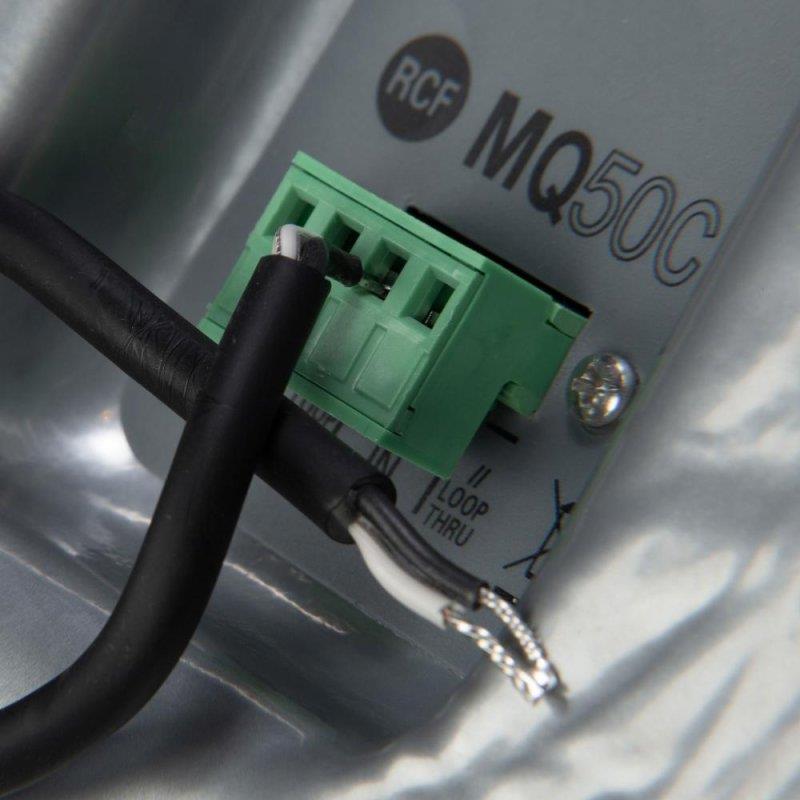

In/out euroblock connectors
Compact design, light weight and limited depth makes the MQ 50C a 2-way ceiling speakers ideal for use in any background and foreground music system where a good sound is required. The woofer is a high-excursion, PP coated paper cone with rubber surround design mounted in a tuned enclosure. The fabric dome tweeter is loaded on a constant Q wave guide to provide natural and smooth sound reproduction on a wide dispersion angle. Installation of MQ 50C is fast and efficient thanks to the built-in rotating hooks. No additional brackets or rings or other supports are required: thanks to its lightweight construction the speaker can be mounted as a conventional ceiling speakers. Connections are made on four poles Euroblock connector. Power value can be selected with a rotary switch, accessible behind the grill.
2 way bass reflex ceiling
Frequency Response: 70 Hz ÷ 20 kHz
Max SPL @ 1m: 112 dB
Horizontal coverage angle: 120°
Power Handling: 60 Watt RMS
Peak Power Handling: 120 Watt PEAK
System Sensitivity: 92 dB
Impedance: 16 Ω
Crossover frequencies: 3000 Hz
Speaker: 5"
Tweeter: 1"
Input connector: 2 euroblock
Constant voltage: 100 V, 70 V
Power Selection: 30 - 20 - 10 - 5 W (100 V)
Hardware: Body in self-extinguishing plastic
Colour: White
Grille: Steel
