Press Patch Box 20-channel - Palmer Pro

A press patch box is a special audio signal splitter, which is developed for the specific requirements of a press conference. Via separate inputs, you can connect either a microphone or a line signal (mixer output).

Also available as a stereo version (PPB20S)

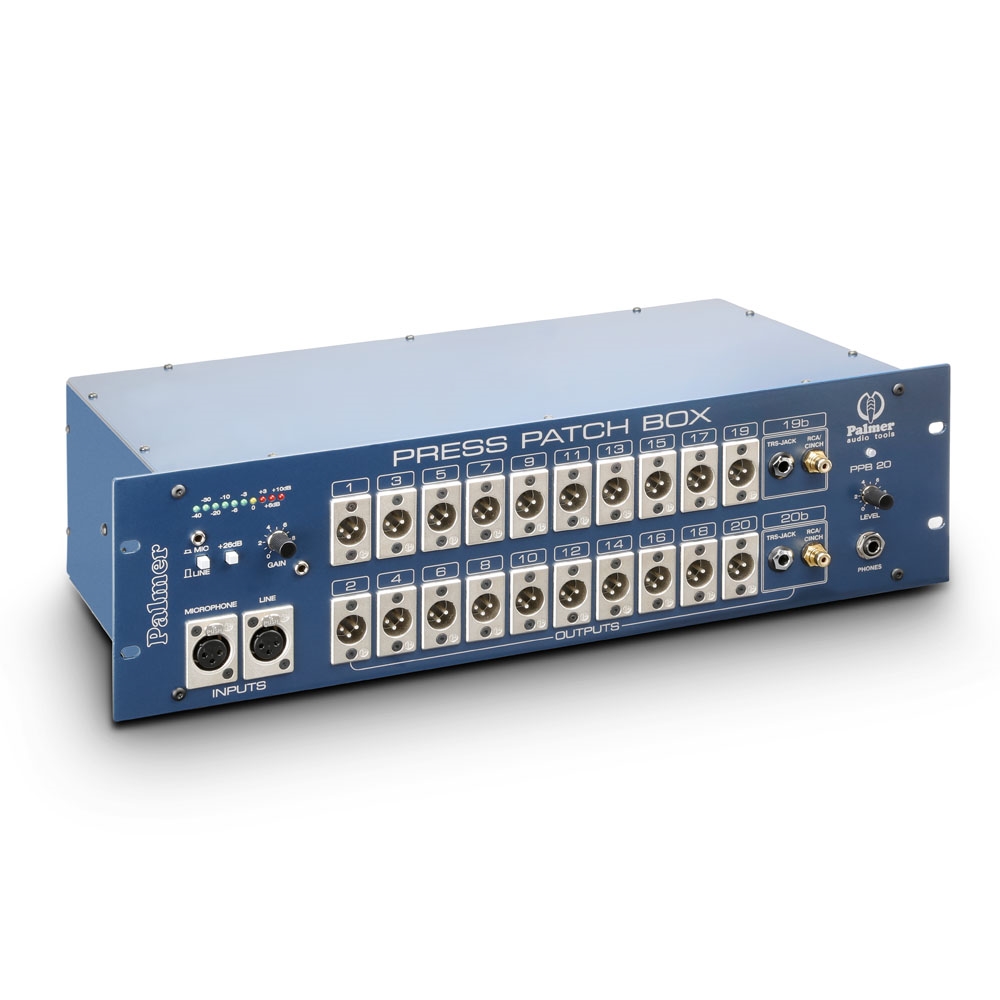

A high-quality input amplifier with balanced earth-free input allows for a level adjustment over a wide range. 20 transformer-balanced XLR/m jacks with individual driver circuits in pairs are available as outputs for video cameras or other sound recording devices.

The nominal output level is +4 dBu at 600 ohms. In addition, channels 19 and 20 are equipped with TRS phone jacks for balanced or unbalanced signals and with RCA sockets (-10 dBu nominal level).

If more than 20 outputs are required, further PPB20 units can be cascaded via a BUS IN/OUT socket on the rear panel. A 10-fold LED chain and an adjustable headphone amplifier are used for signal monitoring (display range -40 to +10 dB, 0 dB display

corresponds to +4 dBu output).

The PPB20 has a built-in shielded power pack. An additional DC input allows for battery operation or using an emergency power supply. PW4 is a suitable emergency power supply for two PPB20.

• 1-into-20 signal splitter
• Individual floating transformer-balanced XLR mic and line level inputs
• High-quality input amplifier with gain control and +20 dB switch
• 10-LED meter with -40 to +10 dB display range

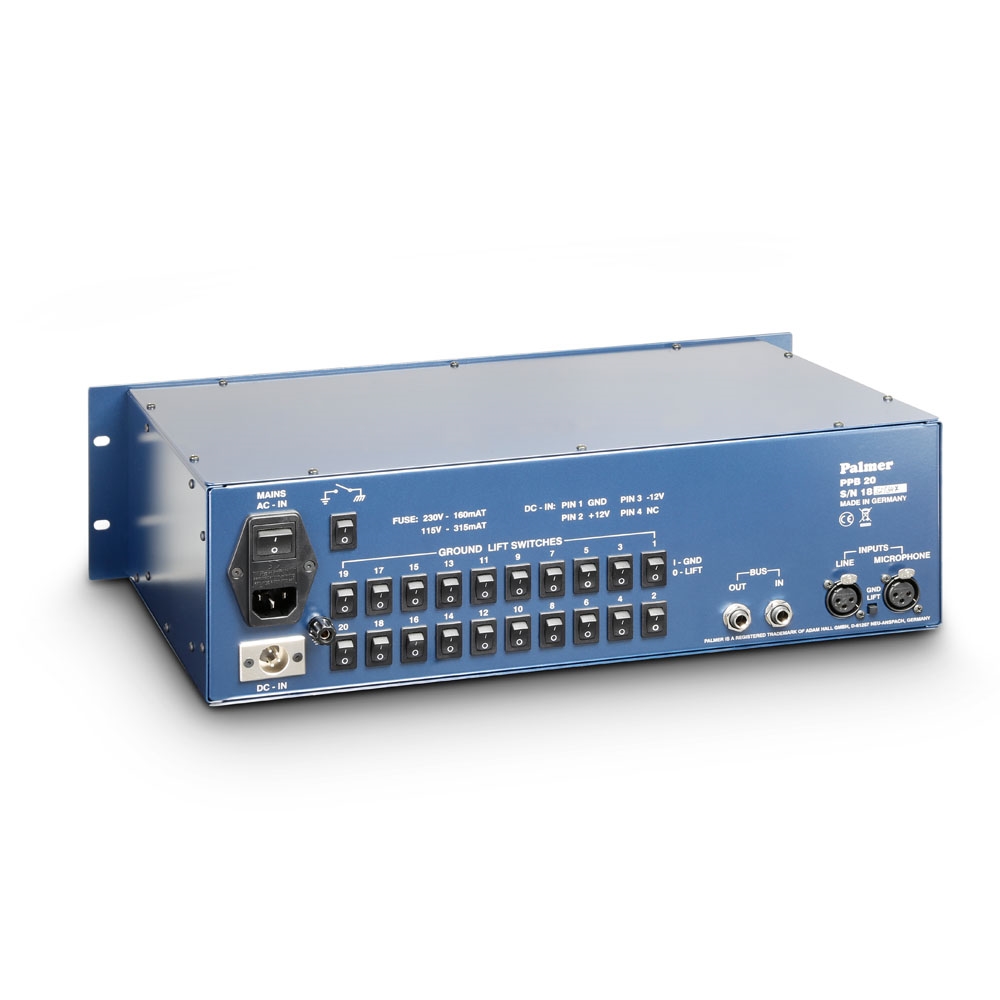

• 20 transformer-balanced XLR outputs with paired driver circuits and individual ground lift switches at rear
• 2 additional 1/4” TRS and RCA outputs each
• 4 dBu nominal output level at 600 ohms, TRS and RCA -10 dBu
• 1/4” headphones output with level control
• Bus input and output for cascading multiple units
• Built-in shielded power supply
• DC input for emergency power supply
