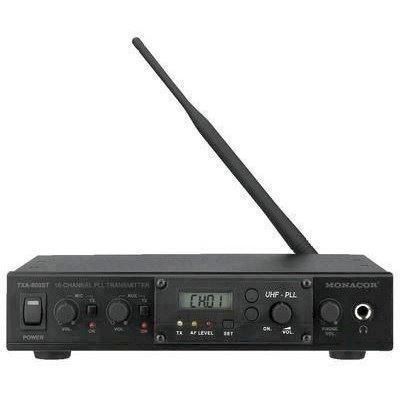

PLL Sender - TXA-800ST - MONACOR

PLL Sender - TXA-800ST - MONACOR
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for PLL Sender - TXA-800ST - MONACOR
    Produktet er endnu ikke bedømt
  •
    3.109,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


Professional 16-channel PLL audio transmission system, mono, 863-865MHz, with extensive accessories
suitable for microphone operation and line audio signals.

Professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories
  • Compatible with portable amplifier systems of the TXA-800 and TXA-1000 series
  • Can be combined with the TXA-800and TXA-1000 series, but also suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
  • Can be combined with transmitters and receivers of the ATS-16 series
  • Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitters, stationary RF sources of interference and other local conditions)
  • Licence-free in the EU
16-channel PLL transmitter, for microphone operation and line audio signals.
  • Matching the receivers TXA-800R, ATS-16R and portable amplifiers of the TXA-800 series, TXA-1000 series, TXA-1020 series
  • 16 selectable UHF frequencies (863.1-864.9 MHz)
  • Audio stereo line input via RCA L/R
  • Balanced XLR microphone input and 6.3 mm microphone input
  • Audio mono line output via RCA
  • Adjustable headphone output
  • Backlit LCD for indicating channel/frequency, LEDs for carrier frequency, signal and signal peak
  • Additional DC voltage output 10-15 V DC current  for connecting an additional transmitter
  • 482 mm (19") rack installation of 2 devices is possible with supplied mounting brackets
  • Power is provided via enclosed plug-in power supply
  • Dimensions: 215 x 50 x 210 mm
  • Weight: 1.25 kg

Licence-free in the EU.


Typetransmitter unit
Carrier frequency range863.1-864.9 MHz
Audio frequency range-
Channels1
THD-
Dynamic range-
RF S/N ratio-
Operating time-
Admiss. ambient temp.0-40 °C
Power supply-
Dimensions-
Total weight-
Connections-
Transmitting power10 mW
Operating rangeapprox. 30 m
Power supply transmittervia encl. plug-in power supply
Width transmitter215 mm
Height transmitter50 mm
Depth transmitter210 mm
Weight transmitter1,25 kg
Connections transmitter1 x XLR, bal. (mic in),
1 x 6.3 mm jack, unbal. (mic in),
1 x RCA L/R (line in),
1 x RCA L/R (line out)
Specifications receiver-
Audio signal receiver-
Power supply receiver-
Width receiver-
Height receiver-
Depth receiver-
Weight receiver-
Connections receiver-
Varenr.: 172600
