Passive Monitor Controller - Palmer Pro

Passive Monitor Controller - Palmer Pro
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Passive Monitor Controller - Palmer Pro
    Produktet er endnu ikke bedømt
  •
    2.009,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

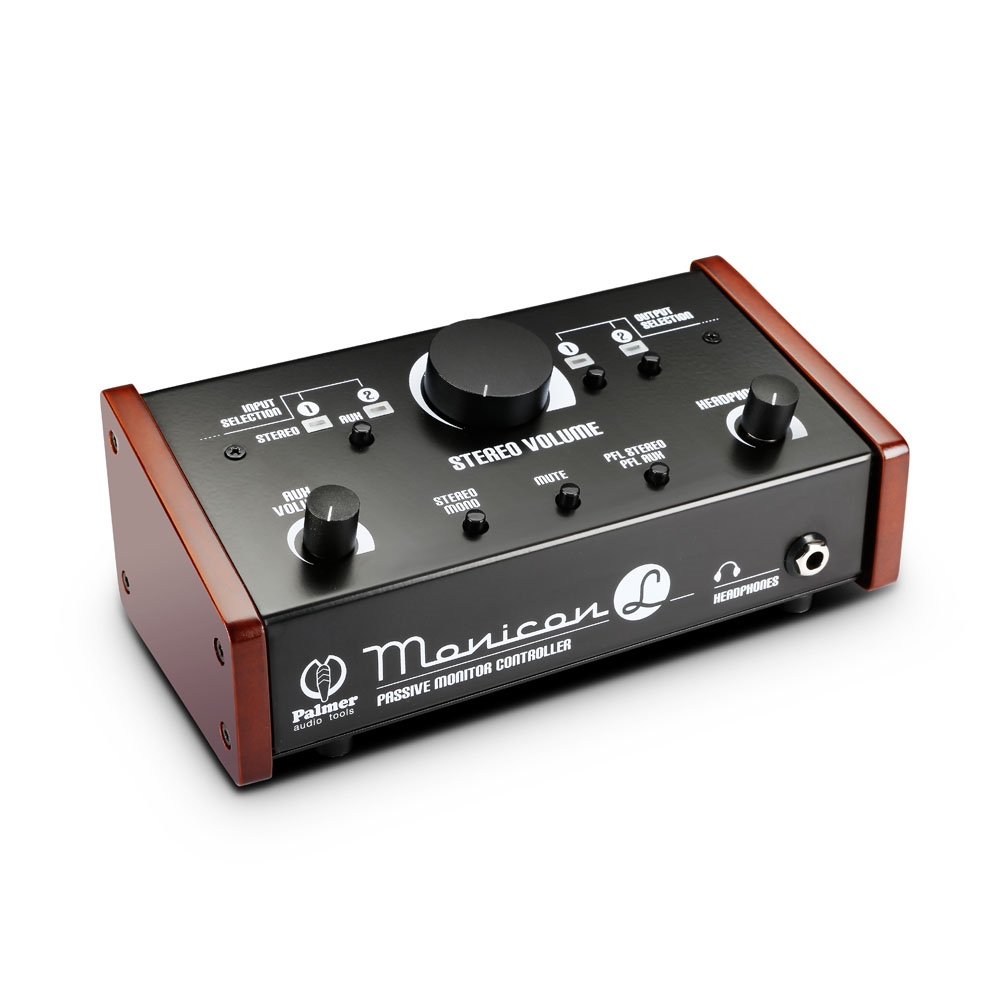

The Palmer Monicon L is a precise analog volume control that connects between computers or audio interfaces and self-powered monitor loudspeakers. To prevent signal coloration the circuitry is all passive, the LED indicators and built-in headphone amplifier are powered by the included DC adapter.

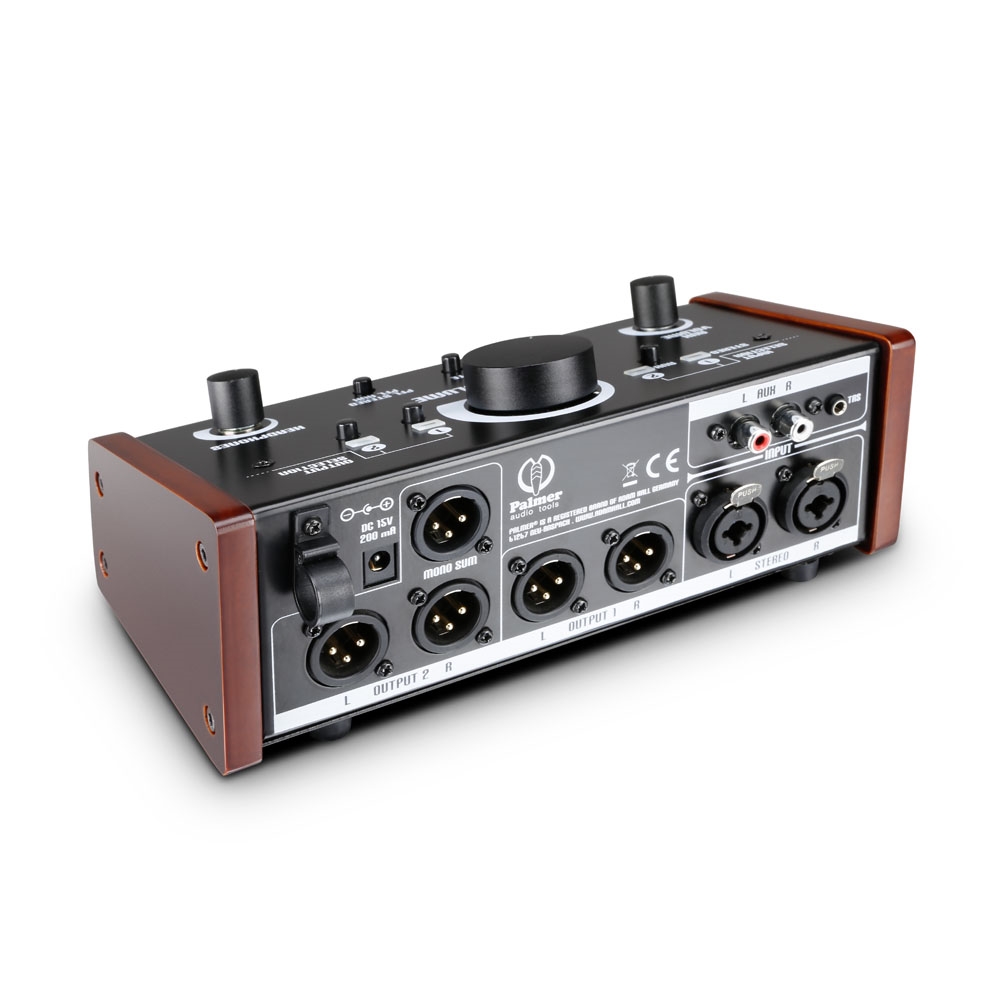

The Monicon L's stereo input is on balanced combo sockets, the AUX input features a 3.5 mm TRS jack and RCA connectors. The compact console sports dual outputs for two pairs of monitor speakers and a summed mono output on XLR connectors. The stereo and AUX inputs are alternatively selectable, the outputs can be activated individually and in tandem. Besides the large stereo volume knob the Monicon L provides mono, mute and PFL switches, a 6.35 mm TRS headphone jack as well as separate AUX and headphone level controls for additional convenience.





  • All-passive volume control circuit
  • Stereo and AUX inputs
  • Dual outputs
  • Additional mono output
  • Balanced and unbalanced connection
  • Integrated high quality headphone amplifier
  • Mono, mute and PFL switches
  • Stereo volume, AUX and headphone level controls
  • Elegant design with solid wood side panels
  • Built to last

Product typeOther Studio and Recording Equipment
Channels2
Inputs2
Input connectors3.5 mm TRS, RCA, XLR
Input typebalanced/unbalanced (depending on TS/TRS connection)
Max. input level20 dBu
Input impedance(balanced) 10k Ohm(s), (unbalanced) 5k Ohm(s)
Outputs3
Output connectorsXLR
Output typebalanced/unbalanced (depending on TS/TRS connection)
Max. output level20 dBu
Output impedance600 Ohm(s)
Frequency response10 - 40000 Hz
THD0.001 %
Max. attenuation(Attenuator + Mute) 112 dB, (Attenuator) 85 dB
ControlsPFL source, attenuation, input selector, mono, mute, output selector
Cabinet materialsheet steel, wood
Cabinet surfacepowder coated
Width218 mm
Height77 mm
Depth100 mm
Weight1,14 kg


Varenr.: A-PMONICONL
