| Active/passive |
passive
|
| Transmission technology |
100 V or low-impedance
|
| Total power rating |
120 W
|
| Power rating (RMS) |
50/25/12.5/6.25 W (100 V) 60 W (8 Ω)
|
| Impedance |
8 Ω
|
| Frequency range |
35-20,000 Hz
|
| System |
2-way
|
| Bass speaker |
20 cm (8") bass-midrange speaker
|
| Tweeter |
25 mm (1") dome tweeter
|
| Number of speakers |
2
|
| Speaker size |
20 cm (8")
|
| SPL |
90 dB/W/m
|
| Max. rated SPL |
106 dB
|
| Radiation angle/beam angle |
H: 100°/V: 80°
|
| Radiation angle, horizontal |
100°
|
| Radiation angle, vertical |
80°
|
| Housing material |
plastic
|
| Colour |
black
|
| Mounting device |
mounting bracket
|
| Protection class |
IP65
|
| Admiss. ambient temp. |
0-40 °C
|

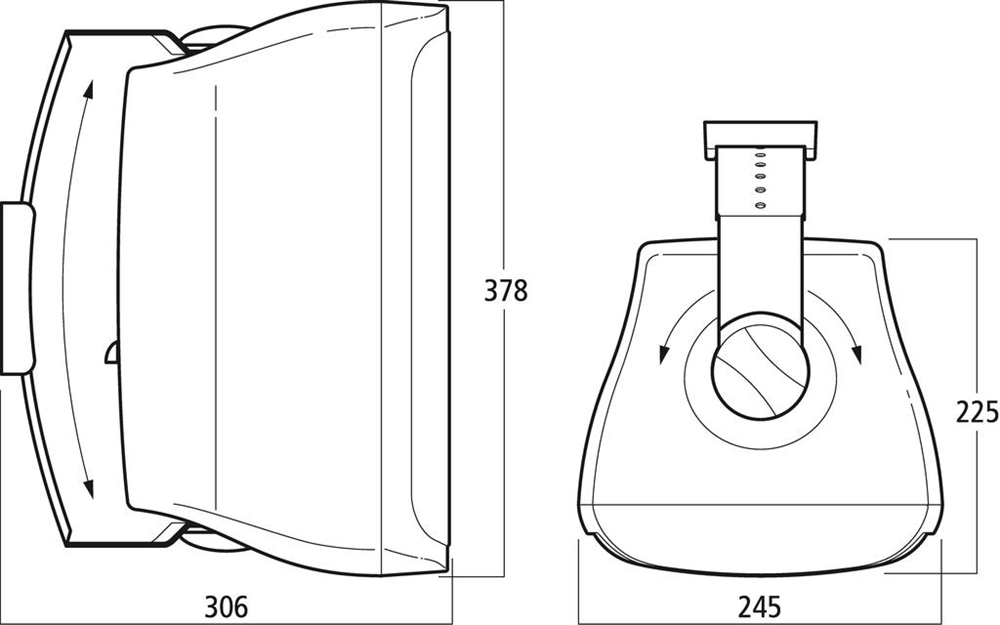

| Dimensions |
245 x 378 x 306 mm (with bracket)
|
| Width |
245 mm
|
| Height |
378 mm
|
| Depth |
306 mm
|
| Weight |
5 kg
|
| Inputs |
spring-loaded speaker terminal
|
| Other features |
for pivoting and tilting
|
| Packaging dimensions (W x H x L) |
0.29 x 0.41 x 0.59 m
|
| Gross weight |
12.4 kg
|
| Net weight |
10.54 kg
|
