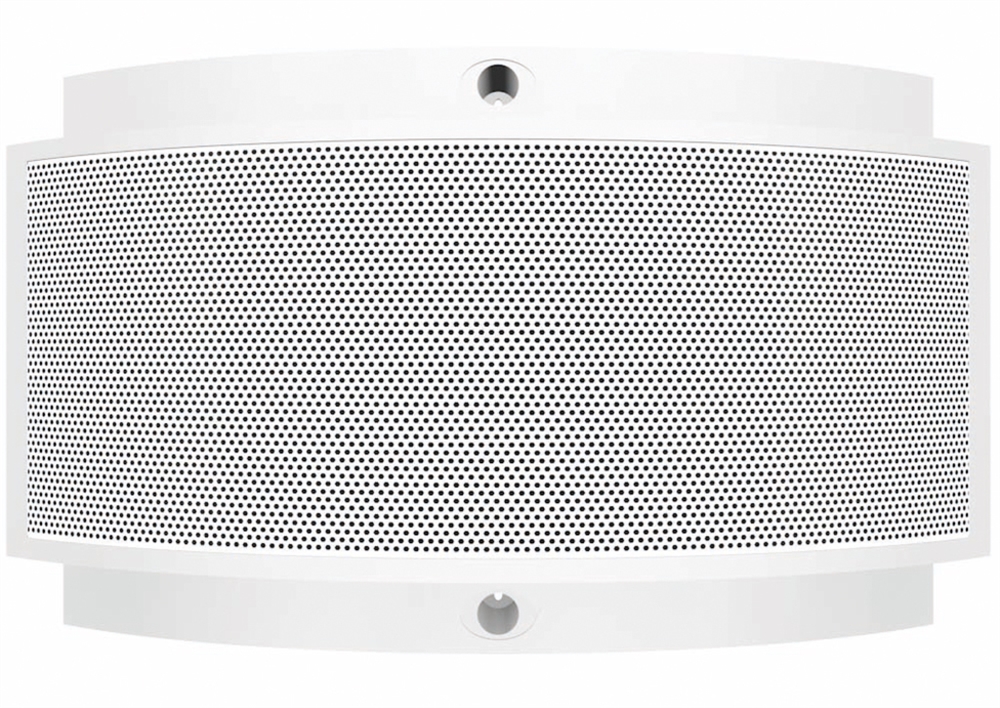

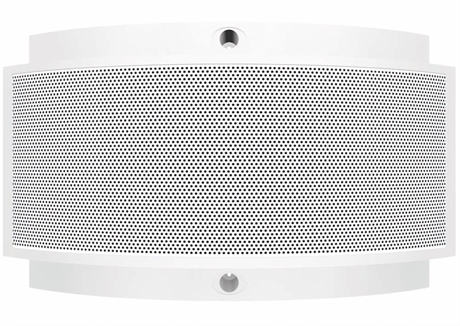

Technical specifications WDW-330
| WDW-330 |
|---|
| Active/passive |
passive
|
| Transmission technology |
100 V
|
| Total power rating |
6 W
|
| Power rating (RMS) |
6/3/1.5 W
|
| Frequency range |
70-19,000 Hz
|
| Number of speakers |
1
|
| Speaker size |
13 cm (5")
|
| SPL |
93 dB/W/m
|
| Max. rated SPL |
101 dB
|
| Radiation angle/beam angle |
H180°/V180°
|
| Radiation angle, horizontal |
180°
|
| Radiation angle, vertical |
180°
|
| Housing material |
ABS
|
| Colour |
white, RAL 9010
|
| Mounting device |
mounting screws
|
| Protection class |
IP54
|
| Dimensions |
330 x 240 x 83 mm
|
| Width |
330 mm
|
| Height |
240 mm
|
| Depth |
83 mm
|
| Weight |
1.6 kg
|
| Inputs |
pressure clamps
|
| Packaging dimensions (W x H x L) |
0.343 x 0.24 x 0.089 m
|
| Gross weight |
1.7 kg
|
| Net weight |
1.6 kg
|
| |
| WDW-330 |
|---|
| EAN code |
4007754429794
|
| Net weight |
1.6 kg
|
| |
